906-000 - instrument cluster - D >> - MJ 1988

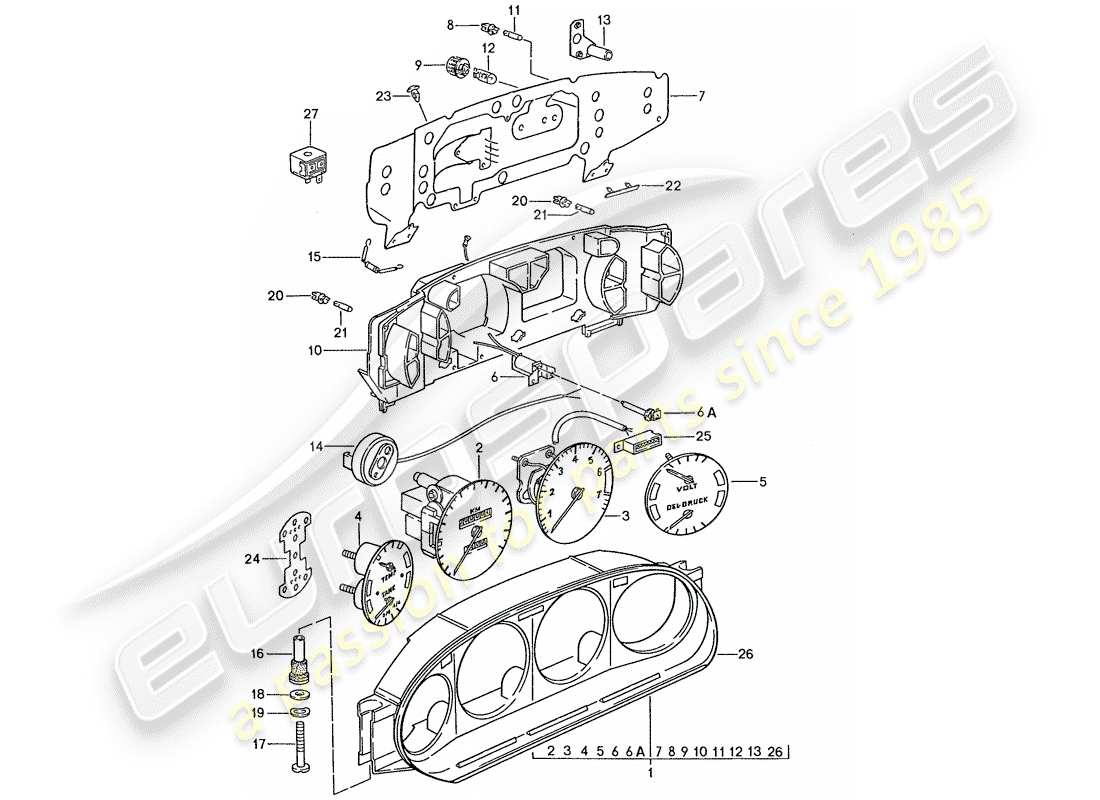

Porsche 1987 (928) INSTRUMENT CLUSTER - D >> - MJ 1988 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 92864110437
INSTRUMENT CLUSTER
(PR:481 \\F..\\)
# 1
MPN: 92864113403
INSTRUMENT CLUSTER
(PR:249 \\F..\\)
# 1
MPN: 92864110637
INSTRUMENT CLUSTER
(PR:481 \\S..\\,\\CH.\\, \\A..\\,\\D..\\, \\I..\\,\\N..\\, \\SF.\\,\\L..\\, \\NL.\\,\\B..\\)
# 1
MPN: 92864113603
INSTRUMENT CLUSTER
(PR:249 \\S..\\,\\CH.\\, \\A..\\,\\D..\\, \\I..\\,\\N..\\, \\SF.\\,\\L..\\, \\NL.\\,\\B..\\)
from £1,186.53
from £1,186.53
# 1
MPN: 92864111637
INSTRUMENT CLUSTER
((HK) PR:481 \\GB.\\)
from £1,629.48
from £1,629.48
# 1
MPN: 92864112603
INSTRUMENT CLUSTER
((HK) PR:249 \\GB.\\)
# 1
MPN: 92864112703
INSTRUMENT CLUSTER
(PR:249 \\J..\\)
# 1
MPN: 92864111737
INSTRUMENT CLUSTER
((SA) PR:481)
# 1
MPN: 92864113703
INSTRUMENT CLUSTER
((SA) PR:249)
# 1
MPN: 92864111437
INSTRUMENT CLUSTER
(PR:481)
from £250.40
from £250.40
# 1
MPN: 92864112403
INSTRUMENT CLUSTER
(PR:249)
from £1,267.08
from £1,267.08
# 2
MPN: 92864196707
SPEEDOMETER
# 2
MPN: 92864196708
SPEEDOMETER
from £263.16
from £263.16
# 2
MPN: 928641967HX
SPEEDOMETER
# 2
MPN: 92864195706
SPEEDOMETER
from £107.32
from £107.32
# 2
MPN: 92864195705
SPEEDOMETER
from £320.20
from £320.20
# 2
MPN: 92864196709
SPEEDOMETER
from £130.38
from £130.38
# 2
MPN: 92864196710
SPEEDOMETER
from £362.84
from £362.84
# -
-
VALID FOR - OTHER COUNTRIES
# 3
MPN: 92864196515
TACHOMETER
from £300.26
from £300.26
# 3
MPN: 92864196516
TACHOMETER
# 4
MPN: 92864194902
INDICATOR - - TEMPERAT. - FUEL GAUGE -
from £216.26
from £216.26
# 4
MPN: 92864193303
INDICATOR - - TEMPERAT. - FUEL GAUGE -
from £105.40
from £105.40
# 4
MPN: 92864194302
INDICATOR - - TEMPERAT. - FUEL GAUGE -
from £254.21
from £254.21
# 5
MPN: 92864196203
INDICATOR - - VOLT - OIL -
from £125.68
from £125.68
# 5
MPN: 92864196103
INDICATOR - DISCONTINUED PART
# 5
MPN: 928641961CX
INDICATOR - - VOLT - OIL -
from £125.19
from £125.19
# 5
MPN: 92864196303
INDICATOR - - VOLT - OIL -
from £293.30
from £293.30
# 6
MPN: 92864192100
SOLENOID COIL - TRIP METER
from £54.12
from £54.12
# 6
MPN: 92864196000
ZERO ADJUSTMENT SHAFT - TRIP METER
from £15.02
from £15.02
# 7
MPN: 92864197302
PRINTED CIRCUIT FOIL
from £138.13
from £138.13
# 8
MPN: 99963130190
BULB - 12 V-1,2 W
from £3.60
from £3.60
# 9
MPN: 92864192700
BULB SOCKET - 12 V-3,0 W
# 9
MPN: 92864192701
BULB SOCKET - 12 V-3,0 W
from £2.36
from £2.36
# 10
MPN: 92864196801
PLATE
from £13.44
from £13.44
# 11
MPN: 99963130190
BULB - 12 V-1,2 W
from £3.60
from £3.60
# 12
MPN: 90063101990
GLASS-BASE BULB - 12 V-3 W
from £2.16
from £2.16
# 13
MPN: 92864195800
printed circuit - Temperature gauge - Fuel-level indicator - Charging control indicator
from £19.97
from £19.97
# 13
MPN: 92864195900
printed circuit - Oil pressure indicator
from £20.17
from £20.17
# 14
MPN: 92860621001
IMPULSE SENDER
from £179.14
from £179.14
# 15
MPN: 92864198101
SERIES RESISTANCE
from £3.36
from £3.36
# 16
MPN: 92855204902
SPACER SLEEVE
# 17
MPN: N 0199081
bolt, with hex. socket - hd. - M 6 X 100
from £2.34
from £2.34
# 18
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 18
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 19
MPN: N 0122265
SPRING WASHER - B 6
from £0.70
from £0.70
# 20
MPN: 92864198200
BULB SOCKET
from £2.36
from £2.36
# 21
MPN: 92864198300
bulb - 12 V-1,2W
# 21
MPN: 92864198301
bulb - 12 V-1,2W
from £4.42
from £4.42
# 22
MPN: 92864198500
CLIP
# 23
MPN: 92864198400
CLIP
from £1.06
from £1.06
# 24
MPN: 92864198600
GASKET
from £1.50
from £1.50
# 25
MPN: 94461255300
CONNECTOR HOUSING
(PR:249)
from £4.51
from £4.51
# 26
MPN: 92864198700
HOUSING
from £329.97
from £329.97
# 27
MPN: 92861815300
RELAY - BUZZER
(PR:215)
from £10.01
from £10.01
# -
-
FASTENERS - IMPULSE SENDER
# -
-
Retaining Clip
# -
-
WASHER - 6,4 - DISCONTINUED PART
# -
-
WASHER - 6,4
# -
-
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# -
-
SCREW, HEX. HD. - M 6 X 12 - DISCONTINUED PART
# -
-
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# -
-
SCREW, HEX. HD. - M 6 X 12
# -
-
CABLE HOLDER
# -
-
RETAINING PLATE
# -
-
CLIP
