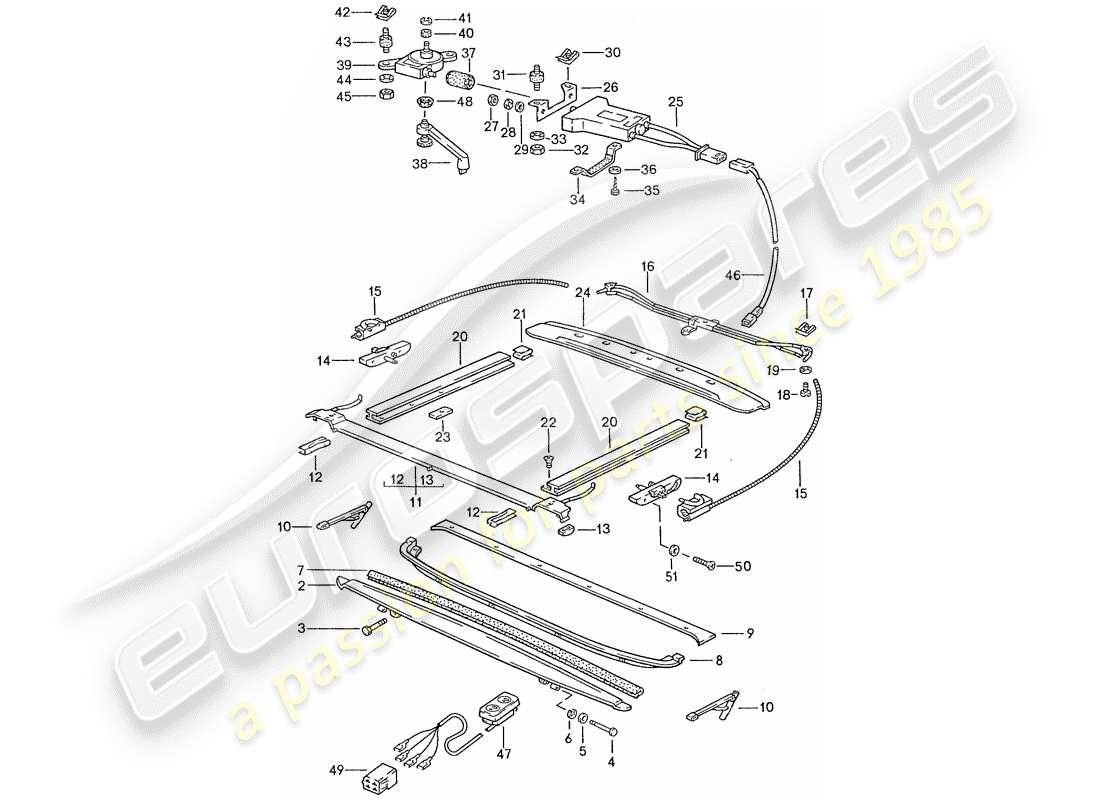

811-005 - SUNROOF - ELECTRICALLY ADJUSTABLE
Porsche 1988 (928) SUNROOF - ELECTRICALLY ADJUSTABLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 2
MPN: 92856402303
WIND DEFLECTOR PLATE
# 3
MPN: 99921707807
SCREW, HEX. HD. - M 4 X 6
from £2.64
from £2.64
# 4
MPN: 99908800907
PIN
from £1.66
from £1.66
# 5
MPN: 90008901507
WASHER
# 6
MPN: 90011600107
LOCK WASHER
from £0.65
from £0.65
# 7
MPN: 92856435802
PROTECTIVE EDGING
# 8
MPN: 92856434103
COVER
from £68.46
from £68.46
# 9
MPN: 92856410503
COVER STRIP
from £90.42
from £90.42
# 10
MPN: 92856405702
ACTUATOR
LEFT
# 10
MPN: 92856405802
ACTUATOR
RIGHT
# 11
MPN: 92856406140
GUIDE
FRONT
from £211.43
from £211.43
# 12
MPN: 92856426702
GUIDE PIECE
from £8.03
from £8.03
# 13
MPN: 92856426803
FRICTION PIECE
from £17.36
from £17.36
# 14
MPN: 92856404542
GUIDE
LEFT
from £59.28
from £59.28
# 14
MPN: 92856404642
GUIDE
RIGHT
from £79.80
from £79.80
# 15
MPN: 92856408343
GUIDE
LEFT
from £58.38
from £58.38
# 15
MPN: 92856408443
GUIDE
RIGHT
# 16
MPN: 92856420940
GUIDE TUBE
from £67.96
from £67.96
# 17
MPN: 99950724802
SPEED NUT - M 5
from £1.34
from £1.34
# 18
MPN: N 0141338
fillister hd. screw - M 5 X 12 - Discontinued part
# 18
MPN: N 014133I
fillister hd. screw - M 5 X 12
from £1.70
from £1.70
# 19
MPN: N 0120053
LOCK RING - B 5
from £0.66
from £0.66
# 20
MPN: 92856401542
TRACK
LEFT
from £118.68
from £118.68
# 20
MPN: 92856401642
TRACK
RIGHT
from £118.68
from £118.68
# 21
MPN: 99959144802
Retaining Clip
# 22
MPN: 90026905207
SCREW, CSK. HD. - M 4 X 10
from £3.48
from £3.48
# 23
MPN: 92850261760
tapping plate - M 4
from £1.02
from £1.02
# 24
MPN: 92856416741
WATER DRAIN PLATE
# 25
MPN: 91162401603
MOTOR
Supersession
Supersession
# 26
MPN: 92862410502
CONSOLE FOR ENGINE MOUNTING
from £3.29
from £3.29
# 27
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 27
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 28
MPN: N 0120053
LOCK RING - B 5
from £0.66
from £0.66
# 29
MPN: 90002500302
Washer - A 5,3
# 30
MPN: 99950724802
SPEED NUT - M 5
from £1.34
from £1.34
# 31
MPN: 99970330800
bonded rubber mounting - Discontinued part
# 31
MPN: 9997033080A
BONDED RUBBER MOUNTING
from £5.89
from £5.89
# 32
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 32
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 33
MPN: N 0120053
LOCK RING - B 5
from £0.66
from £0.66
# 34
MPN: 92862401102
MOTOR MOUNT
from £2.34
from £2.34
# 35
MPN: N 0138833
TAPPING SCREW - B 4,8 X 9,5
from £0.47
from £0.47
# 36
MPN: 90002500302
Washer - A 5,3
# 37
MPN: 91162410300
CLUTCH - DISCONTINUED PART
# 37
MPN: 91162410301
clutch
from £135.76
from £135.76
# 38
MPN: 90156408505
CRANK
Supersession
Supersession
# 39
MPN: 92856402502
TRANSMISSION
from £225.15
from £225.15
# 40
MPN: 92856412502
DRIVE PINION
from £18.39
from £18.39
# 41
MPN: 90011600302
lock washer - Discontinued part
# 41
MPN: 90011600309
LOCK WASHER
from £1.27
from £1.27
# 42
MPN: 99950724802
SPEED NUT
from £1.34
from £1.34
# 43
MPN: 99970330600
BONDED RUBBER MOUNTING
from £8.71
from £8.71
# 44
MPN: N 0120053
LOCK RING - B 5
from £0.66
from £0.66
# 45
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 45
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 46
MPN: 92861200601
harness
from £9.51
from £9.51
# 47
MPN: 92861312000
button - D >> - MJ 1989
(PR:650)
from £50.50
from £50.50
# 47
MPN: 92861312002
button - D - MJ 1990>>
(PR:650)
Supersession
Supersession
# 48
MPN: 90156466305
CAP
# 49
MPN: 92861241303
CONNECTOR HOUSING
from £4.08
from £4.08
# 50
MPN: 99921700802
SCREW, HEX. HD. - M 5 X 10
from £0.88
from £0.88
# 51
MPN: 90002500302
Washer - A 5,3

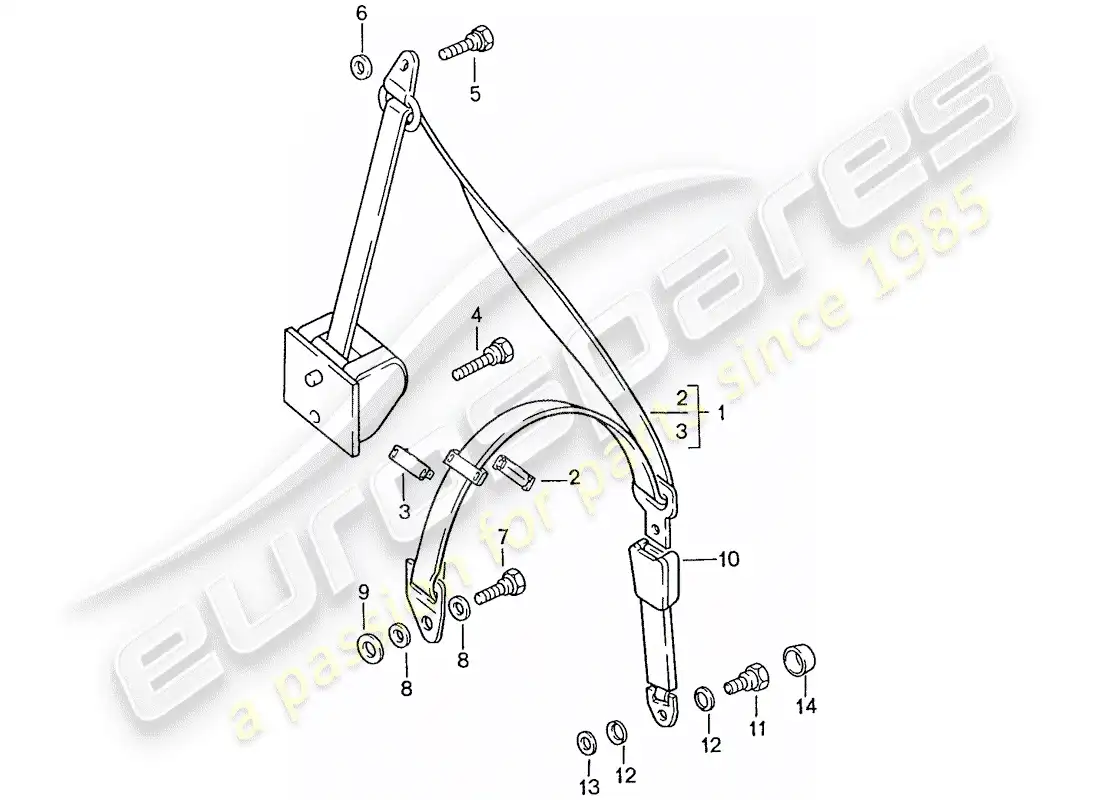

-part-diagram-812-000.webp "PORSCHE 1988 (928) SEAT BELT - AUTOMATIC PARTS DIAGRAM")

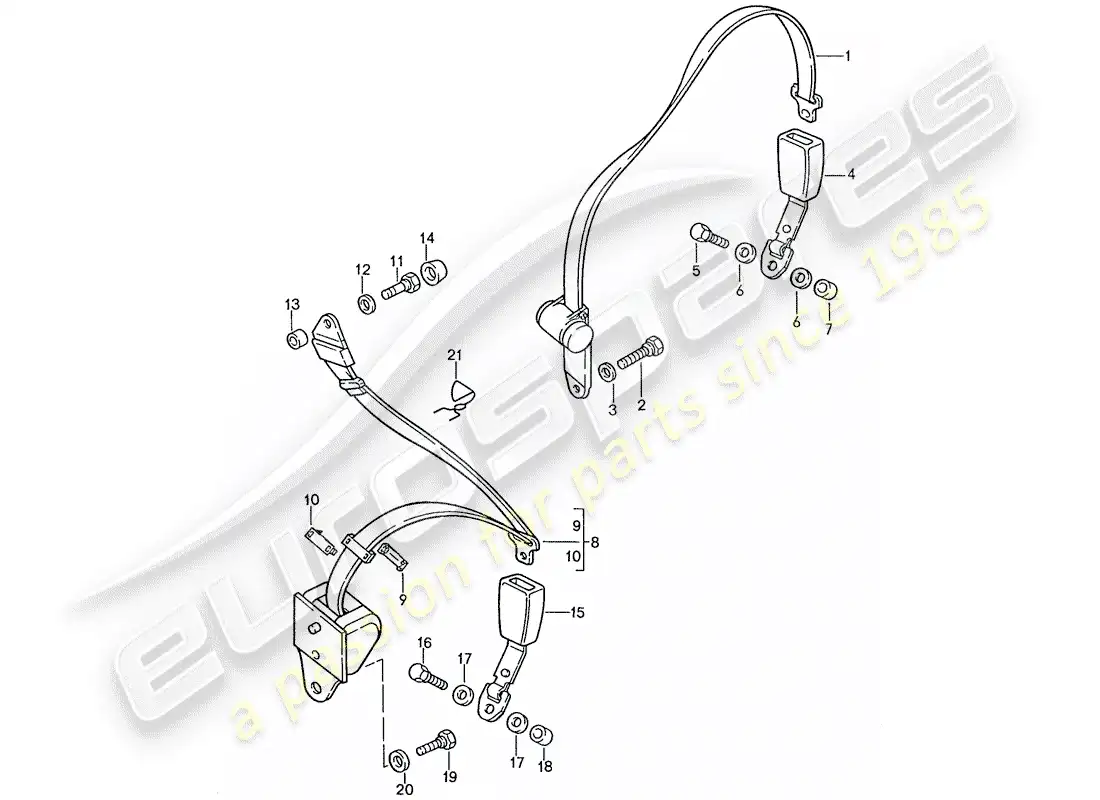

-part-diagram-812-005.webp "PORSCHE 1988 (928) SEAT BELT PARTS DIAGRAM")

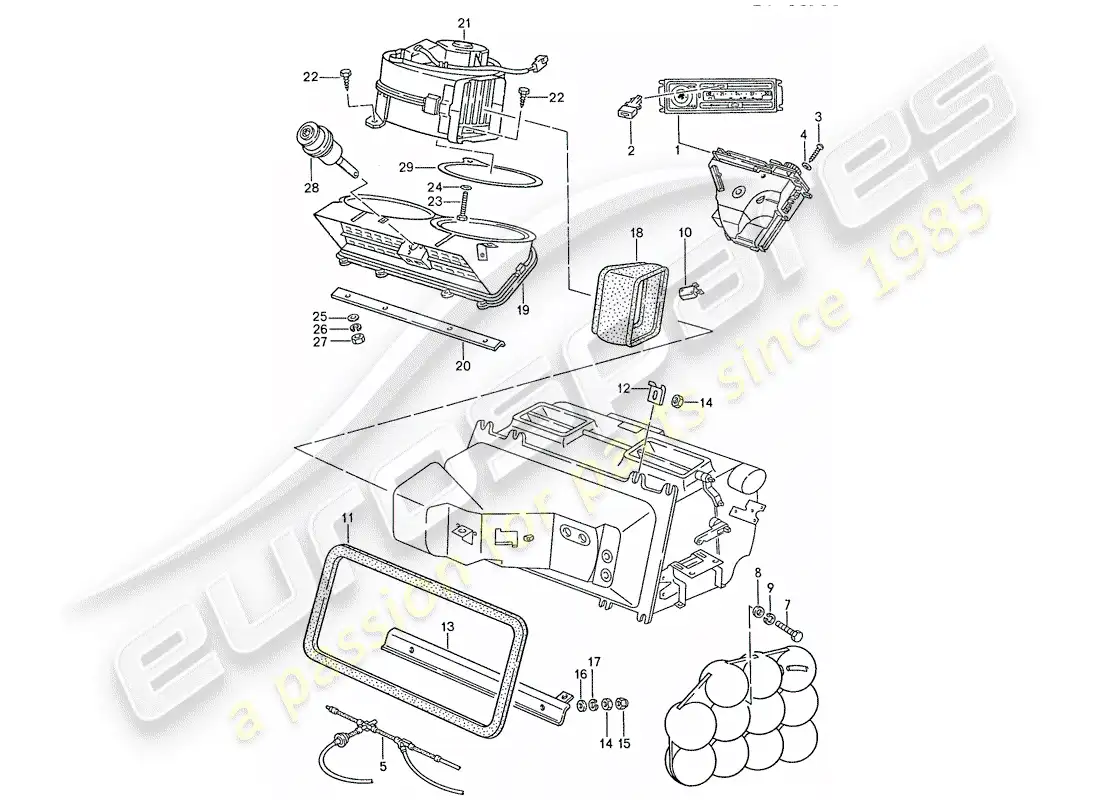

-part-diagram-813-005.webp "PORSCHE 1988 (928) AIR CONDITIONER - CONTROL SWITCH - LINES - AIR DUCT PARTS DIAGRAM")

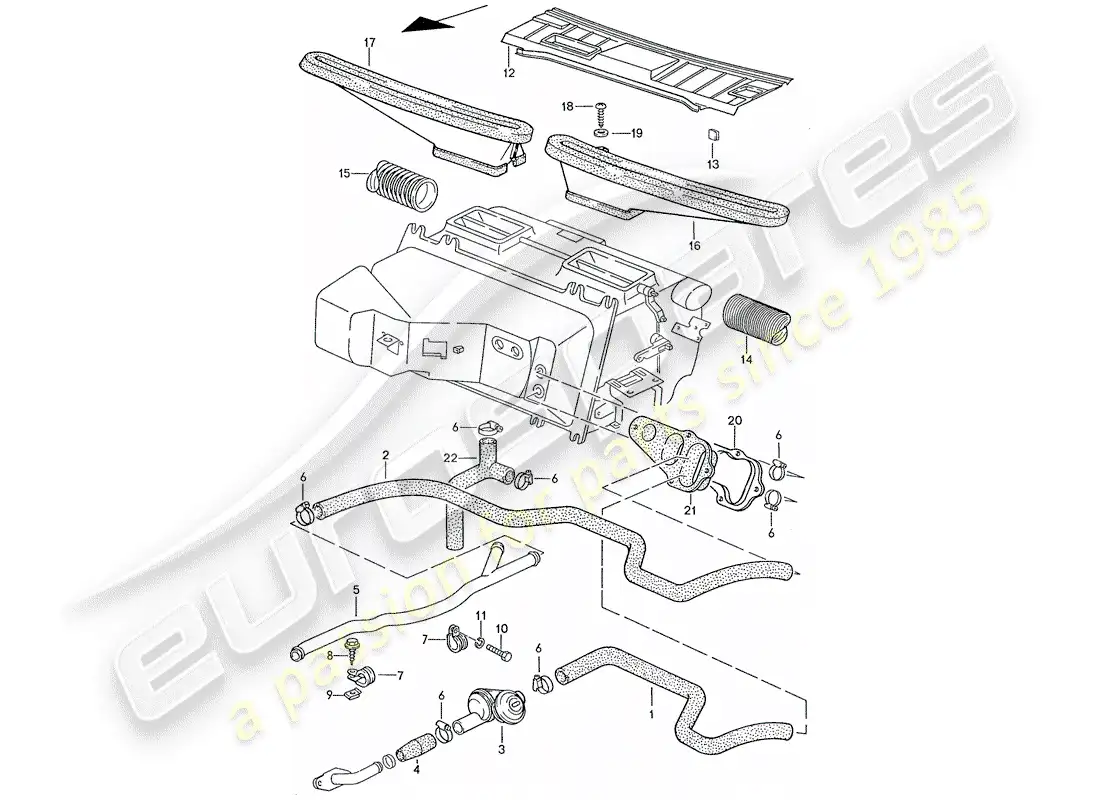

-part-diagram-813-010.webp "PORSCHE 1988 (928) AIR CONDITIONER - HOSES - HEATING NOZZLES PARTS DIAGRAM")
