porsche 1990 (928) front end parts diagram

801-005 - front end

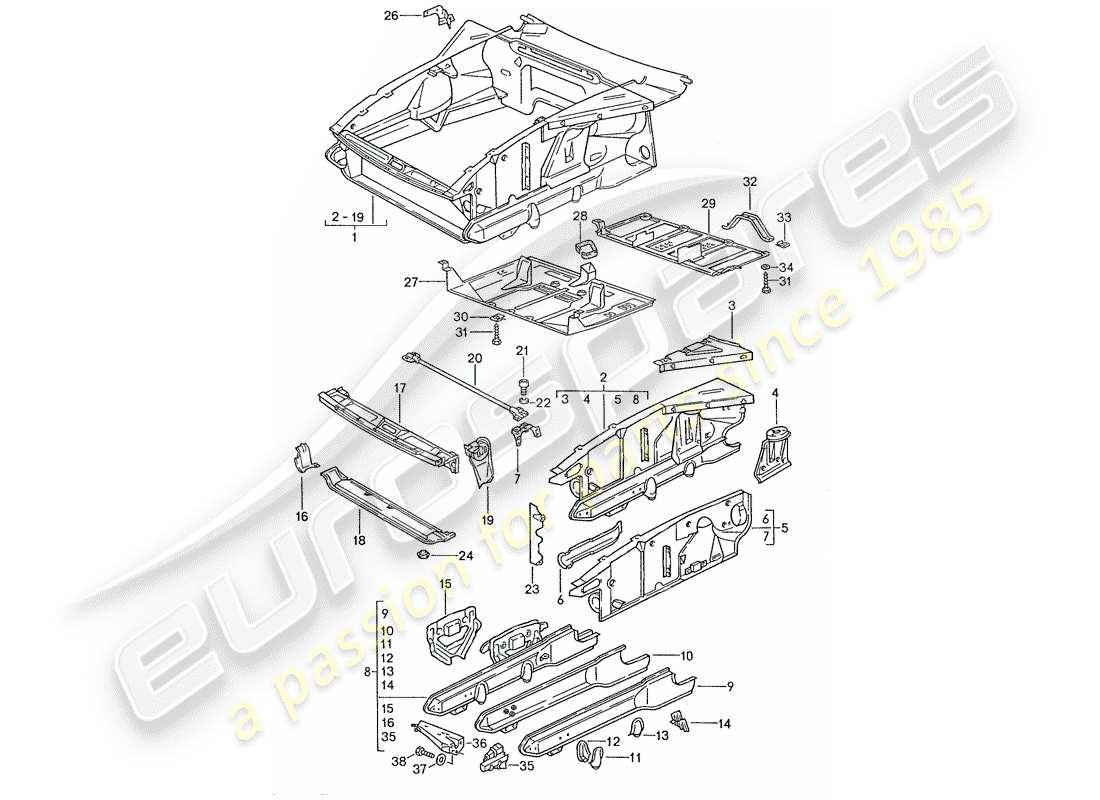

Porsche 1990 (928) FRONT END Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 92850101105
                                  Front end - D >> - MJ 1989 - Discontinued part
                                  lhd (PR:481)
                                  FRONT END - D >>- MJ 1989 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101106
                                  Front end - D - MJ 1990>> - MJ 1990 - Discontinued part
                                  lhd (PR:481)
                                  FRONT END - D - MJ 1990>>- MJ 1990 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101110
                                  Front end - D - MJ 1991>> - MJ 1991 - Discontinued part
                                  lhd (PR:481)
                                  FRONT END - D - MJ 1991>>- MJ 1991 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101111
                                  Front end - airbag - D - MJ 1991>> - MJ 1991 - Discontinued part
                                  lhd (PR:481)
                                  FRONT END - AIRBAG - D - MJ 1991>>- MJ 1991 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101112
                                  Front end - D - MJ 1991>> - MJ 1991 - Discontinued part
                                  lhd (PR:249)
                                  FRONT END - D - MJ 1991>>- MJ 1991 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101113
                                  Front end - airbag - D - MJ 1991>> - MJ 1991 - Discontinued part
                                  lhd (PR:249)
                                  FRONT END - AIRBAG - D - MJ 1991>>- MJ 1991 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101155
                                  Front end - D >> - MJ 1989 - Discontinued part
                                  lhd (PR:249)
                                  FRONT END - D >>- MJ 1989 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92850101108
                                  Front end - D - MJ 1990>> - MJ 1990 - Discontinued part
                                  lhd (PR:249)
                                  FRONT END - D - MJ 1990>>- MJ 1990 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92750101105
                                  Front end - D >> - MJ 1990 - Discontinued part
                                  rhd (PR:481)
                                  FRONT END - D >>- MJ 1990 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92750101106
                                  Front end - D - MJ 1991>> - MJ 1991 - Discontinued part
                                  rhd (PR:481)
                                  FRONT END - D - MJ 1991>>- MJ 1991 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92750101107
                                  Front end - D - MJ 1991>> - MJ 1991 - Discontinued part
                                  rhd (PR:249)
                                  FRONT END - D - MJ 1991>>- MJ 1991 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 1
                                  MPN: 92750101155
                                  Front end - D >> - MJ 1990 - Discontinued part
                                  rhd (PR:249)
                                  FRONT END - D >>- MJ 1990 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 92850101307
                                  WHEEL HOUSING
                                  LEFT LHD
                                  WHEEL HOUSING Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 92850101407
                                  WHEEL HOUSING
                                  RIGHT LHD
                                  WHEEL HOUSING Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 92750101307
                                  WHEEL HOUSING
                                  left rhd
                                  WHEEL HOUSING Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 92750101407
                                  WHEEL HOUSING
                                  RIGHT RHD
                                  WHEEL HOUSING Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 92850108102
                                  SIDE MEMBER
                                  LEFT
                                  SIDE MEMBER Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 92850108202
                                  SIDE MEMBER
                                  RIGHT
                                  SIDE MEMBER Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 92850108303
                                  reinforcement - mounting - suspension strut bearing
                                  LEFT
                                  reinforcement - mounting - suspension strut bearing Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 92850108403
                                  reinforcement - mounting - suspension strut bearing
                                  RIGHT
                                  reinforcement - mounting - suspension strut bearing Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 92850112103
                                  bracket - buffer
                                  LEFT
                                  bracket - buffer Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 92850112203
                                  bracket - buffer
                                  RIGHT
                                  bracket - buffer Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 92850155103
                                  bracket - Transverse strut
                                  LEFT
                                  bracket - Transverse strut Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: 92850158203
                                  bracket - Transverse strut
                                  RIGHT
                                  bracket - Transverse strut - D - MJ 1985>> Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 92850101507
                                  BRACKET
                                  LEFT
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 8
                                  MPN: 92850101607
                                  BRACKET
                                  RIGHT
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 92850110503
                                  BRACKET
                                  left-outer
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 92850110603
                                  BRACKET
                                  right-outer
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 92850110302
                                  BRACKET
                                  left-inner
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 10
                                  MPN: 92850110403
                                  BRACKET
                                  right-inner
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 92850113902
                                  BRACKET
                                  LEFT
                                  from £6.34
                                  from £6.34
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 11
                                  MPN: 92850114002
                                  BRACKET
                                  RIGHT
                                  from £27.93
                                  from £27.93
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 92850113502
                                  BRACKET
                                  LEFT
                                  from £6.34
                                  from £6.34
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 92850113602
                                  BRACKET
                                  RIGHT
                                  from £27.93
                                  from £27.93
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 92850119502
                                  BRACKET
                                  LEFT
                                  from £6.34
                                  from £6.34
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 13
                                  MPN: 92850119602
                                  BRACKET
                                  RIGHT
                                  from £27.93
                                  from £27.93
                                  BRACKET Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 92850130702
                                  BRACKET - FOR - STABILIZER
                                  LEFT
                                  BRACKET - FOR - STABILIZER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 92850130702
                                  BRACKET
                                  LEFT
                                  BRACKET - FOR - STABILIZER Genuine Porsche Part - New (to order)
                                  # 14
                                  MPN: 92850130802
                                  BRACKET - FOR - STABILIZER
                                  RIGHT
                                  BRACKET - FOR - STABILIZER Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 92850104702
                                  SUPPORT
                                  LEFT
                                  SUPPORT Genuine Porsche Part - New (to order)
                                  # 15
                                  MPN: 92850104802
                                  SUPPORT
                                  RIGHT
                                  SUPPORT Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 92850103900
                                  CONNECTING CAP
                                  LEFT
                                  CONNECTING CAP Genuine Porsche Part - New (to order)
                                  # 16
                                  MPN: 92850104000
                                  CONNECTING CAP
                                  RIGHT
                                  CONNECTING CAP Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: 92850103303
                                  END PLATE
                                  FRONT
                                  END PLATE Genuine Porsche Part - New (to order)
                                  # 18
                                  MPN: 92850103105
                                  CROSS MEMBER
                                  CROSS MEMBER Genuine Porsche Part - New (to order)
                                  # 19
                                  MPN: 92850112703
                                  bracket for engine - for engine - Pop-up headlight
                                  bracket for engine - for engine - Pop-up headlight Genuine Porsche Part - New (to order)
                                  # 20
                                  MPN: 92850406102
                                  TRANSVERSE STRUT
                                  from £97.85
                                  from £97.85
                                  Transverse strut - for engine compartment Genuine Porsche Part - New (to order)
                                  # 21
                                  MPN: 90011905302
                                  SCREW, CHEESE HD. - M 10 X 16
                                  from £2.64
                                  from £2.64
                                  SCREW, CHEESE HD. - M 10 X 16 Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: 90002500802
                                  WASHER - A 10,5 - DISCONTINUED PART
                                  from £0.47
                                  from £0.47
                                  Washer - Discontinued part Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: N 0115274
                                  WASHER - A 10,5 - DISCONTINUED PART
                                  Washer - Discontinued part Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: 90002500809
                                  WASHER - A 10,5 - DISCONTINUED PART
                                  Washer - Discontinued part Genuine Porsche Part - New (to order)
                                  # 22
                                  MPN: 90002500804
                                  Washer - A 10,5
                                  from £0.80
                                  from £0.80
                                  WASHER - B8,4 Genuine Porsche Part - New In stock
                                  # 22
                                  MPN: 9000250080E
                                  Washer - A 10,5
                                  Yellow
                                  from £0.62
                                  from £0.62
                                  WASHER - B8,4 Genuine Porsche Part - New (to order)
                                  # 23
                                  MPN: 92850181102
                                  LINING - FOR - RADIATOR
                                  LEFT
                                  from £42.98
                                  from £42.98
                                  LINING - FOR - RADIATOR Genuine Porsche Part - New (to order)
                                  # 23
                                  MPN: 92850181203
                                  LINING - FOR - RADIATOR
                                  RIGHT
                                  from £100.09
                                  from £100.09
                                  LINING - FOR - RADIATOR Genuine Porsche Part - New (to order)
                                  # 24
                                  MPN: 803803583A
                                  plug - Discontinued part
                                  from £3.27
                                  from £3.27
                                  plug - Discontinued part Genuine Porsche Part - New (to order)
                                  GROMMET 22.00X14.00 Genuine Lamborghini - New (to order)
                                  # 24
                                  MPN: 99970319640
                                  SEALING CAP
                                  from £0.91
                                  from £0.91
                                  SEALING CAP - 20,0 X 30,0 Genuine Porsche Part - New (to order)
                                  # 25
                                  MPN: 92850435702
                                  WATER DRAIN VALVE
                                  from £37.81
                                  from £37.81
                                  water drain valve - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                  # 26
                                  MPN: 92850131303
                                  RETAINING BRACKET - FOR EXPANSION TANK
                                  LHD
                                  from £6.09
                                  from £6.09
                                  RETAINING BRACKET - FOR EXPANSION TANK - F 92-ES841 838>>- F 92-ES849 615>> Genuine Porsche Part - New (to order)
                                  # 26
                                  MPN: 92750131302
                                  RETAINING BRACKET - FOR EXPANSION TANK
                                  RHD
                                  from £2.29
                                  from £2.29
                                  retaining bracket - reservoir Genuine Porsche Part - New (to order)
                                  # 27
                                  MPN: 92850402102
                                  UNDERSIDE PROTECTION
                                  FRONT
                                  from £873.41
                                  from £873.41
                                  UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                                  # 28
                                  MPN: 92850421500
                                  PROTECTIVE EDGING
                                  from £3.11
                                  from £3.11
                                  PROTECTIVE EDGING Genuine Porsche Part - New (to order)
                                  # 29
                                  MPN: 92850402902
                                  UNDERSIDE PROTECTION
                                  rear
                                  from £111.22
                                  from £111.22
                                  Underside protection - Discontinued part Genuine Porsche Part - New (to order)
                                  # 29
                                  MPN: 92850402902
                                  Underside protection - Discontinued part
                                  rear
                                  from £111.22
                                  from £111.22
                                  Underside protection - Discontinued part Genuine Porsche Part - New (to order)
                                  # 30
                                  MPN: 99959134802
                                  speed nut - B 4,8 - Discontinued part
                                  SPEED NUT - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 30
                                  MPN: 99959134801
                                  SPEED NUT - B 4,8
                                  from £2.29
                                  from £2.29
                                  SPEED NUT - B 4,8 Genuine Porsche Part - New (to order)
                                  # 31
                                  MPN: 90018701802
                                  TAPPING SCREW,HEX.HD. - B 4,8 X 16
                                  from £0.84
                                  from £0.84
                                  tapping screw,hex.hd. - BZ 4,8 X 13 Genuine Porsche Part - New (to order)
                                  # 32
                                  MPN: 92850413702
                                  RETAINING CLAMP
                                  RETAINING CLAMP Genuine Porsche Part - New (to order)
                                  # 33
                                  MPN: 99959169902
                                  SPEED NUT - B 4,8
                                  SPEED NUT - ST 4,8 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                  # 33
                                  MPN: 99959169901
                                  SPEED NUT - B 4,8
                                  from £0.59
                                  from £0.59
                                  speed nut - ST 4,8 - D >> - MJ 2002 Genuine Porsche Part - New In stock
                                  # 34
                                  MPN: N 0116653
                                  WASHER - B 5,3 - DISCONTINUED PART
                                  Washer - Discontinued part Genuine Porsche Part - New (to order)
                                  # 34
                                  MPN: N 01166516
                                  WASHER - B 5,3
                                  from £0.90
                                  from £0.90
                                  WASHER - B5,3 Genuine Porsche Part - New (to order)
                                  # 35
                                  MPN: 92850107800
                                  reinforcement - towing eye
                                  from £40.40
                                  from £40.40
                                  reinforcement - towing eye Genuine Porsche Part - New (to order)
                                  # 36
                                  MPN: 92850159600
                                  Bracket for fanfare - for - D >> - MJ 1989
                                  BRACKET FOR FANFARE - FOR - D >>- MJ 1989 Genuine Porsche Part - New (to order)
                                  # 36
                                  MPN: 92850159601
                                  Bracket for fanfare - for - D - MJ 1990>>
                                  Bracket for fanfare - for - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                  # 38
                                  MPN: 90007529102
                                  SCREW, HEX. HD. - M 6 X 16
                                  from £0.92
                                  from £0.92
                                  SCREW, HEX. HD. - M 6 X 16 Genuine Porsche Part - New (to order)
