porsche 1992 (928) rear view mirror parts diagram

809-011 - REAR VIEW MIRROR

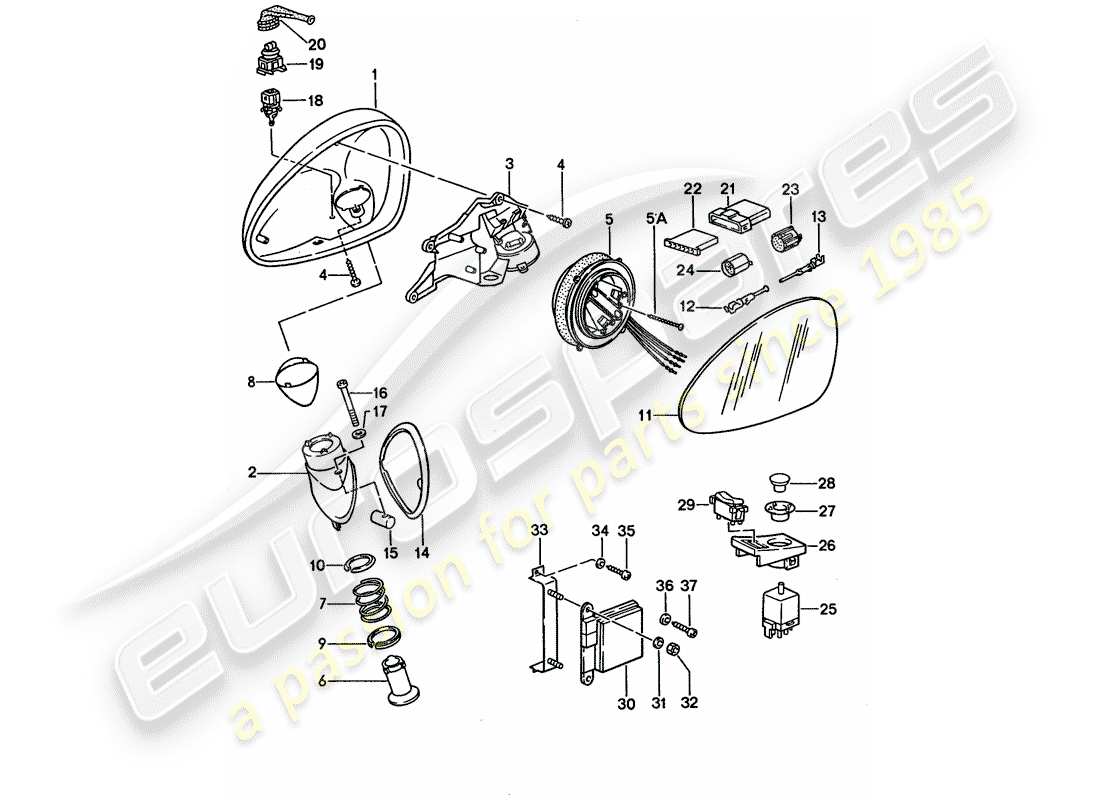

Porsche 1992 (928) REAR VIEW MIRROR Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Key
                                            Price
                                            # 2
                                            MPN: 92873124100
                                            MIRROR BASE
                                            LEFT LHD
                                            MIRROR BASE Genuine Porsche Part - New (to order)
                                            # 2
                                            MPN: 92873124200
                                            MIRROR BASE
                                            RIGHT LHD
                                            MIRROR BASE Genuine Porsche Part - New (to order)
                                            # 2
                                            MPN: 92773124100
                                            MIRROR BASE
                                            left rhd
                                            MIRROR BASE Genuine Porsche Part - New (to order)
                                            # 2
                                            MPN: 92773124200
                                            MIRROR BASE
                                            RIGHT RHD
                                            MIRROR BASE Genuine Porsche Part - New (to order)
                                            # 3
                                            MPN: 96573124501
                                            REINFORCEMENT PLATE
                                            LEFT
                                            from £63.03
                                            from £63.03
                                            REINFORCEMENT PLATE Genuine Porsche Part - New (to order)
                                            # 3
                                            MPN: 96573124601
                                            REINFORCEMENT PLATE
                                            RIGHT
                                            from £63.03
                                            from £63.03
                                            REINFORCEMENT PLATE Genuine Porsche Part - New (to order)
                                            # 4
                                            MPN: 99991910902
                                            SCREW, CSK. HD. - 3,0 X 12
                                            from £0.86
                                            from £0.86
                                            SCREW, COUNTERSUNK HD. - M 3X12 Genuine Porsche Part - New (to order)
                                            # 5
                                            MPN: 92862490100
                                            ADJUSTER UNIT - DISCONTINUED PART
                                            (PR:537,538)
                                            ADJUSTER UNIT - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                            # 5
                                            MPN: 92862490101
                                            ADJUSTER UNIT
                                            (PR:537,538)
                                            from £104.49
                                            from £104.49
                                            ADJUSTER UNIT Genuine Porsche Part - New (to order)
                                            # 5
                                            MPN: 90027801302
                                            fillister hd. screw - M 3 X 30 - Discontinued part
                                            fillister hd. screw - M 3 X 30 - Discontinued part Genuine Porsche Part - New (to order)
                                            # 5
                                            MPN: 90027800801
                                            fillister hd. screw - M 3 X 30
                                            from £0.91
                                            from £0.91
                                            fillister hd. screw - M 3 X 30 Genuine Porsche Part - New (to order)
                                            # 6
                                            MPN: 96573125700
                                            PIN
                                            from £5.51
                                            from £5.51
                                            PIN Genuine Porsche Part - New (to order)
                                            # 7
                                            MPN: 96573125900
                                            PRESSURE SPRING
                                            from £4.58
                                            from £4.58
                                            PRESSURE SPRING Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 96573114300
                                            GASKET
                                            LEFT
                                            from £5.67
                                            from £5.67
                                            GASKET Genuine Porsche Part - New (to order)
                                            # 8
                                            MPN: 96573114400
                                            GASKET
                                            RIGHT
                                            from £5.51
                                            from £5.51
                                            GASKET Genuine Porsche Part - New (to order)
                                            # 9
                                            MPN: 96573134500
                                            CENTRING PLATE
                                            LOWER
                                            from £2.52
                                            from £2.52
                                            CENTRING PLATE Genuine Porsche Part - New (to order)
                                            # 10
                                            MPN: 96573134700
                                            CENTRING PLATE
                                            UPPER
                                            from £2.69
                                            from £2.69
                                            CENTRING PLATE Genuine Porsche Part - New (to order)
                                            # 11
                                            MPN: 96573103500
                                            MIRROR GLASS (FLAT)
                                            LEFT
                                            from £135.54
                                            from £135.54
                                            MIRROR GLASS (FLAT) Genuine Porsche Part - New (to order)
                                            # 11
                                            MPN: 96573103600
                                            MIRROR GLASS (FLAT)
                                            RIGHT
                                            from £135.54
                                            from £135.54
                                            MIRROR GLASS (FLAT) Genuine Porsche Part - New (to order)
                                            # 11
                                            MPN: 96573103700
                                            MIRROR GLASS (CONVEX)
                                            LEFT
                                            from £135.54
                                            from £135.54
                                            MIRROR GLASS (CONVEX) Genuine Porsche Part - New (to order)
                                            # 11
                                            MPN: 96573103800
                                            MIRROR GLASS (CONVEX)
                                            RIGHT
                                            from £135.54
                                            from £135.54
                                            MIRROR GLASS (CONVEX) Genuine Porsche Part - New (to order)
                                            # 12
                                            MPN: 99965271010
                                            SLEEVE (FEMALE) TERMINAL
                                            from £0.87
                                            from £0.87
                                            sleeve (female) terminal - D - MJ 1992>> Genuine Porsche Part - New (to order)
                                            # 13
                                            MPN: 99965271110
                                            BUSHING
                                            from £2.44
                                            from £2.44
                                            bushing - D - MJ 1992>> Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 92873124700
                                            PACKING
                                            LEFT
                                            from £4.58
                                            from £4.58
                                            PACKING Genuine Porsche Part - New (to order)
                                            # 14
                                            MPN: 92873124800
                                            PACKING - MIRROR BASE
                                            RIGHT
                                            from £4.58
                                            from £4.58
                                            PACKING - MIRROR BASE Genuine Porsche Part - New (to order)
                                            # 15
                                            MPN: 92853123503
                                            THREADED PIN
                                            from £6.85
                                            from £6.85
                                            threaded pin - F 92-48102 503>> Genuine Porsche Part - New (to order)
                                            # 16
                                            MPN: 99921807302
                                            screw, cheese hd. - Micro-self-locking - M 5 X 45
                                            from £10.69
                                            from £10.69
                                            screw, cheese hd. - Micro-self-locking - M 5 X 45 Genuine Porsche Part - New (to order)
                                            # 17
                                            MPN: 99902523340
                                            Washer - 5,1 X 8,5 X 2
                                            from £4.57
                                            from £4.57
                                            Washer - 5,1 X 8,5 X 2 Genuine Porsche Part - New (to order)
                                            # 18
                                            MPN: 92864114200
                                            TEMPERATURE SENSOR
                                            from £69.31
                                            from £69.31
                                            temperature sensor - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                            # 19
                                            MPN: 443906232
                                            FLAT CONTACT HOUSING WITH - GASKET
                                            from £7.55
                                            from £7.55
                                            flat contact housing with - gasket - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                            # 20
                                            MPN: 91161281700
                                            PROTECTIVE CAP
                                            from £11.14
                                            from £11.14
                                            protective cap - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                            # 21
                                            MPN: 96461251600
                                            CONNECTOR HOUSING - 6-POLE
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 22
                                            MPN: 96461261600
                                            push-on connector - 6-POLE
                                            from £11.27
                                            from £11.27
                                            push-on connector - 6-pole - D - MJ 1992>> Genuine Porsche Part - New (to order)
                                            # 23
                                            MPN: 92861251501
                                            push-on connector - 15-POLE
                                            from £12.71
                                            from £12.71
                                            push-on connector - 15-POLE Genuine Porsche Part - New (to order)
                                            # 24
                                            MPN: 92861261500
                                            CONNECTOR HOUSING - 15-POLE
                                            from £12.71
                                            from £12.71
                                            Connector housing - 15-pole - D - MJ 1992>> Genuine Porsche Part - New (to order)
                                            # -
                                            -
                                            CYL.CONNECTOR WITH RETAIN. LUG - $ 0,5-1,0
                                            # -
                                            -
                                            CYLINDRICAL CONNECTOR WITH - RETAINING LUG - $ 0,5-1,0
                                            # 25
                                            MPN: 92861324100
                                            SWITCH
                                            from £81.22
                                            from £81.22
                                            SWITCH - REAR VIEW MIRROR Genuine Porsche Part - New (to order)
                                            # 27
                                            MPN: 92855546302
                                            THREADED BUSHING
                                            from £6.16
                                            from £6.16
                                            THREADED BUSHING Genuine Porsche Part - New (to order)
                                            # 28
                                            MPN: 92861308200
                                            button
                                            button Genuine Porsche Part - New (to order)
                                            # 29
                                            MPN: 92861324000
                                            SWITCH
                                            SWITCH Genuine Porsche Part - New (to order)
                                            # 30
                                            MPN: 92861813602
                                            electronic control module
                                            from £400.50
                                            from £400.50
                                            electronic control module - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                            # 31
                                            MPN: N 01152513
                                            Washer - A 8,4
                                            lhd (PR:537)
                                            Washer - D - MJ 1988>> Genuine Porsche Part - New (to order)
                                            # 32
                                            MPN: 90007602502
                                            HEX. NUT - M 8 - DISCONTINUED PART
                                            lhd (PR:537)
                                            Supersession
                                            Supersession
                                            Genuine Porsche Part (no longer available to order)
                                            # 32
                                            MPN: 90007606402
                                            hex. nut - M 8
                                            lhd (PR:537)
                                            from £0.59
                                            from £0.59
                                            hex. nut - SW 13 M 8 Genuine Porsche Part - New (to order)
                                            # 33
                                            MPN: 92861843100
                                            RETAINING BRACKET
                                            lhd (PR:537)
                                            from £1.70
                                            from £1.70
                                            RETAINING BRACKET Genuine Porsche Part - New (to order)
                                            # 34
                                            MPN: N 0115247
                                            WASHER - A 6,4 - DISCONTINUED PART
                                            lhd (PR:537)
                                            Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                                            # 34
                                            MPN: N 01152427
                                            Washer - A 6,4
                                            lhd (PR:537)
                                            from £0.47
                                            from £0.47
                                            Washer - R 6,6 Genuine Porsche Part - New (to order)
                                            WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                                            # 35
                                            MPN: N 0141387
                                            fillister hd. screw - M 6 X 10
                                            lhd (PR:537)
                                            from £0.73
                                            from £0.73
                                            FILLISTER HD. SCREW - M6X10 Genuine Porsche Part - New (to order)
                                            # 36
                                            MPN: N 0116667
                                            WASHER - B 6,4
                                            rhd (PR:538)
                                            Washer - D >> - MJ 1984 Genuine Porsche Part - New (to order)
                                            # 37
                                            MPN: N 0141423
                                            fillister hd. screw - M 6 X 20
                                            rhd (PR:538)
                                            from £0.65
                                            from £0.65
                                            fillister hd. screw - M 6 X 20 Genuine Porsche Part - New (to order)
