porsche 1992 (928) automatic air conditioner - lines - and - auxiliary units parts diagram

813-021 - AUTOMATIC AIR CONDITIONER - LINES - AND - AUXILIARY UNITS

Porsche 1992 (928) AUTOMATIC AIR CONDITIONER - LINES - AND - AUXILIARY UNITS Parts Diagram

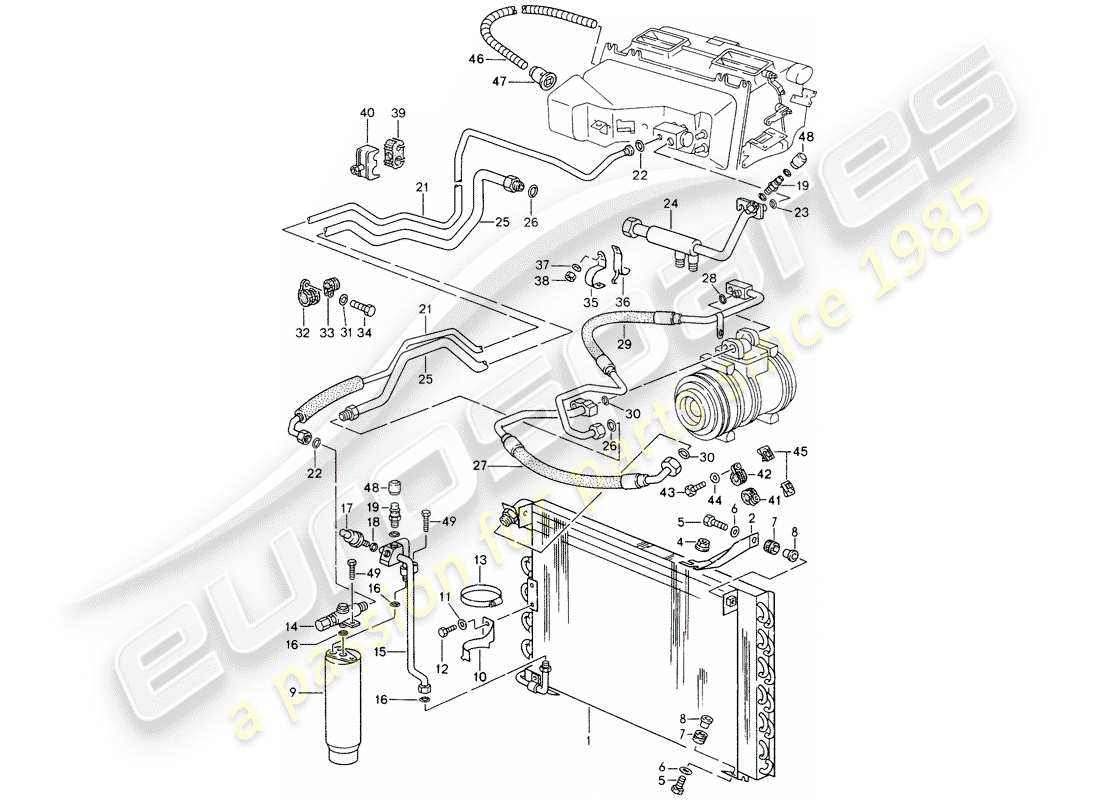

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Key
                                                                                      Price
                                                                                      # 1
                                                                                      MPN: 92857302101
                                                                                      air condtioner condenser
                                                                                      from £593.35
                                                                                      from £593.35
                                                                                      air condtioner condenser Genuine Porsche Part - New (to order)
                                                                                      # 2
                                                                                      MPN: 92857310104
                                                                                      RETAINING BRACKET
                                                                                      LEFT
                                                                                      from £6.03
                                                                                      from £6.03
                                                                                      RETAINING BRACKET Genuine Porsche Part - New (to order)
                                                                                      # 3
                                                                                      MPN: 92857310204
                                                                                      RETAINING BRACKET
                                                                                      RIGHT
                                                                                      from £6.03
                                                                                      from £6.03
                                                                                      RETAINING BRACKET Genuine Porsche Part - New (to order)
                                                                                      # 4
                                                                                      MPN: 99908461302
                                                                                      LOCK NUT - M 6
                                                                                      from £1.12
                                                                                      from £1.12
                                                                                      lock nut - M6 Genuine Porsche Part - New (to order)
                                                                                      # 6
                                                                                      MPN: 90015100302
                                                                                      WASHER - A 6,4 - DISCONTINUED PART
                                                                                      Washer - Large - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 6
                                                                                      MPN: 90015100603
                                                                                      Washer - A 6,4
                                                                                      from £0.59
                                                                                      from £0.59
                                                                                      This part replaces part number 90015100609
                                                                                      Washer - Large Genuine Porsche Part - New (to order)
                                                                                      # 8
                                                                                      MPN: 92857334703
                                                                                      SPACER TUBE
                                                                                      from £4.15
                                                                                      from £4.15
                                                                                      SPACER TUBE Genuine Porsche Part - New (to order)
                                                                                      # 9
                                                                                      MPN: 94457314301
                                                                                      RECEIVER DRIER
                                                                                      Supersession
                                                                                      Supersession
                                                                                      Genuine Porsche Part (no longer available to order)
                                                                                      # 10
                                                                                      MPN: 96457345101
                                                                                      BRACKET FOR DRIER
                                                                                      from £32.46
                                                                                      from £32.46
                                                                                      bracket for drier - D - MJ 1993>> Genuine Porsche Part - New (to order)
                                                                                      # 11
                                                                                      MPN: 90002500302
                                                                                      Washer - A 5,3
                                                                                      Washer - M 5 Genuine Porsche Part - New (to order)
                                                                                      # 12
                                                                                      MPN: N 0102076
                                                                                      SCREW, HEX. HD. - M 5 X 12 - DISCONTINUED PART
                                                                                      screw, hex. hd. - M5 X 12 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 12
                                                                                      MPN: N 01020717
                                                                                      SCREW, HEX. HD. - M 5 X 12
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
                                                                                      HEXAGON HEAD BOLT Genuine Lamborghini - New (to order)
                                                                                      # 13
                                                                                      MPN: 99951239000
                                                                                      HOSE CLAMP - 60-80/13
                                                                                      from £9.98
                                                                                      from £9.98
                                                                                      Hose Clamp - SGT 60-80/13 W2 Genuine Porsche Part - New (to order)
                                                                                      # 14
                                                                                      MPN: 99357324300
                                                                                      distributor piece - for - receiver drier
                                                                                      distributor piece - for - receiver drier Genuine Porsche Part - New (to order)
                                                                                      # 15
                                                                                      MPN: 92857309505
                                                                                      AIR CONDITIONER HOSE
                                                                                      from £356.99
                                                                                      from £356.99
                                                                                      AIR CONDITIONER HOSE Genuine Porsche Part - New (to order)
                                                                                      # 16
                                                                                      MPN: 99970724740
                                                                                      O-RING
                                                                                      from £2.68
                                                                                      from £2.68
                                                                                      O-Ring - NW 8 Genuine Porsche Part - New In stock
                                                                                      # 17
                                                                                      MPN: 96461313701
                                                                                      PRESSURE SWITCH
                                                                                      from £74.69
                                                                                      from £74.69
                                                                                      pressure switch - D - MJ 1993>> Genuine Porsche Part - New (to order)
                                                                                      # 18
                                                                                      MPN: 90017401140
                                                                                      O-RING
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      O-RING - 8 X 28 - LOW PRESSURE SWITCH Genuine Porsche Part - New (to order)
                                                                                      # 19
                                                                                      MPN: 92857346600
                                                                                      VALVE
                                                                                      from £22.32
                                                                                      from £22.32
                                                                                      valve - D - MJ 1993>> Genuine Porsche Part - New (to order)
                                                                                      # 19
                                                                                      MPN: 92857346500
                                                                                      VALVE - FOR - FUEL RADIATOR
                                                                                      from £20.90
                                                                                      from £20.90
                                                                                      VALVE - FOR - FUEL RADIATOR Genuine Porsche Part - New (to order)
                                                                                      # 20
                                                                                      MPN: 99970725940
                                                                                      O-RING
                                                                                      from £3.52
                                                                                      from £3.52
                                                                                      O-RING Genuine Porsche Part - New (to order)
                                                                                      # 21
                                                                                      MPN: 92857309308
                                                                                      PRESSURE LINE - NW 8
                                                                                      LHD
                                                                                      from £232.33
                                                                                      from £232.33
                                                                                      PRESSURE LINE - NW 8 Genuine Porsche Part - New (to order)
                                                                                      # 21
                                                                                      MPN: 92757309309
                                                                                      PRESSURE LINE - NW 8
                                                                                      RHD
                                                                                      PRESSURE LINE - NW 8 Genuine Porsche Part - New (to order)
                                                                                      # 22
                                                                                      MPN: 99970724740
                                                                                      O-RING
                                                                                      from £2.68
                                                                                      from £2.68
                                                                                      O-Ring - NW 8 Genuine Porsche Part - New In stock
                                                                                      # 23
                                                                                      MPN: 99970725140
                                                                                      O-RING
                                                                                      from £2.43
                                                                                      from £2.43
                                                                                      O-Ring - NW 13 Genuine Porsche Part - New In stock
                                                                                      # 24
                                                                                      MPN: 92857306305
                                                                                      FUEL RADIATOR
                                                                                      LHD
                                                                                      from £430.95
                                                                                      from £430.95
                                                                                      FUEL RADIATOR - F 92-HS841 973>>- F 92-HS849 745>>- FOR - FUEL HOSE - RETURN LINE - 92835608104 Genuine Porsche Part - New (to order)
                                                                                      # 24
                                                                                      MPN: 92757306302
                                                                                      FUEL RADIATOR
                                                                                      RHD
                                                                                      from £322.39
                                                                                      from £322.39
                                                                                      FUEL RADIATOR Genuine Porsche Part - New (to order)
                                                                                      # 25
                                                                                      MPN: 92857309110
                                                                                      SUCTION PIPE - NW 16
                                                                                      SUCTION PIPE - NW 16 Genuine Porsche Part - New (to order)
                                                                                      # 27
                                                                                      MPN: 92857309808
                                                                                      SUCTION PIPE - COMPRESSOR - NW 13 - D >> - MJ 1994
                                                                                      from £525.61
                                                                                      from £525.61
                                                                                      suction pipe - compressor - NW 13 - D - MJ 1995>> Genuine Porsche Part - New (to order)
                                                                                      # 27
                                                                                      MPN: 92857309808
                                                                                      suction pipe - compressor - NW 13 - D - MJ 1995>>
                                                                                      from £525.61
                                                                                      from £525.61
                                                                                      suction pipe - compressor - NW 13 - D - MJ 1995>> Genuine Porsche Part - New (to order)
                                                                                      # 28
                                                                                      MPN: 99970725140
                                                                                      O-RING
                                                                                      from £2.43
                                                                                      from £2.43
                                                                                      O-Ring - NW 13 Genuine Porsche Part - New In stock
                                                                                      # 29
                                                                                      MPN: 92857309709
                                                                                      REFRIGERANT LINE - NW 10 - DISCONTINUED PART
                                                                                      REFRIGERANT LINE - NW 10 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                      # 29
                                                                                      MPN: 92857309711
                                                                                      REFRIGERANT LINE - NW 10
                                                                                      from £578.80
                                                                                      from £578.80
                                                                                      refrigerant line - NW 10 - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                                                                      # 30
                                                                                      MPN: 99970725040
                                                                                      O-ring - Discontinued part
                                                                                      O-Ring - NW 10 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 30
                                                                                      MPN: 99970743441
                                                                                      O-RING
                                                                                      from £5.61
                                                                                      from £5.61
                                                                                      O-Ring - NW 10 Genuine Porsche Part - New In stock
                                                                                      # 31
                                                                                      MPN: 99951111602
                                                                                      CLAMP - DISCONTINUED PART
                                                                                      Clamp - screw, hex. hd. - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 31
                                                                                      MPN: 99951111603
                                                                                      CLAMP
                                                                                      from £4.52
                                                                                      from £4.52
                                                                                      CLAMP - SCREW, HEX. HD Genuine Porsche Part - New (to order)
                                                                                      # 32
                                                                                      MPN: 99951107602
                                                                                      CLAMP
                                                                                      from £3.76
                                                                                      from £3.76
                                                                                      Clamp - Pressure line Genuine Porsche Part - New (to order)
                                                                                      # 33
                                                                                      MPN: N 0120064
                                                                                      LOCK RING - B 6
                                                                                      from £0.70
                                                                                      from £0.70
                                                                                      lock ring - D - MJ 1980>> - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 34
                                                                                      MPN: 90007501402
                                                                                      SCREW, HEX. HD. - M 6 X 18 - DISCONTINUED PART
                                                                                      screw, hex. hd. - M6 X 18 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 34
                                                                                      MPN: 90007501403
                                                                                      SCREW, HEX. HD. - M 6 X 18
                                                                                      from £2.04
                                                                                      from £2.04
                                                                                      screw, hex. hd. - M6 X 18 Genuine Porsche Part - New (to order)
                                                                                      # 35
                                                                                      MPN: 92857380902
                                                                                      BRACKET - FUEL RADIATOR
                                                                                      FRONT
                                                                                      BRACKET - FUEL RADIATOR Genuine Porsche Part - New (to order)
                                                                                      # 36
                                                                                      MPN: 92857380702
                                                                                      BRACKET - FUEL RADIATOR
                                                                                      rear
                                                                                      from £2.60
                                                                                      from £2.60
                                                                                      BRACKET - FUEL RADIATOR Genuine Porsche Part - New (to order)
                                                                                      # 37
                                                                                      MPN: N 0115247
                                                                                      WASHER - A 6,4 - DISCONTINUED PART
                                                                                      Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 37
                                                                                      MPN: N 01152427
                                                                                      Washer - A 6,4
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      Washer - R 6,6 Genuine Porsche Part - New (to order)
                                                                                      WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                                                                                      # 38
                                                                                      MPN: 90007601002
                                                                                      NUT - M 6 - DISCONTINUED PART
                                                                                      nut - M6 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 38
                                                                                      MPN: 9000760100B
                                                                                      NUT - M 6
                                                                                      from £0.73
                                                                                      from £0.73
                                                                                      NUT - M6 Genuine Porsche Part - New In stock
                                                                                      # 39
                                                                                      MPN: 99970335340
                                                                                      sound absorber
                                                                                      from £3.97
                                                                                      from £3.97
                                                                                      sound absorber Genuine Porsche Part - New (to order)
                                                                                      # 40
                                                                                      MPN: 99959186340
                                                                                      CLAMP
                                                                                      from £4.69
                                                                                      from £4.69
                                                                                      CLAMP Genuine Porsche Part - New (to order)
                                                                                      # 41
                                                                                      MPN: N 0206011
                                                                                      CLAMP - DISCONTINUED PART
                                                                                      CLAMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                                                      # 41
                                                                                      MPN: N 020601A
                                                                                      CLAMP
                                                                                      from £5.65
                                                                                      from £5.65
                                                                                      CLAMP Genuine Porsche Part - New (to order)
                                                                                      # 42
                                                                                      MPN: 99951111802
                                                                                      CLAMP
                                                                                      CLAMP - FOR - HARNESS - POSITION 1 Genuine Porsche Part - New (to order)
                                                                                      # 42
                                                                                      MPN: 99951111801
                                                                                      CLAMP
                                                                                      from £3.48
                                                                                      from £3.48
                                                                                      CLAMP - FOR - HARNESS - POSITION 1 Genuine Porsche Part - New (to order)
                                                                                      # 43
                                                                                      MPN: 90007505702
                                                                                      SCREW, HEX. HD. - M 6 X 16
                                                                                      Supersession
                                                                                      Supersession
                                                                                      Genuine Porsche Part (no longer available to order)
                                                                                      # 43
                                                                                      MPN: 90007505703
                                                                                      SCREW, HEX. HD. - M 6 X 16 - NO LONGER USE THE PART HERE
                                                                                      from £3.27
                                                                                      from £3.27
                                                                                      screw, hex. hd. - No longer use the part here Genuine Porsche Part - New (to order)
                                                                                      # 44
                                                                                      MPN: N 0115247
                                                                                      WASHER - A 6,4 - DISCONTINUED PART
                                                                                      Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                                                                                      # 44
                                                                                      MPN: N 01152427
                                                                                      Washer - A 6,4
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      Washer - R 6,6 Genuine Porsche Part - New (to order)
                                                                                      WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                                                                                      # 45
                                                                                      MPN: 99950732602
                                                                                      NUT - M 6
                                                                                      Supersession
                                                                                      Supersession
                                                                                      Genuine Porsche Part (no longer available to order)
                                                                                      # 46
                                                                                      MPN: 92857322300
                                                                                      HOSE
                                                                                      from £3.09
                                                                                      from £3.09
                                                                                      HOSE Genuine Porsche Part - New (to order)
                                                                                      # 48
                                                                                      MPN: 94457366302
                                                                                      cap - for - valve
                                                                                      from £7.46
                                                                                      from £7.46
                                                                                      cap - for - valve Genuine Porsche Part - New (to order)
                                                                                      # 48
                                                                                      MPN: 94457366301
                                                                                      cap - for - valve - fuel radiator
                                                                                      from £7.46
                                                                                      from £7.46
                                                                                      cap - for - valve - fuel radiator Genuine Porsche Part - New (to order)
