porsche 1982 (944) crankcase parts diagram

101-010 - crankcase

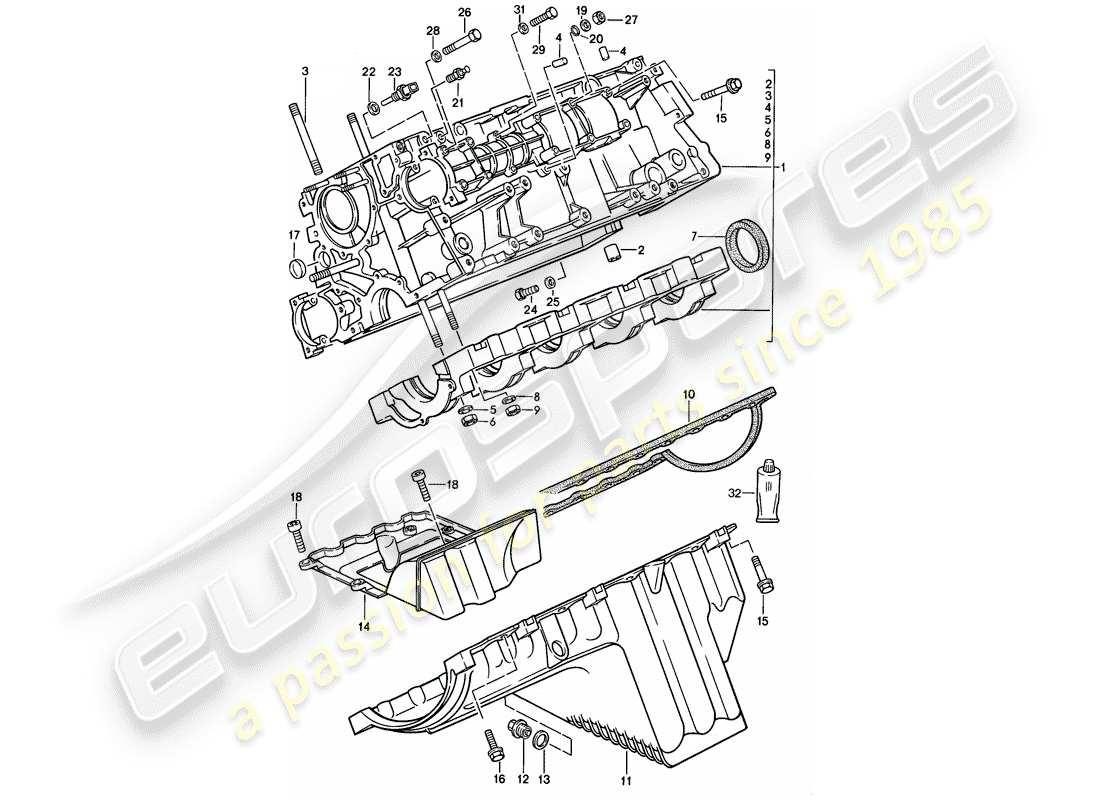

Porsche 1982 (944) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                        #
                                                        Part number
                                                        Description
                                                        Key
                                                        Price
                                                        # 3
                                                        MPN: 94410119700
                                                        STUD
                                                        from £7.86
                                                        from £7.86
                                                        STUD Genuine Porsche Part - New (to order)
                                                        # 4
                                                        MPN: 99901203400
                                                        dowel pin - 8 X 12
                                                        from £1.61
                                                        from £1.61
                                                        DOWEL PIN - M 6 X 12 Genuine Porsche Part - New (to order)
                                                        # 5
                                                        MPN: 94410422900
                                                        WASHER
                                                        from £2.34
                                                        from £2.34
                                                        Washer - M 12 X 1,5 Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: N 0110208
                                                        HEX. NUT - M 12 X 1,5 - DISCONTINUED PART
                                                        HEX. NUT - M 12 X 1,5 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 6
                                                        MPN: 90003403601
                                                        HEX. NUT - M 12 X 1,5
                                                        from £1.64
                                                        from £1.64
                                                        hex. nut - M 12 X 1,5 - D - MJ 1991>> Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 99911326440
                                                        radial shaft seal - Discontinued part
                                                        radial shaft seal - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 99911346140
                                                        radial shaft seal - Discontinued part
                                                        radial shaft seal - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 99911342640
                                                        radial shaft seal - Discontinued part
                                                        radial shaft seal - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 7
                                                        MPN: 99911342641
                                                        RADIAL SHAFT SEAL
                                                        from £48.31
                                                        from £48.31
                                                        Radial shaft seal - Repair set for maintenance - see illustration: Genuine Porsche Part - New (to order)
                                                        # 8
                                                        MPN: 92810130300
                                                        WASHER
                                                        from £2.34
                                                        from £2.34
                                                        Washer - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                                        # 9
                                                        MPN: N 01101013
                                                        hex. nut - M 10
                                                        from £1.48
                                                        from £1.48
                                                        hex. nut - M 10 - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                                        # 10
                                                        MPN: 94410120502
                                                        OIL SUMP GASKET
                                                        from £109.19
                                                        from £109.19
                                                        OIL SUMP GASKET Genuine Porsche Part - New (to order)
                                                        # 11
                                                        MPN: 94410120111
                                                        OIL PAN - SEE TPI - GR. 1 NR. 21
                                                        oil pan - See TPI - GR.1 NR.21 Genuine Porsche Part - New (to order)
                                                        # 12
                                                        MPN: 94410719701
                                                        THREADED PLUG
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 15
                                                        MPN: 90007534402
                                                        SCREW, HEX. HD. - M 6 X 50 - DISCONTINUED PART
                                                        from £2.34
                                                        from £2.34
                                                        screw, hex. hd. - M 6 X 50 Z1 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 15
                                                        MPN: 90007534401
                                                        SCREW, HEX. HD. - M 6 X 50
                                                        from £4.35
                                                        from £4.35
                                                        screw, hex. hd. - M 6 X 50 Z1 Genuine Porsche Part - New (to order)
                                                        # 16
                                                        MPN: 90007534102
                                                        BOLT WITH WASHER - M 6 X 25 - DISCONTINUED PART
                                                        Bolt with washer - M6 X 25 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 16
                                                        MPN: 90007534101
                                                        BOLT WITH WASHER - M 6 X 25
                                                        from £0.80
                                                        from £0.80
                                                        Bolt with washer - M6 X 25 Genuine Porsche Part - New (to order)
                                                        # 17
                                                        MPN: N 0119191
                                                        SEALING CAP
                                                        from £2.01
                                                        from £2.01
                                                        sealing cap - $ 25 MM Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 90011900102
                                                        SCREW, CHEESE HD. - M 5 X 12 - DISCONTINUED PART
                                                        screw, cheese hd. - M5 X 12 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 18
                                                        MPN: 90097600301
                                                        SCREW, CHEESE HD. - M 5 X 12
                                                        from £1.26
                                                        from £1.26
                                                        SCREW, CHEESE HD. - M5 X 12 Genuine Porsche Part - New (to order)
                                                        # 19
                                                        MPN: 92810716500
                                                        WASHER
                                                        from £3.27
                                                        from £3.27
                                                        Washer - A 8,4 Genuine Porsche Part - New (to order)
                                                        # 20
                                                        MPN: 99970100640
                                                        O-RING
                                                        from £2.23
                                                        from £2.23
                                                        O-Ring - guide tube - crankcase - 539. 01.001.10 Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: 047919501A
                                                        temperature sender - M >> 41E 09029 - M >> 41E 20779 - M >> 43E 14858 - M >> 43E 21783
                                                        from £32.01
                                                        from £32.01
                                                        temperature sender - M >> 41E 09029 - M >> 41E 20779 - M >> 43E 14858 - M >> 43E 21783 Genuine Porsche Part - New (to order)
                                                        # 21
                                                        MPN: 92860620101
                                                        Remote temperature sensor - M 41E 09030 >> - M 41E 20779 >> - M 43E 14858 >> - M 43E 21783 >>
                                                        from £75.32
                                                        from £75.32
                                                        Remote temperature sensor - M 41E 09030 >> - M 41E 20779 >> - M 43E 14858 >> - M 43E 21783 >> Genuine Porsche Part - New (to order)
                                                        # 22
                                                        MPN: 90012300630
                                                        SEAL RING - 12 X 18
                                                        SEAL RING - A 14 X 18 Genuine Porsche Part - New (to order)
                                                        # 23
                                                        MPN: 94460612500
                                                        TEMPERATURE SENSOR
                                                        from £52.30
                                                        from £52.30
                                                        TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                                        # 24
                                                        MPN: 90007508702
                                                        SCREW, HEX. HD. - M 8 X 16 - DISCONTINUED PART
                                                        screw, hex. hd. - M8X16 Genuine Porsche Part - New (to order)
                                                        # 24
                                                        MPN: 90007508703
                                                        SCREW, HEX. HD. - M 8 X 16
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 24
                                                        MPN: 90007508704
                                                        SCREW, HEX. HD. - M 8 X 16
                                                        M8X16-yellow
                                                        from £0.86
                                                        from £0.86
                                                        This part replaces part number 90007508703
                                                        screw, hex. hd. - M8X16 Genuine Porsche Part - New (to order)
                                                        # 25
                                                        MPN: 90012310530
                                                        SEAL RING - 8 X 14
                                                        from £0.88
                                                        from £0.88
                                                        SEAL RING - A 8 X 14 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 90007413902
                                                        SCREW, HEX. HD. - M 8 X 55
                                                        screw, hex. hd. - M 8 X 55 - screw, hex. hd. - M 8 X 65 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 90007413903
                                                        SCREW, HEX. HD. - M 8 X 55
                                                        from £1.23
                                                        from £1.23
                                                        screw, hex. hd. - M 8 X 55 - screw, hex. hd. - M 8 X 65 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 90007413902
                                                        SCREW, HEX. HD. - M 8 X 55
                                                        left (PR:657)
                                                        screw, hex. hd. - M 8 X 55 - screw, hex. hd. - M 8 X 65 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: 90007413903
                                                        SCREW, HEX. HD. - M 8 X 55
                                                        left (PR:657)
                                                        from £1.23
                                                        from £1.23
                                                        screw, hex. hd. - M 8 X 55 - screw, hex. hd. - M 8 X 65 Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: N 0103614
                                                        SCREW, HEX. HD. - M 8 X 65 - DISCONTINUED PART
                                                        right (PR:657)
                                                        from £1.47
                                                        from £1.47
                                                        SCREW, HEX. HD. - M 8 X 65 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 26
                                                        MPN: N 01036113
                                                        SCREW, HEX. HD. - M 8 X 65
                                                        right (PR:657)
                                                        from £2.61
                                                        from £2.61
                                                        SCREW, HEX. HD. - M 8 X 65 Genuine Porsche Part - New (to order)
                                                        # 27
                                                        MPN: N 0110088
                                                        hex. nut - M 8
                                                        from £0.52
                                                        from £0.52
                                                        HEX. NUT - M8 Genuine Porsche Part - New In stock
                                                        Genuine Bentley Part (no longer available to order)
                                                        # 28
                                                        MPN: N 01152513
                                                        Washer - A 8,4
                                                        Washer - D - MJ 1988>> Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 90007401502
                                                        SCREW, HEX. HD. - M 6 X 30 - M >> 41D C147 - M >> 41D 5642 - M >> 43D C671 - M >> 43D 6575 - DISCONTINUED PART
                                                        ( 4401,4403, 4402,4404)
                                                        Supersession
                                                        Supersession
                                                        Genuine Porsche Part (no longer available to order)
                                                        # 29
                                                        MPN: 90007401503
                                                        screw, hex. hd. - M 6 X 30 - M >> 41D C147 - M >> 41D 5642 - M >> 43D C671 - M >> 43D 6575
                                                        ( 4401,4403, 4402,4404)
                                                        from £1.46
                                                        from £1.46
                                                        screw, hex. hd. - M 6 X30 DIN 931-8.8 Genuine Porsche Part - New (to order)
                                                        # 29
                                                        MPN: 90007534902
                                                        SCREW, HEX. HD. - M 6 X 42 - M 41D C148 >> - M 41D 5643 >> - M 43D C672 >> - M 43D 6576 >>
                                                        ( 4401,4403, 4402,4404)
                                                        from £7.38
                                                        from £7.38
                                                        screw, hex. hd. - M 6 X 42 Z1 Genuine Porsche Part - New (to order)
                                                        # 31
                                                        MPN: N 0115247
                                                        WASHER - A 6,4 - DISCONTINUED PART
                                                        Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                                                        # 31
                                                        MPN: N 01152427
                                                        Washer - A 6,4
                                                        from £0.47
                                                        from £0.47
                                                        Washer - R 6,6 Genuine Porsche Part - New (to order)
                                                        WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                                                        # -
                                                        -
                                                        bracket - D >> - MJ 1984
                                                        # -
                                                        -
                                                        bracket - D - MJ 1985>> - MJ 1985 - Discontinued part
                                                        # -
                                                        -
                                                        bracket - D - MJ 1985>>
                                                        # 32
                                                        MPN: 00004301901
                                                        SEALANT - SILASTIK RTV 730 - 1 TUBE - 125 ML - DISCONTINUED PART
                                                        SEALANT - SILASTIK RTV 730 - 1 TUBE - 125 ML - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                        # 32
                                                        MPN: PCG04301901
                                                        sealant - SILASTIK RTV 730 - 1 tube - 125 ML
                                                        from £188.02
                                                        from £188.02
                                                        sealant - SILASTIK RTV 730 - 1 tube - 125 ML Genuine Porsche Part - New (to order)
