porsche 1982 (944) driving mechanism - shaft parts diagram

103-015 - DRIVING MECHANISM - SHAFT

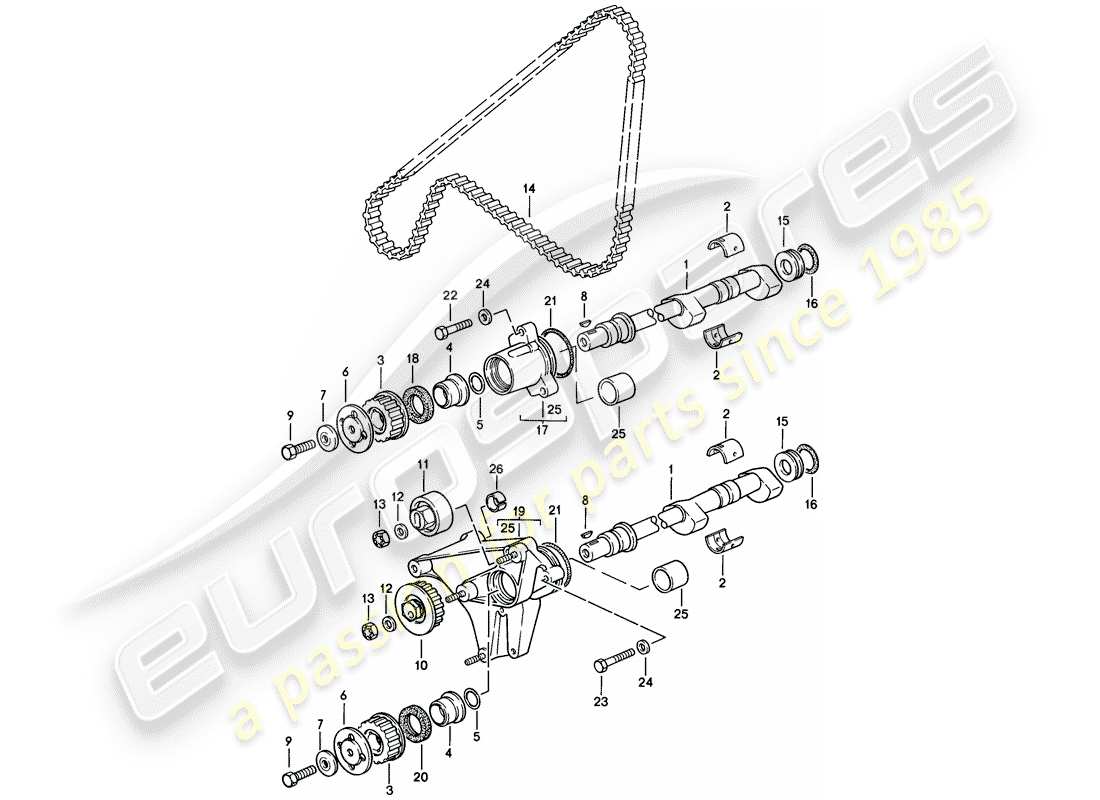

Porsche 1982 (944) DRIVING MECHANISM - SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 94410220107
                                          shaft - D >> - MJ 1984
                                          from £573.78
                                          from £573.78
                                          shaft - D >> - MJ 1984 Genuine Porsche Part - New (to order)
                                          # 1
                                          MPN: 94410292300
                                          shaft - D - MJ 1985>> - MJ 1985
                                          from £885.12
                                          from £885.12
                                          shaft - D - MJ 1985>> - MJ 1985 Genuine Porsche Part - New (to order)
                                          # 2
                                          MPN: 94410112107
                                          BEARING SHELL
                                          from £15.46
                                          from £15.46
                                          bearing shell - D - MJ 1986>> - MJ 1986 Genuine Porsche Part - New (to order)
                                          # 2
                                          MPN: 94410112150
                                          BEARING SHELL - OVERSIZE 0.50 MM
                                          from £36.29
                                          from £36.29
                                          BEARING SHELL - OVERSIZE 0.50 MM Genuine Porsche Part - New (to order)
                                          # 3
                                          MPN: 94410220504
                                          GEAR
                                          from £36.45
                                          from £36.45
                                          GEAR Genuine Porsche Part - New (to order)
                                          # 4
                                          MPN: 92810513902
                                          SPACER BUSHING
                                          from £35.29
                                          from £35.29
                                          SPACER BUSHING - M >>82G 00071 - M >>82G 05066 Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: 94410532100
                                          GASKET
                                          from £1.27
                                          from £1.27
                                          GASKET Genuine Porsche Part - New In stock
                                          # 6
                                          MPN: 94410228104
                                          FLANGE WASHER
                                          from £16.22
                                          from £16.22
                                          FLANGE WASHER Genuine Porsche Part - New (to order)
                                          # 7
                                          MPN: 94410221300
                                          Washer - Discontinued part
                                          Washer - Discontinued part Genuine Porsche Part - New (to order)
                                          # 7
                                          MPN: 94410221301
                                          WASHER
                                          from £7.52
                                          from £7.52
                                          WASHER Genuine Porsche Part - New (to order)
                                          # 9
                                          MPN: N 0102753
                                          SCREW, HEX. HD. - M 10 X 35 - DISCONTINUED PART
                                          screw, hex. hd. - M 10X35 - Discontinued part Genuine Porsche Part - New (to order)
                                          # 9
                                          MPN: 90007546001
                                          SCREW, HEX. HD. - M 10 X 35
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 9
                                          MPN: 90007546002
                                          SCREW, HEX. HD. - M 10 X 35
                                          M10X35-yellow
                                          from £1.58
                                          from £1.58
                                          This part replaces part number 90007546001
                                          screw, hex. hd. - M 10X35 Genuine Porsche Part - New (to order)
                                          # 10
                                          MPN: 94410202507
                                          belt tensioner
                                          from £57.99
                                          from £57.99
                                          belt tensioner Genuine Porsche Part - New (to order)
                                          # 11
                                          MPN: 94410227706
                                          ROLLER
                                          from £54.99
                                          from £54.99
                                          ROLLER Genuine Porsche Part - New (to order)
                                          # 12
                                          MPN: N 01152712
                                          WASHER - A 10,5 - DISCONTINUED PART
                                          Washer - Discontinued part Genuine Porsche Part - New (to order)
                                          # 12
                                          MPN: 90002508101
                                          Washer - A 10,5
                                          from £1.33
                                          from £1.33
                                          Washer - A 5,3 Genuine Porsche Part - New In stock
                                          # 13
                                          MPN: N 0221492
                                          HEX. NUT, SELF-LOCKING - M 10
                                          from £1.78
                                          from £1.78
                                          HEX. NUT, SELF-LOCKING - VM 10 Genuine Porsche Part - New In stock
                                          # 14
                                          MPN: 94410221904
                                          TOOTHED BELT - TECHNICAL INFORMATION - GROUP 1 - NR.15/95 - ATTENTION
                                          from £112.04
                                          from £112.04
                                          TOOTHED BELT - TECHNICAL INFORMATION - GROUP 1 - NR.15/95 - ATTENTION Genuine Porsche Part - New (to order)
                                          # 15
                                          MPN: 94410114502
                                          RING
                                          from £13.55
                                          from £13.55
                                          ring - D - MJ 1986>> - MJ 1986 Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 99970161440
                                          O-Ring - 23,16 X 5,33
                                          from £3.00
                                          from £3.00
                                          O-ring - D - MJ 1986>> - MJ 1986 Genuine Porsche Part - New In stock
                                          # 17
                                          MPN: 94410104500
                                          GEAR CARRIER
                                          LEFT
                                          from £529.05
                                          from £529.05
                                          GEAR CARRIER Genuine Porsche Part - New (to order)
                                          # 18
                                          MPN: 99911328240
                                          SEAL - 30 X 47
                                          LEFT
                                          from £19.62
                                          from £19.62
                                          seal - M >> 82G 00071 - M >> 82G 05066 Genuine Porsche Part - New (to order)
                                          # 19
                                          MPN: 94410104200
                                          GEAR CARRIER
                                          RIGHT
                                          GEAR CARRIER Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 99911328140
                                          SEAL - 30 X 48
                                          RIGHT
                                          from £19.62
                                          from £19.62
                                          SEAL - 30 X 48 Genuine Porsche Part - New (to order)
                                          # 21
                                          MPN: 99970165240
                                          O-Ring - 56,7 X 3,53
                                          from £2.88
                                          from £2.88
                                          O-Ring - 56,7 X 3,53 Genuine Porsche Part - New In stock
                                          # 22
                                          MPN: N 0103355
                                          SCREW, HEX. HD. - M 8 X 35
                                          screw, hex. hd. - M 8X35 Genuine Porsche Part - New (to order)
                                          # 22
                                          MPN: 90007503203
                                          SCREW, HEX. HD. - M 8 X 35
                                          from £2.56
                                          from £2.56
                                          screw, hex. hd. - M 8X35 Genuine Porsche Part - New (to order)
                                          # 23
                                          MPN: 90007404002
                                          screw, hex. hd. - M 8 X 50 - D >> - MJ 1983
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 23
                                          MPN: N 0103606
                                          SCREW, HEX. HD. - M 8 X 60 - DISCONTINUED PART
                                          (PR:657)
                                          SCREW, HEX. HD. - M8 X 60 - D - MJ 1972>>- DISCONTINUED PART Genuine Porsche Part - New (to order)
                                          # 23
                                          MPN: N 01036019
                                          SCREW, HEX. HD. - M 8 X 60
                                          (PR:657)
                                          from £1.32
                                          from £1.32
                                          screw, hex. hd. - M8 X 60 - D - MJ 1972>> Genuine Porsche Part - New (to order)
                                          # 24
                                          MPN: 90002500702
                                          WASHER - A 8,4 - DISCONTINUED PART
                                          Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                          # 24
                                          MPN: 90002500703
                                          Washer - A 8,4
                                          from £0.84
                                          from £0.84
                                          Washer - M 8,4 Genuine Porsche Part - New In stock
                                          # 25
                                          MPN: 94410112502
                                          BUSHING
                                          from £11.39
                                          from £11.39
                                          BUSHING Genuine Porsche Part - New (to order)
                                          # 25
                                          MPN: 94410112550
                                          BUSHING - OVERSIZE 0.50 MM
                                          from £16.77
                                          from £16.77
                                          BUSHING - OVERSIZE 0.50 MM Genuine Porsche Part - New (to order)
                                          # 26
                                          MPN: 94434744100
                                          SLEEVE
                                          SLEEVE Genuine Porsche Part - New (to order)
                                          # 27
                                          MPN: PCG10090150
                                          SET OF GASKETS FOR ENGINE
                                          FRONT
                                          from £109.86
                                          from £109.86
                                          set of gaskets for engine - also use: Genuine Porsche Part - New (to order)
