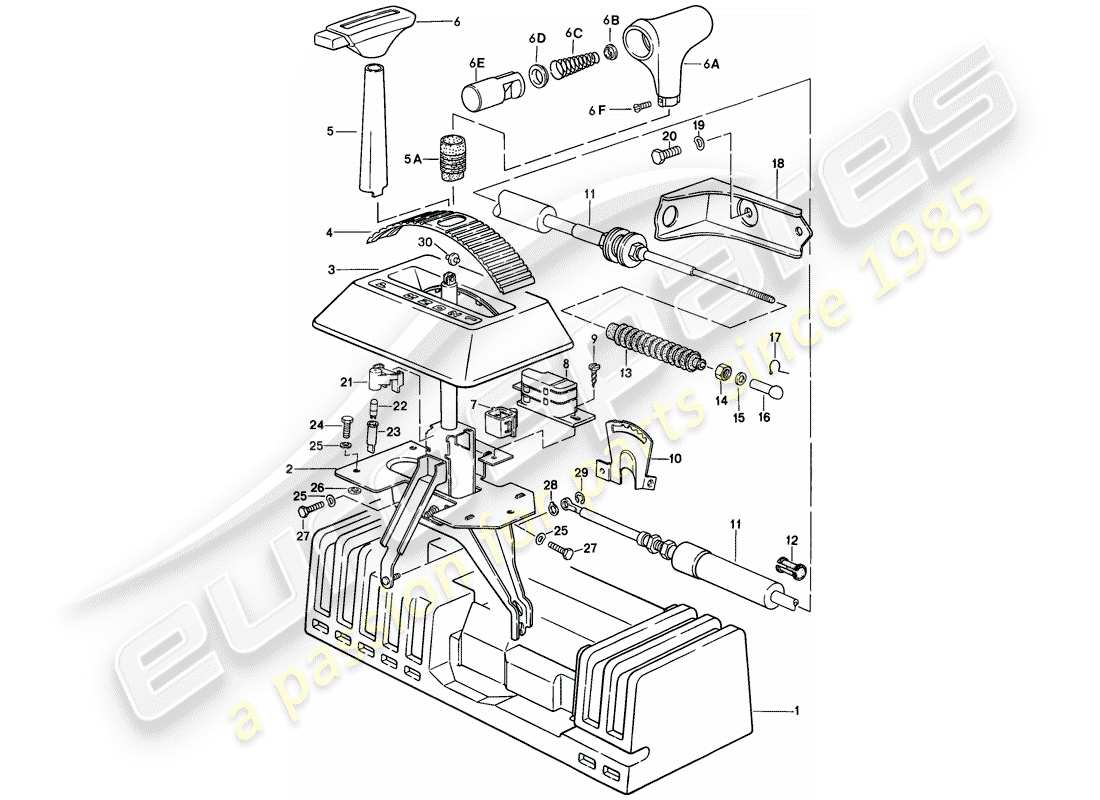

701-005 - SHIFT MECHANISM - AUTOMATIC TRANSMISSION
Porsche 1982 (944) SHIFT MECHANISM - AUTOMATIC TRANSMISSION Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 94442618200
sound absorber
# 2
MPN: 477713025A
shift mechanism - D - MJ 1982>> - MJ 1982
from £48.78
from £48.78
# 2
MPN: 94442602502
shift mechanism - D - MJ 1983>>
from £90.14
from £90.14
# 3
MPN: 477713111A
COVER
# 4
MPN: 477713277
COVER STRIP
from £27.34
from £27.34
# 5
MPN: 477713279
cover - D - MJ 1982>> - MJ 1982
# 5
MPN: 94442627900
cover - D - MJ 1983>>
# 6
MPN: 447713139A
selector lever handle - D - MJ 1982>> - MJ 1982
# 6
MPN: 92842607700
selector lever - D - MJ 1983>>
# 6
MPN: 92242420300
spring seat - D - MJ 1983>>
from £2.34
from £2.34
# 6
MPN: 92242417603
pressure spring - D - MJ 1983>>
# 6
MPN: 92242420100
spring seat - D - MJ 1983>>
from £3.48
from £3.48
# 6
MPN: 92842617401
Key - D - MJ 1983>>
from £5.20
from £5.20
# 6
MPN: N 0331651
screw, csk. hd. - M 4 X 8 - D - MJ 1983>>
# 7
MPN: 171927145A
CONTACT
from £8.64
from £8.64
# 8
MPN: 311927147B
PARK/NEUTRAL POSITION SWITCH
from £17.98
from £17.98
# 9
MPN: N 0139681
TAPPING SCREW, FILL. HD. - B 4,8 X 13
# 10
MPN: 94442610901
CATCH
from £7.73
from £7.73
# 11
MPN: 477713265C
BOWDEN CABLE
from £134.75
from £134.75
# 12
MPN: 431609781
PROTECTIVE TUBE
from £1.84
from £1.84
# 13
MPN: 477609715
SEALING SLEEVE
from £5.44
from £5.44
# 14
MPN: N 01100514
HEX. NUT - M 5 - DISCONTINUED PART
# 14
MPN: 90007609101
hex. nut - M 5
from £1.00
from £1.00
# 15
MPN: 90015102702
WASHER - B 5,3 - DISCONTINUED PART
# 15
MPN: 90015102703
WASHER - B 5,3
from £0.65
from £0.65
# 16
MPN: 91142314700
BALL SOCKET
Supersession
Supersession
# 17
MPN: 90016901402
SECURING CLIP - DISCONTINUED PART
# 17
MPN: 90016901401
SECURING CLIP
from £3.69
from £3.69
# 18
MPN: 477713281A
RETAINING BRACKET
from £56.24
from £56.24
# 19
MPN: 90002701502
LOCK RING - B 8
# 19
MPN: 90002701503
LOCK RING - B 8
from £0.86
from £0.86
# 20
MPN: 90007508502
SCREW, HEX. HD. - M 8 X 20
Supersession
Supersession
# 21
MPN: 321713855A
BULB HOLDER
from £2.89
from £2.89
# 22
MPN: 90063113290
bulb - 12V 1,2W
from £2.06
from £2.06
# 23
MPN: 111919243
BULB SOCKET
from £9.44
from £9.44
# 24
MPN: 90037803009
SCREW, HEX. HD. - M 6 X 20
# 25
MPN: N 0122265
SPRING WASHER - B 6
from £0.70
from £0.70
# 26
MPN: N 90006701
WASHER - 6,4
from £0.79
from £0.79
# 27
MPN: N 01021513
SCREW, HEX. HD. - M 6 X 15
from £2.09
from £2.09
# 28
MPN: 473867471
SEAL RING
# 29
MPN: N 0123251
LOCK WASHER
from £7.96
from £7.96
# 30
MPN: 321713137
ROLLER
from £3.60
from £3.60
