porsche 1982 (944) starter - battery - wiring harnesses parts diagram

902-010 - STARTER - BATTERY - WIRING HARNESSES

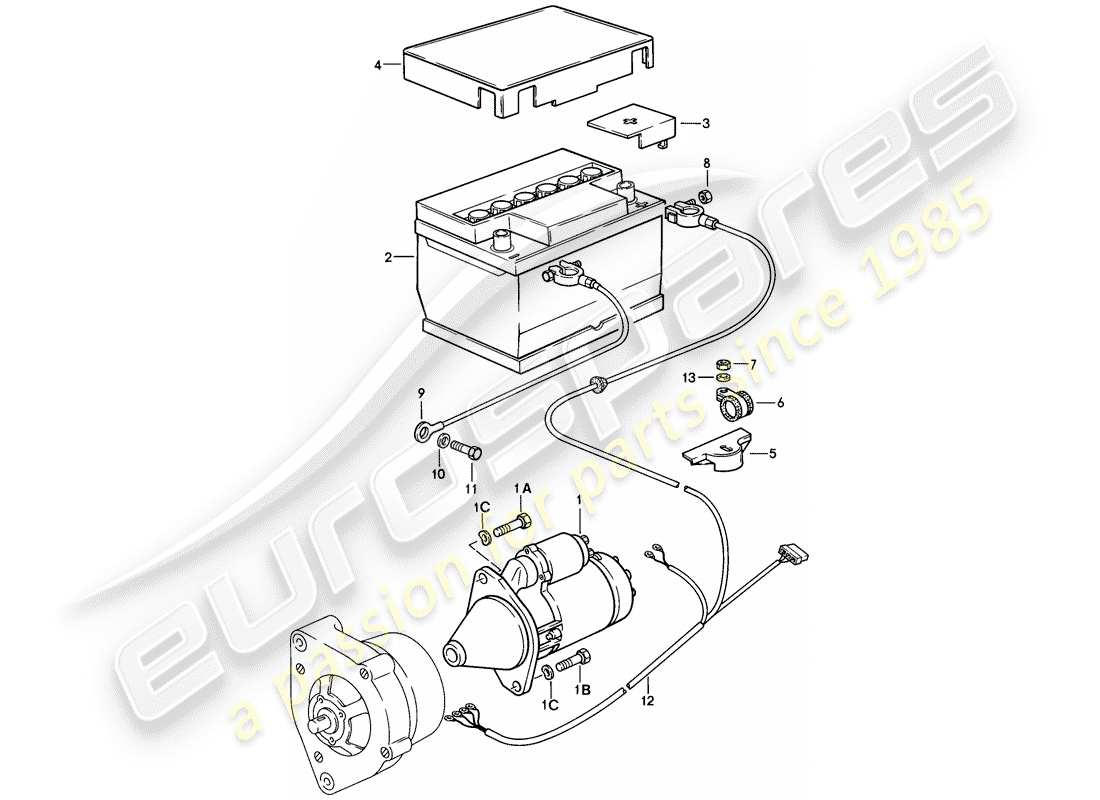

Porsche 1982 (944) STARTER - BATTERY - WIRING HARNESSES Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 95160410100
                    STARTER - 1,1 KW
                    from £629.29
                    from £629.29
                    STARTER - 1,4 KW Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 951604101 X
                    STARTER - 1,1 KW
                    from £503.41
                    from £503.41
                    STARTER Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 951604101AX
                    STARTER - 1,1 KW
                    from £465.66
                    from £465.66
                    STARTER Genuine Porsche Part - New (to order)
                    # 1
                    MPN: N 0104911
                    SCREW, HEX. HD. - M 12 X 50
                    SCREW, HEX. HD. - M 12 X 50 Genuine Porsche Part - New (to order)
                    # 1
                    MPN: N 0402531
                    SCREW, HEX. HD. - M 12 X 35
                    SCREW, HEX. HD. - M 12 X 35 Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 90002801402
                    SPRING WASHER - B 12 - DISCONTINUED PART
                    SPRING WASHER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 90002801403
                    SPRING WASHER - B 12
                    from £1.32
                    from £1.32
                    SPRING WASHER - B12 Genuine Porsche Part - New In stock
                    # 2
                    MPN: 94461110100
                    battery - 50 AH
                    LHD
                    battery - 50 AH Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 94561110100
                    battery - 50 AH - Discontinued part
                    RHD
                    battery - 50 AH - Discontinued part Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99961105120
                    battery - 50 AH
                    RHD
                    from £145.37
                    from £145.37
                    battery - 50 AH Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 477915107A
                    battery - 63 AH
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 3
                    MPN: 477915429
                    POLE COVERING
                    RHD
                    POLE COVERING Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 281915411F
                    cover for battery - for - battery - 50 AH
                    from £19.23
                    from £19.23
                    cover for battery - Not for: - (USA),(CDN) Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 477915411A
                    BATTERY COVER - FOR - 63 AH
                    from £13.62
                    from £13.62
                    BATTERY COVER - FOR - 63 AH Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 91461123310
                    TENSION TERMINAL
                    from £11.70
                    from £11.70
                    TENSION TERMINAL Genuine Porsche Part - New (to order)
                    # 6
                    MPN: N 0206071
                    CLAMP - B 20 X 20 GI
                    from £5.61
                    from £5.61
                    CLAMP - RSGU 1100/20/20 Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 477915489
                    HEX. NUT - M 8 - DISCONTINUED PART
                    HEX. NUT - M 8 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 90003400105
                    hex. nut - M 8
                    from £4.52
                    from £4.52
                    HEX. NUT - M8 Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 90007601002
                    NUT - M 6
                    nut - M6 - Discontinued part Genuine Porsche Part - New (to order)
                    # 8
                    MPN: N 02214812
                    HEX. NUT, SELF-LOCKING - M 6
                    from £1.08
                    from £1.08
                    hex. nut, self-locking - M6 Genuine Porsche Part - New In stock
                    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
                    # 9
                    MPN: 477971221
                    GROUND STRAP
                    from £21.05
                    from £21.05
                    ground strap - battery Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 90002701502
                    LOCK RING - B 8
                    lock ring - M 10 Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 90002701503
                    LOCK RING - B 8
                    from £0.86
                    from £0.86
                    lock ring - M 10 Genuine Porsche Part - New In stock
                    # 12
                    MPN: 94461201501
                    HARNESS - STARTER - ALTERNATOR
                    LHD
                    HARNESS - STARTER - ALTERNATOR Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 94561201500
                    HARNESS - STARTER - ALTERNATOR
                    RHD
                    from £157.89
                    from £157.89
                    HARNESS - STARTER - ALTERNATOR Genuine Porsche Part - New (to order)
