porsche 1982 (944) switch - fuse box - relay parts diagram

903-000 - SWITCH - FUSE BOX - RELAY

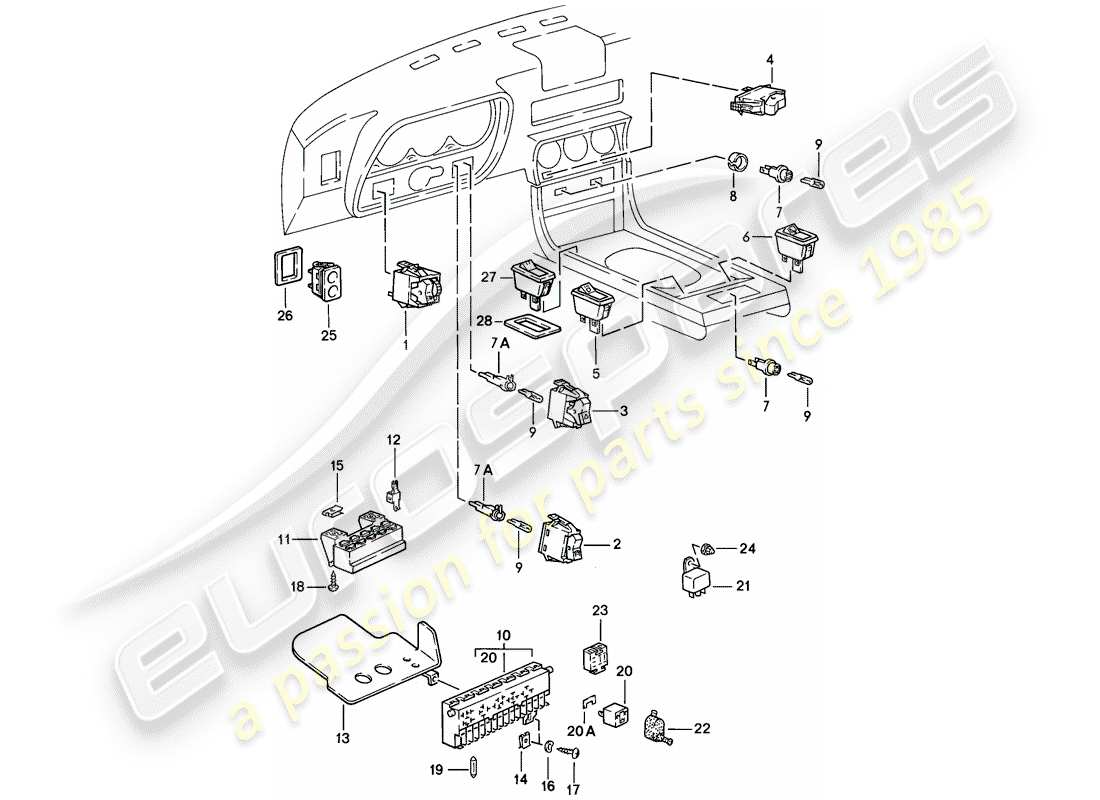

Porsche 1982 (944) SWITCH - FUSE BOX - RELAY Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 477941531F
                                                SWITCH FOR LIGHTING
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 2
                                                MPN: 477959623
                                                SWITCH - REAR WINDOW HEATING
                                                from £26.90
                                                from £26.90
                                                switch - Rear window heating - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                                # 3
                                                MPN: 477953235A
                                                EMERGENCY LIGHT SWITCH
                                                from £16.54
                                                from £16.54
                                                EMERGENCY LIGHT SWITCH Genuine Porsche Part - New (to order)
                                                # 4
                                                MPN: 94461311000
                                                SWITCH FOR REAR FOG LIGHT
                                                from £19.90
                                                from £19.90
                                                Switch for rear fog light - D - MJ 1981>> - MJ 1981 - Discontinued part Genuine Porsche Part - New (to order)
                                                # 4
                                                MPN: 94461311200
                                                SWITCH FOR REAR FOG LIGHT - FOG LIGHTS - REAR FOG LIGHT
                                                SWITCH FOR REAR FOG LIGHT - FOG LIGHTS - REAR FOG LIGHT Genuine Porsche Part - New (to order)
                                                # 5
                                                MPN: 477941563A
                                                SWITCH - ADDITIONAL HEADLIGHT
                                                (\\GB.\\)
                                                from £19.97
                                                from £19.97
                                                SWITCH - ADDITIONAL HEADLIGHT Genuine Porsche Part - New (to order)
                                                # 5
                                                MPN: 91161311300
                                                CHANGEOVER SWITCH
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 6
                                                MPN: 477955701
                                                ROCKER SWITCH - REAR WINDOW WIPER
                                                from £18.31
                                                from £18.31
                                                ROCKER SWITCH - REAR WINDOW WIPER Genuine Porsche Part - New (to order)
                                                # 6
                                                MPN: 477955702
                                                SWITCH - HEADLIGHT WASHER SYSTEM
                                                from £19.97
                                                from £19.97
                                                switch - Together with - M036 - also use: Genuine Porsche Part - New (to order)
                                                # 6
                                                MPN: 477955703
                                                ROCKER SWITCH
                                                from £13.96
                                                from £13.96
                                                Rocker switch - rear view mirror Genuine Porsche Part - New (to order)
                                                # 7
                                                MPN: 91463117910
                                                BULB SOCKET
                                                from £3.24
                                                from £3.24
                                                bulb socket - D - MJ 1984>> - MJ 1984 Genuine Porsche Part - New In stock
                                                # 7
                                                MPN: 141957397A
                                                BULB SOCKET
                                                bulb socket - D >> - MJ 1980 Genuine Porsche Part - New (to order)
                                                # 8
                                                MPN: 477919333
                                                KNOB HOLDER
                                                from £3.53
                                                from £3.53
                                                Knob holder - bulb socket - Blower switch Genuine Porsche Part - New (to order)
                                                # 9
                                                MPN: 90063113290
                                                BULB - 12 V, 1,2 W
                                                from £2.06
                                                from £2.06
                                                bulb - W 12V/1,2W Genuine Porsche Part - New (to order)
                                                # 10
                                                MPN: 477941813
                                                RELAY PLATE
                                                from £174.68
                                                from £174.68
                                                Relay plate - with: - fuse holder Genuine Porsche Part - New (to order)
                                                # 12
                                                MPN: 99965227510
                                                CONTACT
                                                from £12.02
                                                from £12.02
                                                contact - 6,3 Genuine Porsche Part - New (to order)
                                                # 13
                                                MPN: 477941802
                                                COVER
                                                LHD
                                                COVER Genuine Porsche Part - New (to order)
                                                # 13
                                                MPN: 478941802
                                                COVER
                                                RHD
                                                from £9.62
                                                from £9.62
                                                COVER Genuine Porsche Part - New (to order)
                                                # 14
                                                MPN: N 0154381
                                                speed nut - B 3,5 X 16,5
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 15
                                                MPN: N 0454211
                                                SPEED NUT - B 4,2
                                                SPEED NUT - B 4,2 Genuine Porsche Part - New (to order)
                                                # 16
                                                MPN: N 0116631
                                                WASHER - B 3,7
                                                from £1.20
                                                from £1.20
                                                WASHER - B 3,7 Genuine Porsche Part - New (to order)
                                                # 17
                                                MPN: 90014307202
                                                TAPPING SCREW, FILL. HD. - B 3,5 X 19
                                                from £1.09
                                                from £1.09
                                                TAPPING SCREW, FILL. HD. - B 3,9 X 19 Genuine Porsche Part - New (to order)
                                                # 18
                                                MPN: N 0139644
                                                TAPPING SCREW, FILL. HD. - B 4,2 X 16
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 19
                                                MPN: N 0171211
                                                SAFETY FUSE - 8 A
                                                from £1.77
                                                from £1.77
                                                Safety fuse - 8/15 A Genuine Porsche Part - New (to order)
                                                # 19
                                                MPN: N 0171214
                                                FUSE - 16 A
                                                from £3.68
                                                from £3.68
                                                fuse - red Genuine Porsche Part - New (to order)
                                                # 19
                                                MPN: N 0171215
                                                FUSE - 25 A
                                                from £1.77
                                                from £1.77
                                                fuse - 25/40 A Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 111953227D
                                                RELAY TURN SIGNAL/EMERG.LIGHT - DISCONTINUED PART
                                                RELAY TURN SIGNAL/EMERG.LIGHT - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 191953227A
                                                RELAY TURN SIGNAL/EMERG.LIGHT - DISCONTINUED PART
                                                RELAY TURN SIGNAL/EMERG.LIGHT - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 1H0953227
                                                RELAY TURN SIGNAL/EMERG.LIGHT
                                                from £33.85
                                                from £33.85
                                                Genuine Porsche Part (no longer available to order)
                                                RELAY TURN SIGNAL Genuine Bentley Part - New (to order)
                                                # 20
                                                MPN: PCG953227
                                                RELAY TURN SIGNAL/EMERG.LIGHT
                                                from £30.56
                                                from £30.56
                                                RELAY TURN SIGNAL/EMERG.LIGHT - RELAY LOCATION/CODE NO.: Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 141951253B
                                                RELAY - ADDITIONAL HEADLIGHT - ELECTRIC FAN - REAR WINDOW HEATING
                                                from £7.03
                                                from £7.03
                                                relay - X-contact - relay location/code no.: Genuine Porsche Part - New (to order)
                                                Genuine Bentley Part (no longer available to order)
                                                NORMALLY OPEN CONTACT RELAY Genuine Lamborghini - New (to order)
                                                # 20
                                                MPN: 94461510201
                                                relay - For seat belt - Rear window heating - D - MJ 1984>>
                                                from £38.52
                                                from £38.52
                                                relay - For seat belt - Rear window heating - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 94461510202
                                                relay - For seat belt - Rear window heating - D - MJ 1984>>
                                                from £43.09
                                                from £43.09
                                                relay - For seat belt - Rear window heating - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 141951253B
                                                RELAY - HORN - F >> 94-CN409 209
                                                (\\USA\\,\\CDN\\)
                                                from £7.03
                                                from £7.03
                                                relay - X-contact - relay location/code no.: Genuine Porsche Part - New (to order)
                                                Genuine Bentley Part (no longer available to order)
                                                NORMALLY OPEN CONTACT RELAY Genuine Lamborghini - New (to order)
                                                # 20
                                                MPN: 443963141
                                                RELAY - HORN - F 94-CN409 210>>
                                                (\\USA\\,\\CDN\\)
                                                from £23.14
                                                from £23.14
                                                RELAY - HORN - F 94-CN409 210>> Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 94461511301
                                                RELAY - AIR CONDITIONER - DISCONTINUED PART
                                                relay - Motor fan - Discontinued part Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 94461511302
                                                RELAY - AIR CONDITIONER
                                                from £42.97
                                                from £42.97
                                                relay - Motor fan - air conditioner - D - MJ 1979>> Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 477955531A
                                                INTERVAL RELAY - DISCONTINUED PART
                                                from £38.59
                                                from £38.59
                                                INTERVAL RELAY - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 477955531B
                                                INTERVAL RELAY
                                                from £44.41
                                                from £44.41
                                                INTERVAL RELAY Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 99361522700
                                                RELAY - FUEL PUMP - DISCONTINUED PART
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 20
                                                MPN: 99361522701
                                                RELAY - FUEL PUMP
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # -
                                                -
                                                RELAY - SEE TECHNICAL INFORMATION - GR.2 NR.3/85
                                                # 20
                                                MPN: 92861810203
                                                WARNING TIME RELAY - WITH: - WARNING FUNCTION
                                                (PR:215)
                                                from £187.58
                                                from £187.58
                                                warning time relay - warning time relay - relay location/code no.: Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 94461510300
                                                SWITCH UNIT - RADIO UNIT - LIFTING ROOF
                                                SWITCH UNIT - RADIO UNIT - LIFTING ROOF Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 91161711900
                                                SWITCH UNIT - EXHAUST GAS - TEMPERATURE MONITORING
                                                (\\J..\\)
                                                from £204.53
                                                from £204.53
                                                Switch unit - Temperature monitoring Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 111943383C
                                                RELAY - ELECTRIC MOTOR - POP-UP HEADLIGHT - DISCONTINUED PART
                                                relay - for - electric motor - Pop-up headlight - Discontinued part Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 92861511601
                                                RELAY - ELECTRIC MOTOR - POP-UP HEADLIGHT
                                                from £29.20
                                                from £29.20
                                                relay - window regulator Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 171937545
                                                PLUG INSERTS
                                                from £1.03
                                                from £1.03
                                                Plug inserts - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 94461523100
                                                RELAY - FOG LIGHTS
                                                from £12.69
                                                from £12.69
                                                RELAY - FOG LIGHTS Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 94461522300
                                                RELAY - FOG LIGHTS
                                                ( \\S..\\,\\CH.\\, \\N..\\,\\USA\\, \\CDN\\)
                                                from £19.82
                                                from £19.82
                                                RELAY - FOG LIGHTS Genuine Porsche Part - New (to order)
                                                # 22
                                                MPN: 477971923
                                                PROTECTIVE CAP - RELAY - ELECTRIC MOTOR - POP-UP HEADLIGHT
                                                from £14.20
                                                from £14.20
                                                PROTECTIVE CAP - RELAY - ENGINE - POP-UP HEADLIGHT Genuine Porsche Part - New (to order)
                                                # 23
                                                MPN: 135937501A
                                                RELAY PLATE
                                                from £11.23
                                                from £11.23
                                                relay plate - 2,8 / 6,3 Genuine Porsche Part - New (to order)
                                                # 24
                                                MPN: 99907000740
                                                CAP NUT
                                                LHD
                                                CAP NUT Genuine Porsche Part - New (to order)
                                                # 25
                                                MPN: 94461312901
                                                button
                                                button Genuine Porsche Part - New (to order)
                                                # 27
                                                MPN: 95161312300
                                                SWITCH - LIFTING ROOF
                                                from £78.29
                                                from £78.29
                                                switch - Lifting roof - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                                # 28
                                                MPN: 94461312400
                                                ESCUTCHEON
                                                from £6.85
                                                from £6.85
                                                Escutcheon - switch - D - MJ 1984>> Genuine Porsche Part - New (to order)
