porsche 1983 (944) rear wheel shaft - lubricants parts diagram

501-005 - REAR WHEEL SHAFT - LUBRICANTS

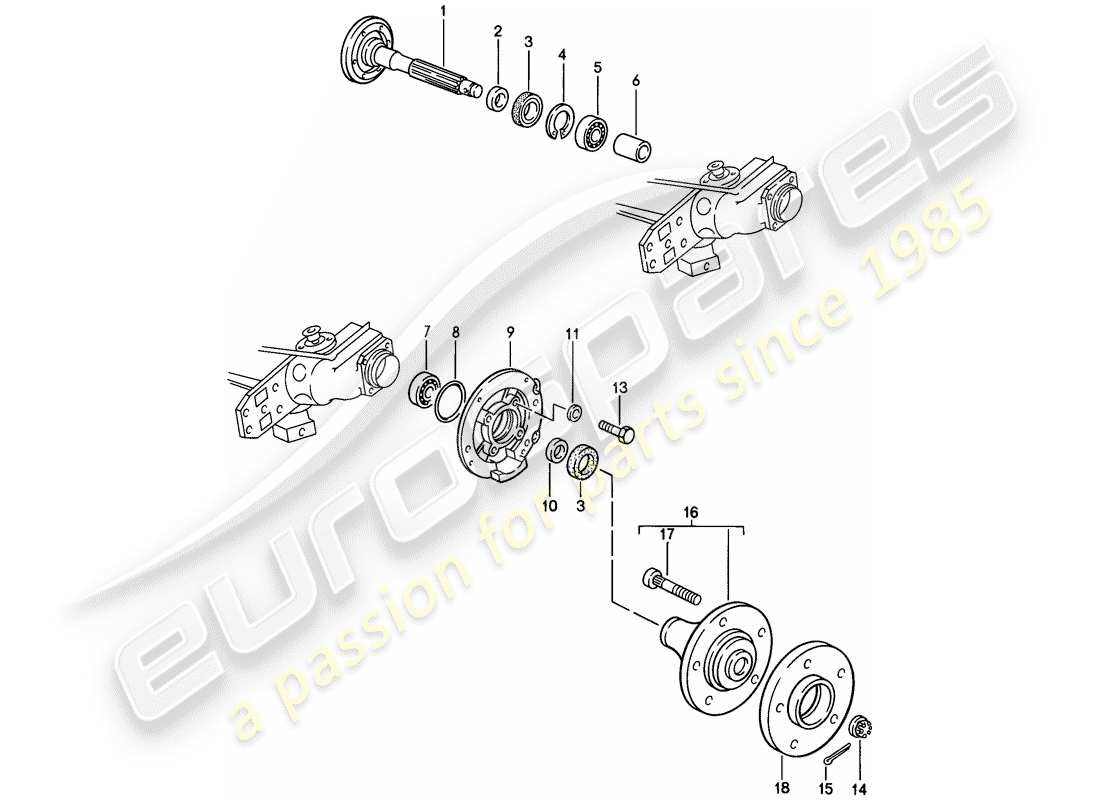

Porsche 1983 (944) REAR WHEEL SHAFT - LUBRICANTS Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # -
                          MPN: PCG04311000
                          GREASE - MOUNTING - 200 GR.
                          from £18.73
                          from £18.73
                          # 1
                          MPN: 477501263
                          DRIVE SHAFT
                          from £379.90
                          from £379.90
                          # 2
                          MPN: 113501305
                          SPACER RING
                          INNER
                          from £11.02
                          from £11.02
                          # 3
                          MPN: 113501315H
                          RADIAL SHAFT SEAL
                          from £11.95
                          from £11.95
                          # 4
                          MPN: 93733113300
                          LOCK RING - 62 X 2,00 MM
                          from £6.85
                          from £6.85
                          # 4
                          MPN: 93733113301
                          LOCK RING - 62 X 2,05 MM
                          from £6.85
                          from £6.85
                          # 4
                          MPN: 93733113302
                          LOCK RING - 62 X 2,10 MM
                          from £6.85
                          from £6.85
                          # 4
                          MPN: 93733113303
                          LOCK RING - 62 X 2,15 MM
                          from £6.85
                          from £6.85
                          # 4
                          MPN: 93733113304
                          LOCK RING - 62 X 2,20 MM
                          from £6.16
                          from £6.16
                          # 5
                          MPN: 113501283
                          BALL BEARING - ALSO USE:
                          -PCG04311000-113501315H-93733113300
                          from £22.68
                          from £22.68
                          # 6
                          MPN: 113501243
                          SPACER TUBE - DISCONTINUED PART
                          # 6
                          MPN: PCG501243
                          SPACER TUBE
                          from £23.33
                          from £23.33
                          # 7
                          MPN: 113501277A
                          ROLLER BEARING - DISCONTINUED PART
                          # 7
                          MPN: 113501277B
                          ROLLER BEARING - ALSO USE:
                          -PCG04311000
                          from £67.46
                          from £67.46
                          # 8
                          MPN: 113501291B
                          SEAL RING
                          from £6.05
                          from £6.05
                          # 9
                          MPN: 477609111
                          CALIPER CARRIER
                          LEFT
                          # 9
                          MPN: 477609112
                          CALIPER CARRIER
                          RIGHT
                          # 10
                          MPN: 113501303
                          SPACER RING
                          OUTER
                          from £23.33
                          from £23.33
                          # 11
                          MPN: 99902507609
                          WASHER - 10,2 X 18
                          from £2.00
                          from £2.00
                          # 13
                          MPN: N 0104505
                          SCREW, HEX. HD. - M 10 X 50
                          # 13
                          MPN: 90007437302
                          SCREW, HEX. HD. - M 10 X 50
                          from £3.82
                          from £3.82
                          # 14
                          MPN: 311501221
                          nut, slotted
                          from £15.67
                          from £15.67
                          # 15
                          MPN: 90002102502
                          COTTER PIN - 5 X 45
                          from £1.61
                          from £1.61
                          # 16
                          MPN: 477501065
                          wheel hub - also use:
                          -PCG04311000-113501277B-113501315H
                          from £285.33
                          from £285.33
                          # 17
                          MPN: 91133167100
                          WHEEL BOLT - FOR - 21 MM - SPACER RING
                          from £9.42
                          from £9.42
                          # 17
                          MPN: 90133167101
                          WHEEL BOLT - FOR - 28 MM - SPACER RING
                          from £10.46
                          from £10.46
                          # 18
                          MPN: 477501701
                          spacer ring - 21 MM
                          # 18
                          MPN: 93033161104
                          SPACER RING - 28 MM - DISCONTINUED PART
                          # 18
                          MPN: 93033161106
                          spacer ring - 28 MM
                          from £147.08
                          from £147.08
