porsche 1984 (944) l-jetronic - 1 parts diagram

107-000 - L-JETRONIC - 1

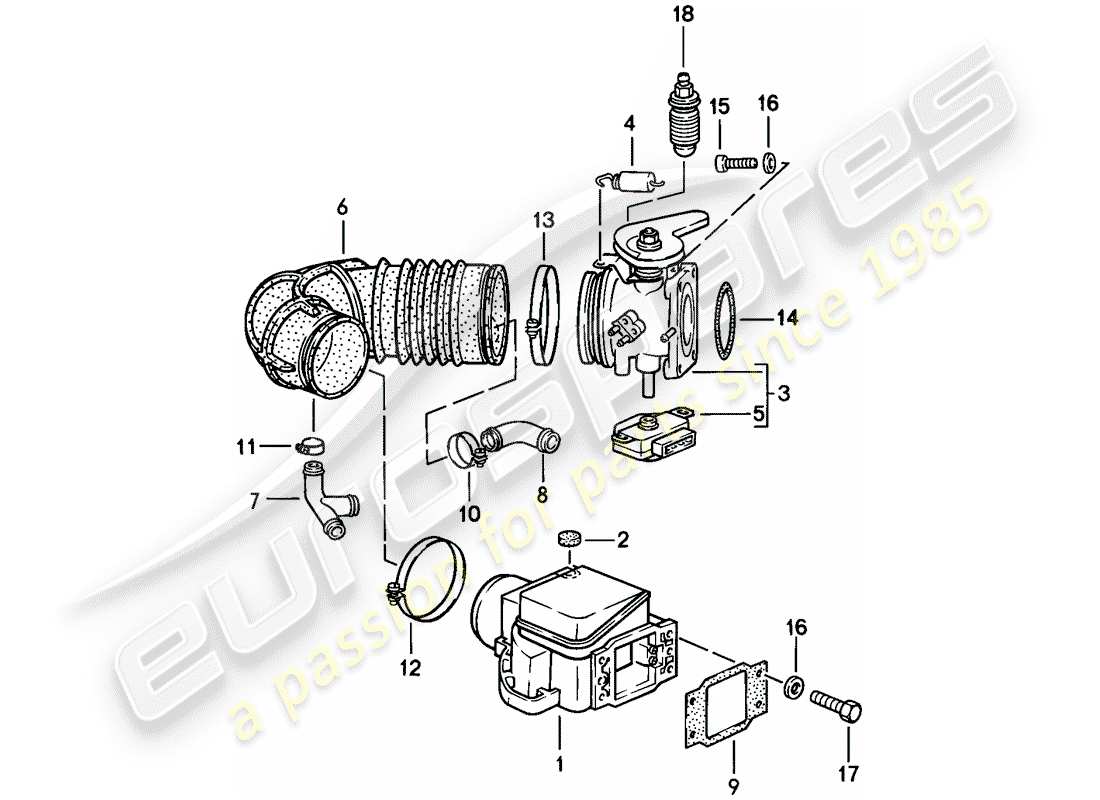

Porsche 1984 (944) L-JETRONIC - 1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Key
                                Price
                                # 1
                                MPN: 94460612100
                                MASS AIR FLOW SENSOR
                                MASS AIR FLOW SENSOR Genuine Porsche Part - New (to order)
                                # 2
                                MPN: 94460693501
                                SEALING CAP - BLUE
                                SEALING CAP - BLUE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 94411009104
                                FLAP-NOZZLE
                                (4401)
                                from £456.40
                                from £456.40
                                FLAP-NOZZLE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 94411009401
                                FLAP-NOZZLE
                                (4401,4402 \\J..\\,\\AUS\\)
                                FLAP-NOZZLE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 94411009301
                                FLAP-NOZZLE
                                AUT. (4403)
                                FLAP-NOZZLE Genuine Porsche Part - New (to order)
                                # 3
                                MPN: 94411009501
                                FLAP-NOZZLE
                                -AUT. (4403,4404 \\J..\\,\\AUS\\)
                                from £68.23
                                from £68.23
                                FLAP-NOZZLE Genuine Porsche Part - New (to order)
                                # 4
                                MPN: 94411007100
                                RETURN SPRING - WITH: - SOUND ABSORBER
                                (4401,4402)
                                from £20.50
                                from £20.50
                                Return spring - with: - sound absorber - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                # 4
                                MPN: 94411027100
                                RETURN SPRING - WITHOUT: - SOUND ABSORBER
                                (4401,4402)
                                from £9.05
                                from £9.05
                                Return spring - without: - sound absorber - D - MJ 1981>> Genuine Porsche Part - New (to order)
                                # 4
                                MPN: 94411007101
                                Return spring - with: - sound absorber - D >> - MJ 1984
                                AUT. (4403,4404)
                                from £18.59
                                from £18.59
                                Return spring - with: - sound absorber - D >> - MJ 1984 Genuine Porsche Part - New (to order)
                                # 4
                                MPN: 94411027101
                                Return spring - without: - sound absorber - D >> - MJ 1984
                                AUT. (4403,4404)
                                from £8.18
                                from £8.18
                                Return spring - without: - sound absorber - D >> - MJ 1984 Genuine Porsche Part - New (to order)
                                # 5
                                MPN: 94460611301
                                THROTTLE VALVE SWITCH
                                from £478.07
                                from £478.07
                                Throttle valve switch - D - MJ 1986>> Genuine Porsche Part - New (to order)
                                # 6
                                MPN: 94411035804
                                AIR DUCT
                                from £55.22
                                from £55.22
                                AIR DUCT Genuine Porsche Part - New (to order)
                                # 7
                                MPN: 94411036302
                                ADAPTER
                                from £6.02
                                from £6.02
                                ADAPTER Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 94410736700
                                ADAPTER
                                ADAPTER Genuine Porsche Part - New (to order)
                                # 8
                                MPN: 94410736701
                                ADAPTER
                                (\\J..\\,\\AUS\\)
                                from £76.39
                                from £76.39
                                ADAPTER Genuine Porsche Part - New (to order)
                                # 9
                                MPN: 94411035300
                                GASKET
                                from £1.17
                                from £1.17
                                GASKET Genuine Porsche Part - New (to order)
                                # 10
                                MPN: 99951255200
                                Hose Clamp - 25/9 - Discontinued part
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 10
                                MPN: 99951255201
                                Hose Clamp - 25/9
                                from £2.29
                                from £2.29
                                This part replaces part number 99951250702 - and 1 more. Click to view details
                                Hose Clamp - S25/9ZY Genuine Porsche Part - New (to order)
                                # 11
                                MPN: 99951204502
                                Hose Clamp - 22/9
                                Hose Clamp - S 22/9 Genuine Porsche Part - New (to order)
                                # 12
                                MPN: 99951223502
                                Hose Clamp - 77/9
                                from £8.63
                                from £8.63
                                Hose Clamp - S77/9ZY Genuine Porsche Part - New (to order)
                                # 13
                                MPN: 99951230202
                                Hose Clamp - 85/9 - Discontinued part
                                Hose Clamp - S85/9 - Discontinued part Genuine Porsche Part - New (to order)
                                # 13
                                MPN: PCG51230202
                                Hose Clamp - 85/9
                                from £8.89
                                from £8.89
                                Hose Clamp - S85/9 Genuine Porsche Part - New (to order)
                                # 14
                                MPN: 99970146840
                                O-RING - 67,5 X 4
                                from £12.61
                                from £12.61
                                O-ring - 67,5 X 75,4 X4 Genuine Porsche Part - New (to order)
                                # 15
                                MPN: 90006708902
                                SCREW, CHEESE HD. - M 6 X 25 - DISCONTINUED PART
                                screw, cheese hd. - M6X25 - Discontinued part Genuine Porsche Part - New (to order)
                                # 15
                                MPN: 90006708901
                                SCREW, CHEESE HD. - M 6 X 25
                                from £1.18
                                from £1.18
                                screw, cheese hd. - M6X25 Genuine Porsche Part - New (to order)
                                # 16
                                MPN: N 0115247
                                WASHER - A 6,4 - DISCONTINUED PART
                                Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                                # 16
                                MPN: N 01152427
                                Washer - A 6,4
                                from £0.47
                                from £0.47
                                Washer - R 6,6 Genuine Porsche Part - New (to order)
                                WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                                # 17
                                MPN: N 0103055
                                SCREW, HEX. HD. - M 6 X 32
                                from £0.54
                                from £0.54
                                SCREW, HEX. HD. - M 6 X 32 Genuine Porsche Part - New (to order)
                                # 17
                                MPN: 90007415102
                                SCREW, HEX. HD. - M 6 X 38
                                Supersession
                                Supersession
                                Genuine Porsche Part (no longer available to order)
                                # 18
                                MPN: 93011091900
                                THROTTLE SCREW
                                from £9.27
                                from £9.27
                                THROTTLE SCREW Genuine Porsche Part - New (to order)
