901-000 - ENGINE ELECTRICS 1

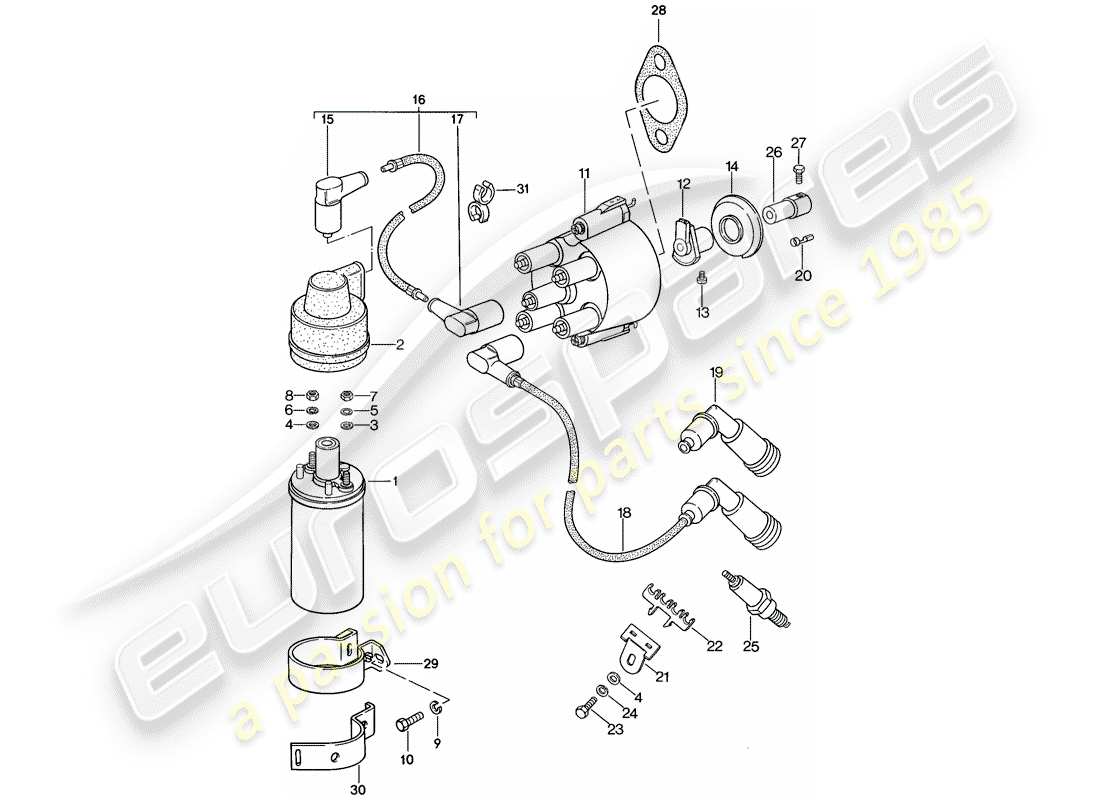

Porsche 1984 (944) ENGINE ELECTRICS 1 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 1
                                                              MPN: 94460211500
                                                              IGNITION COIL
                                                              Supersession
                                                              Supersession
                                                              # 2
                                                              MPN: 94460280100
                                                              PROTECTIVE CAP
                                                              from £26.29
                                                              from £26.29
                                                              # 3
                                                              MPN: 90002500302
                                                              Washer - A 5,3
                                                              # 4
                                                              MPN: N 0115247
                                                              WASHER - A 6,4 - DISCONTINUED PART
                                                              # 4
                                                              MPN: N 01152427
                                                              Washer - A 6,4
                                                              from £0.47
                                                              from £0.47
                                                              # 5
                                                              MPN: N 0120053
                                                              LOCK RING - B 5
                                                              from £0.66
                                                              from £0.66
                                                              # 6
                                                              MPN: N 0120064
                                                              LOCK RING - B 6
                                                              from £0.70
                                                              from £0.70
                                                              # 8
                                                              MPN: N 02214812
                                                              HEX. NUT, SELF-LOCKING - M 6
                                                              from £1.08
                                                              from £1.08
                                                              # 9
                                                              MPN: 90002500702
                                                              WASHER - A 8,4 - DISCONTINUED PART
                                                              # 9
                                                              MPN: 90002500703
                                                              Washer - A 8,4
                                                              from £0.84
                                                              from £0.84
                                                              # 10
                                                              MPN: N 0147067
                                                              bolt, with hex. socket - hd. - M 8 X 12 - Discontinued part
                                                              # 10
                                                              MPN: N 0147068
                                                              bolt, with hex. socket - hd. - M 8 X 12
                                                              from £2.32
                                                              from £2.32
                                                              # 11
                                                              MPN: 94460225100
                                                              DISTRIBUTOR CAP
                                                              from £95.77
                                                              from £95.77
                                                              # -
                                                              -
                                                              ROTOR - COMPRISING: - POS. 12, 13, 26 - DISCONTINUED PART
                                                              # -
                                                              -
                                                              ROTOR - COMPRISING: - POS. 12, 13, 26
                                                              # 12
                                                              -
                                                              ROTOR
                                                              # 13
                                                              -
                                                              SCREW, CHEESE HD.
                                                              # 14
                                                              MPN: 94460280300
                                                              DUST COVER
                                                              from £16.93
                                                              from £16.93
                                                              # 15
                                                              MPN: 94460913100
                                                              IGNITION COIL PLUG
                                                              from £12.28
                                                              from £12.28
                                                              # 16
                                                              MPN: 94460901701
                                                              IGNITION WIRE
                                                              from £51.79
                                                              from £51.79
                                                              # 17
                                                              MPN: 94460913300
                                                              DISTRIBUTOR PLUG
                                                              from £13.82
                                                              from £13.82
                                                              # 18
                                                              MPN: 94460901519
                                                              IGNITION WIRE
                                                              cylinder 1
                                                              from £46.21
                                                              from £46.21
                                                              # 18
                                                              MPN: 94460901520
                                                              IGNITION WIRE
                                                              cylinder 2
                                                              from £46.21
                                                              from £46.21
                                                              # 18
                                                              MPN: 94460901521
                                                              IGNITION WIRE
                                                              cylinder 3
                                                              from £46.21
                                                              from £46.21
                                                              # 18
                                                              MPN: 94460901522
                                                              IGNITION WIRE
                                                              cylinder 4
                                                              from £46.21
                                                              from £46.21
                                                              # 19
                                                              MPN: 92860910503
                                                              IGNITION CABLE CONNECTOR
                                                              from £31.88
                                                              from £31.88
                                                              # 20
                                                              MPN: 91160931000
                                                              CABLE SCREW
                                                              from £3.71
                                                              from £3.71
                                                              # 21
                                                              MPN: 94460921700
                                                              BRACKET - IGNITION WIRE
                                                              from £2.34
                                                              from £2.34
                                                              # 22
                                                              MPN: 052905471A
                                                              HOLDER FOR IGNITION LEADS
                                                              from £8.39
                                                              from £8.39
                                                              # 23
                                                              MPN: 99907200509
                                                              HEX. NUT - M 6 X 12 - DISCONTINUED PART
                                                              # 23
                                                              MPN: 99907200501
                                                              SCREW, HEX. HD. - M 6 X 12
                                                              from £2.58
                                                              from £2.58
                                                              # 24
                                                              MPN: N 0122265
                                                              SPRING WASHER - B 6
                                                              from £0.70
                                                              from £0.70
                                                              # -
                                                              -
                                                              SPARK PLUG - ALSO USE: - FOR - SPARK PLUG
                                                              -547 09 222
                                                              # -
                                                              -
                                                              NUT - FOR - SPARK PLUG
                                                              # 25
                                                              MPN: 99917015690
                                                              SPARK PLUG - WR 7 DC - - BOSCH -
                                                              from £14.78
                                                              from £14.78
                                                              # 26
                                                              -
                                                              CONNECTING PIECE
                                                              # 27
                                                              MPN: 99921700802
                                                              SCREW, HEX. HD. - M 5 X 10
                                                              from £0.88
                                                              from £0.88
                                                              # 28
                                                              MPN: 94460225700
                                                              SEALING SLEEVE
                                                              from £5.08
                                                              from £5.08
                                                              # 29
                                                              MPN: 94460211700
                                                              CLAMP
                                                              # 30
                                                              MPN: 94460229400
                                                              RETAINER BRACKET
                                                              from £8.90
                                                              from £8.90
                                                              # 31
                                                              MPN: 94460922700
                                                              BRACKET - IGNITION WIRE
                                                              from £2.77
                                                              from £2.77
