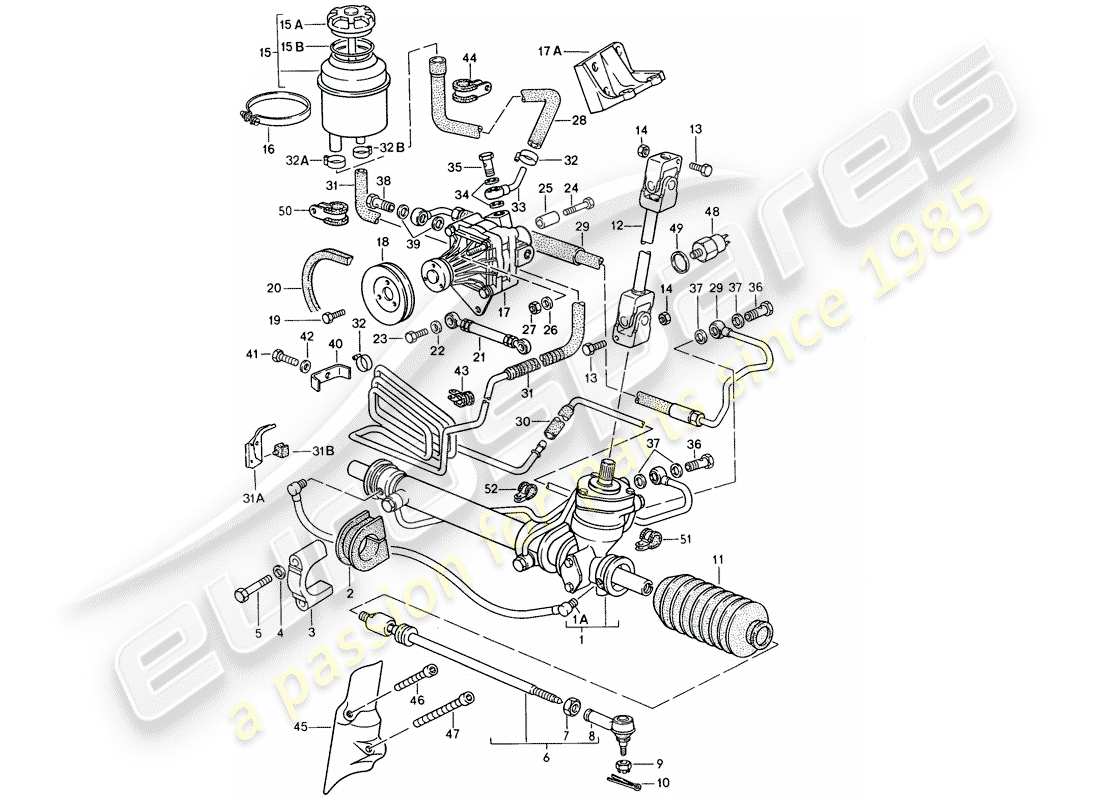

403-002 - power steering - steering gear - power steering pump - lines
Porsche 1986 (944) POWER STEERING - STEERING GEAR - POWER STEERING PUMP - LINES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
-
SEE TECHNICAL INFORMATION - GR.4, NR.6/90
# 1
MPN: 94434701122
STEERING GEAR - ALSO USE:
lhd-94434713700-94434713901-94434722301-90002500703-90007428108
# 1
MPN: 944347011AX
steering gear - Discontinued part - also use:
lhd--94434713700-94434713901-94434722301-90002500703-90007428108
# 1
MPN: 94434701124
STEERING GEAR - ALSO USE:
lhd-94434713700-94434713901-94434722301-90002500703-90007428108
from £2,163.01
from £2,163.01
# 1
MPN: 944347011BX
STEERING GEAR - ALSO USE:
lhd-94434713700-94434713901-94434722301-90002500703-90007428108
from £3,263.52
from £3,263.52
# 1
MPN: 94534701122
STEERING GEAR - ALSO USE:
rhd-94434713700-94434713901-94534702300-90002500703-90007428108
# 1
MPN: 945347011BX
STEERING GEAR - ALSO USE:
rhd-94434713700-94434713901-94534702300-90002500703-90007428108
from £1,910.83
from £1,910.83
# 1
MPN: 94434731100
COMPENSATING LINE
from £63.51
from £63.51
# 2
MPN: 94434713700
RUBBER INSERT
LEFT
from £13.69
from £13.69
# 2
MPN: 94434713901
RUBBER INSERT
RIGHT
from £10.67
from £10.67
# 3
MPN: 94534702300
CLAMP
RHD
from £4.90
from £4.90
# 3
MPN: 94434722301
CLAMP
LHD
from £12.42
from £12.42
# 4
MPN: 90002500702
WASHER - A 8,4 - DISCONTINUED PART
# 4
MPN: 90002500703
Washer - A 8,4
from £0.84
from £0.84
# 5
MPN: 90007428108
SCREW, HEX. HD. - M 8 X 60
from £1.47
from £1.47
# 6
MPN: 94434703320
Steering track rod - D >> - MJ 1986
from £125.37
from £125.37
# 6
MPN: 94434703323
Steering track rod - D - MJ 1987>>
# 7
MPN: 90007800501
hex. nut - M 14
# 8
MPN: 94434733300
BALL JOINT - D >> - MJ 1986
from £31.58
from £31.58
# 8
MPN: 94434733304
ball joint - D - MJ 1987>>
from £35.14
from £35.14
# 9
MPN: N 0112122
NUT, SLOTTED - D >> - MJ 1986
from £2.89
from £2.89
# 9
MPN: N 0221411
NUT - D - MJ 1987>> - DISCONTINUED PART
Supersession
Supersession
# 9
MPN: 90036000201
LOCK NUT - D - MJ 1987>> - DISCONTINUED PART
# 9
MPN: 9003600020B
lock nut - D - MJ 1987>>
Supersession
Supersession
# 10
MPN: N 0125321
cotter pin - D >> - MJ 1986
from £0.69
from £0.69
# 11
MPN: 171419831C
BOOT FOR STEERING GEAR ASSY. - DISCONTINUED PART
# 11
MPN: PCG419831C
BELLOWS
from £6.38
from £6.38
# 12
MPN: 94434702702
DRIVE SHAFT - DISCONTINUED PART
LHD
# 12
MPN: 94434702703
DRIVE SHAFT
LHD
from £276.61
from £276.61
# 12
MPN: 94534702700
DRIVE SHAFT
RHD
Supersession
Supersession
# 13
MPN: N 0103357
SCREW, HEX. HD. - M 8 X 35
from £1.02
from £1.02
# 14
MPN: 90091002209
LOCK NUT - M 8
# 14
MPN: 90091002203
LOCK NUT - M 8
from £0.85
from £0.85
# 15
MPN: 92834701505
CONTAINER
from £29.39
from £29.39
# 15
MPN: 92834792500
COVER
from £11.89
from £11.89
# 15
MPN: 92834792700
GASKET
from £3.25
from £3.25
# 16
MPN: 99951235002
HOSE CLAMP
from £5.17
from £5.17
# 17
MPN: 94434743203
POWER STEERING PUMP
(944,TURBO)
# 17
MPN: 944347432CX
POWER STEERING PUMP - ALTERNATIVE PARTS:
(944,TURBO)
from £481.71
from £481.71
# 17
MPN: 94434743208
power steering pump - Discontinued part
(944,TURBO)
from £878.28
from £878.28
# 17
MPN: 944347432CX
POWER STEERING PUMP
(944,TURBO)
from £481.71
from £481.71
# 17
MPN: 94434743204
POWER STEERING PUMP
(944S)
from £720.00
from £720.00
# 17
MPN: 944347432DX
POWER STEERING PUMP
(944S)
from £1,328.60
from £1,328.60
# 17
MPN: 94410114701
bracket - for - power steering pump - Discontinued part
# 17
MPN: 94410114702
BRACKET - FOR - POWER STEERING PUMP
from £61.27
from £61.27
# 18
MPN: 94434743703
PULLEY
from £76.79
from £76.79
# 19
MPN: 90007501002
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 19
MPN: N 01021214
SCREW, HEX. HD. - M 6 X 12 - DISCONTINUED PART
# 19
MPN: 99907200509
HEX. NUT - M 6 X 12 - DISCONTINUED PART
# 19
MPN: 99907200501
SCREW, HEX. HD. - M 6 X 12
from £2.58
from £2.58
# 20
MPN: 99919223650
Narrow v-belt - 9,5 X 950
from £11.20
from £11.20
# 21
MPN: 94434705302
cross support
from £37.20
from £37.20
# 22
MPN: N 01152513
Washer - A 8,4
# 23
MPN: N 01024212
SCREW, HEX. HD. - M 8 X 25
# 24
MPN: N 0103594
SCREW, HEX. HD. - M 8 X 38
from £1.47
from £1.47
# 25
MPN: 94434744102
sleeve - 26 MM
# 26
MPN: 90002500702
Washer - Discontinued part
# 26
MPN: 90002500703
WASHER
from £0.84
from £0.84
# 26
MPN: 94434744200
sleeve - 13 MM
from £12.27
from £12.27
# 27
MPN: 90007602502
HEX. NUT - M 8 - DISCONTINUED PART
Supersession
Supersession
# 27
MPN: 90007606402
hex. nut - M 8
from £0.59
from £0.59
# 28
MPN: 94434744502
Molded hose - Discontinued part
# 28
MPN: 94434744505
Molded hose - also use:
-999 230 357 01
Supersession
Supersession
# -
-
ADAPTER
# 29
MPN: 94434744702
PRESSURE LINE
LHD
# 29
MPN: 94534744702
PRESSURE LINE
RHD
from £396.71
from £396.71
# 30
MPN: 94434744906
RETURN LINE
LHD
from £122.99
from £122.99
# 30
MPN: 94534744902
RETURN LINE
RHD
Supersession
Supersession
# 31
MPN: 94434745903
RETURN LINE
Supersession
Supersession
# 31
MPN: 94434746502
BRACKET
from £11.71
from £11.71
# 31
MPN: 94434746700
CABLE HOLDER - FOR - LINE HOLDER
from £1.92
from £1.92
# 32
MPN: N 0235692
HOSE CLAMP - A 9/16 - DISCONTINUED PART
# 32
MPN: PCG0235692
HOSE CLAMP - A 9/16
from £2.11
from £2.11
# 32
MPN: 99951234602
HOSE CLAMP - DISCONTINUED PART
# 32
MPN: 99951267600
HOSE CLAMP - 16 - 25
from £2.16
from £2.16
# 32
MPN: 99951255400
HOSE CLAMP - 12 - 22
from £2.68
from £2.68
This part replaces part number 90027200302
# 33
MPN: 99923015802
NIPPLE WITH ELASTIC RING
from £8.45
from £8.45
# 34
MPN: N 10018401
SEAL RING - D 16 X 20
from £1.09
from £1.09
# 35
MPN: 90013401402
BANJO BOLT
# 36
MPN: 99913401802
banjo bolt - 12
LHD
from £4.48
from £4.48
# 36
MPN: 99913401802
banjo bolt - 12
RHD
from £4.48
from £4.48
# 36
MPN: N 0210532
banjo bolt - 10
RHD
from £9.95
from £9.95
# 37
MPN: 90012302620
SEAL RING - D 12 X 15,5
LHD
from £4.22
from £4.22
# 37
MPN: 90012302620
SEAL RING - D 12 X 15,5
RHD
from £4.22
from £4.22
# 37
MPN: N 10039001
GASKET - D 10 X 13,5
RHD
from £1.59
from £1.59
# 38
MPN: 90013400702
BANJO BOLT - DISCONTINUED PART
# 38
MPN: 90013400701
BANJO BOLT
# 38
MPN: PCG13400701
BANJO BOLT
from £5.62
from £5.62
# 39
MPN: 90012304220
SEAL RING - D 14 X 18
from £2.04
from £2.04
# 40
MPN: 92834745500
PACKING
# 41
MPN: 90007401502
SCREW, HEX. HD. - M 6 X 30 - DISCONTINUED PART
from £1.64
from £1.64
# 41
MPN: 90007401503
SCREW, HEX. HD. - M 6 X 30
from £1.46
from £1.46
# 42
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 42
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 43
MPN: 99951115302
CLAMP - B 15 X 8
from £3.67
from £3.67
# 44
MPN: 99951234600
HOSE CLAMP - A 9/22
from £3.29
from £3.29
# -
-
SPACER SLEEVE
(TURBO)
# 45
MPN: 95110112900
SHIELD
(TURBO)
# 46
MPN: 90006723608
SCREW, CHEESE HD. - M 6 X 40
(TURBO)
from £6.83
from £6.83
# 47
MPN: 90006723708
SCREW, CHEESE HD. - M 6 X 70
(TURBO)
# 47
MPN: 90006723701
SCREW, CHEESE HD. - M 6 X 70
(TURBO)
# 48
MPN: 94460620900
PRESSURE SENSOR
(944S)
from £199.10
from £199.10
# 49
MPN: N 0138063
SEAL RING
(944S)
from £2.25
from £2.25
# -
-
HARNESS - FOR - PRESSURE SENSOR
(944S)
# 50
MPN: 99951242802
CLAMP
from £3.48
from £3.48
# 51
MPN: N 0206262
CLAMP - 16 X 15
from £1.61
from £1.61
# 52
MPN: 99951115302
CLAMP - 8 X 15
from £3.67
from £3.67
-part-diagram-403-005.webp "PORSCHE 1986 (944) STEERING WHEELS - STEERING COLUMN PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1986 (944) REAR AXLE CARRIER - REAR AXLE STEERING PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1986 (944) REAR WHEEL SHAFT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 1986 (944) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1986 (944) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1986 (944) DISC WHEEL - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-601-001.webp "PORSCHE 1986 (944) DISC WHEEL - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1986 (944) DISC BRAKES - FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1986 (944) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-001.webp "PORSCHE 1986 (944) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-004.webp "PORSCHE 1986 (944) HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1986 (944) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR PARTS DIAGRAM")
-part-diagram-604-001.webp "PORSCHE 1986 (944) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR - -ABS- PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1986 (944) BRAKE LINES PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 1986 (944) BRAKE LINES - -ABS- PARTS DIAGRAM")
-part-diagram-605-002.webp "PORSCHE 1986 (944) HYDRAULIC UNIT - -ABS- PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1986 (944) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1986 (944) ACTUATOR - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1986 (944) ACTUATOR - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1986 (944) HAND BRAKE LEVER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1986 (944) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1986 (944) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1986 (944) ACCELERATOR PEDAL - ACCELERATOR CABLE - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 1986 (944) ACCELERATOR PEDAL - ACCELERATOR CABLE - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1986 (944) CAR BODY PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1986 (944) BODY FRONT SECTION PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1986 (944) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1986 (944) FENDER PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1986 (944) BUMPER - WITHOUT: - BUFFER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1986 (944) BUMPER - WITH: - BUFFER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1986 (944) FRONT SPOILER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1986 (944) COVER FOR BUMPER - AND - BUMPER PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 1986 (944) SIDE MEMBER TRIM - WINGED REAR APRON PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1986 (944) COVER - ACTUATOR PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1986 (944) REAR TRUNK LID - REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1986 (944) DOOR PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1986 (944) DOOR HANDLE, OUTER - DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-006.webp "PORSCHE 1986 (944) CENTRAL LOCKING SYSTEM - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1986 (944) WINDOW REGULATOR - GLASS CHANNEL PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1986 (944) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-806-000.webp "PORSCHE 1986 (944) POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1986 (944) SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1986 (944) TRIMS PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1986 (944) DOOR PANEL - ROOF TRIM PANEL PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1986 (944) SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1986 (944) DASH PANEL TRIM PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1986 (944) CASSETTE HOLDER - CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1986 (944) REAR-VIEW MIRROR - SUN VIZOR - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1986 (944) LUGGAGE COMPARTMENT COVER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1986 (944) DECORATIVE MOULDING PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1986 (944) NAMEPLATES - STONE PROTECTION FOIL PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1986 (944) LIFTING ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1986 (944) LIFTING ROOF - DRIVING MECHANISM - F 94-GN404 475>> - F 95-GN101 654>> PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1986 (944) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1986 (944) SEAT BELT - LAP BELT - MANUALLY PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1986 (944) HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1986 (944) FAN PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1986 (944) AIR DUCT PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1986 (944) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1986 (944) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1986 (944) VACUUM CONTROL PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1986 (944) CONTROL SWITCH PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1986 (944) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-001.webp "PORSCHE 1986 (944) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1986 (944) ENGINE ELECTRICS 2 PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1986 (944) ALTERNATOR - WITH: - FASTENERS PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1986 (944) STARTER - BATTERY - WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1986 (944) WIRING HARNESSES - ENGINE - HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-902-025.webp "PORSCHE 1986 (944) WIRING HARNESSES - PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-027.webp "PORSCHE 1986 (944) WIRING HARNESSES - DOORS PARTS DIAGRAM")
-part-diagram-902-030.webp "PORSCHE 1986 (944) WIRING HARNESSES - REAR END PARTS DIAGRAM")
-part-diagram-902-031.webp "PORSCHE 1986 (944) WIRING HARNESSES - ANTI-LOCKING BRAKE SYST. -ABS- - BRAKE PAD WEAR INDICATOR PARTS DIAGRAM")
-part-diagram-902-037.webp "PORSCHE 1986 (944) GROMMET - TIE WRAP PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 1986 (944) PIN (MALE) TERMINAL - CONTACT PIN - CABLE SHOE PARTS DIAGRAM")
-part-diagram-902-052.webp "PORSCHE 1986 (944) MALE BLADE TERMINAL - PUSH-ON CONNECTOR PARTS DIAGRAM")
-part-diagram-902-054.webp "PORSCHE 1986 (944) BUTT CONNECTOR - CONNECTOR HOUSING - SINGLE POLE PARTS DIAGRAM")
-part-diagram-902-056.webp "PORSCHE 1986 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-058.webp "PORSCHE 1986 (944) CONNECTOR HOUSING - 3-POLE PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 1986 (944) CONNECTOR HOUSING - 4-POLE PARTS DIAGRAM")
-part-diagram-902-062.webp "PORSCHE 1986 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-064.webp "PORSCHE 1986 (944) CONNECTOR HOUSING - 8-POLE - 9-POLE PARTS DIAGRAM")
-part-diagram-902-066.webp "PORSCHE 1986 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1986 (944) SWITCH - STEERING COLUMN SWITCH - CLOCK PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1986 (944) FUSE BOX/RELAY PLATE PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1986 (944) HORN PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1986 (944) WINDSCREEN WIPER SYSTEM - SEE TPI - GR.9 , NR.8 , 07/94 - SEE TPI - GR.9 ,NR.13, 05/97 PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1986 (944) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1986 (944) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1986 (944) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1986 (944) HEADLAMP - ELECTRIC MOTOR - POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-905-006.webp "PORSCHE 1986 (944) FOG LIGHTS PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1986 (944) TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-011.webp "PORSCHE 1986 (944) ADDITIONAL HEADLIGHT - TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-015.webp "PORSCHE 1986 (944) LICENSE PLATE LIGHT - REAR LIGHT PARTS DIAGRAM")
-part-diagram-905-020.webp "PORSCHE 1986 (944) INTERIOR LIGHT - TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1986 (944) INSTRUMENT CLUSTER - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 1986 (944) INSTRUMENT CLUSTER - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1986 (944) SWITCH - AND - SENSOR PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1986 (944) CRUISE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1986 (944) ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-910-000.webp "PORSCHE 1986 (944) ELECTRIC FAN PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 1986 (944) RADIO UNIT PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 1986 (944) FOR - SOUNDSYSTEM PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1986 (944) ACCESSORIES - TOOL - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1986 (944) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1986 (944) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1986 (944) FLOOR MAT PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1986 (944) ACCESSORIES PARTS DIAGRAM")
-part-diagram-002-006.webp "PORSCHE 1986 (944) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-007.webp "PORSCHE 1986 (944) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-010.webp "PORSCHE 1986 (944) ACCESSORIES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1986 (944) LACQUERS - BASIC MATERIALS PARTS DIAGRAM")
-part-diagram-005-002.webp "PORSCHE 1986 (944) INSTRUCTION MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-005-005.webp "PORSCHE 1986 (944) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1986 (944) REPLACEMENT ENGINE - SHORT ENGINE - CRANKCASE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1986 (944) UNDERSIDE PROTECTION PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1986 (944) CRANKCASE - FASTENERS - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1986 (944) CRANKCASE - FASTENERS - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1986 (944) CRANKSHAFT - CONNECTING ROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1986 (944) PISTON - PISTON RINGS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1986 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-003.webp "PORSCHE 1986 (944) CYLINDER HEAD - - VALVES PARTS DIAGRAM")
-part-diagram-103-004.webp "PORSCHE 1986 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1986 (944) CAMSHAFT HOUSING - - CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-007.webp "PORSCHE 1986 (944) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1986 (944) DRIVING MECHANISM - CAMSHAFT - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1986 (944) DRIVING MECHANISM - CAMSHAFT - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1986 (944) DRIVING MECHANISM - SHAFT PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1986 (944) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-001.webp "PORSCHE 1986 (944) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-003.webp "PORSCHE 1986 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1986 (944) ENGINE LUBRICATION - - EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1986 (944) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-003.webp "PORSCHE 1986 (944) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1986 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1986 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1986 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1986 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 1986 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 1986 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1986 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1986 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1986 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1986 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1986 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 1986 (944) L-JETRONIC - 3 - D >> - MJ 1987 PARTS DIAGRAM")
-part-diagram-107-027.webp "PORSCHE 1986 (944) L-JETRONIC - 3 - D - MJ 1988>> PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1986 (944) L-JETRONIC - 4 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1986 (944) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1986 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1986 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-050.webp "PORSCHE 1986 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1986 (944) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-109-005.webp "PORSCHE 1986 (944) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1986 (944) ENGINE OIL - PORSCHE CLASSIC 10W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1986 (944) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-003.webp "PORSCHE 1986 (944) FILLER NECK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1986 (944) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1986 (944) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1986 (944) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - - CATALYST PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-011.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-012.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-013.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - - CATALYST - SEE TECHNICAL INFORMATION PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-027.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-028.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-029.webp "PORSCHE 1986 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-030.webp "PORSCHE 1986 (944) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1986 (944) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1986 (944) CENTRAL TUBE - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1986 (944) CLUTCH PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1986 (944) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1986 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1986 (944) GEARS AND SHAFTS - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1986 (944) GEARS AND SHAFTS - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1986 (944) TRANSMISSION CONTROL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1986 (944) TRANSMISSION CONTROL - - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1986 (944) DIFFERENTIAL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1986 (944) LIMITED SLIP DIFFERENTIAL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1986 (944) TRANSMISSION SUSPENSION - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1986 (944) CENTRAL TUBE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-308-000.webp "PORSCHE 1986 (944) REPLACEMENT TRANSMISSION - FINAL DRIVE HOUSING - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-000.webp "PORSCHE 1986 (944) TRANSMISSION CASE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-005.webp "PORSCHE 1986 (944) OIL INLET - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-010.webp "PORSCHE 1986 (944) OIL COOLING - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-000.webp "PORSCHE 1986 (944) TRANSMISSION CONTROL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-005.webp "PORSCHE 1986 (944) VALVE BODY - OIL STRAINER - GOVERNOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-311-000.webp "PORSCHE 1986 (944) DIFFERENTIAL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-312-000.webp "PORSCHE 1986 (944) TRANSMISSION SUSPENSION - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1986 (944) TRACK CONTROL ARM - CROSS MEMBER PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1986 (944) STEERING KNUCKLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1986 (944) SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 1986 (944) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1986 (944) STEERING GEAR - STEERING TRACK ROD PARTS DIAGRAM")
