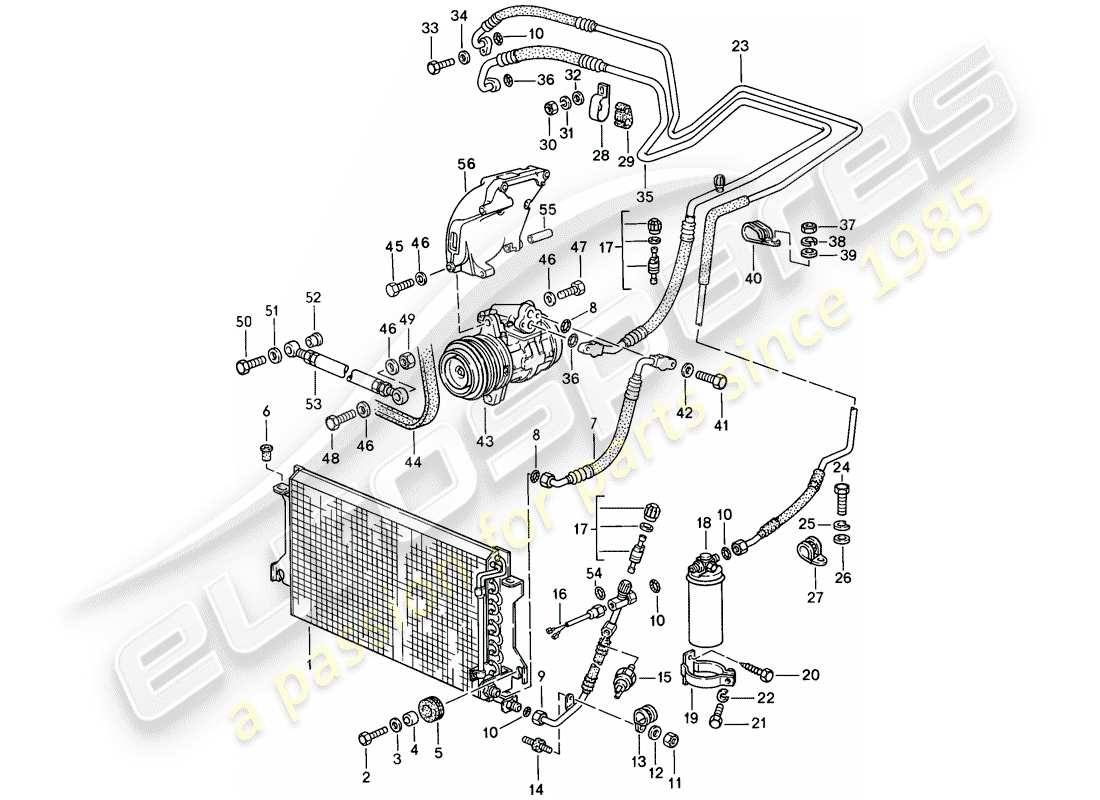

813-015 - REFRIGERANT CIRCUIT
Porsche 1987 (944) REFRIGERANT CIRCUIT Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 94457301105
capacitor
from £482.38
from £482.38
# 2
MPN: N 0102179
SCREW, HEX. HD. - M 6 X 20
Supersession
Supersession
# 3
MPN: N 0116123
Washer - R 6,6 - Discontinued part
# 3
MPN: N 011612C
Washer - R 6,6
Supersession
Supersession
# 4
MPN: 052109135
SPACER BUSHING
from £4.86
from £4.86
# 5
MPN: 056129669B
GROMMET
from £5.54
from £5.54
# 6
MPN: 94457345700
RUBBER GROMMET
from £8.41
from £8.41
# 7
MPN: 94457319708
REFRIGERANT LINE - COMPRESSOR - CAPACITOR
# 8
MPN: 99970725040
O-ring - Discontinued part
# 8
MPN: 99970743441
O-RING
from £5.61
from £5.61
# 9
MPN: 94457309503
refrigerant line - F >> 94-GN401 809 - F >> 95-GN100 586
( 944 TURBO)
# 9
MPN: 94457309504
refrigerant line - capacitor - receiver drier - F 94-GN401 810>> - F 95-GN100 587>>
( 944 TURBO)
# 9
MPN: 94457309505
refrigerant line - capacitor - receiver drier - D - MJ 1987>> - MJ 1987 - Discontinued part
# 9
MPN: 94457309508
REFRIGERANT LINE - CAPACITOR - RECEIVER DRIER - DISCONTINUED PART
# 9
MPN: 94457309509
REFRIGERANT LINE - CAPACITOR - RECEIVER DRIER
from £322.30
from £322.30
# 10
MPN: 99970724740
O-RING
from £2.68
from £2.68
# 11
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 11
MPN: 9000760100B
NUT - M 6
from £0.73
from £0.73
# 12
MPN: 90002500809
WASHER - A 6,4 - DISCONTINUED PART
# 12
MPN: 90002500804
Washer - A 6,4
from £0.80
from £0.80
# 12
MPN: 9000250080E
Washer - A 6,4
Yellow
from £0.62
from £0.62
# 13
MPN: N 0206471
clamp - RSGU 23/15
from £3.91
from £3.91
# 14
MPN: 92811019100
BONDED RUBBER BUFFER
# 15
MPN: 95961313700
low pressure switch
from £57.90
from £57.90
# 16
MPN: 92861313101
temperature sensor - F >> 94-GN400 908 - F >> 95-GN100 295
( 944 TURBO)
from £86.95
from £86.95
# 16
MPN: 94465305300
high pressure switch - High - F 94-GN400 909>> - F 95-GN100 296>>
( 944 TURBO)
# 17
MPN: 92857309603
VALVE
from £20.90
from £20.90
# 18
MPN: 94457394300
RECEIVER DRIER
from £128.85
from £128.85
# 19
MPN: 94457308100
BRACKET
from £12.56
from £12.56
# 20
MPN: N 0138845
TAPPING SCREW,HEX.HD. - B 4,8 X 13
from £0.87
from £0.87
# 21
MPN: N 0102644
SCREW, HEX. HD. - M 5 X 20
from £1.24
from £1.24
# 22
MPN: N 0120053
LOCK RING - B 5
from £0.66
from £0.66
# 23
MPN: 94457309303
refrigerant line - receiver drier - evaporator - D >> - MJ 1986
# 23
MPN: 94457309304
refrigerant line - receiver drier - evaporator - D - MJ 1987>> - MJ 1987
# 23
MPN: 94457309305
refrigerant line - receiver drier - evaporator - D - MJ 1988>> - MJ 1988
from £308.36
from £308.36
# 24
MPN: N 01021513
SCREW, HEX. HD. - M 6 X 15
from £2.09
from £2.09
# 25
MPN: N 0120064
LOCK RING - B 6
from £0.70
from £0.70
# 26
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 26
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 27
MPN: 99951111602
CLAMP - B 15 X 10 GI - DISCONTINUED PART
# 27
MPN: 99951111603
CLAMP - B 15 X 10 GI
from £4.52
from £4.52
# 28
MPN: 94457345300
BRACKET
from £4.15
from £4.15
# 29
MPN: 94457345500
SPACER
from £4.19
from £4.19
# 30
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 30
MPN: 9000760100B
NUT - M 6
from £0.73
from £0.73
# 31
MPN: N 0120064
LOCK RING - B 6
from £0.70
from £0.70
# 32
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 32
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 33
MPN: 90007501602
SCREW, HEX. HD. - M 6 X 22 - DISCONTINUED PART
# 33
MPN: 90007501603
SCREW, HEX. HD. - M 6 X 22
from £0.86
from £0.86
# 34
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 34
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 35
MPN: 94457309103
refrigerant line - evaporator - compressor - D >> - MJ 1986
# 35
MPN: 94457309105
refrigerant line - evaporator - compressor - D - MJ 1987>> - Discontinued part
(944,944S)
# 35
MPN: 94457309107
refrigerant line - evaporator - compressor - D - MJ 1987>>
(944,944S)
# 35
MPN: 95157309102
refrigerant line - evaporator - compressor - D - MJ 1987>>
(TURBO)
from £208.69
from £208.69
# 36
MPN: 99970725140
O-RING
from £2.43
from £2.43
# 37
MPN: 90007601002
NUT - M 6 - DISCONTINUED PART
# 37
MPN: 9000760100B
NUT - M 6
from £0.73
from £0.73
# 38
MPN: N 0120064
LOCK RING - B 6
from £0.70
from £0.70
# 39
MPN: N 0115247
WASHER - A 6,4 - DISCONTINUED PART
# 39
MPN: N 01152427
Washer - A 6,4
from £0.47
from £0.47
# 40
MPN: N 90251201
CLAMP - RSGW 1,5 X 15/15
from £1.93
from £1.93
# 41
MPN: N 0402221
SCREW, HEX. HD. - M 8 X 32
from £6.36
from £6.36
# 42
MPN: N 01152513
Washer - A 8,4
# 43
MPN: 94412600800
COMPRESSOR
from £2,038.52
from £2,038.52
# 44
MPN: 99919228550
V-RIBBED BELT - K 6 - 1000 LW - DISCONTINUED PART
# 44
MPN: 99919229150
V-RIBBED BELT - K 6 - 1000 LW - DISCONTINUED PART
# 44
MPN: 99919229950
V-RIBBED BELT - K 6 - 1000 LW
Supersession
Supersession
# 45
MPN: 90008208802
SCREW, HEX. HD. - M 10 X 1,25 X 50
# 45
MPN: 90008214601
SCREW, HEX. HD. - M 10 X 1,25 X 50
# 45
MPN: 9000821460B
SCREW, HEX. HD. - M 10 X 1,25 X 50
from £2.34
from £2.34
# 46
MPN: 90002500809
WASHER - A 10,5 - DISCONTINUED PART
# 46
MPN: 90002500804
Washer - A 10,5
from £0.80
from £0.80
# 46
MPN: 9000250080E
Washer - A 10,5
Yellow
from £0.62
from £0.62
# 47
MPN: 90007413902
SCREW, HEX. HD. - M 8 X 55 - DISCONTINUED PART
# 47
MPN: 90007413903
SCREW, HEX. HD. - M 8 X 55
from £1.23
from £1.23
# 48
MPN: N 0401251
SCREW, HEX. HD. - M 10 X 1,25 X 30
Supersession
Supersession
# 49
MPN: 90091003402
LOCK NUT - M 10
Supersession
Supersession
# 50
MPN: N 0103594
SCREW, HEX. HD. - M 8 X 38
from £1.47
from £1.47
# 51
MPN: 90002500702
WASHER - A 8,4 - DISCONTINUED PART
# 51
MPN: 90002500703
Washer - A 8,4
from £0.84
from £0.84
# 52
MPN: 94412612701
BUSHING
from £4.17
from £4.17
# 53
MPN: 94412602103
cross support
Supersession
Supersession
# 54
MPN: 99970726140
O-RING
from £10.96
from £10.96
# -
-
SLEEVE
# -
-
BRACKET
-part-diagram-813-020.webp "PORSCHE 1987 (944) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1987 (944) VACUUM CONTROL PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1987 (944) CONTROL SWITCH PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1987 (944) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-001.webp "PORSCHE 1987 (944) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1987 (944) ENGINE ELECTRICS 2 PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1987 (944) ALTERNATOR - WITH: - FASTENERS PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1987 (944) STARTER - BATTERY - WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1987 (944) WIRING HARNESSES - ENGINE - HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-902-025.webp "PORSCHE 1987 (944) WIRING HARNESSES - PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-027.webp "PORSCHE 1987 (944) WIRING HARNESSES - DOORS PARTS DIAGRAM")
-part-diagram-902-030.webp "PORSCHE 1987 (944) WIRING HARNESSES - REAR END PARTS DIAGRAM")
-part-diagram-902-031.webp "PORSCHE 1987 (944) WIRING HARNESSES - ANTI-LOCKING BRAKE SYST. -ABS- - BRAKE PAD WEAR INDICATOR PARTS DIAGRAM")
-part-diagram-902-037.webp "PORSCHE 1987 (944) GROMMET - TIE WRAP PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 1987 (944) PIN (MALE) TERMINAL - CONTACT PIN - CABLE SHOE PARTS DIAGRAM")
-part-diagram-902-052.webp "PORSCHE 1987 (944) MALE BLADE TERMINAL - PUSH-ON CONNECTOR PARTS DIAGRAM")
-part-diagram-902-054.webp "PORSCHE 1987 (944) BUTT CONNECTOR - CONNECTOR HOUSING - SINGLE POLE PARTS DIAGRAM")
-part-diagram-902-056.webp "PORSCHE 1987 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-058.webp "PORSCHE 1987 (944) CONNECTOR HOUSING - 3-POLE PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 1987 (944) CONNECTOR HOUSING - 4-POLE PARTS DIAGRAM")
-part-diagram-902-062.webp "PORSCHE 1987 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-064.webp "PORSCHE 1987 (944) CONNECTOR HOUSING - 8-POLE - 9-POLE PARTS DIAGRAM")
-part-diagram-902-066.webp "PORSCHE 1987 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1987 (944) SWITCH - STEERING COLUMN SWITCH - CLOCK PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1987 (944) FUSE BOX/RELAY PLATE PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1987 (944) HORN PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1987 (944) WINDSCREEN WIPER SYSTEM - SEE TPI - GR.9 , NR.8 , 07/94 - SEE TPI - GR.9 ,NR.13, 05/97 PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1987 (944) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1987 (944) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1987 (944) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1987 (944) HEADLAMP - ELECTRIC MOTOR - POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-905-006.webp "PORSCHE 1987 (944) FOG LIGHTS PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1987 (944) TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-011.webp "PORSCHE 1987 (944) ADDITIONAL HEADLIGHT - TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-015.webp "PORSCHE 1987 (944) LICENSE PLATE LIGHT - REAR LIGHT PARTS DIAGRAM")
-part-diagram-905-020.webp "PORSCHE 1987 (944) INTERIOR LIGHT - TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1987 (944) INSTRUMENT CLUSTER - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 1987 (944) INSTRUMENT CLUSTER - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1987 (944) SWITCH - AND - SENSOR PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1987 (944) CRUISE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1987 (944) ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-910-000.webp "PORSCHE 1987 (944) ELECTRIC FAN PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 1987 (944) RADIO UNIT PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 1987 (944) FOR - SOUNDSYSTEM PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1987 (944) ACCESSORIES - TOOL - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1987 (944) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1987 (944) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-001-015.webp "PORSCHE 1987 (944) FLOOR MAT PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1987 (944) ACCESSORIES PARTS DIAGRAM")
-part-diagram-002-006.webp "PORSCHE 1987 (944) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-007.webp "PORSCHE 1987 (944) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-010.webp "PORSCHE 1987 (944) ACCESSORIES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1987 (944) LACQUERS - BASIC MATERIALS PARTS DIAGRAM")
-part-diagram-005-002.webp "PORSCHE 1987 (944) INSTRUCTION MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-005-005.webp "PORSCHE 1987 (944) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1987 (944) REPLACEMENT ENGINE - SHORT ENGINE - CRANKCASE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1987 (944) UNDERSIDE PROTECTION PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 1987 (944) CRANKCASE - FASTENERS - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1987 (944) CRANKCASE - FASTENERS - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1987 (944) CRANKSHAFT - CONNECTING ROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1987 (944) PISTON - PISTON RINGS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1987 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-003.webp "PORSCHE 1987 (944) CYLINDER HEAD - - VALVES PARTS DIAGRAM")
-part-diagram-103-004.webp "PORSCHE 1987 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1987 (944) CAMSHAFT HOUSING - - CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-007.webp "PORSCHE 1987 (944) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 1987 (944) DRIVING MECHANISM - CAMSHAFT - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1987 (944) DRIVING MECHANISM - CAMSHAFT - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1987 (944) DRIVING MECHANISM - SHAFT PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1987 (944) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-001.webp "PORSCHE 1987 (944) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-003.webp "PORSCHE 1987 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1987 (944) ENGINE LUBRICATION - - EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1987 (944) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-003.webp "PORSCHE 1987 (944) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1987 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1987 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1987 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1987 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 1987 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 1987 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1987 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1987 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1987 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1987 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1987 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-025.webp "PORSCHE 1987 (944) L-JETRONIC - 3 - D >> - MJ 1987 PARTS DIAGRAM")
-part-diagram-107-027.webp "PORSCHE 1987 (944) L-JETRONIC - 3 - D - MJ 1988>> PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1987 (944) L-JETRONIC - 4 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1987 (944) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1987 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1987 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-050.webp "PORSCHE 1987 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1987 (944) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-109-005.webp "PORSCHE 1987 (944) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1987 (944) ENGINE OIL - PORSCHE CLASSIC 10W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1987 (944) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-003.webp "PORSCHE 1987 (944) FILLER NECK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1987 (944) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 1987 (944) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1987 (944) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - - CATALYST PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-011.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-012.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-013.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - - CATALYST - SEE TECHNICAL INFORMATION PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-027.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-028.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-029.webp "PORSCHE 1987 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-030.webp "PORSCHE 1987 (944) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1987 (944) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1987 (944) CENTRAL TUBE - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1987 (944) CLUTCH PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1987 (944) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1987 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1987 (944) GEARS AND SHAFTS - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1987 (944) GEARS AND SHAFTS - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1987 (944) TRANSMISSION CONTROL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1987 (944) TRANSMISSION CONTROL - - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1987 (944) DIFFERENTIAL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1987 (944) LIMITED SLIP DIFFERENTIAL - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1987 (944) TRANSMISSION SUSPENSION - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1987 (944) CENTRAL TUBE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-308-000.webp "PORSCHE 1987 (944) REPLACEMENT TRANSMISSION - FINAL DRIVE HOUSING - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-000.webp "PORSCHE 1987 (944) TRANSMISSION CASE - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-005.webp "PORSCHE 1987 (944) OIL INLET - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-309-010.webp "PORSCHE 1987 (944) OIL COOLING - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-000.webp "PORSCHE 1987 (944) TRANSMISSION CONTROL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-310-005.webp "PORSCHE 1987 (944) VALVE BODY - OIL STRAINER - GOVERNOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-311-000.webp "PORSCHE 1987 (944) DIFFERENTIAL - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-312-000.webp "PORSCHE 1987 (944) TRANSMISSION SUSPENSION - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1987 (944) TRACK CONTROL ARM - CROSS MEMBER PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1987 (944) STEERING KNUCKLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1987 (944) SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 1987 (944) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1987 (944) STEERING GEAR - STEERING TRACK ROD PARTS DIAGRAM")
-part-diagram-403-002.webp "PORSCHE 1987 (944) POWER STEERING - STEERING GEAR - POWER STEERING PUMP - LINES PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1987 (944) STEERING WHEELS - STEERING COLUMN PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1987 (944) REAR AXLE CARRIER - REAR AXLE STEERING PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1987 (944) REAR WHEEL SHAFT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 1987 (944) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1987 (944) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1987 (944) DISC WHEEL - D >> - MJ 1986 PARTS DIAGRAM")
-part-diagram-601-001.webp "PORSCHE 1987 (944) DISC WHEEL - D - MJ 1987>> PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1987 (944) DISC BRAKES - FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 1987 (944) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-001.webp "PORSCHE 1987 (944) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-004.webp "PORSCHE 1987 (944) HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1987 (944) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR PARTS DIAGRAM")
-part-diagram-604-001.webp "PORSCHE 1987 (944) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR - -ABS- PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1987 (944) BRAKE LINES PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 1987 (944) BRAKE LINES - -ABS- PARTS DIAGRAM")
-part-diagram-605-002.webp "PORSCHE 1987 (944) HYDRAULIC UNIT - -ABS- PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1987 (944) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1987 (944) ACTUATOR - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1987 (944) ACTUATOR - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1987 (944) HAND BRAKE LEVER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1987 (944) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1987 (944) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1987 (944) ACCELERATOR PEDAL - ACCELERATOR CABLE - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 1987 (944) ACCELERATOR PEDAL - ACCELERATOR CABLE - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1987 (944) CAR BODY PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1987 (944) BODY FRONT SECTION PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1987 (944) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1987 (944) FENDER PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1987 (944) BUMPER - WITHOUT: - BUFFER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1987 (944) BUMPER - WITH: - BUFFER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1987 (944) FRONT SPOILER PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1987 (944) COVER FOR BUMPER - AND - BUMPER PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 1987 (944) SIDE MEMBER TRIM - WINGED REAR APRON PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1987 (944) COVER - ACTUATOR PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1987 (944) REAR TRUNK LID - REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1987 (944) DOOR PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1987 (944) DOOR HANDLE, OUTER - DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-006.webp "PORSCHE 1987 (944) CENTRAL LOCKING SYSTEM - D - MJ 1986>> PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1987 (944) WINDOW REGULATOR - GLASS CHANNEL PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1987 (944) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-806-000.webp "PORSCHE 1987 (944) POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1987 (944) SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1987 (944) TRIMS PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1987 (944) DOOR PANEL - ROOF TRIM PANEL PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1987 (944) SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1987 (944) DASH PANEL TRIM PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1987 (944) CASSETTE HOLDER - CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1987 (944) REAR-VIEW MIRROR - SUN VIZOR - REAR VIEW MIRROR PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1987 (944) LUGGAGE COMPARTMENT COVER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1987 (944) DECORATIVE MOULDING PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1987 (944) NAMEPLATES - STONE PROTECTION FOIL PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1987 (944) LIFTING ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1987 (944) LIFTING ROOF - DRIVING MECHANISM - F 94-GN404 475>> - F 95-GN101 654>> PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1987 (944) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1987 (944) SEAT BELT - LAP BELT - MANUALLY PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1987 (944) HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1987 (944) FAN PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1987 (944) AIR DUCT PARTS DIAGRAM")
