porsche 1989 (944) luggage compartment cover parts diagram

809-010 - LUGGAGE COMPARTMENT COVER

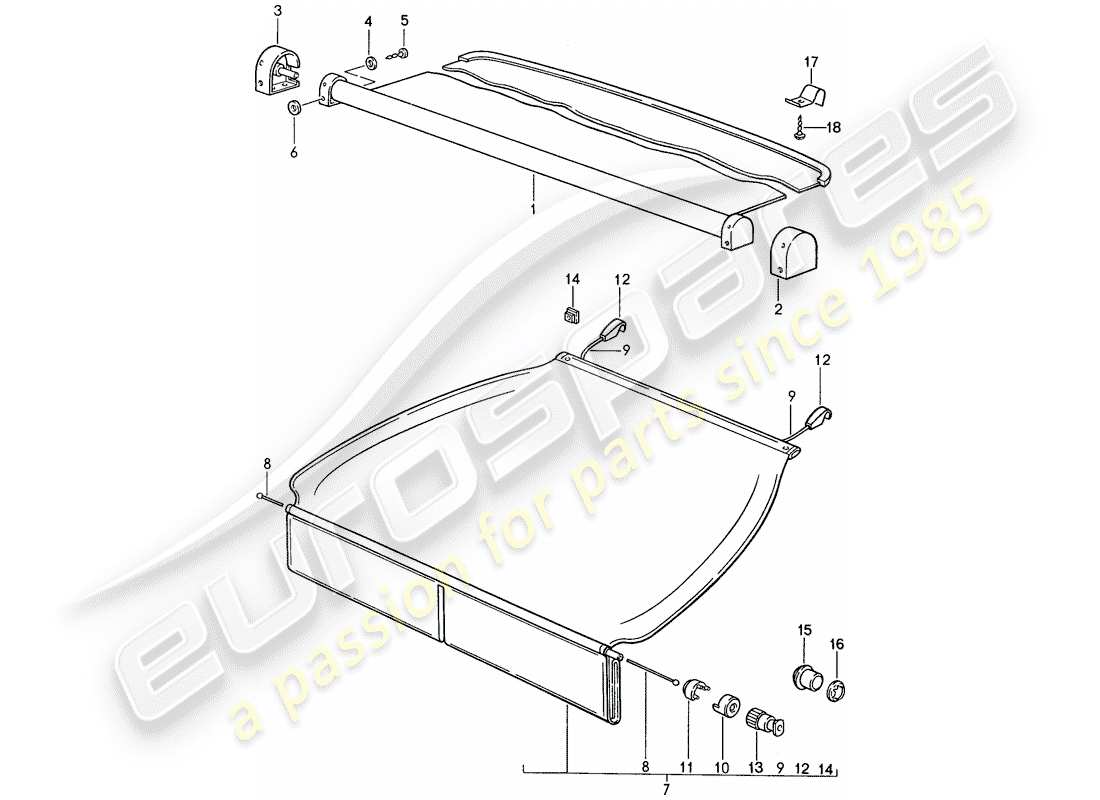

Porsche 1989 (944) LUGGAGE COMPARTMENT COVER Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 477863511A
                              cover for trunk - D >> - MJ 1990
                              cover for trunk - D >> - MJ 1990 Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 477863517A
                              Housing cover - Luggage compartment cover - square wrench - Breadth of rim - 17,5 MM - D >> - MJ 1990
                              LEFT
                              Housing cover - Luggage compartment cover - square wrench - Breadth of rim - 17,5 MM - D >> - MJ 1990 Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 477863517B
                              cover - Luggage compartment cover - Hole - Breadth of rim - 16 MM - D >> - MJ 1990
                              LEFT
                              cover - Luggage compartment cover - Hole - Breadth of rim - 16 MM - D >> - MJ 1990 Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 477863518A
                              Housing cover - Luggage compartment cover - Pin - Breadth of rim - 17,5 MM - D >> - MJ 1990
                              RIGHT
                              Housing cover - Luggage compartment cover - Pin - Breadth of rim - 17,5 MM - D >> - MJ 1990 Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 477863518B
                              cover - Luggage compartment cover - square wrench - Breadth of rim - 16 MM - D >> - MJ 1990
                              RIGHT
                              from £180.00
                              from £180.00
                              cover - Luggage compartment cover - square wrench - Breadth of rim - 16 MM - D >> - MJ 1990 Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 90002500302
                              Washer - A 5,3 - D >> - MJ 1990
                              Washer - M 5 Genuine Porsche Part - New (to order)
                              # 5
                              MPN: N 0139713
                              tapping screw, fill. hd. - 4,8 X 22 - D >> - MJ 1990
                              from £1.17
                              from £1.17
                              tapping screw, fill. hd. - B4,8 X 22 Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 99970413940
                              spacer washer - D >> - MJ 1990
                              from £3.06
                              from £3.06
                              spacer washer - D - MJ 1984>> Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 94455502700
                              cover for trunk
                              (PR:685)
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # -
                              -
                              ROUND RUBBER CORD - 1265 MM - 875 MM
                              # 10
                              MPN: 92855579502
                              END PIECE OF PIPE
                              from £4.30
                              from £4.30
                              End piece of pipe - D - MJ 1987>> Genuine Porsche Part - New (to order)
                              # 11
                              MPN: 92855578502
                              CLAMP FOR FABRIC
                              from £2.29
                              from £2.29
                              Clamp for fabric - D - MJ 1987>> Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 94455577500
                              HOOK
                              Supersession
                              Supersession
                              Genuine Porsche Part (no longer available to order)
                              # 17
                              MPN: 477863521B
                              HOOK
                              HOOK Genuine Porsche Part - New (to order)
                              # 18
                              MPN: N 0139324
                              tapping screw
                              from £1.14
                              from £1.14
                              tapping screw Genuine Porsche Part - New (to order)
