porsche 1990 (944) driving mechanism - shaft parts diagram

103-015 - DRIVING MECHANISM - SHAFT

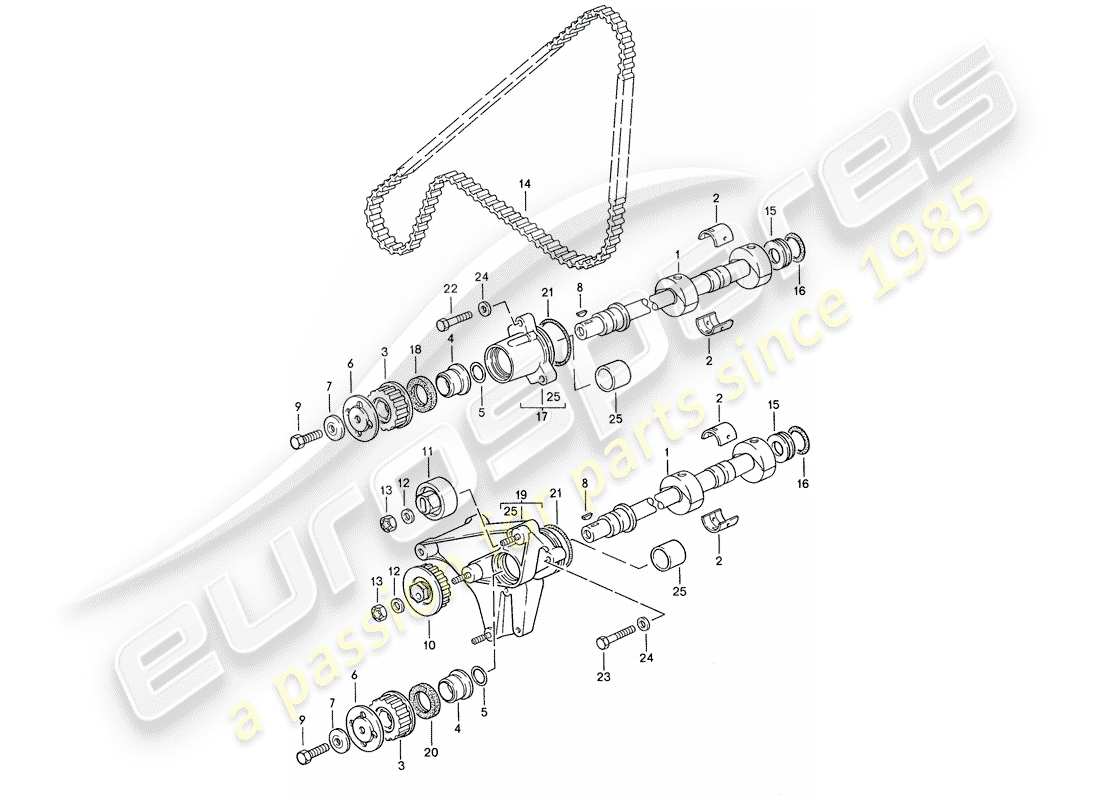

Porsche 1990 (944) DRIVING MECHANISM - SHAFT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 94410202301
                                      SHAFT
                                      (4411,4412)
                                      from £266.77
                                      from £266.77
                                      SHAFT Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: 94410292300
                                      SHAFT
                                      (4441,4452)
                                      from £885.12
                                      from £885.12
                                      shaft - D - MJ 1985>> - MJ 1985 Genuine Porsche Part - New (to order)
                                      # 2
                                      MPN: 94410112110
                                      BEARING SHELL
                                      from £15.32
                                      from £15.32
                                      bearing shell - D - MJ 1987>> - MJ 1987 Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: 94410220504
                                      GEAR
                                      from £36.45
                                      from £36.45
                                      GEAR Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 92810513902
                                      SPACER BUSHING
                                      from £35.29
                                      from £35.29
                                      SPACER BUSHING - M >>82G 00071 - M >>82G 05066 Genuine Porsche Part - New (to order)
                                      # 5
                                      MPN: 94410532100
                                      GASKET
                                      from £1.27
                                      from £1.27
                                      GASKET Genuine Porsche Part - New In stock
                                      # 6
                                      MPN: 94410228104
                                      FLANGE WASHER
                                      from £16.22
                                      from £16.22
                                      FLANGE WASHER Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: 94410221300
                                      Washer - Discontinued part
                                      Washer - Discontinued part Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: 94410221301
                                      WASHER
                                      from £7.52
                                      from £7.52
                                      WASHER Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: N 0127082
                                      WOODRUFF KEY
                                      from £1.06
                                      from £1.06
                                      woodruff key - 4,0 X 5,0 Genuine Porsche Part - New In stock
                                      # 9
                                      MPN: N 0102753
                                      SCREW, HEX. HD. - M 10 X 35 - DISCONTINUED PART
                                      screw, hex. hd. - M 10X35 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 90007546001
                                      SCREW, HEX. HD. - M 10 X 35
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 9
                                      MPN: 90007546002
                                      SCREW, HEX. HD. - M 10 X 35
                                      M10X35-yellow
                                      from £1.58
                                      from £1.58
                                      This part replaces part number 90007546001
                                      screw, hex. hd. - M 10X35 Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: 94410202507
                                      belt tensioner
                                      from £57.99
                                      from £57.99
                                      belt tensioner Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: 94410227706
                                      ROLLER
                                      from £54.99
                                      from £54.99
                                      ROLLER Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: N 01152712
                                      WASHER - A 10,5 - DISCONTINUED PART
                                      Washer - Discontinued part Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 90002508101
                                      Washer - A 10,5
                                      from £1.33
                                      from £1.33
                                      Washer - A 5,3 Genuine Porsche Part - New In stock
                                      # 13
                                      MPN: N 0221492
                                      HEX. NUT, SELF-LOCKING - M 10
                                      from £1.78
                                      from £1.78
                                      HEX. NUT, SELF-LOCKING - VM 10 Genuine Porsche Part - New In stock
                                      # 14
                                      MPN: 94410221904
                                      TOOTHED BELT - TECHNICAL INFORMATION - GROUP 1 - NR.15/95 - ATTENTION
                                      from £112.04
                                      from £112.04
                                      TOOTHED BELT - TECHNICAL INFORMATION - GROUP 1 - NR.15/95 - ATTENTION Genuine Porsche Part - New (to order)
                                      # 15
                                      MPN: 94410114503
                                      RING
                                      from £12.70
                                      from £12.70
                                      ring - D - MJ 1987>> - MJ 1987 Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 99970187540
                                      O-RING
                                      from £3.47
                                      from £3.47
                                      O-ring - D - MJ 1987>> - MJ 1987 Genuine Porsche Part - New In stock
                                      # 17
                                      MPN: 94410104500
                                      GEAR CARRIER
                                      LEFT
                                      from £529.05
                                      from £529.05
                                      GEAR CARRIER Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 99911328240
                                      SEAL - 30 X 47
                                      LEFT
                                      from £19.62
                                      from £19.62
                                      seal - M >> 82G 00071 - M >> 82G 05066 Genuine Porsche Part - New (to order)
                                      # 19
                                      MPN: 94410104202
                                      GEAR CARRIER
                                      RIGHT
                                      from £908.90
                                      from £908.90
                                      GEAR CARRIER Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 99911328140
                                      SEAL - 30 X 48
                                      RIGHT
                                      from £19.62
                                      from £19.62
                                      SEAL - 30 X 48 Genuine Porsche Part - New (to order)
                                      # 21
                                      MPN: 99970165240
                                      O-Ring - 56,7 X 3,53
                                      from £2.88
                                      from £2.88
                                      O-Ring - 56,7 X 3,53 Genuine Porsche Part - New (to order)
                                      # 22
                                      MPN: N 0103355
                                      SCREW, HEX. HD. - M 8 X 35
                                      screw, hex. hd. - M 8X35 Genuine Porsche Part - New (to order)
                                      # 22
                                      MPN: 90007503203
                                      SCREW, HEX. HD. - M 8 X 35
                                      from £2.56
                                      from £2.56
                                      screw, hex. hd. - M 8X35 Genuine Porsche Part - New (to order)
                                      # 23
                                      MPN: N 0103606
                                      SCREW, HEX. HD. - M 8 X 60 - DISCONTINUED PART
                                      (PR:657)
                                      SCREW, HEX. HD. - M8 X 60 - D - MJ 1972>>- DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 23
                                      MPN: N 01036019
                                      SCREW, HEX. HD. - M 8 X 60
                                      (PR:657)
                                      from £1.32
                                      from £1.32
                                      screw, hex. hd. - M8 X 60 - D - MJ 1972>> Genuine Porsche Part - New (to order)
                                      # 24
                                      MPN: 90002500702
                                      WASHER - A 8,4 - DISCONTINUED PART
                                      Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                      # 24
                                      MPN: 90002500703
                                      Washer - A 8,4
                                      from £0.84
                                      from £0.84
                                      Washer - M 8,4 Genuine Porsche Part - New In stock
                                      # 25
                                      MPN: 94410112502
                                      BUSHING
                                      from £11.39
                                      from £11.39
                                      BUSHING Genuine Porsche Part - New (to order)
                                      # 25
                                      MPN: 94410112550
                                      BUSHING - 0,5 MM - OVERSIZE
                                      from £16.77
                                      from £16.77
                                      bushing - Oversize 0.50 mm Genuine Porsche Part - New (to order)
                                      # -
                                      -
                                      SLEEVE
                                      (PR:657)
