porsche 1990 (944) fuel tank parts diagram

201-000 - FUEL TANK

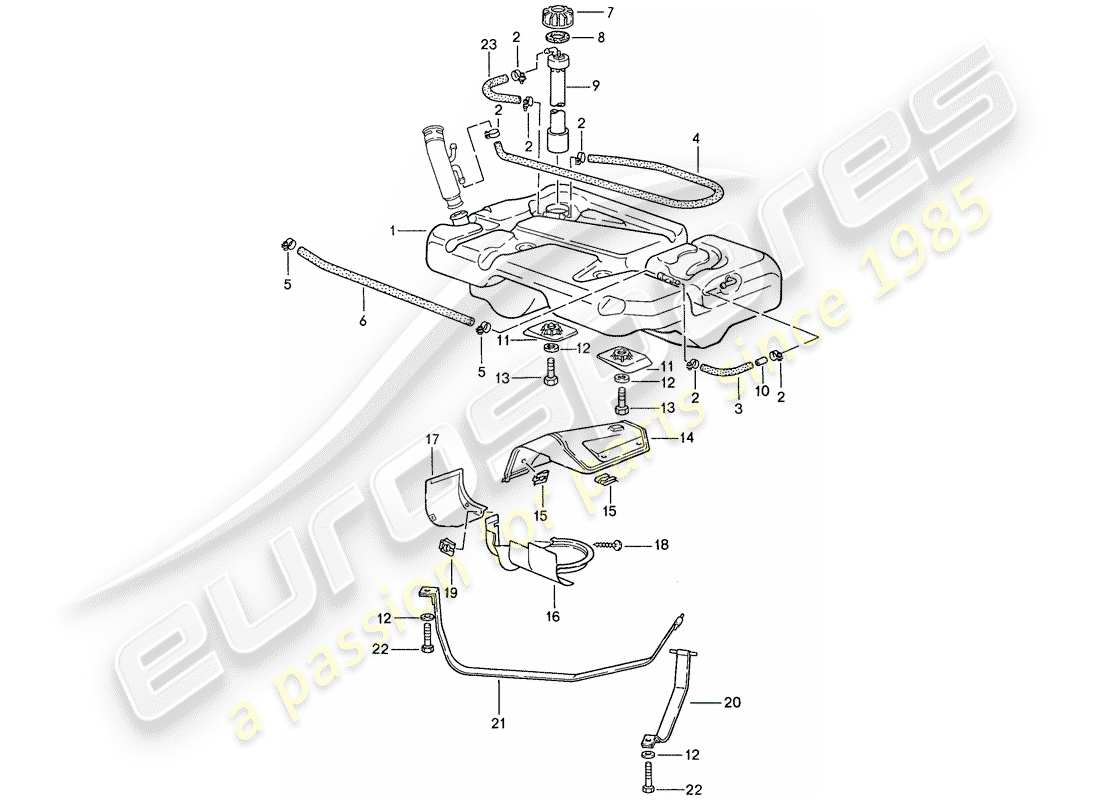

Porsche 1990 (944) FUEL TANK Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Key
                                          Price
                                          # 1
                                          MPN: 95120102103
                                          FUEL TANK
                                          FUEL TANK Genuine Porsche Part - New (to order)
                                          # 2
                                          MPN: N 0235702
                                          HOSE CLAMP
                                          from £2.20
                                          from £2.20
                                          Hose Clamp - S19/9ZY Genuine Porsche Part - New (to order)
                                          # -
                                          -
                                          HOSE - 9,5 X 3
                                          # 3
                                          -
                                          SHORTEN TO:
                                          220 MM
                                          # 4
                                          -
                                          SHORTEN TO:
                                          1900 MM (COUPE)
                                          # 4
                                          MPN: 94120171311
                                          HOSE
                                          (Cabrio)
                                          from £64.94
                                          from £64.94
                                          HOSE Genuine Porsche Part - New (to order)
                                          # 5
                                          MPN: 99951248200
                                          HOSE CLAMP - SM 9C21-W3
                                          from £1.92
                                          from £1.92
                                          HOSE CLAMP - SM 9C21-W3 Genuine Porsche Part - New (to order)
                                          # 6
                                          MPN: 95120112303
                                          HOSE
                                          (Coupe)
                                          from £65.43
                                          from £65.43
                                          Hose - 886 MM Genuine Porsche Part - New (to order)
                                          # 6
                                          MPN: 94120171111
                                          HOSE
                                          (Cabrio)
                                          Hose - 1250 MM Genuine Porsche Part - New (to order)
                                          # 7
                                          MPN: 95120137500
                                          UNION NUT
                                          from £45.42
                                          from £45.42
                                          UNION NUT Genuine Porsche Part - New (to order)
                                          # 8
                                          MPN: 94420132700
                                          SEAL RING
                                          from £5.90
                                          from £5.90
                                          SEAL RING Genuine Porsche Part - New (to order)
                                          # 9
                                          MPN: 94464103701
                                          fuel gauge - sender
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 10
                                          MPN: 91120126302
                                          RESTRICTOR
                                          from £2.27
                                          from £2.27
                                          restrictor - Discontinued part Genuine Porsche Part - New (to order)
                                          # 11
                                          MPN: 95120117302
                                          FIXING PLATE
                                          from £10.16
                                          from £10.16
                                          FIXING PLATE Genuine Porsche Part - New (to order)
                                          # 12
                                          MPN: N 90074101
                                          WASHER
                                          from £4.64
                                          from £4.64
                                          WASHER - 8,4 Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: 90007503302
                                          stud - M 8 X 40
                                          stud - M 8X40 - Discontinued part Genuine Porsche Part - New (to order)
                                          # 13
                                          MPN: 90007503303
                                          stud - M 8 X 40
                                          from £2.10
                                          from £2.10
                                          This part replaces part number N 0103406
                                          stud - M 8X40 Genuine Porsche Part - New (to order)
                                          # 14
                                          MPN: 94420143500
                                          HEAT PROTECTION PLATE
                                          from £59.01
                                          from £59.01
                                          HEAT PROTECTION PLATE Genuine Porsche Part - New (to order)
                                          # 15
                                          MPN: N 0126533
                                          LOCK WASHER
                                          from £1.32
                                          from £1.32
                                          lock washer - 9 Genuine Porsche Part - New (to order)
                                          # 16
                                          MPN: 94420133100
                                          COVER
                                          from £121.24
                                          from £121.24
                                          COVER Genuine Porsche Part - New (to order)
                                          # 17
                                          MPN: 95120102500
                                          COVER
                                          COVER Genuine Porsche Part - New (to order)
                                          # 18
                                          MPN: 90014312407
                                          tapping screw
                                          Supersession
                                          Supersession
                                          Genuine Porsche Part (no longer available to order)
                                          # 19
                                          MPN: N 0154821
                                          SPEED NUT
                                          from £0.81
                                          from £0.81
                                          SPEED NUT Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 95120131500
                                          strap - D >> - MJ 1989 - Discontinued part
                                          LEFT
                                          STRAP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 95120131504
                                          STRAP
                                          LEFT
                                          from £148.32
                                          from £148.32
                                          STRAP Genuine Porsche Part - New (to order)
                                          # 20
                                          MPN: 95120131502
                                          strap - D - MJ 1990>>
                                          LEFT
                                          from £151.32
                                          from £151.32
                                          strap - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                          # 21
                                          MPN: 95120131201
                                          strap - D >> - MJ 1989
                                          RIGHT
                                          from £151.32
                                          from £151.32
                                          strap - D >> - MJ 1989 Genuine Porsche Part - New (to order)
                                          # 21
                                          MPN: 95120131202
                                          strap - D - MJ 1990>>
                                          RIGHT
                                          from £151.32
                                          from £151.32
                                          strap - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                          # 22
                                          MPN: 90007503302
                                          stud - M 8 X 40
                                          stud - M 8X40 - Discontinued part Genuine Porsche Part - New (to order)
                                          # 22
                                          MPN: 90007503303
                                          stud - M 8 X 40
                                          from £2.10
                                          from £2.10
                                          This part replaces part number N 0103406
                                          stud - M 8X40 Genuine Porsche Part - New (to order)
                                          # 23
                                          MPN: 95120122701
                                          HOSE
                                          from £26.15
                                          from £26.15
                                          HOSE Genuine Porsche Part - New (to order)
                                          # 24
                                          MPN: N 0235702
                                          Hose Clamp - A 9 X 15 ZY
                                          from £2.20
                                          from £2.20
                                          Hose Clamp - S19/9ZY Genuine Porsche Part - New (to order)
