porsche 1990 (944) exhaust system - exhaust silencer, front parts diagram

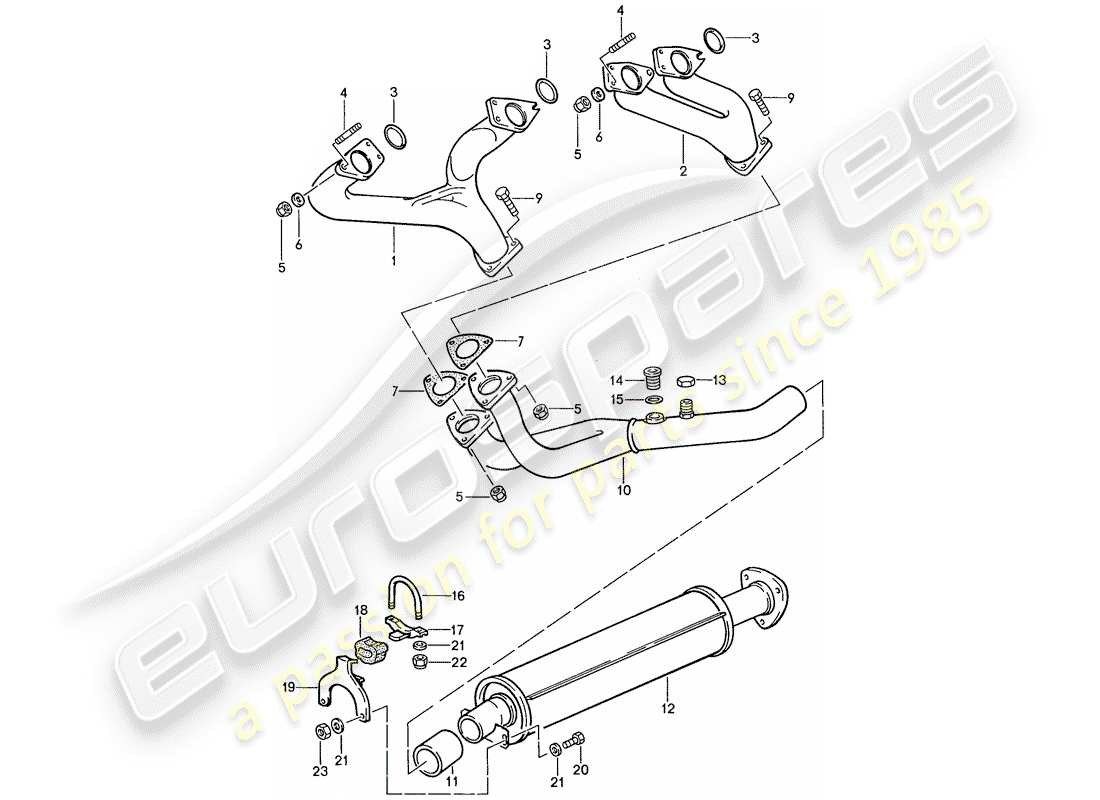

202-027 - EXHAUST SYSTEM - EXHAUST SILENCER, FRONT

Porsche 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 94411118303
                                    EXHAUST MANIFOLD - CYLINDERS 1 AND 4 - ALSO USE:
                                    --00004300400
                                    from £443.61
                                    from £443.61
                                    EXHAUST MANIFOLD - CYLINDERS 1 AND 4 - ALSO USE: Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 94411118402
                                    EXHAUST MANIFOLD - CYL. 2 AND 3 - ALSO USE:
                                    --00004300400
                                    from £318.44
                                    from £318.44
                                    EXHAUST MANIFOLD - CYLINDER 2 AND 3 - ALSO USE: Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 94411120500
                                    SEAL RING
                                    from £18.08
                                    from £18.08
                                    SEAL RING Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: 99906213902
                                    STUD
                                    from £3.56
                                    from £3.56
                                    stud - M 8 X 26 Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 99908405202
                                    LOCK NUT - M 8
                                    from £5.33
                                    from £5.33
                                    This part replaces part number 99908404602
                                    lock nut - VM8 Genuine Porsche Part - New In stock
                                    # 6
                                    MPN: 92811118100
                                    WASHER
                                    from £1.41
                                    from £1.41
                                    WASHER Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 94411113501
                                    gasket - A 8,4
                                    from £10.67
                                    from £10.67
                                    gasket - A 8,4 Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 90007428202
                                    SCREW
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 10
                                    MPN: 94411198707
                                    EXHAUST PIPE - ALSO USE:
                                    -00004300400
                                    from £567.75
                                    from £567.75
                                    EXHAUST PIPE - ALSO USE: Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: 94411198101
                                    SLEEVE
                                    from £30.31
                                    from £30.31
                                    SLEEVE Genuine Porsche Part - New (to order)
                                    # 12
                                    MPN: 94411198502
                                    EXHAUST SILENCER, FRONT - ALSO USE:
                                    -00004300400
                                    from £970.61
                                    from £970.61
                                    EXHAUST SILENCER, FRONT - ALSO USE: Genuine Porsche Part - New (to order)
                                    # 13
                                    MPN: 95111117100
                                    CAP
                                    from £9.62
                                    from £9.62
                                    CAP Genuine Porsche Part - New (to order)
                                    # 14
                                    MPN: 90021901500
                                    THREADED PLUG
                                    from £22.86
                                    from £22.86
                                    THREADED PLUG - M 18 X 24 Genuine Porsche Part - New (to order)
                                    # 15
                                    MPN: 90012300920
                                    SEAL RING
                                    from £0.91
                                    from £0.91
                                    seal ring - A 18 X 24 CU Genuine Porsche Part - New In stock
                                    # 16
                                    MPN: 477253139
                                    BOW - DISCONTINUED PART
                                    BOW - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                    # 16
                                    MPN: 47725313900
                                    BOW
                                    from £16.49
                                    from £16.49
                                    BOW Genuine Porsche Part - New (to order)
                                    # 17
                                    MPN: 94411130700
                                    BRACKET
                                    from £11.98
                                    from £11.98
                                    BRACKET Genuine Porsche Part - New (to order)
                                    # 18
                                    MPN: 94411114201
                                    RUBBER ISOLATOR - DISCONTINUED PART
                                    RUBBER ISOLATOR - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                    # 18
                                    MPN: 94411114202
                                    RUBBER ISOLATOR - DISCONTINUED PART
                                    RUBBER ISOLATOR - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                    # 18
                                    MPN: 94411114203
                                    RUBBER ISOLATOR
                                    from £17.21
                                    from £17.21
                                    RUBBER ISOLATOR Genuine Porsche Part - New (to order)
                                    # 19
                                    MPN: 93111106102
                                    HOOK
                                    from £17.80
                                    from £17.80
                                    hook - D >> - MJ 1989 Genuine Porsche Part - New (to order)
                                    # 20
                                    MPN: 90007508702
                                    SCREW, HEX. HD. - M 8 X 15 - DISCONTINUED PART
                                    screw, hex. hd. - M8X16 Genuine Porsche Part - New (to order)
                                    # 20
                                    MPN: 90007508703
                                    SCREW, HEX. HD. - M 8 X 15
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 20
                                    MPN: 90007508704
                                    SCREW, HEX. HD. - M 8 X 15
                                    M8X16-yellow
                                    from £0.86
                                    from £0.86
                                    This part replaces part number 90007508703
                                    screw, hex. hd. - M8X16 Genuine Porsche Part - New (to order)
                                    # 21
                                    MPN: 90002500702
                                    WASHER - A 8,4 - DISCONTINUED PART
                                    Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                    # 21
                                    MPN: 90002500703
                                    Washer - A 8,4
                                    from £0.84
                                    from £0.84
                                    Washer - M 8,4 Genuine Porsche Part - New In stock
                                    # 22
                                    MPN: 90091000302
                                    LOCK NUT - VM 8 - DISCONTINUED PART
                                    from £0.47
                                    from £0.47
                                    lock nut - VM8 - Discontinued part Genuine Porsche Part - New (to order)
                                    # 22
                                    MPN: 90091000304
                                    lock nut - VM 8
                                    from £1.25
                                    from £1.25
                                    lock nut - VM 8 Genuine Porsche Part - New (to order)
                                    # 23
                                    MPN: 90007602502
                                    HEX. NUT - M 8 - DISCONTINUED PART
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 23
                                    MPN: 90007606402
                                    hex. nut - M 8
                                    from £0.59
                                    from £0.59
                                    hex. nut - SW 13 M 8 Genuine Porsche Part - New (to order)
