porsche 1990 (944) rear axle carrier - rear axle steering parts diagram

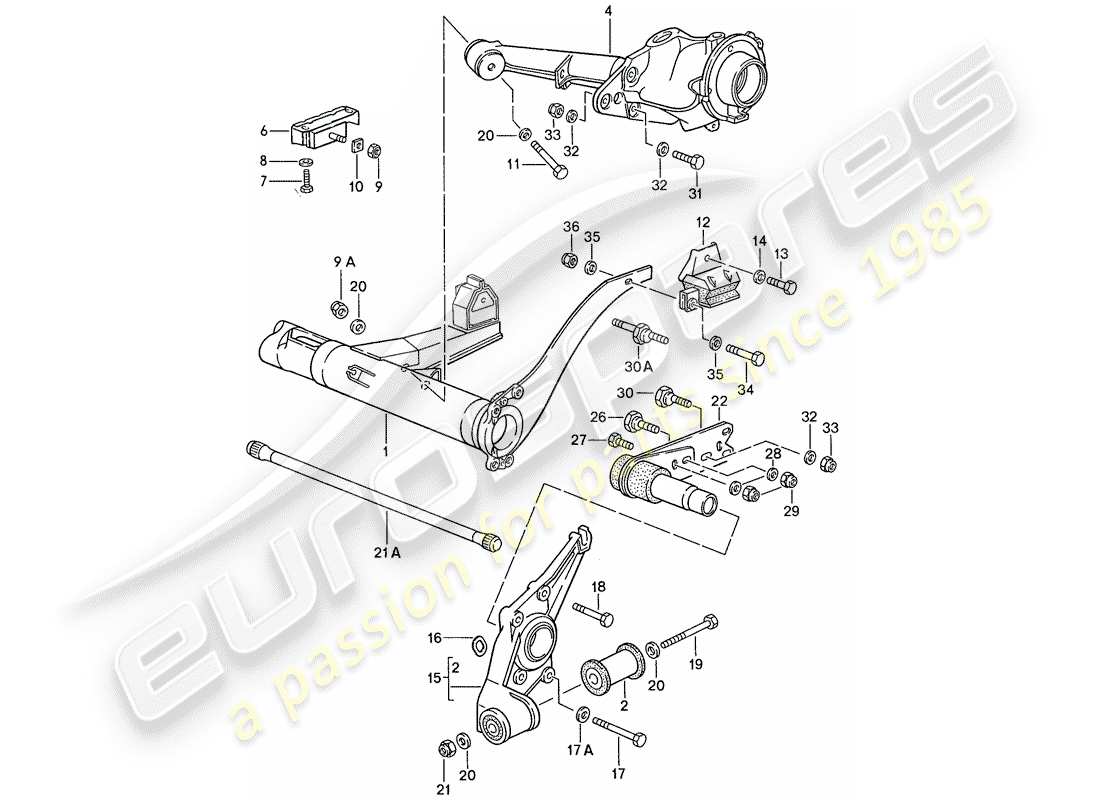

501-000 - REAR AXLE CARRIER - REAR AXLE STEERING

Porsche 1990 (944) REAR AXLE CARRIER - REAR AXLE STEERING Parts Diagram

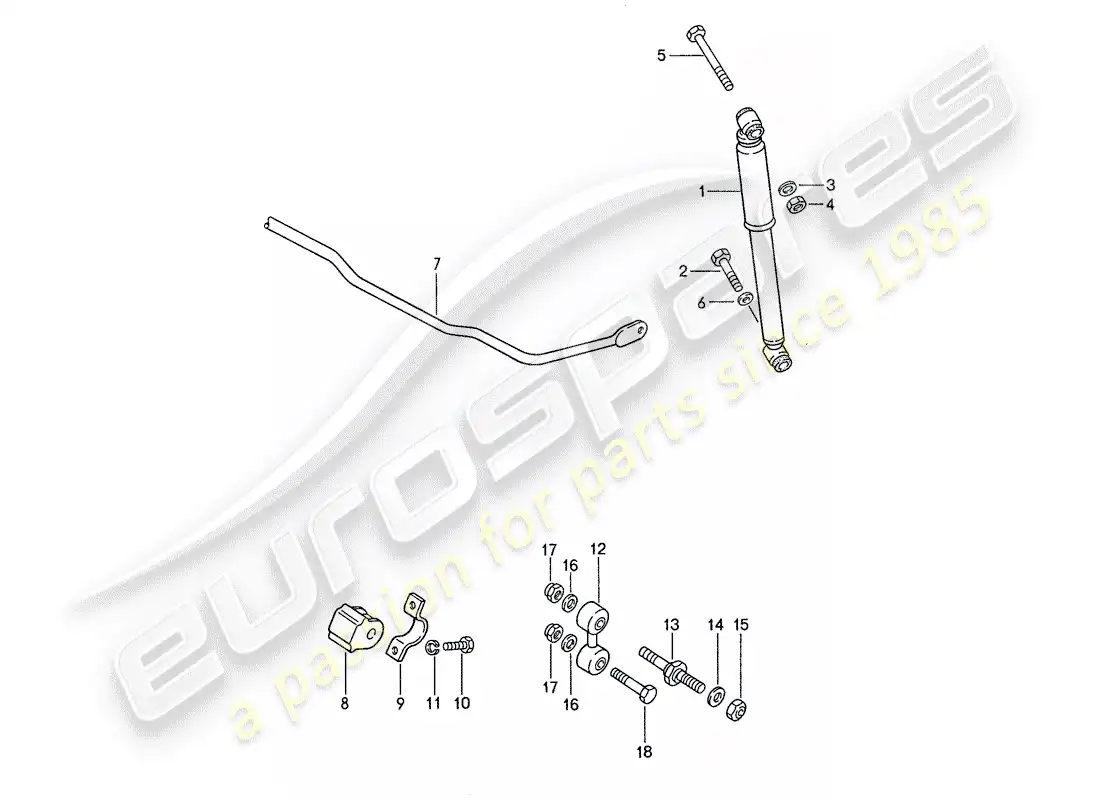

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Key
                                                      Price
                                                      # 2
                                                      MPN: 477501069A
                                                      RUBBER BUSH
                                                      from £69.05
                                                      from £69.05
                                                      RUBBER BUSH Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102101
                                                      Rear axle steering - D >> - MJ 1989
                                                      LEFT
                                                      from £654.10
                                                      from £654.10
                                                      Rear axle steering - D >> - MJ 1989 Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102131
                                                      Rear axle steering - D >> - MJ 1989
                                                      left (PR:030)
                                                      Rear axle steering - D - MJ 1987>> Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102132
                                                      REAR AXLE STEERING - AS REQUIRED USE: - D >> - MJ 1989
                                                      left (PR:593,030)
                                                      Rear axle steering - as required use: - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102132
                                                      Rear axle steering - as required use: - D - MJ 1990>>
                                                      LEFT
                                                      Rear axle steering - as required use: - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                                      # -
                                                      -
                                                      RETAINING PLATE
                                                      # -
                                                      -
                                                      SCREW, HEX. HD. - M 8 X 40 - DISCONTINUED PART
                                                      # -
                                                      -
                                                      STUD - M 8 X 40 - DISCONTINUED PART
                                                      # -
                                                      -
                                                      stud - M 8 X 40
                                                      This part replaces part number N 0103406
                                                      # 4
                                                      MPN: 95133102201
                                                      Rear axle steering - D >> - MJ 1989
                                                      RIGHT
                                                      from £634.92
                                                      from £634.92
                                                      Rear axle steering - D >> - MJ 1989 Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102231
                                                      Rear axle steering - D >> - MJ 1989
                                                      right (PR:030)
                                                      Rear axle steering - D - MJ 1987>> Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102232
                                                      Rear axle steering - D >> - MJ 1989
                                                      right (PR:593,030)
                                                      Rear axle steering - D >> - MJ 1989 Genuine Porsche Part - New (to order)
                                                      # 4
                                                      MPN: 95133102232
                                                      REAR AXLE STEERING - ALSO USE: - D - MJ 1990>>
                                                      RIGHT
                                                      Rear axle steering - D >> - MJ 1989 Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 477501089
                                                      mounting - D >> - MJ 1989
                                                      (944/944S2)
                                                      MOUNTING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 95133308830
                                                      Mounting - D >> - MJ 1989 - Discontinued part
                                                      (PR:030)
                                                      MOUNTING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 95133308832
                                                      MOUNTING
                                                      (PR:030)
                                                      from £228.51
                                                      from £228.51
                                                      mounting - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 95133308830
                                                      mounting - D - MJ 1990>> - Discontinued part
                                                      MOUNTING - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 6
                                                      MPN: 95133308832
                                                      mounting - D - MJ 1990>>
                                                      from £228.51
                                                      from £228.51
                                                      mounting - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                                      # 7
                                                      MPN: N 0402722
                                                      SCREW, HEX. HD. - M 10 X 35
                                                      from £0.59
                                                      from £0.59
                                                      SCREW, HEX. HD. - M 10 X 35 Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: N 01152712
                                                      WASHER - A 10,5 - DISCONTINUED PART
                                                      Washer - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 8
                                                      MPN: 90002508101
                                                      Washer - A 10,5
                                                      from £1.33
                                                      from £1.33
                                                      Washer - A 5,3 Genuine Porsche Part - New In stock
                                                      # 9
                                                      MPN: N 90087601
                                                      HEX. NUT, SELF-LOCKING - VM 10
                                                      from £0.69
                                                      from £0.69
                                                      HEX. NUT, SELF-LOCKING - VM 10 Genuine Porsche Part - New (to order)
                                                      # 9
                                                      MPN: N 0211311
                                                      HEX. NUT, SELF-LOCKING - M 12 X 1,5
                                                      from £1.06
                                                      from £1.06
                                                      hex. nut, self-locking - VM 12 X 1,5 Genuine Porsche Part - New (to order)
                                                      # 10
                                                      MPN: 477501697
                                                      WASHER
                                                      from £3.22
                                                      from £3.22
                                                      WASHER Genuine Porsche Part - New (to order)
                                                      # 11
                                                      MPN: N 0101904
                                                      SCREW, HEX. HD. - M 12 X 90
                                                      from £4.85
                                                      from £4.85
                                                      SCREW, HEX. HD. - M 12 X 90 Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107500
                                                      MOUNTING - DISCONTINUED PART
                                                      LEFT
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107501
                                                      MOUNTING
                                                      LEFT
                                                      from £192.72
                                                      from £192.72
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 95133308330
                                                      mounting - as required use: - D - MJ 1989>> - MJ 1989
                                                      left-944 331 075 01 (TURBO)
                                                      mounting - as required use: - D - MJ 1989>> - MJ 1989 Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107500
                                                      mounting - D - MJ 1990>> - Discontinued part
                                                      left (TURBO)
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107501
                                                      mounting - D - MJ 1990>>
                                                      left (TURBO)
                                                      from £192.72
                                                      from £192.72
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107600
                                                      MOUNTING
                                                      RIGHT
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107601
                                                      MOUNTING
                                                      RIGHT
                                                      from £192.72
                                                      from £192.72
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 95133308430
                                                      mounting - D - MJ 1989>> - MJ 1989
                                                      right (TURBO)
                                                      from £115.88
                                                      from £115.88
                                                      mounting - D - MJ 1989>> - MJ 1989 Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107600
                                                      mounting - D - MJ 1990>>
                                                      right (TURBO)
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> Genuine Porsche Part - New (to order)
                                                      # 12
                                                      MPN: 94433107601
                                                      mounting - D - MJ 1990>>
                                                      right (TURBO)
                                                      from £192.72
                                                      from £192.72
                                                      mounting - F 96-PS830 594>> - F 96-RS800 066>> - F 96-RS815 062>> Genuine Porsche Part - New (to order)
                                                      # 13
                                                      MPN: N 0102537
                                                      SCREW, HEX. HD. - M 10 X 22
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 15
                                                      MPN: 94433105900
                                                      bearing flange - Discontinued part
                                                      LEFT
                                                      from £247.72
                                                      from £247.72
                                                      bearing flange - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 94433105900
                                                      BEARING FLANGE
                                                      LEFT
                                                      from £247.72
                                                      from £247.72
                                                      bearing flange - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 94433106000
                                                      bearing flange - Discontinued part
                                                      RIGHT
                                                      from £267.68
                                                      from £267.68
                                                      bearing flange - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 15
                                                      MPN: 94433106000
                                                      BEARING FLANGE
                                                      RIGHT
                                                      from £267.68
                                                      from £267.68
                                                      bearing flange - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 16
                                                      MPN: 95133166700
                                                      WASHER
                                                      from £9.45
                                                      from £9.45
                                                      WASHER Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: N 0104655
                                                      SCREW, HEX. HD. - M 10 X 65
                                                      SCREW, HEX. HD. - M 10 X 65 Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: 90007424803
                                                      SCREW, HEX. HD. - M 10 X 65
                                                      from £1.68
                                                      from £1.68
                                                      SCREW, HEX. HD. - M 10 X 65 Genuine Porsche Part - New (to order)
                                                      # 17
                                                      MPN: N 0122306
                                                      SPRING WASHER - B 10
                                                      spring washer - B 10 - D >> - MJ 1984 Genuine Porsche Part - New (to order)
                                                      # 18
                                                      MPN: N 0104553
                                                      SCREW, HEX. HD. - M 10 X 55
                                                      from £3.61
                                                      from £3.61
                                                      SCREW, HEX. HD. - M 10 X 55 Genuine Porsche Part - New (to order)
                                                      # 19
                                                      MPN: 90008205902
                                                      SCREW, HEX. HD. - M 12 X 1,5 X 115
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 20
                                                      MPN: 803199347
                                                      SPRING WASHER - DISCONTINUED PART
                                                      SPRING WASHER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 20
                                                      MPN: 80319934H
                                                      WASHER
                                                      from £2.77
                                                      from £2.77
                                                      Washer - 13 X 31 Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: N 0221414
                                                      hex. nut, self-locking - VM 12 X 1,5
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # -
                                                      -
                                                      SEE TECHNICAL INFORMATION - GR.4 NR.8/89
                                                      # 21
                                                      MPN: 94433311500
                                                      torsion bar - 23,5 MM
                                                      left (944)
                                                      from £589.91
                                                      from £589.91
                                                      torsion bar - 23,5 MM - Only in combination with: - stabilizer - 14 MM Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 94433311600
                                                      torsion bar - 23,5 MM
                                                      right (944)
                                                      from £572.62
                                                      from £572.62
                                                      torsion bar - 23,5 MM - Only in combination with: - stabilizer - 14 MM Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 94433311501
                                                      TORSION BAR - 24 MM
                                                      left (944S2)
                                                      TORSION BAR - 24 MM Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 94433311601
                                                      TORSION BAR - 24 MM
                                                      right (944S2)
                                                      from £572.62
                                                      from £572.62
                                                      TORSION BAR - 24 MM Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 95133310330
                                                      torsion bar - 25,5 MM
                                                      left (TURBO 944/944S2 PR:030,031)
                                                      from £166.99
                                                      from £166.99
                                                      torsion bar - 25,5 MM Genuine Porsche Part - New (to order)
                                                      # 21
                                                      MPN: 95133310430
                                                      torsion bar - 25,5 MM
                                                      right (TURBO 944/944S2 PR:030,031)
                                                      from £145.47
                                                      from £145.47
                                                      torsion bar - 25,5 MM Genuine Porsche Part - New (to order)
                                                      # 22
                                                      MPN: 95133302100
                                                      REAR AXLE STRUT
                                                      from £607.49
                                                      from £607.49
                                                      REAR AXLE STRUT Genuine Porsche Part - New (to order)
                                                      # 28
                                                      MPN: 99902513502
                                                      WASHER
                                                      from £3.20
                                                      from £3.20
                                                      WASHER Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 90091009202
                                                      lock nut - VM 16 X 1,5 - Discontinued part
                                                      lock nut - VM 16 X 1,5 - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 90036000701
                                                      lock nut - VM 16 X 1,5
                                                      from £2.68
                                                      from £2.68
                                                      lock nut - VM 16 X 1,5 Genuine Porsche Part - New (to order)
                                                      # 29
                                                      MPN: 90036000702
                                                      lock nut - VM 16 X 1,5
                                                      VHM16X1,5-yellow
                                                      from £2.54
                                                      from £2.54
                                                      lock nut - VM 16 X 1,5 Genuine Porsche Part - New (to order)
                                                      # 30
                                                      MPN: 477511519
                                                      CAMBER ECCENTRIC
                                                      CAMBER ECCENTRIC Genuine Porsche Part - New (to order)
                                                      # 30
                                                      MPN: 477511515
                                                      CAMBER ECCENTRIC - ONLY IN COMBINATION WITH: - STABILIZER - DISCONTINUED PART
                                                      CAMBER ECCENTRIC - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 30
                                                      MPN: 477511516
                                                      CAMBER ECCENTRIC - ONLY IN COMBINATION WITH: - STABILIZER
                                                      from £28.21
                                                      from £28.21
                                                      Camber eccentric - Only in combination with: - stabilizer - 14 MM Genuine Porsche Part - New (to order)
                                                      # 31
                                                      MPN: N 0401082
                                                      SCREW, HEX. HD. - M 12 X 1,5 X 40
                                                      SCREW, HEX. HD. - M 12 X 1,5 X 40 Genuine Porsche Part - New (to order)
                                                      # 32
                                                      MPN: N 0115317
                                                      WASHER - A 13
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 33
                                                      MPN: N 0221414
                                                      hex. nut, self-locking - VM 12 X 1,5
                                                      Supersession
                                                      Supersession
                                                      Genuine Porsche Part (no longer available to order)
                                                      # 34
                                                      MPN: N 0102336
                                                      SCREW, HEX. HD. - M 8 X 28 - DISCONTINUED PART
                                                      SCREW, HEX. HD. - M 8 X 28 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                                      # 34
                                                      MPN: 90007513603
                                                      SCREW, HEX. HD. - M 8 X 28
                                                      from £3.61
                                                      from £3.61
                                                      screw, hex. hd. - M 8 X 28 - D - MJ 1990>> Genuine Porsche Part - New (to order)
                                                      # 35
                                                      MPN: 90002500702
                                                      WASHER - A 8,4 - DISCONTINUED PART
                                                      Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                                                      # 35
                                                      MPN: 90002500703
                                                      Washer - A 8,4
                                                      from £0.84
                                                      from £0.84
                                                      Washer - M 8,4 Genuine Porsche Part - New In stock
                                                      # 36
                                                      MPN: 90091002209
                                                      lock nut - VM 8
                                                      lock nut - VM 8 Genuine Porsche Part - New (to order)
                                                      # 36
                                                      MPN: 90091002203
                                                      lock nut - VM 8
                                                      from £0.85
                                                      from £0.85
                                                      lock nut - VM 8 Genuine Porsche Part - New In stock
