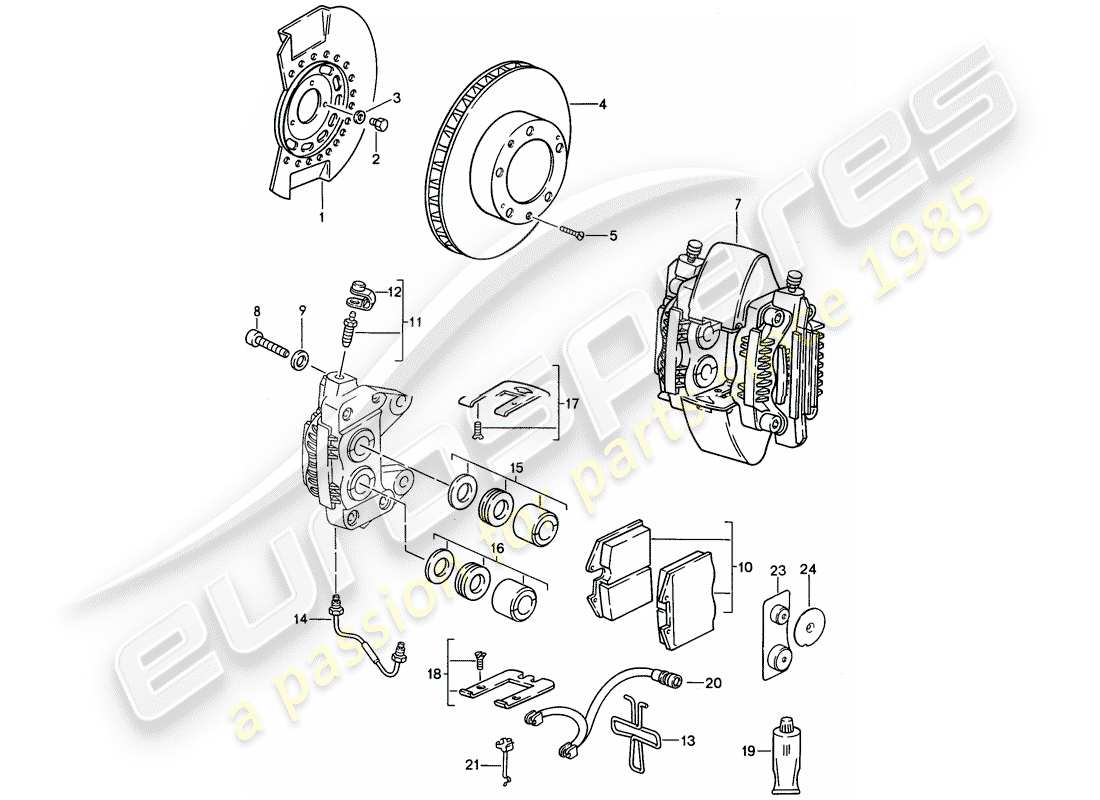

602-001 - DISC BRAKES - FRONT AXLE
Porsche 1990 (944) DISC BRAKES - FRONT AXLE Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# -
-
SEE TECHNICAL INFORMATION - GR.4, NR.1/89 - GR.4, NR.1/93
# 1
MPN: 95135108503
COVER PLATE
LEFT
from £16.45
from £16.45
# 1
MPN: 95135108603
COVER PLATE
RIGHT
from £15.66
from £15.66
# 2
MPN: N 0102262
SCREW, HEX. HD. - M 7 X 10
from £2.47
from £2.47
# 3
MPN: N 0122345
SPRING WASHER
from £0.59
from £0.59
# 4
MPN: 95135104102
BRAKE DISC - DISCONTINUED PART
(944S2)
# 4
MPN: 95135104103
BRAKE DISC - ALSO USE: - - - ADDITIONALLY TO BE USED ITEMS:
-95135193908-90026904701-94461236502-24 (944S2)
from £201.43
from £201.43
# 4
MPN: 92835104360
BRAKE DISC
left (TURBO 944S2 PR:030)
# 4
MPN: 92835104361
BRAKE DISC - - - ALSO USE: - - - ADDITIONALLY TO BE USED ITEMS:
left---99335193901-94461236502-90026904701-23 (TURBO 944S2 PR:030)
from £216.48
from £216.48
# 4
MPN: 92835104460
BRAKE DISC
right (TURBO 944S2 PR:030)
from £131.09
from £131.09
# 5
MPN: N 0331671
SCREW, CSK. HD. - M 6 X 12 - DISCONTINUED PART
# 5
MPN: 90026904701
SCREW, CSK. HD. - M 6 X 12
from £0.59
from £0.59
This part replaces part number 90026904709
# 7
MPN: 95135142101
FIXED CALLIPER - WITH: - SCRAPER RING - PISTON - $ 36/40 - F >> 94-KN402 629
left (944S2)
# 7
MPN: 95135142103
FIXED CALLIPER - WITH: - PROTECTIVE CAP - PISTON - $ 36/40 - F 94-KN402 630>>
left (944S2)
from £818.20
from £818.20
# 7
MPN: 95135109300
FIXED CALLIPER - WITH: - SCRAPER RING - PISTON - $ 36/44
left (TURBO)
# 7
MPN: 92835142103
FIXED CALLIPER - WITH: - PROTECTIVE CAP - PISTON - $ 36/44
left (TURBO 944S2 PR:030)
from £1,081.15
from £1,081.15
# 7
MPN: 95135142201
FIXED CALLIPER - WITH: - SCRAPER RING - PISTON - $ 36/40 - F >> 94-KN402 629
right (944S2)
# 7
MPN: 95135142203
FIXED CALLIPER - WITH: - PROTECTIVE CAP - PISTON - $ 36/40 - F 94-KN402 630>>
right (944S2)
from £818.20
from £818.20
# 7
MPN: 95135109400
FIXED CALLIPER - WITH: - SCRAPER RING - PISTON - $ 36/44
right (TURBO)
# 7
MPN: 92835142203
FIXED CALLIPER - WITH: - PROTECTIVE CAP - PISTON - $ 36/44
right (TURBO 944S2 PR:030)
from £1,081.15
from £1,081.15
# 8
MPN: N 0101372
SCREW, HEX. HD. - M 12 X 1,5 X 35 - DISCONTINUED PART
(944S2)
# 8
MPN: 90008307301
SCREW, HEX. HD. - M 12 X 1,5 X 35
(944S2)
from £3.90
from £3.90
# 8
MPN: 90006715402
screw, cheese hd. - M 12 X 1,5 X 70
(TURBO 944S2 PR:030)
from £3.71
from £3.71
# 9
MPN: 90002801402
SPRING WASHER - B 12 - DISCONTINUED PART
(944S2)
# 9
MPN: 90002801403
SPRING WASHER - B 12
(944S2)
from £1.32
from £1.32
# 9
MPN: N 0115642
WASHER - B 13 - DISCONTINUED PART
(TURBO 944S2 PR:030)
# 9
MPN: N 0115644
LOCK WASHER - B 13
(TURBO 944S2 PR:030)
from £1.72
from £1.72
# 10
MPN: 95135193908
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - ALSO USE: - POS.(24)
(944S2)
from £76.86
from £76.86
# 10
MPN: 99335193901
1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - ALSO USE: - POS.(23)
(TURBO 944S2 PR:030)
from £269.91
from £269.91
# 11
MPN: 93035191900
BLEEDER VALVE
from £13.16
from £13.16
# 12
MPN: 93035192700
dust cap - Discontinued part
# 12
MPN: 93035192701
DUST CAP
from £1.73
from £1.73
# 13
MPN: 95135295000
SPEADER SPRING
(944S2)
from £55.94
from £55.94
# 13
MPN: 92835195001
SPEADER SPRING
(TURBO 944S2 PR:030)
from £49.64
from £49.64
# 14
MPN: 95135197100
connecting line
(944S2)
from £66.50
from £66.50
# 14
MPN: 92835197100
connecting line
(TURBO 944S2 PR:030)
from £79.54
from £79.54
# 15
MPN: 95135191902
GASKET SET - WITH: - SCRAPER RING - $ 40 - F >> 94-KN402 629
(944S2)
from £61.69
from £61.69
# 15
MPN: 95135191911
SET OF GASKETS FOR CALLIPER - WITH: - PROTECTIVE CAP - $ 40 - F 94-KN402 630>>
(944S2)
from £29.26
from £29.26
# 15
MPN: 92835191901
GASKET SET - WITH: - SCRAPER RING - $ 44
(TURBO)
Supersession
Supersession
# 15
MPN: 92835191910
SET OF GASKETS FOR CALLIPER - WITH: - PROTECTIVE CAP - $ 44
(TURBO 944S2 PR:030)
from £29.78
from £29.78
# 16
MPN: 95135191901
GASKET SET - WITH: - SCRAPER RING - $ 36 - F >> 94-KN402 629
(944S2)
from £76.12
from £76.12
# 16
MPN: 95135191910
SET OF GASKETS FOR CALLIPER - WITH: - PROTECTIVE CAP - $ 36 - F 94-KN402 630>>
(944S2)
from £25.25
from £25.25
# 16
MPN: 95135191901
GASKET SET - WITH: - SCRAPER RING - $ 36
(TURBO)
from £76.12
from £76.12
# 16
MPN: 95135191910
SET OF GASKETS FOR CALLIPER - WITH: - PROTECTIVE CAP - $ 36
(TURBO 944S2 PR:030)
from £25.25
from £25.25
# 17
MPN: 96435195901
REPAIR KIT - SPRING PLATE
(944S2)
from £34.48
from £34.48
# 17
MPN: 99335195901
REPAIR KIT - SPRING PLATE
(TURBO 944S2 PR:030)
from £34.48
from £34.48
# 18
MPN: 96435195900
REPAIR KIT - SPRING PLATE
(944S2)
from £34.48
from £34.48
# 18
MPN: 99335195900
REPAIR KIT - SPRING PLATE
(TURBO 944S2 PR:030)
from £34.48
from £34.48
# 19
MPN: 00004302000
ASSEMBLY PASTE - TA - 1 100-GRAMME TUBE
Supersession
Supersession
# 19
MPN: 00004311700
BRAKE CYLINDER PASTE - 1 50-G TUBE - DISCONTINUED PART
# 19
MPN: 00004330511
BRAKE CYLINDER PASTE - 1 50-G TUBE
from £22.38
from £22.38
# 20
MPN: 94461236501
SENDER WIRE - (PAD WEAR INDICATOR) - ALSO USE:
# 21
MPN: 92861236100
CABLE HOLDER
from £3.07
from £3.07
# 22
MPN: 95134170500
CABLE HOLDER
from £5.08
from £5.08
# 23
MPN: 95135108904
VIBRATION DAMPER - FOR - FIXED CALLIPER - WITH: - SCRAPER RING - $ 25,2/33,8
(TURBO)
from £35.88
from £35.88
# 23
MPN: 95135108903
VIBRATION DAMPER - FOR - FIXED CALLIPER - WITH: - PROTECTIVE CAP - $ 19,7/27,3
(TURBO 944S2 PR:030)
from £23.91
from £23.91
# 24
MPN: 92835109619
DAMPING PLATE - FOR - PISTON - WITH: - SCRAPER RING - $ 36 - F >> 94-KN402 629
(944S2)
from £6.02
from £6.02
# 24
MPN: 95135109600
DAMPING PLATE - FOR - PISTON - WITH: - SCRAPER RING - $ 40 - F >> 94-KN402 629
(944S2)
from £5.83
from £5.83
# 24
MPN: 96435109601
DAMPING PLATE - FOR - PISTON - WITH: - PROTECTIVE CAP - $ 36 - F 94-KN402 630>>
(944S2)
from £9.74
from £9.74
# 24
MPN: 96435109602
DAMPING PLATE - FOR - PISTON - WITH: - PROTECTIVE CAP - $ 40 - F 94-KN402 630>>
(944S2)
from £9.74
from £9.74
-part-diagram-603-000.webp "PORSCHE 1990 (944) DISC BRAKES - REAR AXLE - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-603-001.webp "PORSCHE 1990 (944) DISC BRAKES - REAR AXLE PARTS DIAGRAM")
-part-diagram-603-004.webp "PORSCHE 1990 (944) HANDBRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 1990 (944) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR - D >> - MJ 1990 PARTS DIAGRAM")
-part-diagram-604-001.webp "PORSCHE 1990 (944) BRAKE MASTER CYLINDER - BRAKE BOOSTER - RESERVOIR - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 1990 (944) BRAKE LINES PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 1990 (944) BRAKE LINES - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-605-002.webp "PORSCHE 1990 (944) HYDRAULIC UNIT - ANTI-LOCKING BRAKE SYST. -ABS- PARTS DIAGRAM")
-part-diagram-698-005.webp "PORSCHE 1990 (944) BRAKE FLUID - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 1990 (944) ACTUATOR - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-005.webp "PORSCHE 1990 (944) ACTUATOR - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-701-010.webp "PORSCHE 1990 (944) HAND BRAKE LEVER PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 1990 (944) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-005.webp "PORSCHE 1990 (944) BRAKE - CLUTCH - PEDALS PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 1990 (944) ACCELERATOR PEDAL - ACCELERATOR CABLE - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-702-015.webp "PORSCHE 1990 (944) ACCELERATOR PEDAL - ACCELERATOR CABLE - FOR - AUTOMATIC TRANSMISSION PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 1990 (944) CAR BODY PARTS DIAGRAM")
-part-diagram-801-007.webp "PORSCHE 1990 (944) FLOOR PAN - REINFORCEMENT PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 1990 (944) BODY FRONT SECTION PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 1990 (944) SIDE PANEL PARTS DIAGRAM")
-part-diagram-801-017.webp "PORSCHE 1990 (944) SIDE PANEL - WINDSHIELD FRAME - END PLATE PARTS DIAGRAM")
-part-diagram-801-025.webp "PORSCHE 1990 (944) FENDER PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 1990 (944) BUMPER - WITHOUT: - BUFFER PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 1990 (944) BUMPER - WITH: - BUFFER PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 1990 (944) FRONT SPOILER - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 1990 (944) COVER FOR BUMPER - BUMPER PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 1990 (944) SIDE MEMBER TRIM - WINGED REAR APRON PARTS DIAGRAM")
-part-diagram-802-025.webp "PORSCHE 1990 (944) TRIMS PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 1990 (944) COVER - ACTUATOR PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 1990 (944) REAR TRUNK LID - REAR SPOILER - D >> - MJ 1990 PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 1990 (944) REAR TRUNK LID - REAR SPOILER - D - MJ 1990>> PARTS DIAGRAM")
-part-diagram-803-010.webp "PORSCHE 1990 (944) REAR TRUNK LID PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 1990 (944) DOOR PARTS DIAGRAM")
-part-diagram-804-005.webp "PORSCHE 1990 (944) DOOR HANDLE, OUTER - DOOR LATCH PARTS DIAGRAM")
-part-diagram-804-006.webp "PORSCHE 1990 (944) CENTRAL LOCKING SYSTEM PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 1990 (944) WINDOW REGULATOR - GLASS CHANNEL PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 1990 (944) WINDOW REGULATOR - GLASS CHANNEL PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 1990 (944) WINDOW GLAZING PARTS DIAGRAM")
-part-diagram-806-000.webp "PORSCHE 1990 (944) POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 1990 (944) SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 1990 (944) TRIMS PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 1990 (944) DOOR PANEL - ROOF TRIM PANEL PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 1990 (944) TRIMS PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 1990 (944) SEAT - COMPLETE PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 1990 (944) DASH PANEL TRIM PARTS DIAGRAM")
-part-diagram-809-001.webp "PORSCHE 1990 (944) CASSETTE HOLDER - CENTER CONSOLE PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 1990 (944) SUN VIZOR - REAR VIEW MIRROR - REAR VIEW MIRROR INNER PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 1990 (944) LUGGAGE COMPARTMENT COVER PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 1990 (944) DECORATIVE MOULDING PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 1990 (944) NAMEPLATES - STONE PROTECTION FOIL PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 1990 (944) LIFTING ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 1990 (944) LIFTING ROOF - DRIVING MECHANISM PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 1990 (944) CONVERTIBLE TOP - CONVERTIBLE TOP COVERING PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 1990 (944) TOP FRAME PARTS DIAGRAM")
-part-diagram-811-025.webp "PORSCHE 1990 (944) SEAL STRIP PARTS DIAGRAM")
-part-diagram-811-030.webp "PORSCHE 1990 (944) CONVERTIBLE TOP CONTROL - ELECTRIC PARTS DIAGRAM")
-part-diagram-811-035.webp "PORSCHE 1990 (944) BOOT COVER PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 1990 (944) SEAT BELT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 1990 (944) SEAT BELT PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 1990 (944) HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-813-005.webp "PORSCHE 1990 (944) FAN PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 1990 (944) AIR DUCT PARTS DIAGRAM")
-part-diagram-813-015.webp "PORSCHE 1990 (944) REFRIGERANT CIRCUIT PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 1990 (944) COMPRESSOR PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 1990 (944) VACUUM CONTROL PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 1990 (944) CONTROL SWITCH PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 1990 (944) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-001.webp "PORSCHE 1990 (944) ENGINE ELECTRICS 1 PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 1990 (944) ENGINE ELECTRICS 2 PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 1990 (944) ALTERNATOR - WITH: - FASTENERS PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 1990 (944) BATTERY - STARTER - WIRING HARNESSES PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 1990 (944) WIRING HARNESSES - ENGINE - HEATER - AIR CONDITIONER PARTS DIAGRAM")
-part-diagram-902-025.webp "PORSCHE 1990 (944) WIRING HARNESSES - PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-026.webp "PORSCHE 1990 (944) WIRING HARNESSES - PASSENGER COMPARTMENT PARTS DIAGRAM")
-part-diagram-902-027.webp "PORSCHE 1990 (944) WIRING HARNESSES - DOORS PARTS DIAGRAM")
-part-diagram-902-030.webp "PORSCHE 1990 (944) WIRING HARNESSES - REAR END PARTS DIAGRAM")
-part-diagram-902-031.webp "PORSCHE 1990 (944) WIRING HARNESSES - ANTI-LOCKING BRAKE SYST. -ABS- - BRAKE PAD WEAR INDICATOR PARTS DIAGRAM")
-part-diagram-902-050.webp "PORSCHE 1990 (944) PIN (MALE) TERMINAL - CONTACT PIN - CABLE SHOE PARTS DIAGRAM")
-part-diagram-902-052.webp "PORSCHE 1990 (944) MALE BLADE TERMINAL - PUSH-ON CONNECTOR PARTS DIAGRAM")
-part-diagram-902-054.webp "PORSCHE 1990 (944) BUTT CONNECTOR - CONNECTOR HOUSING - SINGLE POLE PARTS DIAGRAM")
-part-diagram-902-056.webp "PORSCHE 1990 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-058.webp "PORSCHE 1990 (944) CONNECTOR HOUSING - 3-POLE PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 1990 (944) CONNECTOR HOUSING - 4-POLE PARTS DIAGRAM")
-part-diagram-902-062.webp "PORSCHE 1990 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-902-064.webp "PORSCHE 1990 (944) CONNECTOR HOUSING - 8-POLE - 9-POLE PARTS DIAGRAM")
-part-diagram-902-066.webp "PORSCHE 1990 (944) CONNECTOR HOUSING PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 1990 (944) SWITCH - CLOCK PARTS DIAGRAM")
-part-diagram-903-002.webp "PORSCHE 1990 (944) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 1990 (944) FUSE BOX/RELAY PLATE PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 1990 (944) RELAY - FOR - CONVERTIBLE TOP CONTROL PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 1990 (944) HORN PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 1990 (944) WINDSCREEN WIPER SYSTEM PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 1990 (944) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 1990 (944) WINDSHIELD WASHER UNIT PARTS DIAGRAM")
-part-diagram-904-015.webp "PORSCHE 1990 (944) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 1990 (944) HEADLAMP - ELECTRIC MOTOR - POP-UP HEADLIGHT PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 1990 (944) ADDITIONAL HEADLIGHT - FOG LIGHTS - TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-010.webp "PORSCHE 1990 (944) ADDITIONAL HEADLIGHT - TURN SIGNAL PARTS DIAGRAM")
-part-diagram-905-015.webp "PORSCHE 1990 (944) LICENSE PLATE LIGHT - REAR LIGHT - ADDITIONAL BRAKE LIGHT PARTS DIAGRAM")
-part-diagram-905-020.webp "PORSCHE 1990 (944) INTERIOR LIGHT - TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 1990 (944) INSTRUMENT CLUSTER PARTS DIAGRAM")
-part-diagram-906-005.webp "PORSCHE 1990 (944) SWITCH - AND - SENSOR PARTS DIAGRAM")
-part-diagram-907-000.webp "PORSCHE 1990 (944) CRUISE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-909-000.webp "PORSCHE 1990 (944) ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-910-000.webp "PORSCHE 1990 (944) ELECTRIC FAN PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 1990 (944) RADIO UNIT PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 1990 (944) FOR - SOUNDSYSTEM PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 1990 (944) ACCESSORIES - TOOL - FIRST AID KIT PARTS DIAGRAM")
-part-diagram-001-003.webp "PORSCHE 1990 (944) CLEANING AGENT - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-004.webp "PORSCHE 1990 (944) ACCESSORIES - PORSCHE CLASSIC PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 1990 (944) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-001-010.webp "PORSCHE 1990 (944) IDENTIFICATION PLATE PARTS DIAGRAM")
-part-diagram-002-000.webp "PORSCHE 1990 (944) ACCESSORIES PARTS DIAGRAM")
-part-diagram-002-006.webp "PORSCHE 1990 (944) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-007.webp "PORSCHE 1990 (944) ROOF TRANSPORT SYSTEM PARTS DIAGRAM")
-part-diagram-002-010.webp "PORSCHE 1990 (944) ACCESSORIES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 1990 (944) PAINT TOUCH-UP STICK PARTS DIAGRAM")
-part-diagram-005-003.webp "PORSCHE 1990 (944) INSTRUCTION MANUAL - D - MJ 1989>> - MJ 1991 PARTS DIAGRAM")
-part-diagram-005-005.webp "PORSCHE 1990 (944) OWNER'S MANUAL - CARE PASS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 1990 (944) SHORT ENGINE - CRANKCASE PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 1990 (944) UNDERSIDE PROTECTION PARTS DIAGRAM")
-part-diagram-101-015.webp "PORSCHE 1990 (944) CRANKCASE - FASTENERS - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 1990 (944) CRANKSHAFT - CONNECTING ROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 1990 (944) PISTON - PISTON RINGS PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 1990 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-003.webp "PORSCHE 1990 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-004.webp "PORSCHE 1990 (944) CYLINDER HEAD - VALVES PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 1990 (944) CAMSHAFT HOUSING - CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-007.webp "PORSCHE 1990 (944) CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-012.webp "PORSCHE 1990 (944) DRIVING MECHANISM - CAMSHAFT PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 1990 (944) DRIVING MECHANISM - SHAFT PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 1990 (944) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-001.webp "PORSCHE 1990 (944) ENGINE LUBRICATION PARTS DIAGRAM")
-part-diagram-104-003.webp "PORSCHE 1990 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-104-004.webp "PORSCHE 1990 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 1990 (944) ENGINE LUBRICATION - EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 1990 (944) WATER PUMP PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 1990 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 1990 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 1990 (944) WATER COOLING PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 1990 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 1990 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-106-010.webp "PORSCHE 1990 (944) AIR CLEANER SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 1990 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 1990 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-010.webp "PORSCHE 1990 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 1990 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 1990 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-027.webp "PORSCHE 1990 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-107-030.webp "PORSCHE 1990 (944) L-JETRONIC - 4 PARTS DIAGRAM")
-part-diagram-107-035.webp "PORSCHE 1990 (944) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-107-040.webp "PORSCHE 1990 (944) L-JETRONIC - 1 PARTS DIAGRAM")
-part-diagram-107-045.webp "PORSCHE 1990 (944) L-JETRONIC - 2 PARTS DIAGRAM")
-part-diagram-107-050.webp "PORSCHE 1990 (944) L-JETRONIC - 3 PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 1990 (944) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-109-005.webp "PORSCHE 1990 (944) ENGINE SUSPENSION PARTS DIAGRAM")
-part-diagram-198-005.webp "PORSCHE 1990 (944) ENGINE OIL - PORSCHE CLASSIC 10W50 PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 1990 (944) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-003.webp "PORSCHE 1990 (944) FILLER NECK PARTS DIAGRAM")
-part-diagram-201-004.webp "PORSCHE 1990 (944) FILLER NECK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 1990 (944) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-201-007.webp "PORSCHE 1990 (944) EVAPORATIVE EMISSION CANISTER PARTS DIAGRAM")
-part-diagram-201-012.webp "PORSCHE 1990 (944) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-201-015.webp "PORSCHE 1990 (944) FUEL SYSTEM PARTS DIAGRAM")
-part-diagram-202-000.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-015.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-020.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-025.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-027.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, FRONT PARTS DIAGRAM")
-part-diagram-202-028.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - CATALYST PARTS DIAGRAM")
-part-diagram-202-029.webp "PORSCHE 1990 (944) EXHAUST SYSTEM - EXHAUST SILENCER, REAR PARTS DIAGRAM")
-part-diagram-202-030.webp "PORSCHE 1990 (944) EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-298-005.webp "PORSCHE 1990 (944) PORSCHE CLASSIC - ADDITIVE - FOR FUEL PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 1990 (944) CENTRAL TUBE - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 1990 (944) CLUTCH PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 1990 (944) REPLACEMENT TRANSMISSION - TRANSMISSION CASE - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 1990 (944) OIL COOLING PARTS DIAGRAM")
-part-diagram-303-000.webp "PORSCHE 1990 (944) GEARS AND SHAFTS - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-303-005.webp "PORSCHE 1990 (944) GEARS AND SHAFTS - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-000.webp "PORSCHE 1990 (944) TRANSMISSION CONTROL - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-304-005.webp "PORSCHE 1990 (944) TRANSMISSION CONTROL - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 1990 (944) DIFFERENTIAL - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 1990 (944) LIMITED SLIP DIFFERENTIAL - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 1990 (944) TRANSMISSION SUSPENSION - FOR - MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-307-000.webp "PORSCHE 1990 (944) CENTRAL TUBE - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-308-000.webp "PORSCHE 1990 (944) REPLACEMENT TRANSMISSION - FINAL DRIVE HOUSING - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-309-000.webp "PORSCHE 1990 (944) TRANSMISSION CASE - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-309-005.webp "PORSCHE 1990 (944) OIL INLET - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-309-010.webp "PORSCHE 1990 (944) OIL COOLING - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-310-000.webp "PORSCHE 1990 (944) TRANSMISSION CONTROL - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-310-005.webp "PORSCHE 1990 (944) VALVE BODY - OIL STRAINER - GOVERNOR - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-311-000.webp "PORSCHE 1990 (944) DIFFERENTIAL - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-312-000.webp "PORSCHE 1990 (944) TRANSMISSION SUSPENSION - FOR - AUTOMATIC TRANSMISSION - D >> - MJ 1989 PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 1990 (944) TRACK CONTROL ARM - CROSS MEMBER PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 1990 (944) STEERING KNUCKLE - LUBRICANTS PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 1990 (944) SUSPENSION - SHOCK ABSORBER PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 1990 (944) STABILIZER PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 1990 (944) POWER STEERING - STEERING GEAR - STEERING TRACK ROD PARTS DIAGRAM")
-part-diagram-403-002.webp "PORSCHE 1990 (944) POWER STEERING - POWER STEERING PUMP - LINES PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 1990 (944) STEERING WHEEL - STEERING COLUMN - STEERING LOCK PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 1990 (944) AIRBAG - FOR PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 1990 (944) REAR AXLE CARRIER - REAR AXLE STEERING PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 1990 (944) REAR WHEEL SHAFT - LUBRICANTS PARTS DIAGRAM")
-part-diagram-501-010.webp "PORSCHE 1990 (944) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 1990 (944) VIBRATION DAMPER - STABILIZER PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 1990 (944) DISC WHEEL PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 1990 (944) DISC BRAKES - FRONT AXLE - D >> - MJ 1989 PARTS DIAGRAM")
