porsche 1991 (944) l-jetronic - 3 parts diagram

107-010 - L-JETRONIC - 3

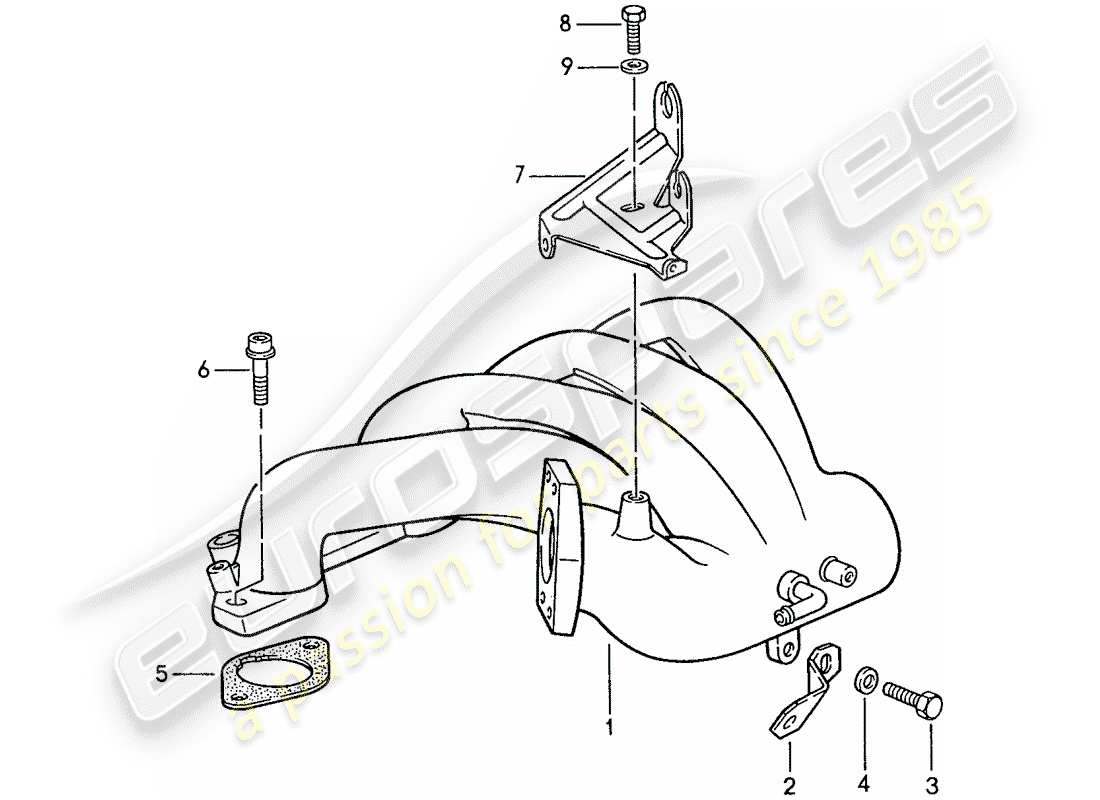

Porsche 1991 (944) L-JETRONIC - 3 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 94411006000
                    INTAKE MANIFOLD
                    from £254.24
                    from £254.24
                    INTAKE MANIFOLD Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 94411016501
                    SUPPORT
                    from £3.50
                    from £3.50
                    SUPPORT Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 90007508502
                    SCREW, HEX. HD. - M 8 X 20
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 4
                    MPN: 90002500702
                    WASHER - 8,4 - DISCONTINUED PART
                    Washer - M 8,4 - Discontinued part Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 90002500703
                    WASHER - 8,4
                    from £0.84
                    from £0.84
                    Washer - M 8,4 Genuine Porsche Part - New In stock
                    # 5
                    MPN: 94411016302
                    GASKET
                    from £2.34
                    from £2.34
                    GASKET Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 90006721402
                    SCREW, CHEESE HD. - M 8 X 35 - DISCONTINUED PART
                    SCREW, CHEESE HD. - M 8 X 35 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 90006721401
                    SCREW, CHEESE HD. - M 8 X 35
                    from £2.77
                    from £2.77
                    SCREW, CHEESE HD. - M 8 X 35 Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 94411016105
                    SUPPORT
                    from £12.06
                    from £12.06
                    SUPPORT Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 90007505702
                    SCREW, HEX. HD. - M 6 X 16
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 8
                    MPN: 90007505703
                    SCREW, HEX. HD. - M 6 X 16 - NO LONGER USE THE PART HERE
                    from £3.27
                    from £3.27
                    screw, hex. hd. - No longer use the part here Genuine Porsche Part - New (to order)
