porsche 1991 (944) disc brakes - front axle - d >> - mj 1989 parts diagram

602-000 - DISC BRAKES - FRONT AXLE - D >> - MJ 1989

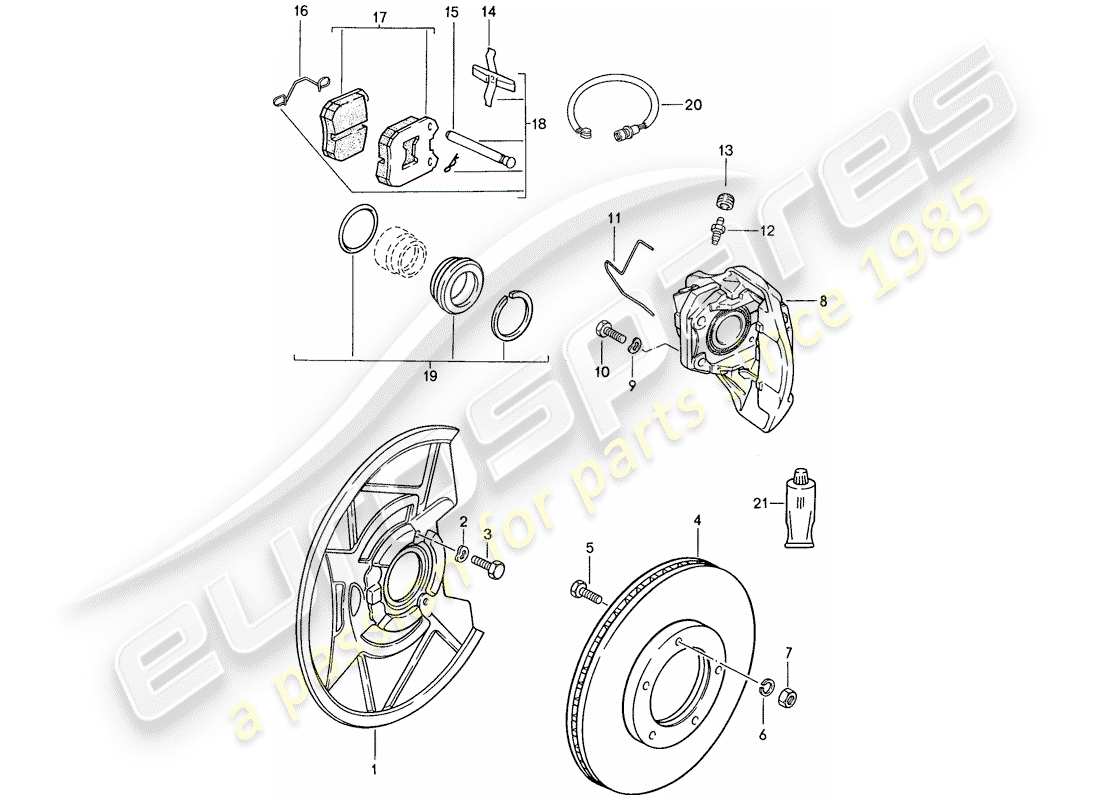

Porsche 1991 (944) DISC BRAKES - FRONT AXLE - D >> - MJ 1989 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 1
                                      MPN: 94435108500
                                      COVER PLATE - DISCONTINUED PART
                                      COVER PLATE - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 1
                                      MPN: 94435108501
                                      COVER PLATE
                                      from £43.35
                                      from £43.35
                                      COVER PLATE Genuine Porsche Part - New In stock
                                      # 2
                                      MPN: N 0122345
                                      SPRING WASHER - B 7
                                      from £0.59
                                      from £0.59
                                      SPRING WASHER - B 7 Genuine Porsche Part - New (to order)
                                      # 3
                                      MPN: N 0102262
                                      SCREW, HEX. HD. - M 7 X 10
                                      from £2.47
                                      from £2.47
                                      SCREW, HEX. HD. - M 7 X 10 Genuine Porsche Part - New (to order)
                                      # 4
                                      MPN: 94435104105
                                      BRAKE DISC - ALSO USE:
                                      -94435195103-94461221206-94435195201
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 5
                                      MPN: 90007507902
                                      SCREW, HEX. HD. - M 8 X 22
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 6
                                      MPN: N 0122411
                                      SPRING WASHER - B 8
                                      from £0.64
                                      from £0.64
                                      spring washer - Not for: - (S)(D) - M >> 075 3003 - M >> 083 6549 Genuine Porsche Part - New (to order)
                                      # 7
                                      MPN: 90007602502
                                      HEX. NUT - M 8 - DISCONTINUED PART
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 7
                                      MPN: 90007606402
                                      hex. nut - M 8
                                      from £0.59
                                      from £0.59
                                      hex. nut - SW 13 M 8 Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 94435142900
                                      FLOATING CALIPER
                                      LEFT
                                      from £755.74
                                      from £755.74
                                      floating caliper - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                      # 8
                                      MPN: 94435143000
                                      FLOATING CALIPER
                                      RIGHT
                                      from £376.25
                                      from £376.25
                                      floating caliper - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 90002801402
                                      SPRING WASHER - B 12 - DISCONTINUED PART
                                      SPRING WASHER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 9
                                      MPN: 90002801403
                                      SPRING WASHER - B 12
                                      from £1.32
                                      from £1.32
                                      SPRING WASHER - B12 Genuine Porsche Part - New (to order)
                                      # 10
                                      MPN: N 0401081
                                      SCREW, HEX. HD. - M 12 X 1,5 X 40
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 11
                                      MPN: 431615169
                                      LOCATING SPRING FOR - FLOATING CALIPER - DISCONTINUED PART
                                      LOCATING SPRING FOR - FLOATING CALIPER - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 11
                                      MPN: PCG615169
                                      GUIDE SPRING
                                      from £12.05
                                      from £12.05
                                      GUIDE SPRING Genuine Porsche Part - New (to order)
                                      # 12
                                      MPN: 94435195700
                                      BLEEDER VALVE
                                      from £13.92
                                      from £13.92
                                      bleeder valve - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                      # 13
                                      MPN: 94435195900
                                      DUST CAP
                                      from £3.18
                                      from £3.18
                                      dust cap - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                      # 14
                                      MPN: 92835193500
                                      SPEADER SPRING
                                      from £12.84
                                      from £12.84
                                      SPEADER SPRING Genuine Porsche Part - New In stock
                                      # 15
                                      MPN: 92835193600
                                      RETAINING PIN
                                      from £6.62
                                      from £6.62
                                      RETAINING PIN Genuine Porsche Part - New (to order)
                                      # 16
                                      MPN: 92835195500
                                      safety clamp
                                      from £6.63
                                      from £6.63
                                      safety clamp - D - MJ 1984>> Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: 94435195102
                                      1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - DISCONTINUED PART
                                      1 set of brake pads for disc - brakes - Without fixing parts - Discontinued part Genuine Porsche Part - New (to order)
                                      # 17
                                      MPN: 94435195103
                                      1 SET OF BRAKE PADS FOR DISC - BRAKES - (ASBESTOS FREE) - ALSO USE:
                                      ---94435195201
                                      from £89.37
                                      from £89.37
                                      1 set of brake pads for disc - brakes - Without fixing parts - (asbestos free) Genuine Porsche Part - New (to order)
                                      # 18
                                      MPN: 94435195201
                                      fasteners
                                      Supersession
                                      Supersession
                                      Genuine Porsche Part (no longer available to order)
                                      # 20
                                      MPN: 94461221200
                                      SENDER WIRE - (PAD WEAR INDICATOR) - DISCONTINUED PART
                                      SENDER WIRE - (PAD WEAR INDICATOR) - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                      # 20
                                      MPN: 94461221206
                                      SENDER WIRE - (PAD WEAR INDICATOR)
                                      from £19.85
                                      from £19.85
                                      sender wire - (pad wear indicator) - D - MJ 1987>> Genuine Porsche Part - New (to order)
                                      # 21
                                      MPN: 00004311700
                                      BRAKE CYLINDER PASTE - 1 50-G TUBE - DISCONTINUED PART
                                      brake cylinder paste - Discontinued part Genuine Porsche Part - New (to order)
                                      # 21
                                      MPN: 00004330511
                                      BRAKE CYLINDER PASTE - 1 50-G TUBE
                                      from £22.38
                                      from £22.38
                                      BRAKE CYLINDER PASTE - 50 GR Genuine Porsche Part - New (to order)
