porsche 1987 (959) engine lubrication - oil pump - engine parts diagram

104-010 - ENGINE LUBRICATION - OIL PUMP - ENGINE

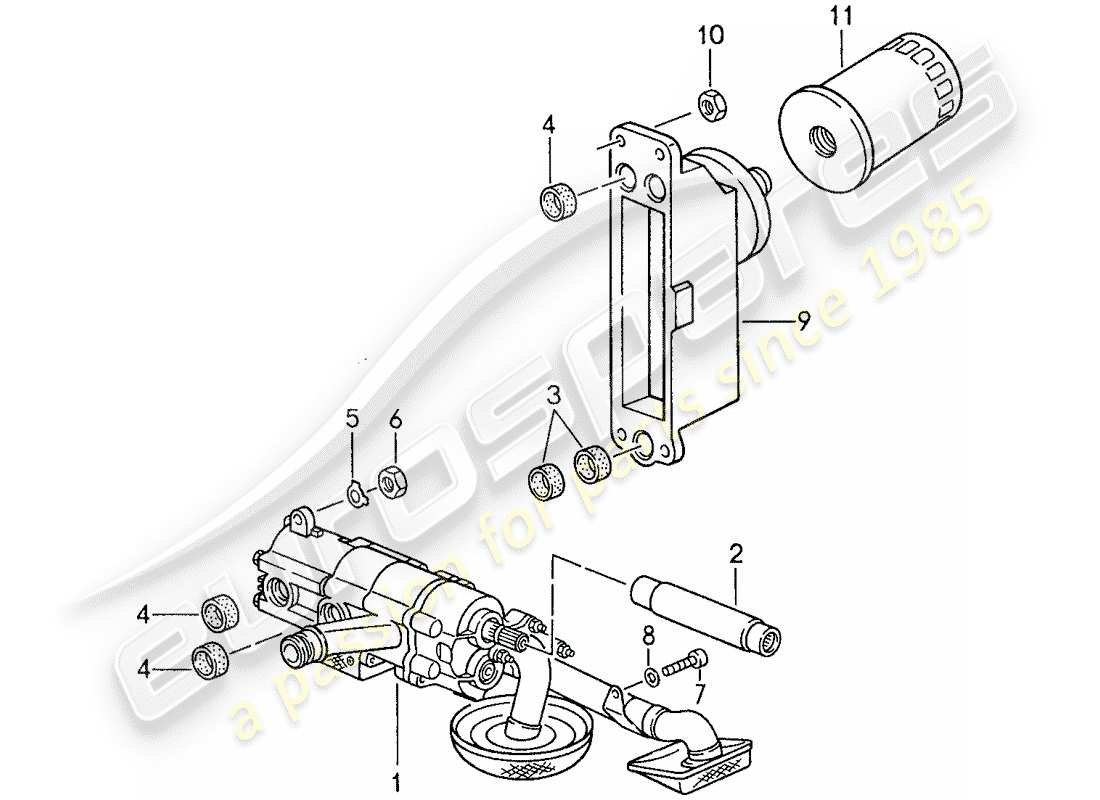

Porsche 1987 (959) ENGINE LUBRICATION - OIL PUMP - ENGINE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 95910701001
                      OIL PUMP - DISCONTINUED PART
                      OIL PUMP - DISCONTINUED PART Genuine Porsche Part - New (to order)
                      # 1
                      MPN: PCG10701001
                      Oil pump with assembly parts - Repair set for oil pump
                      from £12,870.11
                      from £12,870.11
                      Oil pump with assembly parts - Repair set for oil pump Genuine Porsche Part - New (to order)
                      # -
                      -
                      Oil int.pipe w. assembly parts - Repair set for intake manifold
                      # -
                      -
                      ASSEMBLY KIT - COMPRISING:
                      # -
                      -
                      SEAL RING
                      # -
                      -
                      HEX. NUT
                      M5
                      # -
                      -
                      SPRING WASHER
                      B5
                      # -
                      -
                      SEAL RING
                      # 2
                      MPN: 93510704100
                      CONNECTING SHAFT
                      CONNECTING SHAFT Genuine Porsche Part - New (to order)
                      # 2
                      MPN: 93510704120
                      CONNECTING SHAFT
                      from £419.74
                      from £419.74
                      CONNECTING SHAFT Genuine Porsche Part - New (to order)
                      # 3
                      MPN: 99970417350
                      SEAL RING
                      from £10.50
                      from £10.50
                      seal ring - 26 X 19,5 X 8,5 Genuine Porsche Part - New (to order)
                      # 4
                      MPN: 99970417250
                      SEAL RING
                      from £7.97
                      from £7.97
                      seal ring - 16,3 X 22 X 9,5 Genuine Porsche Part - New (to order)
                      # -
                      -
                      O-Ring - oil pump
                      # 6
                      MPN: 99908409502
                      LOCK NUT - M 8
                      lock nut - M8 Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 90006700902
                      SCREW, CHEESE HD. - M 6 X 15 - DISCONTINUED PART
                      screw, cheese hd. - M6 X 15 - Discontinued part Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 90006742901
                      SCREW, CHEESE HD. - M 6 X 15
                      from £3.54
                      from £3.54
                      screw, cheese hd. - M6 X 15 - Chrome plated Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 9000250570A
                      WASHER - A 6,4 - DISCONTINUED PART
                      Washer - Discontinued part Genuine Porsche Part - New (to order)
                      # 8
                      MPN: N 01152417
                      WASHER - A 6,4 - DISCONTINUED PART
                      Washer - Discontinued part Genuine Porsche Part - New (to order)
                      # 8
                      MPN: N 0115247
                      WASHER - A 6,4 - DISCONTINUED PART
                      Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                      # 8
                      MPN: N 01152427
                      Washer - A 6,4
                      from £0.47
                      from £0.47
                      Washer - R 6,6 Genuine Porsche Part - New (to order)
                      WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                      # 9
                      MPN: 95910705301
                      BRACKET
                      from £1,324.12
                      from £1,324.12
                      BRACKET Genuine Porsche Part - New (to order)
                      # 10
                      MPN: 99908408802
                      LOCK NUT - M 8
                      LOCK NUT - M 8 Genuine Porsche Part - New (to order)
                      # 11
                      MPN: 94410720103
                      oil filter - also use: - - as required use: - engine oil - 00004320930 - 00004320931
                      -PCG04320930-PCG04320006-PORSCHE-CLASSIC-1,0ltr.-5,0ltr.
                      Supersession
                      Supersession
                      Genuine Porsche Part (no longer available to order)
