105-000 - AIR COOLING

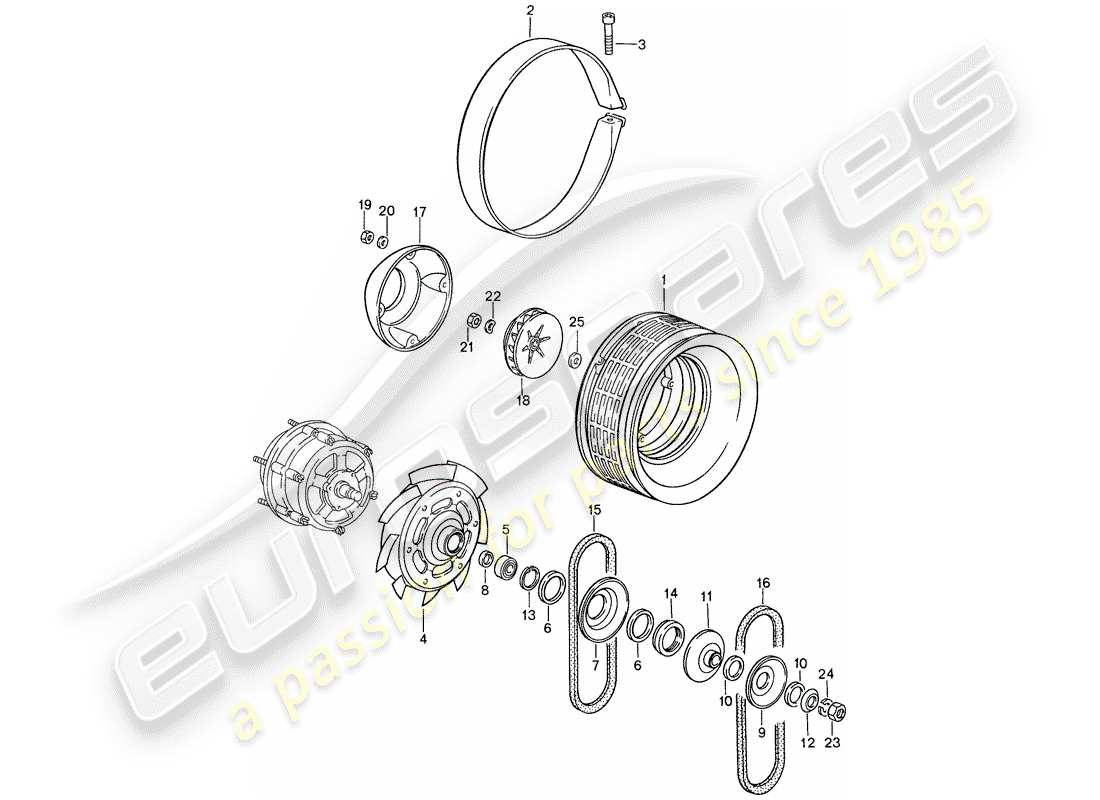

Porsche 1987 (959) AIR COOLING Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 95910610201
                                                    BLOWER HOUSING
                                                    BLOWER HOUSING Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 95910631701
                                                    CLAMP
                                                    CLAMP Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 90006707307
                                                    SCREW, CHEESE HD. - M 8 X 45
                                                    SCREW, CHEESE HD. - M 8 X 45 Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: 95910601101
                                                    IMPELLER
                                                    from £2,254.55
                                                    from £2,254.55
                                                    IMPELLER Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 95910651301
                                                    BALL BEARING
                                                    BALL BEARING Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 95910657901
                                                    SHIM - 0,5 MM
                                                    from £15.77
                                                    from £15.77
                                                    SHIM - 0,5 MM Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 95910657902
                                                    SHIM - 1,5 MM
                                                    from £15.48
                                                    from £15.48
                                                    SHIM - 1,5 MM Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: 95910621000
                                                    v-belt pulley half
                                                    from £157.02
                                                    from £157.02
                                                    v-belt pulley half Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 95910658101
                                                    SPACER SLEEVE
                                                    SPACER SLEEVE Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 95910620800
                                                    v-belt pulley half
                                                    from £170.73
                                                    from £170.73
                                                    v-belt pulley half Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: 95910658000
                                                    SHIM
                                                    from £16.29
                                                    from £16.29
                                                    SHIM Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: 95910621100
                                                    v-belt pulley half
                                                    from £169.72
                                                    from £169.72
                                                    v-belt pulley half Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 95910642800
                                                    TENSIONING CAP
                                                    TENSIONING CAP Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: N 0123031
                                                    lock ring - 32 X 1,2 - Discontinued part
                                                    from £1.51
                                                    from £1.51
                                                    lock ring - 32 X 1,2 - Discontinued part Genuine Porsche Part - New (to order)
                                                    RETAINING RING 32X1.2 Genuine Lamborghini - New In stock
                                                    # 13
                                                    MPN: 90004200701
                                                    LOCK RING - 32 X 1,2
                                                    from £1.25
                                                    from £1.25
                                                    LOCK RING - 32 X 1,2 Genuine Porsche Part - New (to order)
                                                    # 14
                                                    MPN: N 10080901
                                                    SLOTTED NUT - 38 X 1,5
                                                    from £25.18
                                                    from £25.18
                                                    SLOTTED NUT - 38 X 1,5 Genuine Porsche Part - New (to order)
                                                    # 15
                                                    MPN: 99919230750
                                                    Narrow v-belt - 9,5 X 684
                                                    from £16.38
                                                    from £16.38
                                                    Narrow v-belt - 9,5 X 684 Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 99919230850
                                                    Narrow v-belt - 9,5 X 694
                                                    from £16.60
                                                    from £16.60
                                                    Narrow v-belt - 9,5 X 694 Genuine Porsche Part - New (to order)
                                                    # 17
                                                    MPN: 93060304101
                                                    HUB EXTENSION
                                                    from £49.42
                                                    from £49.42
                                                    HUB EXTENSION Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: 92860304501
                                                    BLOWER WHEEL
                                                    from £33.69
                                                    from £33.69
                                                    BLOWER WHEEL Genuine Porsche Part - New (to order)
                                                    # 19
                                                    MPN: 90091001002
                                                    LOCK NUT - M 6
                                                    lock nut - VF M6 Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: 9000250570A
                                                    WASHER - 6,4 - DISCONTINUED PART
                                                    Washer - Discontinued part Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: N 01152417
                                                    WASHER - 6,4 - DISCONTINUED PART
                                                    Washer - Discontinued part Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: N 0115247
                                                    WASHER - 6,4 - DISCONTINUED PART
                                                    Washer - R 6,6 - Discontinued part Genuine Porsche Part - New (to order)
                                                    # 20
                                                    MPN: N 01152427
                                                    WASHER - 6,4
                                                    from £0.47
                                                    from £0.47
                                                    Washer - R 6,6 Genuine Porsche Part - New (to order)
                                                    WASHER 6.4X12.5X1.6 Genuine Lamborghini - New In stock
                                                    # 21
                                                    MPN: 90003400302
                                                    hex. nut - M 10
                                                    from £2.04
                                                    from £2.04
                                                    hex. nut - M 10 Genuine Porsche Part - New (to order)
                                                    # 22
                                                    MPN: N 10103701
                                                    WASHER - 10 X 16 X 0,3
                                                    WASHER - 10 X 16 X 0,3 Genuine Porsche Part - New (to order)
                                                    # 23
                                                    MPN: 90003401302
                                                    HEX. NUT - BM 16 X 1,5 - DISCONTINUED PART
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 23
                                                    MPN: 90003401301
                                                    HEX. NUT - BM 16 X 1,5
                                                    from £5.33
                                                    from £5.33
                                                    This part replaces part number 90003401302
                                                    HEX. NUT - M 16 X 1,5 Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: N 0120161
                                                    LOCK RING - B 16
                                                    from £1.88
                                                    from £1.88
                                                    LOCK RING - B 16 Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 90023406602
                                                    FITT WASHER - 12 X 18 X 0,5
                                                    from £1.51
                                                    from £1.51
                                                    FITT WASHER - 12 X 18 X 0,5 Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 90023406702
                                                    FITT WASHER - 12 X 18 X 1,0
                                                    FITT WASHER - 12 X 18 X 1,0 Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 90023406800
                                                    FITT WASHER - 12 X 18 X 1,2
                                                    FITT WASHER - 12 X 18 X 1,2 Genuine Porsche Part - New (to order)
                                                    # 25
                                                    MPN: 90023407200
                                                    FITT WASHER - 12 X 18 X 2,0
                                                    FITT WASHER - 12 X 18 X 2,0 Genuine Porsche Part - New (to order)
