porsche 1991 (964) crankcase parts diagram

101-010 - crankcase

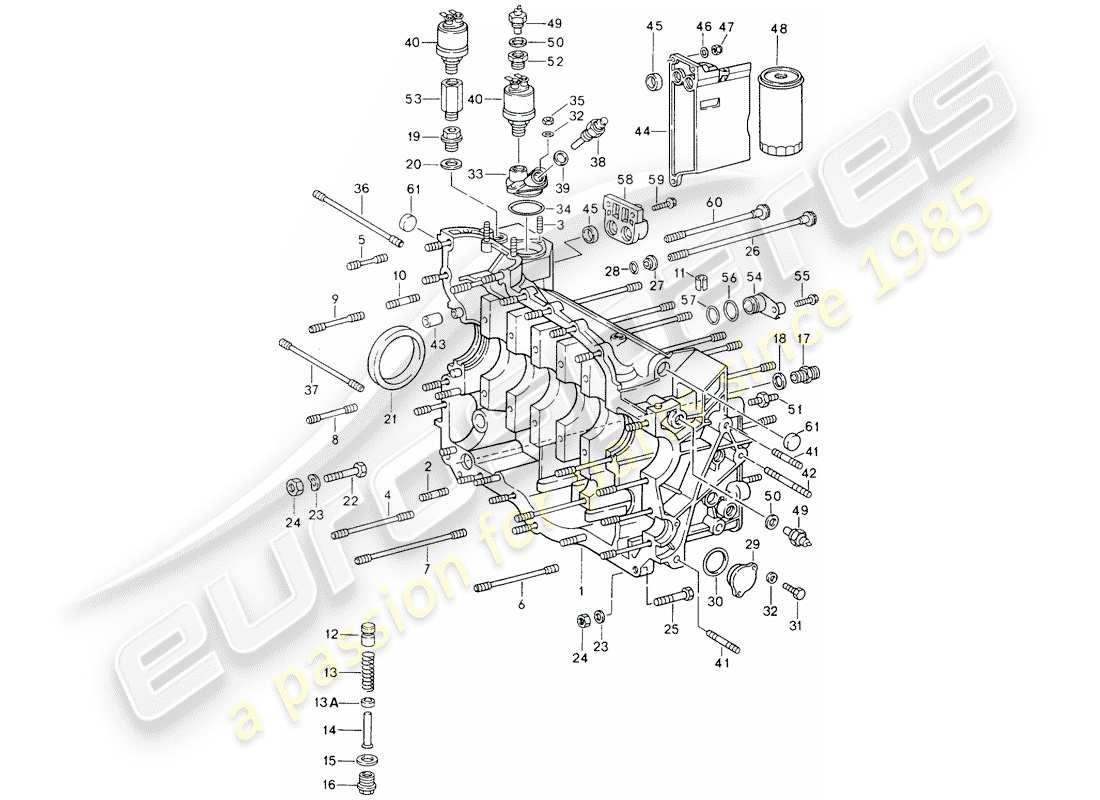

Porsche 1991 (964) CRANKCASE Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # -
                                                                                            -
                                                                                            SEE TECHNICAL INFORMATION - GROUP: - 1 - NR. 4/94 - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION:
                                                                                            -----198-000
                                                                                            # 1
                                                                                            MPN: 96410190510
                                                                                            crankcase - with studs - Discontinued part
                                                                                            (6401,6402, 6403)
                                                                                            # 1
                                                                                            MPN: 96410190511
                                                                                            crankcase - with studs - Discontinued part
                                                                                            (6401,6402, 6403)
                                                                                            # 1
                                                                                            MPN: 99310100510
                                                                                            CRANKCASE - COMPLETE - ALSO USE:
                                                                                            --PCG10096420 (6401,6402, 6403)
                                                                                            from £4,897.60
                                                                                            from £4,897.60
                                                                                            # -
                                                                                            -
                                                                                            ASSEMBLY KIT - FOR - CRANKCASE
                                                                                            (6401,6402, 6403)
                                                                                            # 1
                                                                                            MPN: 96410190510
                                                                                            crankcase - with studs - Discontinued part
                                                                                            (6450)
                                                                                            # 1
                                                                                            MPN: 96410190511
                                                                                            crankcase - with studs - Discontinued part
                                                                                            (6450)
                                                                                            # 1
                                                                                            MPN: 99310100510
                                                                                            CRANKCASE - COMPLETE - ALSO USE:
                                                                                            --PCG10096410 (6450)
                                                                                            from £4,897.60
                                                                                            from £4,897.60
                                                                                            # -
                                                                                            -
                                                                                            ASSEMBLY KIT - FOR - CRANKCASE
                                                                                            (6450)
                                                                                            # 1
                                                                                            MPN: 93010191801
                                                                                            crankcase - with studs - Discontinued part
                                                                                            (3069)
                                                                                            from £4,906.55
                                                                                            from £4,906.55
                                                                                            # 1
                                                                                            MPN: 93010100321
                                                                                            CRANKCASE - COMPLETE - ALSO USE:
                                                                                            --PCG10096430 (3069)
                                                                                            from £4,849.85
                                                                                            from £4,849.85
                                                                                            # -
                                                                                            -
                                                                                            ASSEMBLY KIT - FOR - CRANKCASE
                                                                                            (3069)
                                                                                            # 2
                                                                                            MPN: 99906200702
                                                                                            STUD - BM 8 X 22 - DISCONTINUED PART
                                                                                            # 2
                                                                                            MPN: 90006010601
                                                                                            STUD - BM 8 X 22
                                                                                            from £5.26
                                                                                            from £5.26
                                                                                            # 3
                                                                                            MPN: 99906207102
                                                                                            STUD - BM 6 X 16
                                                                                            from £5.00
                                                                                            from £5.00
                                                                                            # 4
                                                                                            MPN: 99610117570
                                                                                            STUD
                                                                                            from £37.37
                                                                                            from £37.37
                                                                                            # 5
                                                                                            MPN: 99906211502
                                                                                            STUD - BM 8 X 32
                                                                                            # 6
                                                                                            MPN: 99906215602
                                                                                            STUD - BM 8 X 78 - DISCONTINUED PART
                                                                                            # 6
                                                                                            MPN: 90006010101
                                                                                            STUD - BM 8 X 78
                                                                                            from £5.20
                                                                                            from £5.20
                                                                                            # 7
                                                                                            MPN: 99906205102
                                                                                            STUD - BM 8 X 108
                                                                                            from £10.56
                                                                                            from £10.56
                                                                                            # 8
                                                                                            MPN: 99906207502
                                                                                            STUD - BM 8 X 48
                                                                                            # 9
                                                                                            MPN: 99906213802
                                                                                            STUD - BM 8 X 52 - DISCONTINUED PART
                                                                                            # 9
                                                                                            MPN: 90006010201
                                                                                            STUD - BM 8 X 52
                                                                                            from £5.20
                                                                                            from £5.20
                                                                                            # 10
                                                                                            MPN: 99906200902
                                                                                            STUD - BM 8 X 28 - DISCONTINUED PART
                                                                                            # 10
                                                                                            MPN: 90006010501
                                                                                            STUD - BM 8 X 28
                                                                                            from £7.84
                                                                                            from £7.84
                                                                                            # 11
                                                                                            MPN: 90009502501
                                                                                            PIN - 8 X 16
                                                                                            from £0.82
                                                                                            from £0.82
                                                                                            # 12
                                                                                            MPN: 91110751200
                                                                                            PISTON
                                                                                            from £16.55
                                                                                            from £16.55
                                                                                            # 13
                                                                                            MPN: 93010753101
                                                                                            PRESSURE SPRING
                                                                                            from £7.15
                                                                                            from £7.15
                                                                                            # 13
                                                                                            MPN: 96410753200
                                                                                            SPACER RING
                                                                                            from £2.31
                                                                                            from £2.31
                                                                                            # 14
                                                                                            MPN: 93010753300
                                                                                            Guide sleeve - Discontinued part
                                                                                            # 14
                                                                                            MPN: 93010753301
                                                                                            GUIDE SLEEVE
                                                                                            from £11.15
                                                                                            from £11.15
                                                                                            # 15
                                                                                            MPN: 90012310630
                                                                                            SEAL RING - A 18 X 24
                                                                                            from £1.43
                                                                                            from £1.43
                                                                                            This part replaces part number 90012300930
                                                                                            # 16
                                                                                            MPN: 99906402602
                                                                                            threaded plug - M 18 X 1,5 - Discontinued part
                                                                                            # 16
                                                                                            MPN: 99906402601
                                                                                            THREADED PLUG - M 18 X 1,5
                                                                                            from £11.62
                                                                                            from £11.62
                                                                                            # 17
                                                                                            MPN: 96520731500
                                                                                            SCREWED SOCKET - DISCONTINUED PART
                                                                                            # 17
                                                                                            MPN: 96520731501
                                                                                            SCREWED SOCKET
                                                                                            from £19.07
                                                                                            from £19.07
                                                                                            # 18
                                                                                            MPN: 90012314130
                                                                                            SEAL RING - A 25 X 30
                                                                                            from £1.29
                                                                                            from £1.29
                                                                                            # 19
                                                                                            MPN: 90021900930
                                                                                            THREADED PLUG - M 18 X 1,5
                                                                                            from £7.97
                                                                                            from £7.97
                                                                                            # 20
                                                                                            MPN: 90012314030
                                                                                            SEAL RING - A 18 X 22
                                                                                            from £1.28
                                                                                            from £1.28
                                                                                            # 21
                                                                                            MPN: 99911346140
                                                                                            RADIAL SHAFT SEAL - 90 X 110 X 11 - DISCONTINUED PART
                                                                                            # 21
                                                                                            MPN: 99911342640
                                                                                            RADIAL SHAFT SEAL - 90 X 110 X 11 - DISCONTINUED PART
                                                                                            # 21
                                                                                            MPN: 99911342641
                                                                                            RADIAL SHAFT SEAL - 90 X 110 X 11
                                                                                            from £48.31
                                                                                            from £48.31
                                                                                            # 22
                                                                                            MPN: 90007413902
                                                                                            SCREW, HEX. HD. - M 8 X 55
                                                                                            (6401,6402, 6403,6450)
                                                                                            # 22
                                                                                            MPN: 90007413903
                                                                                            SCREW, HEX. HD. - M 8 X 55
                                                                                            (6401,6402, 6403,6450)
                                                                                            from £1.23
                                                                                            from £1.23
                                                                                            # 22
                                                                                            MPN: 90007404002
                                                                                            SCREW, HEX. HD. - M 8 X 50
                                                                                            (3069)
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 23
                                                                                            MPN: 90002500702
                                                                                            WASHER - A 8,4 - DISCONTINUED PART
                                                                                            # 23
                                                                                            MPN: 90002500703
                                                                                            Washer - A 8,4
                                                                                            from £0.84
                                                                                            from £0.84
                                                                                            # 24
                                                                                            MPN: 99908409502
                                                                                            LOCK NUT - M 8
                                                                                            # 25
                                                                                            MPN: 90007413402
                                                                                            SCREW, HEX. HD. - M 8 X 45
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 26
                                                                                            MPN: 95910117301
                                                                                            SCREW - - DISCONTINUED PART
                                                                                            (6401,6402, 6403,6450)
                                                                                            # 26
                                                                                            MPN: 95910117302
                                                                                            Expansion screw
                                                                                            (6401,6402, 6403,6450)
                                                                                            from £34.76
                                                                                            from £34.76
                                                                                            # 26
                                                                                            MPN: 93010117303
                                                                                            SCREW, HEX. HD.
                                                                                            (3069)
                                                                                            from £54.18
                                                                                            from £54.18
                                                                                            # 27
                                                                                            MPN: 96410131302
                                                                                            WASHER
                                                                                            (6401,6402, 6403,6450)
                                                                                            from £3.87
                                                                                            from £3.87
                                                                                            # 27
                                                                                            MPN: 93010116100
                                                                                            WASHER
                                                                                            (3069)
                                                                                            from £3.93
                                                                                            from £3.93
                                                                                            # 28
                                                                                            MPN: 99970100640
                                                                                            O-RING - 8 X 2
                                                                                            from £2.23
                                                                                            from £2.23
                                                                                            # 30
                                                                                            MPN: 99970731540
                                                                                            O-Ring - 33,3 X 2,4
                                                                                            from £2.14
                                                                                            from £2.14
                                                                                            This part replaces part number 99970165840
                                                                                            # 31
                                                                                            MPN: 90007535502
                                                                                            BOLT WITH WASHER - M 6 X 16 - DISCONTINUED PART
                                                                                            # 31
                                                                                            MPN: 90007535501
                                                                                            SCREW, HEX. HD. - M 6 X 16
                                                                                            from £1.77
                                                                                            from £1.77
                                                                                            # 32
                                                                                            MPN: N 0115247
                                                                                            WASHER - A 6,4 - DISCONTINUED PART
                                                                                            # 32
                                                                                            MPN: N 01152427
                                                                                            Washer - A 6,4
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 33
                                                                                            MPN: 96410176800
                                                                                            COVER
                                                                                            (6401,6402, 6403)
                                                                                            from £65.24
                                                                                            from £65.24
                                                                                            # 33
                                                                                            MPN: 93010776702
                                                                                            COVER
                                                                                            (3069,6450)
                                                                                            from £65.24
                                                                                            from £65.24
                                                                                            # 34
                                                                                            MPN: 99970731440
                                                                                            O-RING - 39,2 X 3
                                                                                            from £3.48
                                                                                            from £3.48
                                                                                            # 35
                                                                                            MPN: 99908409402
                                                                                            LOCK NUT - M 6
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 36
                                                                                            MPN: 99906222502
                                                                                            STUD - BM 10 X 140 - DISCONTINUED PART
                                                                                            # 36
                                                                                            MPN: 90006009501
                                                                                            STUD - BM 10 X 140
                                                                                            from £9.57
                                                                                            from £9.57
                                                                                            # 37
                                                                                            MPN: 99906209902
                                                                                            STUD - BM 10 X 105 - DISCONTINUED PART
                                                                                            # 37
                                                                                            MPN: 90006009601
                                                                                            STUD - BM 10 X 105
                                                                                            from £5.20
                                                                                            from £5.20
                                                                                            # 38
                                                                                            MPN: 91160611200
                                                                                            REMOTE TEMPERATURE SENSOR
                                                                                            (6401,6402, 6403)
                                                                                            from £39.95
                                                                                            from £39.95
                                                                                            # 38
                                                                                            MPN: 94460612500
                                                                                            TEMPERATURE SENSOR
                                                                                            (3069,6450)
                                                                                            from £52.30
                                                                                            from £52.30
                                                                                            # 39
                                                                                            MPN: 90012300730
                                                                                            SEAL RING - A 14 X 18
                                                                                            from £0.59
                                                                                            from £0.59
                                                                                            This part replaces part number 90012310430
                                                                                            # 40
                                                                                            MPN: 92860620301
                                                                                            OIL PRESSURE GAUGE SENDER - DISCONTINUED PART
                                                                                            # 40
                                                                                            MPN: 92860620304
                                                                                            OIL PRESSURE GAUGE SENDER
                                                                                            from £78.99
                                                                                            from £78.99
                                                                                            # 41
                                                                                            MPN: 99906230102
                                                                                            stud - M 10 X 35
                                                                                            (6401,6402, 6403)
                                                                                            from £6.40
                                                                                            from £6.40
                                                                                            # 41
                                                                                            MPN: 99906105602
                                                                                            stud - M 10 X 15
                                                                                            (3069,6450)
                                                                                            from £2.04
                                                                                            from £2.04
                                                                                            # 42
                                                                                            MPN: 99906230202
                                                                                            stud - M 10 X 90
                                                                                            (6401,6402, 6403)
                                                                                            from £8.80
                                                                                            from £8.80
                                                                                            # 43
                                                                                            MPN: 90110119500
                                                                                            SLEEVE
                                                                                            from £5.93
                                                                                            from £5.93
                                                                                            # 44
                                                                                            MPN: 93010705701
                                                                                            BRACKET
                                                                                            (3069,6450)
                                                                                            from £604.38
                                                                                            from £604.38
                                                                                            # 45
                                                                                            MPN: 99970417250
                                                                                            SEAL RING - 16,3 X 22
                                                                                            (3069,6450)
                                                                                            from £7.97
                                                                                            from £7.97
                                                                                            # 46
                                                                                            MPN: 90002500702
                                                                                            WASHER - A 8,4 - DISCONTINUED PART
                                                                                            (3069,6450)
                                                                                            # 46
                                                                                            MPN: 90002500703
                                                                                            Washer - A 8,4
                                                                                            (3069,6450)
                                                                                            from £0.84
                                                                                            from £0.84
                                                                                            # 47
                                                                                            MPN: 99908409502
                                                                                            LOCK NUT - M 8
                                                                                            (3069,6450)
                                                                                            # 48
                                                                                            MPN: 94410720103
                                                                                            OIL FILTER - ALSO USE: - - ENGINE OIL - Porsche CLASSIC - REPAIR SET FOR MAINTENANCE - SEE ILLUSTRATION: - ENGINE OIL - SEE ILLUSTRATION:
                                                                                            -PCG04320930-PCG04320006-00004320930-00004320931--198-000--198-005 (3069,6450)
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 49
                                                                                            MPN: 91160611200
                                                                                            REMOTE TEMPERATURE SENSOR
                                                                                            from £39.95
                                                                                            from £39.95
                                                                                            # 50
                                                                                            MPN: 90012300830
                                                                                            SEAL RING - A 14 X 20
                                                                                            from £2.04
                                                                                            from £2.04
                                                                                            # 51
                                                                                            MPN: 90110737500
                                                                                            SCREWED SOCKET - DISCONTINUED PART
                                                                                            (3069)
                                                                                            from £18.07
                                                                                            from £18.07
                                                                                            # 51
                                                                                            MPN: 90110737501
                                                                                            SCREWED SOCKET
                                                                                            (3069)
                                                                                            from £18.63
                                                                                            from £18.63
                                                                                            # 52
                                                                                            MPN: 96410770522
                                                                                            SCREWED SOCKET
                                                                                            (6450)
                                                                                            from £15.55
                                                                                            from £15.55
                                                                                            # 53
                                                                                            MPN: 96410770620
                                                                                            SCREWED SOCKET - DISCONTINUED PART
                                                                                            (6450)
                                                                                            # 53
                                                                                            MPN: 96410770621
                                                                                            SCREWED SOCKET
                                                                                            (6450)
                                                                                            from £20.15
                                                                                            from £20.15
                                                                                            # 54
                                                                                            MPN: 96420731700
                                                                                            ADAPTER
                                                                                            from £105.17
                                                                                            from £105.17
                                                                                            # 55
                                                                                            MPN: 90006724702
                                                                                            BOLT WITH WASHER - M 8 X 30 - DISCONTINUED PART
                                                                                            # 55
                                                                                            MPN: 90006724701
                                                                                            BOLT WITH WASHER - M 8 X 30
                                                                                            from £14.61
                                                                                            from £14.61
                                                                                            # 56
                                                                                            MPN: 99970730940
                                                                                            O-RING - 26 X 1
                                                                                            from £2.04
                                                                                            from £2.04
                                                                                            # 57
                                                                                            MPN: 99970731640
                                                                                            O-Ring - 21,89 X 2,62
                                                                                            from £3.66
                                                                                            from £3.66
                                                                                            # 58
                                                                                            MPN: 99310721502
                                                                                            BRACKET
                                                                                            from £161.40
                                                                                            from £161.40
                                                                                            # 59
                                                                                            MPN: 90007544702
                                                                                            BOLT WITH WASHER - M 8 X 25
                                                                                            from £3.48
                                                                                            from £3.48
                                                                                            # 59
                                                                                            MPN: 90007544701
                                                                                            BOLT WITH WASHER - M 8 X 25
                                                                                            from £2.80
                                                                                            from £2.80
                                                                                            # 60
                                                                                            MPN: 96410117400
                                                                                            SCREW
                                                                                            # 61
                                                                                            MPN: 91110118500
                                                                                            SEALING CAP - A 22
                                                                                            from £5.11
                                                                                            from £5.11
