porsche 2014 (991-1 r/gt3/rs) fuel tank parts diagram

201-000 - FUEL TANK

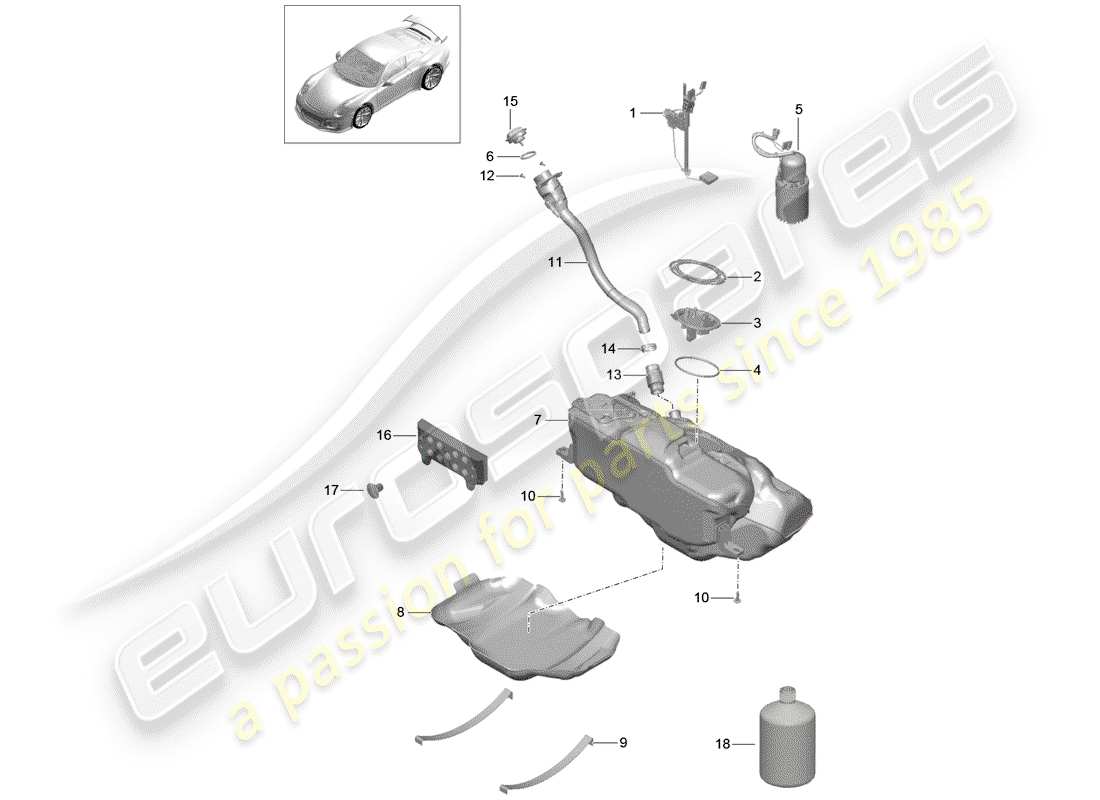

Porsche 2014 (991-1 R/GT3/RS) Fuel tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                      #
                      Part number
                      Description
                      Key
                      Price
                      # 1
                      MPN: 99162083100
                      SENDER FOR FUEL GAUGE FUEL TANK
                      from £230.37
                      from £230.37
                      FUEL GAUGE Genuine Porsche Part - New (to order)
                      # 2
                      MPN: 99120162300
                      UNION NUT
                      from £8.26
                      from £8.26
                      UNION NUT Genuine Porsche Part - New (to order)
                      # 3
                      MPN: 99120142100
                      FLANGE D >>- MJ 2016
                      from £228.27
                      from £228.27
                      FLANGE Genuine Porsche Part - New (to order)
                      # 3
                      MPN: 9P1201194
                      FLANGE D - MJ 2017>>
                      from £172.10
                      from £172.10
                      FLANGE Genuine Porsche Part - New (to order)
                      # 4
                      MPN: 99120173301
                      SEAL RING
                      from £9.51
                      from £9.51
                      SEAL RING Genuine Porsche Part - New In stock
                      # 5
                      MPN: 99162014100
                      FUEL PUMP D >>- MJ 2016
                      fuel pump Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 99162014101
                      FUEL PUMP D >>- MJ 2016
                      from £346.27
                      from £346.27
                      fuel pump Genuine Porsche Part - New (to order)
                      # 5
                      MPN: 9P1919087B
                      FUEL PUMP D - MJ 2017>>
                      from £550.93
                      from £550.93
                      fuel pump Genuine Porsche Part - New (to order)
                      # 6
                      MPN: 1K0201557A
                      SEAL RING
                      from £6.84
                      from £6.84
                      SEAL RING Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99120102101
                      FUEL TANK
                      FUEL TANK
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99120102104
                      FUEL TANK
                      /LL
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201075
                      FUEL TANK D >>- 10.06.2018
                      /LL, DGGA, DGGB,
                      from £1,437.11
                      from £1,437.11
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201075C
                      FUEL TANK D - 11.06.2018>>
                      /LL, DGGA, DGGB,
                      from £1,736.41
                      from £1,736.41
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99120102190
                      FUEL TANK
                      /LL
                      from £1,450.47
                      from £1,450.47
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99120102191
                      FUEL TANK
                      /LL
                      from £1,450.47
                      from £1,450.47
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201075B
                      FUEL TANK D >>- 10.06.2018
                      /LL, DGGA, DGGB,
                      from £1,541.49
                      from £1,541.49
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201075F
                      FUEL TANK D - 11.06.2018>>
                      /LL, DGGA, DGGB,
                      from £2,038.62
                      from £2,038.62
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99120102202
                      FUEL TANK
                      /RL
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 99120102204
                      FUEL TANK
                      /RL
                      from £1,330.94
                      from £1,330.94
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201076
                      FUEL TANK D >>- 22.12.2017
                      /RL, DGGA, DGGB
                      from £1,346.60
                      from £1,346.60
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201076B
                      FUEL TANK D - 23.12.2017>>- 10.06.2018
                      DGGA, DGGB, DNS, DSD
                      from £1,437.11
                      from £1,437.11
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 7
                      MPN: 9P1201076E
                      FUEL TANK D - 11.06.2018>>
                      DGGA, DGGB, DNS, DSD
                      from £1,852.08
                      from £1,852.08
                      FUEL TANK Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 99120133100
                      UNDERSIDE PROTECTION D >>- MJ 2015
                      P098
                      UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 9P1201975
                      UNDERSIDE PROTECTION D - MJ 2016>>
                      P098
                      from £66.00
                      from £66.00
                      UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 99120133101
                      UNDERSIDE PROTECTION D >>- MJ 2015
                      P099
                      from £58.94
                      from £58.94
                      UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                      # 8
                      MPN: 9P1201975A
                      UNDERSIDE PROTECTION D - MJ 2016>>
                      P099
                      from £67.97
                      from £67.97
                      UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                      # 9
                      -
                      TENSIONING STRAP * SINGLE PARTS NO AVAILABLE * FOR THIS USE: 991.504.233.01 SUPPORT FRAME
                      # 9
                      MPN: 99120110701
                      TENSIONING STRAP
                      P082
                      from £6.65
                      from £6.65
                      STRAP Genuine Porsche Part - New (to order)
                      # 10
                      MPN: N 91159101
                      HEXAGON HEAD BOLT (COMBI) M8X40
                      P without 082
                      from £1.15
                      from £1.15
                      BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                      # 10
                      MPN: N 0195307
                      Hex collared bolt M8X25
                      P082
                      from £1.38
                      from £1.38
                      BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New In stock
                      HEX COLLARED BOLT Genuine Bentley Part - New (to order)
                      HEXAGON FLANGE M8X25 Genuine Lamborghini - New In stock
                      # 11
                      MPN: 99120104406

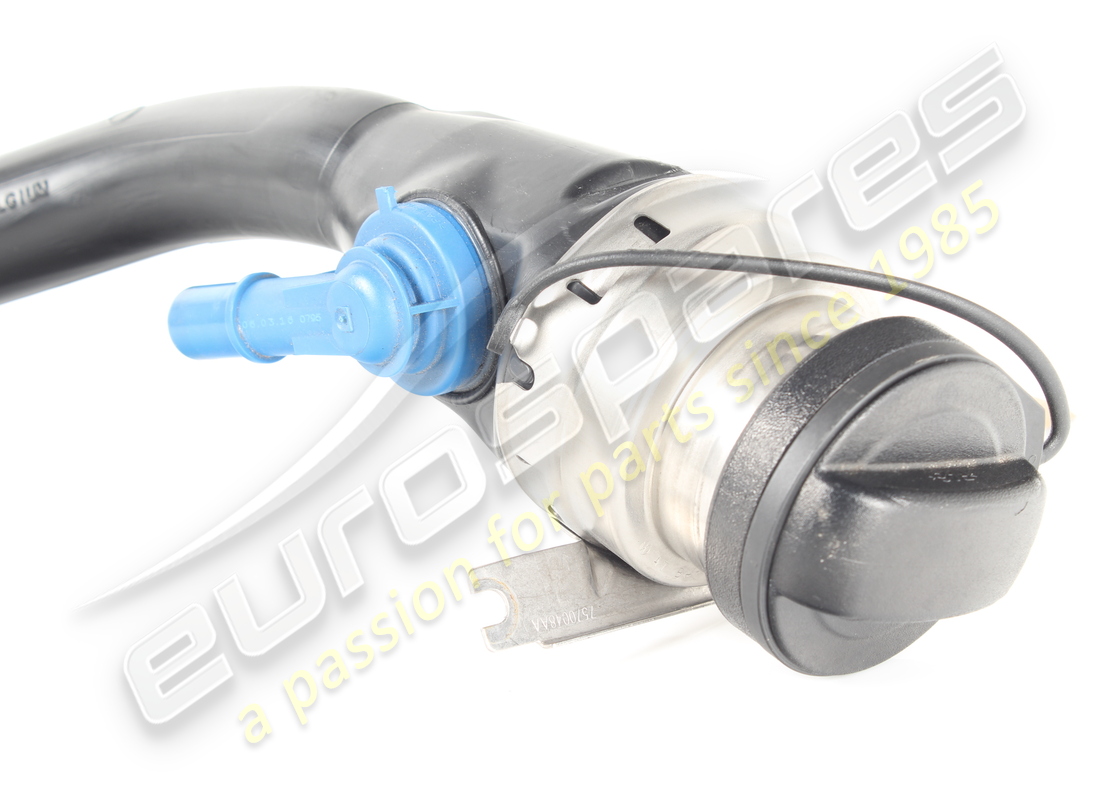

                      FUEL FILLER NECK
                      P without 082, P without 664
                      from £72.28
                      from £72.28
                      FILLER NECK Genuine Porsche Part - New (to order)
                      FILLER NECK Genuine Porsche Part - Used In stock
                      # 11
                      MPN: 99120104414
                      FUEL FILLER NECK D >>- 12.12.2019
                      P without 082, P without 664
                      from £131.76
                      from £131.76
                      FILLER NECK Genuine Porsche Part - New (to order)
                      # 11
                      MPN: 99120104416
                      FUEL FILLER NECK D - 13.12.2019>>
                      P without 082, P without 664
                      from £146.48
                      from £146.48
                      FUEL FILLER NECK Genuine Porsche Part - New (to order)
                      # 11
                      MPN: 99120104410
                      FUEL FILLER NECK
                      P082, P without 664
                      FILLER NECK Genuine Porsche Part - New (to order)
                      # 11
                      MPN: 99120104412
                      FUEL FILLER NECK
                      P082, P without 664
                      from £251.77
                      from £251.77
                      FILLER NECK Genuine Porsche Part - New (to order)
                      # 11
                      MPN: 99120104415
                      FUEL FILLER NECK
                      P082, P without 664
                      from £197.41
                      from £197.41
                      FILLER NECK Genuine Porsche Part - New (to order)
                      # 12
                      MPN: N 91096702
                      OVAL HEXAGON SOCKET HEAD BOLT M6X16
                      from £0.78
                      from £0.78
                      OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                      HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                      # 13
                      MPN: 99120181200
                      HOSE
                      from £21.59
                      from £21.59
                      HOSE Genuine Porsche Part - New (to order)
                      # 13
                      MPN: 9P1201543
                      HOSE
                      from £24.93
                      from £24.93
                      HOSE Genuine Porsche Part - New (to order)
                      # 14
                      MPN: 99951274801
                      CLIP 43X12
                      from £2.47
                      from £2.47
                      CLAMP Genuine Porsche Part - New (to order)
                      # 15
                      MPN: 99120124101
                      CAP WITH RETAINING STRAP FOR FUEL TANK
                      P without XYB, P664
                      from £16.26
                      from £16.26
                      FUEL TANK CAP Genuine Porsche Part - New (to order)
                      # 15
                      MPN: 00004400190
                      cap with retaining strap for aluminium fuel tank
                      cap with retaining strap for aluminium fuel tank
                      CAP WITH RETAINING STRAP FOR Genuine Porsche Part - New (to order)
                      # 15
                      MPN: 00004400191
                      cap with retaining strap for aluminium fuel tank
                      PXYB
                      from £130.00
                      from £130.00
                      TANK CAP IN ALUMINIUM LOOK Genuine Porsche Part - New (to order)
                      # 15
                      MPN: 9P1201550
                      cap with retaining strap for aluminium fuel tank
                      PXYB
                      from £55.92
                      from £55.92
                      CAP WITH RETAINING STRAP FOR Genuine Porsche Part - New (to order)
                      # 16
                      MPN: 99120181190
                      SUPPORT FUEL TANK ALSO USE: 2X 999 049 035 40 D >>- MJ 2014
                      A175 with, P without 082
                      from £28.26
                      from £28.26
                      SUPPORT Genuine Porsche Part - New (to order)
                      # 16
                      MPN: 99120181100
                      SUPPORT FUEL TANK ALSO USE: 2X 999 049 035 40 D - MJ 2015>>
                      A175 with, P without 082
                      from £33.56
                      from £33.56
                      SUPPORT Genuine Porsche Part - New (to order)
                      # 16
                      MPN: 99120181100
                      SUPPORT FUEL TANK ALSO USE: 2X 999 049 035 40
                      A176, DGGA, DGGB, DNS, DSD, P without 082
                      from £33.56
                      from £33.56
                      SUPPORT Genuine Porsche Part - New (to order)
                      # 17
                      MPN: 99904903540
                      PLASTIC NUT 30X3,0 D >>- MJ 2014
                      P without 082
                      from £1.15
                      from £1.15
                      PLASTIC NUT Genuine Porsche Part - New (to order)
                      # 18
                      MPN: 00004320902
                      MULTI-PURPOSE ADDITIVE 100ML FOR OTTO ENGINE FUELS
                      from £10.04
                      from £10.04
                      MULTI-PURPOSE ADDITIVE - FOR OTTO ENGINE FUELS Genuine Porsche Part - New (to order)
