porsche 2015 (991-1 r/gt3/rs) oil pump parts diagram

104-001 - oil pump

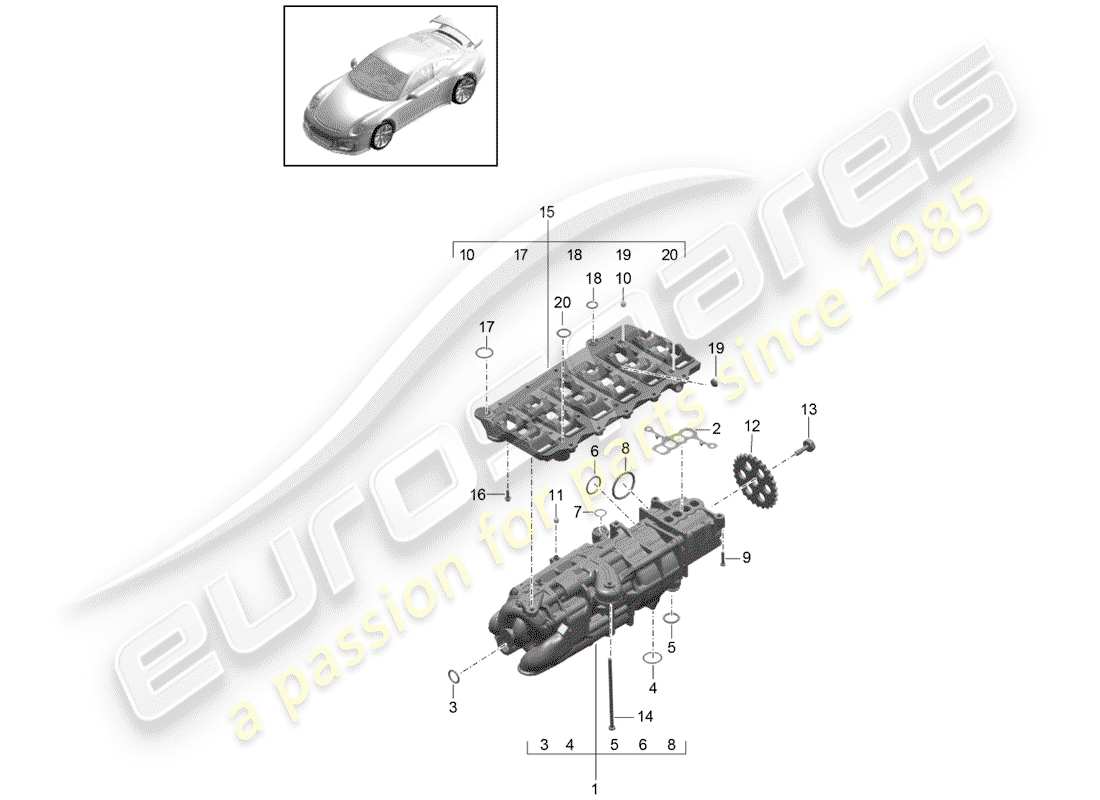

Porsche 2015 (991-1 R/GT3/RS) oil pump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Key
                                    Price
                                    # 1
                                    MPN: 9A110705692
                                    OIL PUMP (COMPLETE) D >>- 15.03.2018
                                    DGGA (4.0 Litre 6 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: DGGA and installed 05/2017-12/2020) | DGGB (4.0 Litre 6 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: DGGB and installed 05/2017-12/2020)
                                    from £2,605.20
                                    from £2,605.20
                                    oil pump Genuine Porsche Part - New (to order)
                                    # 1
                                    MPN: 9A110705693
                                    OIL PUMP (COMPLETE) D - 16.03.2018>>
                                    DGGA (4.0 Litre 6 Cyliner Engine (500 Horsepower / 368 Kilowatt with Engine Code: DGGA and installed 05/2017-12/2020) | DGGB (4.0 Litre 6 Cyliner Engine (519 Horsepower / 382 Kilowatt with Engine Code: DGGB and installed 05/2017-12/2020) | DNS (4.0 Litre 6 Cyliner Engine (521 Horsepower / 383 Kilowatt with Engine Code: DNS and installed 01/2013-12/2020) | DSD (4.0 Litre 6 Cyliner Engine (510 Horsepower / 375 Kilowatt with Engine Code: DSD and installed 01/2013-12/2020)
                                    from £2,334.07
                                    from £2,334.07
                                    oil pump Genuine Porsche Part - New (to order)
                                    # 2
                                    MPN: 9A110765391
                                    SEAL FOR OIL PUMP
                                    from £31.20
                                    from £31.20
                                    SEAL FOR OIL PUMP Genuine Porsche Part - New (to order)
                                    # 3
                                    MPN: 99970769640
                                    O-RING 18,00X3,00
                                    from £5.91
                                    from £5.91
                                    O-RING Genuine Porsche Part - New (to order)
                                    # 4
                                    MPN: 99970769740
                                    O-RING 11,00X3,00
                                    from £3.75
                                    from £3.75
                                    O-RING Genuine Porsche Part - New (to order)
                                    # 5
                                    MPN: 99970769840
                                    O-RING 17,00X2,50
                                    from £4.16
                                    from £4.16
                                    O-RING Genuine Porsche Part - New (to order)
                                    # 6
                                    MPN: 99970754740
                                    O-RING 28,00X3,00
                                    from £2.29
                                    from £2.29
                                    O-RING Genuine Porsche Part - New (to order)
                                    # 7
                                    MPN: 99970764740
                                    O-RING 15,00X3,60
                                    O-RING 15,00X3,60
                                    from £3.48
                                    from £3.48
                                    O-RING Genuine Porsche Part - New (to order)
                                    # 8
                                    MPN: 99970749440
                                    O-RING 33,00X3,00
                                    from £7.42
                                    from £7.42
                                    O-RING Genuine Porsche Part - New (to order)
                                    # 9
                                    MPN: 99907370601
                                    flat round head bolt M6X30
                                    from £2.40
                                    from £2.40
                                    SCREW, ROUND HD Genuine Porsche Part - New (to order)
                                    # 10
                                    MPN: 99610610350
                                    DOWEL SLEEVE 8,2X7,0
                                    from £1.99
                                    from £1.99
                                    SLEEVE - 8,2 X 7 Genuine Porsche Part - New (to order)
                                    # 11
                                    MPN: 99610610349
                                    DOWEL SLEEVE 8,2X8,0
                                    from £11.05
                                    from £11.05
                                    SLEEVE Genuine Porsche Part - New (to order)
                                    # 12
                                    MPN: 9A110522593
                                    CHAIN SPROCKET OIL PUMP
                                    from £29.56
                                    from £29.56
                                    SPROCKET Genuine Porsche Part - New (to order)
                                    # 13
                                    MPN: 9A110572992
                                    flat round head bolt M7X22
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 14
                                    MPN: 9A110775191
                                    HEXAGON HEAD BOLT M6X140
                                    from £10.45
                                    from £10.45
                                    HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                    # 15
                                    MPN: 9A110703996
                                    oil separator
                                    from £1,173.11
                                    from £1,173.11
                                    oil separator Genuine Porsche Part - New (to order)
                                    # 16
                                    MPN: 90038501901
                                    TORX SCREW M6X20
                                    TORX SCREW M6X20
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 16
                                    MPN: PAF008126
                                    HEXAGON HEAD BOLT BM6X20
                                    from £0.85
                                    from £0.85
                                    This part replaces part number 90038501901
                                    HEXAGON HEAD BOLT Genuine Porsche Part - New In stock
                                    # 17
                                    MPN: 99970749640
                                    O-RING 23X3
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 18
                                    MPN: 99970758241
                                    O-RING 13X3
                                    from £2.92
                                    from £2.92
                                    O-RING Genuine Porsche Part - New In stock
                                    # 19
                                    MPN: 90003603301
                                    End Cap B12
                                    from £2.35
                                    from £2.35
                                    SEALING CAP Genuine Porsche Part - New (to order)
                                    # 20
                                    MPN: 99970734640
                                    O-RING 15,00X3,00
                                    Supersession
                                    Supersession
                                    Genuine Porsche Part (no longer available to order)
                                    # 20
                                    -
                                    DRIVE CHAIN OIL PUMP SEE ILLUSTRATION: 103-015
