porsche 2015 (991-1 r/gt3/rs) starter alternator earth line parts diagram

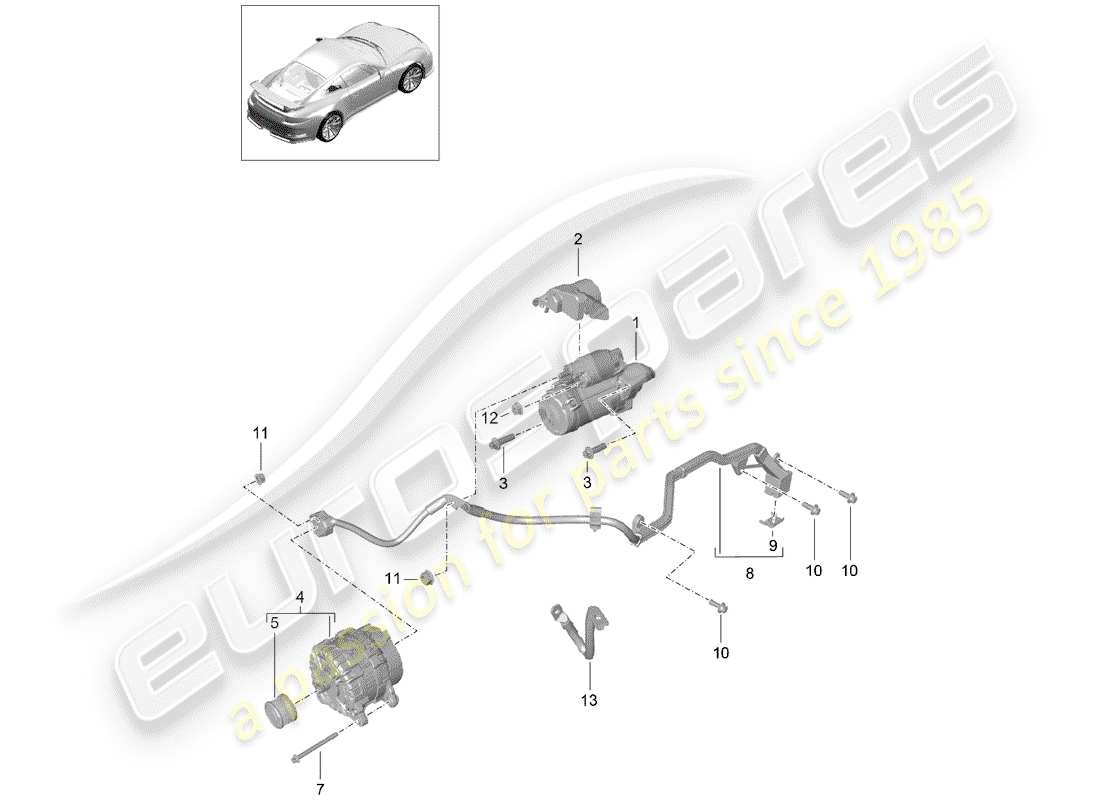

902-005 - Starter Alternator Earth line

Porsche 2015 (991-1 R/GT3/RS) Starter Alternator Earth line Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Key
                        Price
                        # 1
                        MPN: 9A160410400
                        STARTER
                        from £535.84
                        from £535.84
                        STARTER Genuine Porsche Part - New (to order)
                        # 1
                        MPN: 9A1604104 X
                        STARTER
                        from £386.30
                        from £386.30
                        STARTER Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 9A160721200
                        PROTECTIVE CAP STARTER
                        from £3.71
                        from £3.71
                        PROTECTIVE CAP Genuine Porsche Part - New (to order)
                        # 2
                        MPN: 9A160721100
                        PROTECTIVE CAP STARTER
                        PROTECTIVE CAP Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 9A160301801
                        ALTERNATOR D >>- MJ 2017
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 4
                        MPN: 9A1603018AX
                        ALTERNATOR D >>- MJ 2017
                        from £882.28
                        from £882.28
                        GENERATOR Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 9A260301800
                        ALTERNATOR D - MJ 2018>>
                        from £1,202.74
                        from £1,202.74
                        ALTERNATOR Genuine Porsche Part - New (to order)
                        # 4
                        MPN: 9A2603018 X
                        ALTERNATOR D - MJ 2018>>
                        from £817.90
                        from £817.90
                        GENERATOR Genuine Porsche Part - New (to order)
                        # 5
                        MPN: 9A160301600
                        ALTERNATOR PULLEY D >>- MJ 2017
                        from £1,144.48
                        from £1,144.48
                        ALTERNATOR Genuine Porsche Part - New (to order)
                        # 5
                        -
                        COVER ALTERNATOR SEE ILLUSTRATION: 101-010
                        # 7
                        MPN: 90038510201
                        TORX SCREW BM8X90
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 8
                        MPN: 9A160707500
                        WIRE SET WITH: CONNECTION POINT ALTERNATOR STARTER
                        from £86.58
                        from £86.58
                        harness Genuine Porsche Part - New (to order)
                        # 9
                        MPN: 9A160726100
                        COVER CONNECTION POINT
                        from £1.78
                        from £1.78
                        COVER Genuine Porsche Part - New (to order)
                        # 10
                        MPN: 90038500901
                        HEXAGON HEAD BOLT BM6X16
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 11
                        MPN: 90037700301
                        HEXAGON NUT M8
                        HEXAGON NUT M8
                        Supersession
                        Supersession
                        Genuine Porsche Part (no longer available to order)
                        # 11
                        MPN: N 10609207
                        HEXAGON COLLAR NUT M8
                        from £0.47
                        from £0.47
                        This part replaces part number 90037700301
                        shouldered hex. nut Genuine Porsche Part - New (to order)
                        # 12
                        MPN: 90037701002
                        HEXAGON NUT M6
                        from £0.82
                        from £0.82
                        HEX. NUT Genuine Porsche Part - New (to order)
                        # 13
                        MPN: 9A160705800
                        EARTH LINE ENGINE BODY
                        from £30.97
                        from £30.97
                        GROUND STRAP Genuine Porsche Part - New (to order)
                        # 13
                        MPN: 90038500103
                        Torx screw BM8X20 Earth line Body
                        from £1.17
                        from £1.17
                        TORX SCREW Genuine Porsche Part - New (to order)
