porsche 2016 (991-1) engine (oil press./lubrica.) parts diagram

104-005 - ENGINE (OIL PRESS./LUBRICA.)

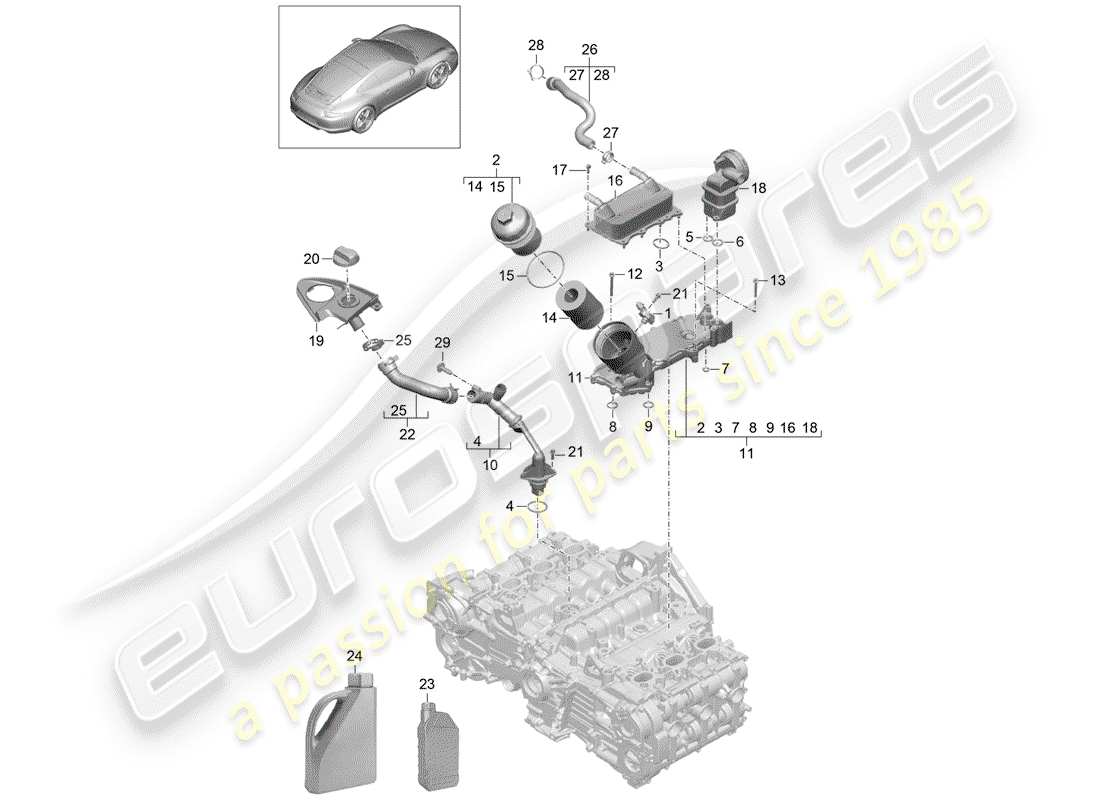

Porsche 2016 (991-1) Engine (oil press./lubrica.) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 94860621300
                                        OIL PRESSURE SENDER
                                        from £144.13
                                        from £144.13
                                        OIL PRESSURE GAUGE SENDER Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 94810702200
                                        oil filter (complete)
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 3
                                        MPN: 94810717500
                                        SEAL HEAT EXCHANGER
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 4
                                        MPN: 99970734840
                                        O-RING 42,00 X 4,00
                                        P without X51
                                        from £4.52
                                        from £4.52
                                        O-RING - 42 X 4 - ALSO USE: Genuine Porsche Part - New (to order)
                                        # 4
                                        MPN: 99970734840
                                        O-RING 42,00X4,00
                                        PX51 (Powerkit 250 kW)
                                        from £4.52
                                        from £4.52
                                        O-RING - 42 X 4 - ALSO USE: Genuine Porsche Part - New (to order)
                                        # 5
                                        MPN: 99970763440
                                        O-RING 18,50 X 4,00
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 6
                                        MPN: 99970763540
                                        O-RING 21,00 X 4,00
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 7
                                        MPN: 99970759440
                                        O-RING 11,00 X 4,00
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 8
                                        MPN: 9A110746501
                                        SEAL RING
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 9
                                        MPN: 99970759540
                                        O-RING 20,00 X 4,00
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 10
                                        MPN: 9A110701522
                                        FILLER TUBE ENGINE OIL
                                        P without X51
                                        from £47.11
                                        from £47.11
                                        FILLER TUBE Genuine Porsche Part - New (to order)
                                        # 10
                                        MPN: 9A110701745
                                        FUEL FILLER NECK ENGINE OIL D - MJ 2013>>
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) with, PX51 (Powerkit 250 kW)
                                        from £204.09
                                        from £204.09
                                        FILLER NECK Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701011
                                        OIL-CONDUCTING HOUSING (COMPLETE) M >>C 01437
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) | P030 (Sports suspension) | P475 (PASM electronic damper control)
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701011
                                        OIL-CONDUCTING HOUSING (COMPLETE) M >>C 01437
                                        A104 (3.4 Litre 6 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: A104 and installed 05/2011-05/2016)
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701012
                                        Oil-conducting housing (complete) M C 01438 >>
                                        Oil-conducting housing (complete) M C 01438 >>
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701013
                                        Oil-conducting housing (complete) M C 01438 >>
                                        A104 (3.4 Litre 6 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: A104 and installed 05/2011-05/2016)
                                        from £516.73
                                        from £516.73
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701013
                                        Oil-conducting housing (complete) M C 01438 >>
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) | A104 (3.4 Litre 6 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: A104 and installed 05/2011-05/2016) with, P030 (Sports suspension) | P475 (PASM electronic damper control) | P477 (PASM w/o lowering)
                                        from £516.73
                                        from £516.73
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701021
                                        OIL-CONDUCTING HOUSING (COMPLETE) M >>C 05992
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) with, P031 (Sports chassis with PASM and PDCC) | P352 (Electronic damper control for PASM and PDCC)
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701022
                                        Oil-conducting housing (complete) M C 05993 >>
                                        Oil-conducting housing (complete) M C 05993 >>
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110701023
                                        Oil-conducting housing (complete) M C 05993 >>
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) with, P031 (Sports chassis with PASM and PDCC) | P352 (Electronic damper control for PASM and PDCC)
                                        oil-conducting housing Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 90038527601
                                        Torx screw M 6 X 60 D >>- 14.12.2015
                                        from £0.89
                                        from £0.89
                                        TORX SCREW Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 90038502701
                                        TORX SCREW M 6 X 70 D - 15.12.2015>>
                                        from £1.73
                                        from £1.73
                                        Torx screw - M 6 X 70 Genuine Porsche Part - New (to order)
                                        # 13
                                        MPN: 90038512501
                                        TORX SCREW M 6 X 45
                                        from £2.32
                                        from £2.32
                                        TORX SCREW Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 94810722200
                                        Oil filter insert also use: 1X 948 107 322 00
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 15
                                        MPN: 94810732200
                                        SEAL RING 91,0 X 4,0
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 16
                                        MPN: 9A110745010
                                        HEAT EXCHANGER
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) | A104 (3.4 Litre 6 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: A104 and installed 05/2011-05/2016) with, P030 (Sports suspension) | P475 (PASM electronic damper control)
                                        from £526.16
                                        from £526.16
                                        HEATER CORE Genuine Porsche Part - New (to order)
                                        # 16
                                        MPN: 9A110745100
                                        HEAT EXCHANGER
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) with, P031 (Sports chassis with PASM and PDCC) | P352 (Electronic damper control for PASM and PDCC)
                                        from £606.31
                                        from £606.31
                                        HEATER CORE Genuine Porsche Part - New (to order)
                                        # 17
                                        MPN: 99907341601
                                        BOLT WITH WASHER M 6 X 20
                                        from £1.78
                                        from £1.78
                                        BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                        # 18
                                        MPN: 9A110704000
                                        oil separator
                                        oil separator
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 18
                                        MPN: 9A110704001
                                        oil separator
                                        oil separator
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 19
                                        MPN: 99110727303
                                        FILLER TUBE ENGINE OIL
                                        FILLER TUBE Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: 99110747500
                                        END CAP
                                        END CAP
                                        SEALING CAP Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: 99110747501
                                        END CAP
                                        SEALING CAP Genuine Porsche Part - New (to order)
                                        # 21
                                        MPN: 90038501901
                                        TORX SCREW M 6 X 20
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 22
                                        MPN: 99110726401
                                        HOSE OIL FILLER PIPE
                                        P without X51
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 22
                                        MPN: 99110726445
                                        HOSE OIL FILLER PIPE D - MJ 2013>>
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) with, PX51 (Powerkit 250 kW)
                                        from £33.18
                                        from £33.18
                                        HOSE Genuine Porsche Part - New (to order)
                                        # 23
                                        MPN: 00004330119
                                        engine oil 1.0 Ltr. Exxon Mobil 1 New Life 0W-40 Standard A40
                                        engine oil 1.0 Ltr. Exxon Mobil 1 New Life 0W-40 Standard A40
                                        engine oil - EXXON MOBIL 1 0W-40 - 1 LITER - container Genuine Porsche Part - New (to order)
                                        # 23
                                        MPN: 00004330521
                                        engine oil 1.0 Ltr. Exxon Mobil 1 New Life 0W-40 Standard A40
                                        from £17.76
                                        from £17.76
                                        engine oil Mobil 1 0W-40 Genuine Porsche Part - New (to order)
                                        # 24
                                        MPN: 00004330121
                                        ENGINE OIL 20ltr. EXXON MOBIL 1 NEW LIFE 0W-40 STANDARD A40
                                        ENGINE OIL 20ltr. EXXON MOBIL 1 NEW LIFE 0W-40 STANDARD A40
                                        from £446.21
                                        from £446.21
                                        engine oil - EXXON MOBIL 1 0W-40 - 20 LITER - container Genuine Porsche Part - New (to order)
                                        # 24
                                        MPN: 00004330522
                                        ENGINE OIL 20ltr. EXXON MOBIL 1 NEW LIFE 0W-40 STANDARD A40
                                        from £319.68
                                        from £319.68
                                        engine oil Genuine Porsche Part - New (to order)
                                        # 25
                                        MPN: 99951269509
                                        HOSE CLAMP B 38 X 12
                                        from £1.60
                                        from £1.60
                                        HOSE CLAMP Genuine Porsche Part - New (to order)
                                        # 26
                                        MPN: 9A110661501
                                        COOLANT HOSE RETURN HEAT EXCHANGER
                                        from £16.22
                                        from £16.22
                                        WATER HOSE Genuine Porsche Part - New (to order)

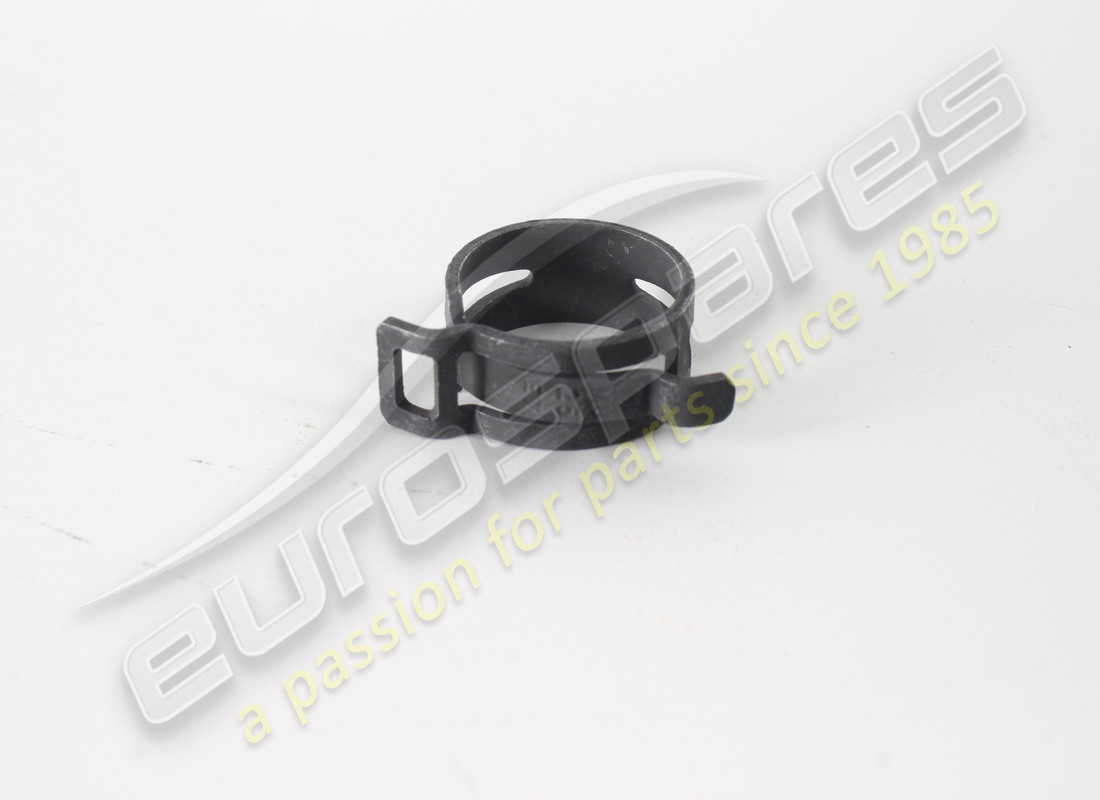

                                        # 27
                                        MPN: 99951265609
                                        HOSE CLAMP 25 X 12
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016)
                                        from £2.29
                                        from £2.29
                                        Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        HOSE CLAMP Genuine Bentley Part - New (to order)
                                        # 27
                                        MPN: 99951265609
                                        HOSE CLAMP 25 X 12
                                        A104 (3.4 Litre 6 Cyliner Engine (349 Horsepower / 257 Kilowatt with Engine Code: A104 and installed 05/2011-05/2016)
                                        from £2.29
                                        from £2.29
                                        Hose Clamp - 25 X 12 - D >> - MJ 2002 Genuine Porsche Part - New (to order)
                                        HOSE CLAMP Genuine Bentley Part - New (to order)
                                        # 28
                                        MPN: 99951266209
                                        HOSE CLAMP 32 X 12
                                        from £1.45
                                        from £1.45
                                        HOSE CLAMP Genuine Porsche Part - New (to order)
                                        # 29
                                        MPN: 99991928301
                                        OVAL-HEAD SCREW 6,0 X 18,0
                                        from £1.49
                                        from £1.49
                                        OVAL-HEAD SCREW Genuine Porsche Part - New (to order)
                                        # 30
                                        -
                                        BRACKET OIL FILLER PIPE SEE ILLUSTRATION: 107-012 D - MJ 2013>>
                                        A103 (3.8 Litre 6 Cyliner Engine (399 Horsepower / 294 Kilowatt with Engine Code: A103 and installed 05/2011-05/2016) with, PX51 (Powerkit 250 kW)
