porsche 2016 (991-1) fuel tank parts diagram

201-000 - FUEL TANK

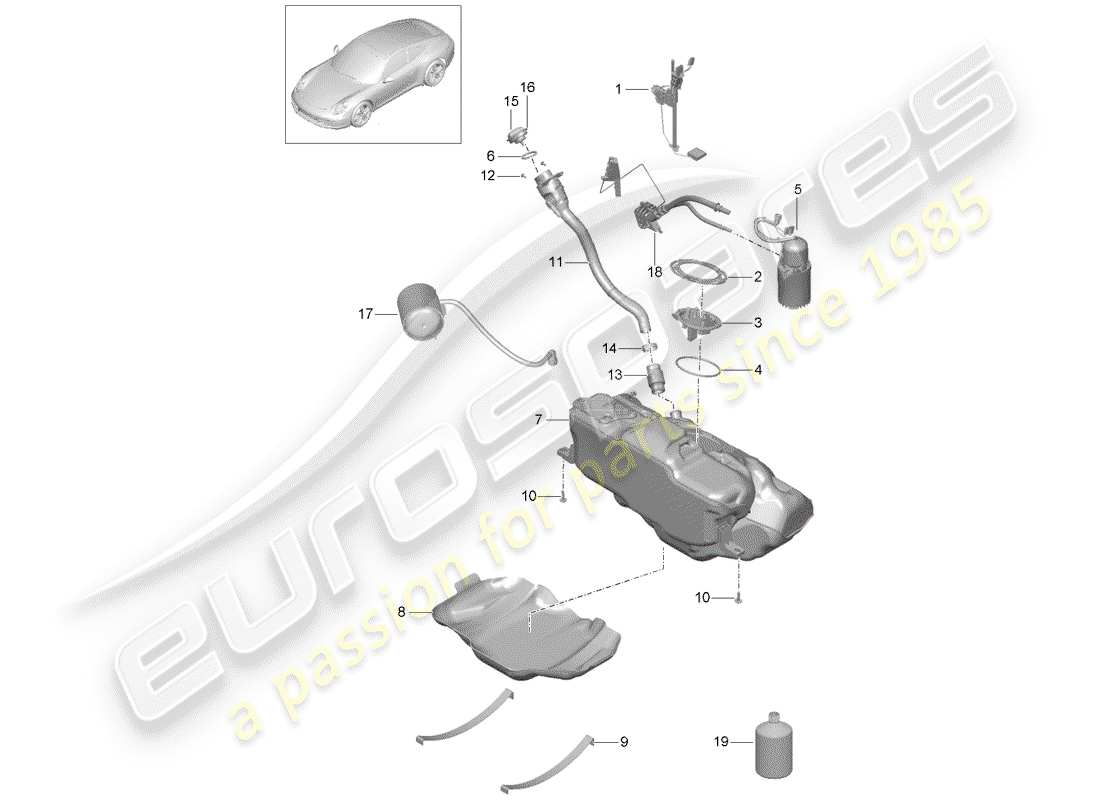

Porsche 2016 (991-1) Fuel tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                #
                Part number
                Description
                Key
                Price
                # 1
                MPN: 99162083100
                SENDER FOR FUEL GAUGE FUEL TANK
                C2
                from £230.37
                from £230.37
                FUEL GAUGE Genuine Porsche Part - New (to order)
                # 1
                MPN: 99162083300
                SENDER FOR FUEL GAUGE FUEL TANK
                C4
                from £179.34
                from £179.34
                FUEL GAUGE Genuine Porsche Part - New (to order)
                # 2
                MPN: 99120162300
                UNION NUT
                from £8.26
                from £8.26
                UNION NUT Genuine Porsche Part - New (to order)
                # 3
                MPN: 99120142100
                FLANGE
                C2
                from £228.27
                from £228.27
                FLANGE Genuine Porsche Part - New (to order)
                # 3
                MPN: 99120142101
                FLANGE
                C4
                from £228.27
                from £228.27
                FLANGE Genuine Porsche Part - New (to order)
                # 4
                MPN: 99120173301
                SEAL RING
                from £9.51
                from £9.51
                SEAL RING Genuine Porsche Part - New In stock
                # 5
                MPN: 99162014100
                fuel pump
                C2
                fuel pump Genuine Porsche Part - New (to order)
                # 5
                MPN: 99162014101
                fuel pump
                C2
                from £346.27
                from £346.27
                fuel pump Genuine Porsche Part - New (to order)
                # 5
                MPN: 99162014500
                FUEL PUMP ALSO USE: 991 620 160 00
                C4
                from £346.27
                from £346.27
                fuel pump Genuine Porsche Part - New (to order)
                # 6
                MPN: 1K0201557A
                SEAL RING
                from £6.84
                from £6.84
                SEAL RING Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102100
                FUEL TANK
                FUEL TANK
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102101
                FUEL TANK
                FUEL TANK
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102104
                FUEL TANK
                /LL C2, P098 (Left-hand drive version)
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102103
                FUEL TANK
                FUEL TANK
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102105
                FUEL TANK
                /LL C4, P098 (Left-hand drive version)
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 9P1201075A
                FUEL TANK
                /LL C4, P098 (Left-hand drive version)
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 9P1201075E
                FUEL TANK 64L
                /LL C4, P098 (Left-hand drive version)
                from £1,820.86
                from £1,820.86
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102200
                FUEL TANK
                FUEL TANK
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102202
                FUEL TANK
                FUEL TANK
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102204
                FUEL TANK
                /RL C2, P099 (Right-hand drive version)
                from £1,330.94
                from £1,330.94
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102203
                FUEL TANK
                FUEL TANK
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 99120102205
                FUEL TANK
                /RL C4, P099 (Right-hand drive version)
                FUEL TANK Genuine Porsche Part - New (to order)
                # 7
                MPN: 9P1201075F
                FUEL TANK 90 LITRES
                /LL C2, P098 (Left-hand drive version) | P082 (Fuel tank, 90-litre)
                from £2,038.62
                from £2,038.62
                FUEL TANK Genuine Porsche Part - New (to order)
                # 8
                MPN: 99120133100
                UNDERSIDE PROTECTION
                P098 (Left-hand drive version)
                UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                # 8
                MPN: 99120133101
                UNDERSIDE PROTECTION
                P099 (Right-hand drive version)
                from £58.94
                from £58.94
                UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                # 8
                MPN: 99120133102
                UNDERSIDE PROTECTION
                UNDERSIDE PROTECTION Genuine Porsche Part - New (to order)
                # 9
                -
                TENSIONING STRAP ALTERNATIVELY, YOU CAN USE: SUPPORT FRAME 991.504.233.01 SEE ILLUSTRATION: 801-020
                C2
                # 9
                MPN: 99120110701
                TENSIONING STRAP
                C4
                from £6.65
                from £6.65
                STRAP Genuine Porsche Part - New (to order)
                # 10
                MPN: 90007547901
                BOLT WITH WASHER M 8 x 40
                BOLT WITH WASHER M 8 x 40
                from £10.72
                from £10.72
                This part replaces part number 90007547909
                BOLT WITH WASHER Genuine Porsche Part - New (to order)
                # 10
                MPN: N 91159101
                HEXAGON HEAD BOLT (COMBI) M 8 X 40
                C2
                from £1.15
                from £1.15
                BOLT, HEX. HD. (COMBI.) Genuine Porsche Part - New (to order)
                # 10

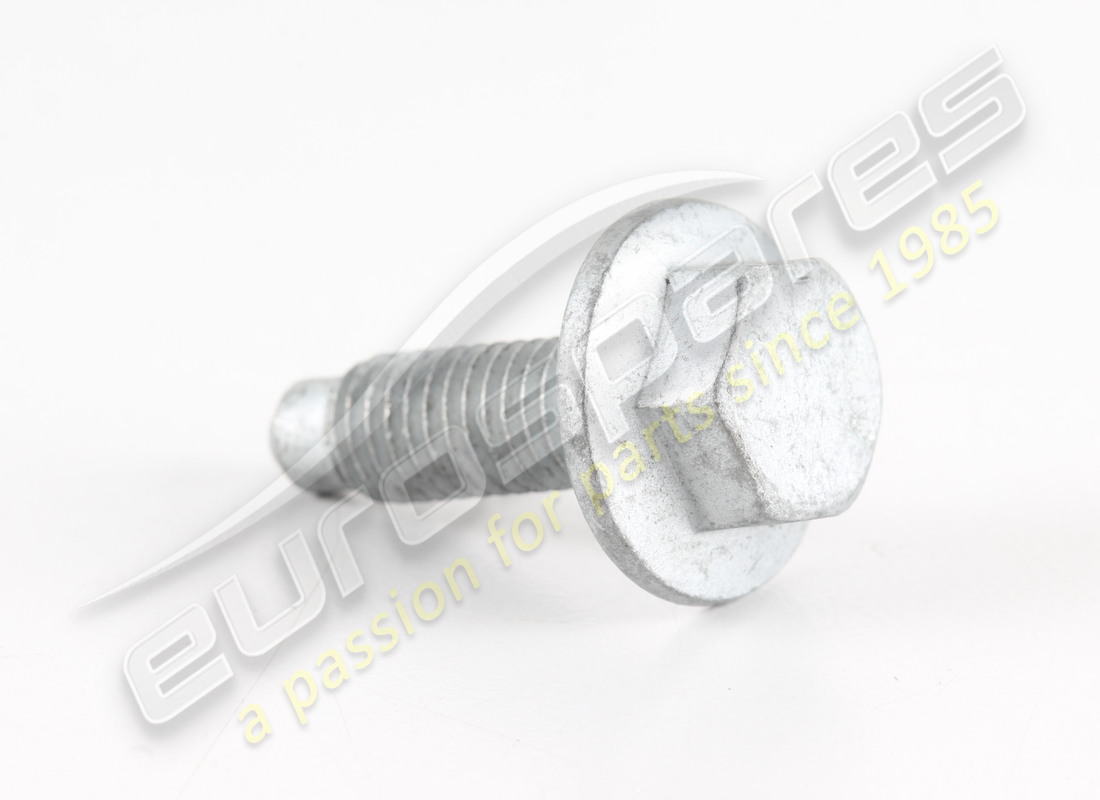

                MPN: N 0195307
                HEX COLLARED BOLT M 8 X 25
                C4
                from £1.62
                from £1.62
                BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New In stock
                HEXAGON FLANGE M8X25 Genuine Lamborghini - New In stock
                # 11
                MPN: 99120104406
                FUEL FILLER NECK
                C2, P without 664, P without 082
                from £72.28
                from £72.28
                FILLER NECK Genuine Porsche Part - New (to order)
                FILLER NECK Genuine Porsche Part - Used In stock
                # 11
                MPN: 99120104408
                FUEL FILLER NECK
                FUEL FILLER NECK
                FILLER NECK Genuine Porsche Part - New (to order)
                # 11
                MPN: 99120104410
                FUEL FILLER NECK
                FUEL FILLER NECK
                FILLER NECK Genuine Porsche Part - New (to order)
                # 11
                MPN: 99120104412
                FUEL FILLER NECK
                C4, P without 664
                from £251.77
                from £251.77
                FILLER NECK Genuine Porsche Part - New (to order)
                # 11
                MPN: 99120104412
                FUEL FILLER NECK
                C2, P without 664, P082 (Fuel tank, 90-litre)
                from £251.77
                from £251.77
                FILLER NECK Genuine Porsche Part - New (to order)
                # 12
                MPN: N 91096702
                OVAL HEXAGON SOCKET HEAD BOLT M 6 X 16
                from £0.78
                from £0.78
                OVAL HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New In stock
                # 13
                MPN: 99120181200
                HOSE
                from £21.59
                from £21.59
                HOSE Genuine Porsche Part - New (to order)
                # 13
                MPN: 9P1201543
                HOSE
                from £24.93
                from £24.93
                HOSE Genuine Porsche Part - New (to order)
                # 14
                MPN: 99951274801
                CLIP B 43 X 12
                from £2.47
                from £2.47
                CLAMP Genuine Porsche Part - New (to order)
                # 15
                MPN: 99120124101
                CAP WITH RETAINING STRAP FOR FUEL TANK WITH: HOLDING STRAP
                P without XYB
                from £16.26
                from £16.26
                FUEL TANK CAP Genuine Porsche Part - New (to order)
                # 15
                MPN: 00004400190
                cap with retaining strap for aluminium fuel tank
                cap with retaining strap for aluminium fuel tank
                CAP WITH RETAINING STRAP FOR Genuine Porsche Part - New (to order)
                # 15
                MPN: 00004400191
                cap with retaining strap for aluminium fuel tank
                PXYB (Fuel tank cap in Aluminium Look)
                from £130.00
                from £130.00
                TANK CAP IN ALUMINIUM LOOK Genuine Porsche Part - New (to order)
                # 16
                MPN: 99120182100
                HOLDING STRAP NO LONGER AVAILABLE ALTERNATIVELY, YOU CAN USE: POS.15
                RETAINING STRAP Genuine Porsche Part - New (to order)
                # 17
                MPN: 99162016000
                FUEL FILTER
                C4
                from £307.90
                from £307.90
                FUEL FILTER Genuine Porsche Part - New (to order)
                # 18
                MPN: 99162012300
                SUCTION JET PUMP
                C4
                from £254.10
                from £254.10
                SUCTION PUMP Genuine Porsche Part - New (to order)
                # 19
                MPN: 00004320902
                Multi-purpose additive for Otto engine fuels 100 ML
                from £10.04
                from £10.04
                MULTI-PURPOSE ADDITIVE - FOR OTTO ENGINE FUELS Genuine Porsche Part - New (to order)
                # 19
                MPN: 99120181100
                SUPPORT FUEL TANK
                P011 (Special model GTS (981/991)) | P without 082
                from £33.56
                from £33.56
                SUPPORT Genuine Porsche Part - New (to order)
