porsche 2016 (991-1) top frame side individual parts and electrical parts parts diagram

811-025 - top frame side Individual parts and Electrical parts

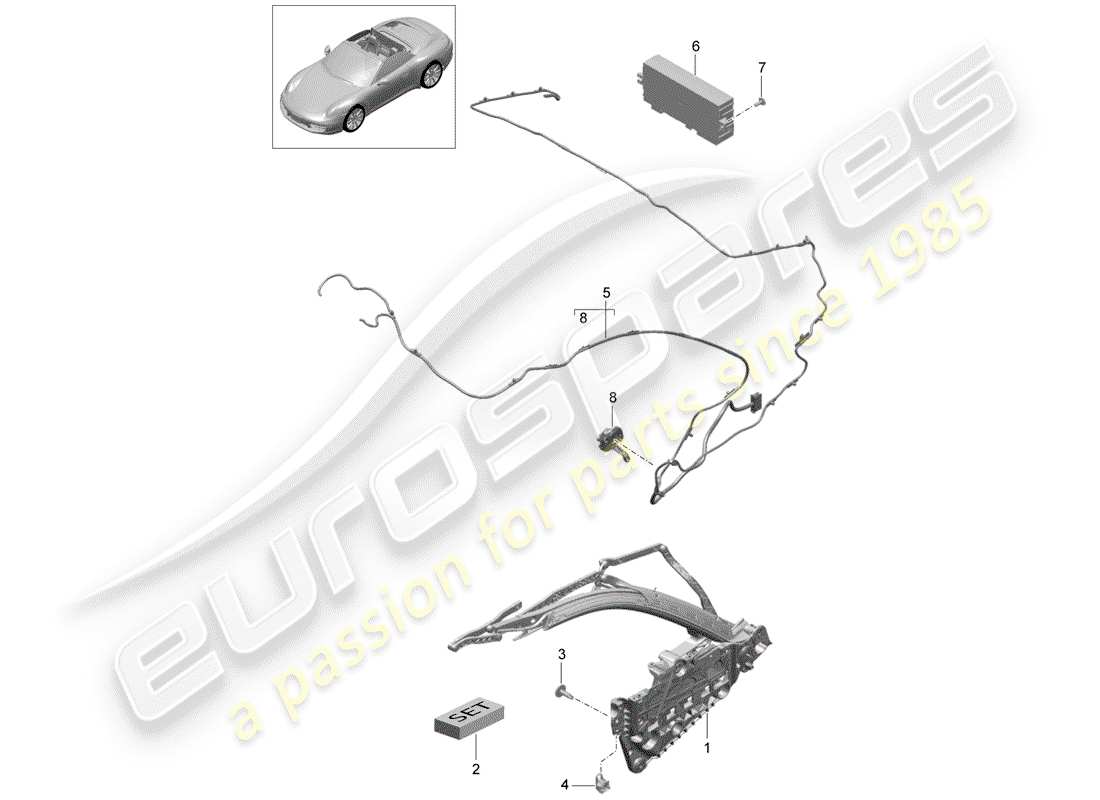

Porsche 2016 (991-1) top frame side Individual parts and Electrical parts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 99156121100
              TOP FRAME LEFT
              Supersession
              Supersession
              Genuine Porsche Part (no longer available to order)
              # 1
              MPN: 99156121200
              TOP FRAME RIGHT
              top frame Genuine Porsche Part - New (to order)
              # 2
              MPN: 99156196700
              ASSEMBLY KIT TOP FRAME
              ASSEMBLY KIT Genuine Porsche Part - New (to order)
              # 3
              MPN: 99907353401
              BOLT WITH WASHER M8X30
              from £1.39
              from £1.39
              BOLT WITH WASHER Genuine Porsche Part - New (to order)
              # 4
              MPN: 99156171500
              GUIDE PIECE
              from £3.49
              from £3.49
              GUIDE PIECE Genuine Porsche Part - New (to order)
              # 5
              MPN: 99161286500
              Wire set (complete) with: Potentiometer
              Wire set (complete) with: Potentiometer
              harness Genuine Porsche Part - New (to order)
              # 5
              MPN: 99156196901
              WIRE SET (COMPLETE) WITH: POTENTIOMETER AND FASTENERS
              from £151.77
              from £151.77
              harness Genuine Porsche Part - New (to order)
              # 6
              MPN: 99161811101
              CONTROL UNIT CONVERTIBLE TOP CONTROL D >>- MJ 2013
              electronic control module Genuine Porsche Part - New (to order)
              # 6
              MPN: 99161811102
              CONTROL UNIT CONVERTIBLE TOP CONTROL D - MJ 2014>>
              PIY1 (Model year period from week 22 to week 45)
              from £386.48
              from £386.48
              electronic control module Genuine Porsche Part - New (to order)
              # 6
              MPN: 99161811103
              CONTROL UNIT CONVERTIBLE TOP CONTROL D - MJ 2014>>
              PIY2 (Model year period from week 45 to week 22)
              from £368.08
              from £368.08
              electronic control module Genuine Porsche Part - New (to order)
              # 7
              MPN: 99907322809
              PANEL SCREW ST 4,8X13
              from £0.54
              from £0.54
              This part replaces part number 99907351901
              tapping screw - 4,8 X 13 - D - MJ 2002>> Genuine Porsche Part - New (to order)
              # 8
              MPN: 99160630700
              POTENTIOMETER
              POTENTIOMETER Genuine Porsche Part - New (to order)
