porsche 2016 (991-1 turbo) bumper carrier rear d >>- mj 2016 parts diagram

802-030 - Bumper carrier rear D >>- MJ 2016

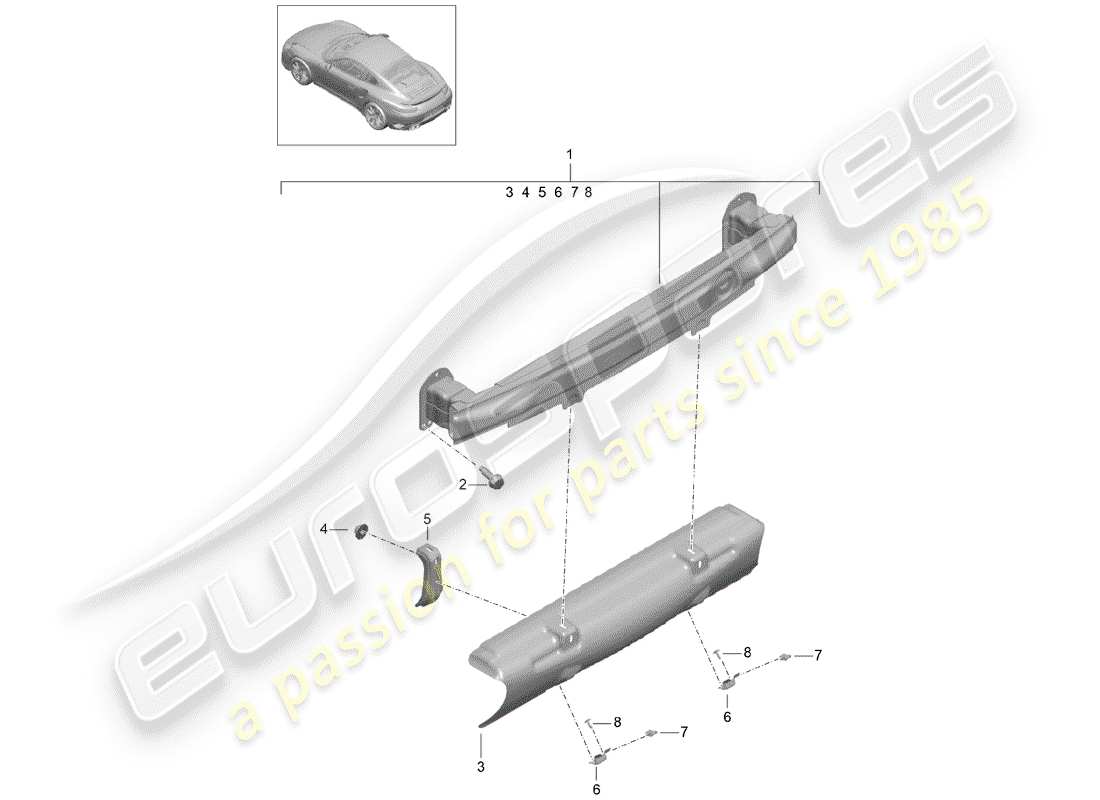

Porsche 2016 (991-1 Turbo) Bumper carrier rear D >>- MJ 2016 Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                  #
                  Part number
                  Description
                  Key
                  Price
                  # 1
                  MPN: 99150514102
                  BUMPER CARRIER REAR INCLUDED HEAT INSULATION
                  from £344.31
                  from £344.31
                  BUMPER BRACKET Genuine Porsche Part - New (to order)
                  # 2
                  MPN: 90037835101
                  HEXAGON BOLT M8X30-PA
                  Supersession
                  Supersession
                  Genuine Porsche Part (no longer available to order)
                  # 3
                  MPN: 99150547501
                  HEAT INSULATION CENTER
                  from £102.58
                  from £102.58
                  heat deflector Genuine Porsche Part - New (to order)
                  # 4
                  MPN: 99907609101
                  HEXAGON NUT M6-S
                  from £2.32
                  from £2.32
                  HEX. NUT Genuine Porsche Part - New (to order)
                  # 5
                  MPN: 99150563901
                  HOLDING STRAP
                  from £30.20
                  from £30.20
                  RETAINING STRAP Genuine Porsche Part - New (to order)
                  # 6
                  MPN: 99650564901
                  ANGLE
                  from £13.99
                  from £13.99
                  BRACKET Genuine Porsche Part - New (to order)
                  # 7
                  MPN: 99950779509
                  panel nut ST4,8
                  Supersession
                  Supersession
                  Genuine Porsche Part (no longer available to order)
                  # 8
                  MPN: 99907341801
                  PANEL SCREW ST4,8X19-C
                  from £0.91
                  from £0.91
                  This part replaces part number 99907331409
                  TAPPING SCREW Genuine Porsche Part - New In stock
