porsche 2017 (991-2 turbo) cylinder head accessories inlet/outlet valve parts diagram

103-005 - Cylinder head Accessories Inlet/outlet valve

Porsche 2017 (991-2 Turbo) Cylinder head Accessories Inlet/outlet valve Parts Diagram

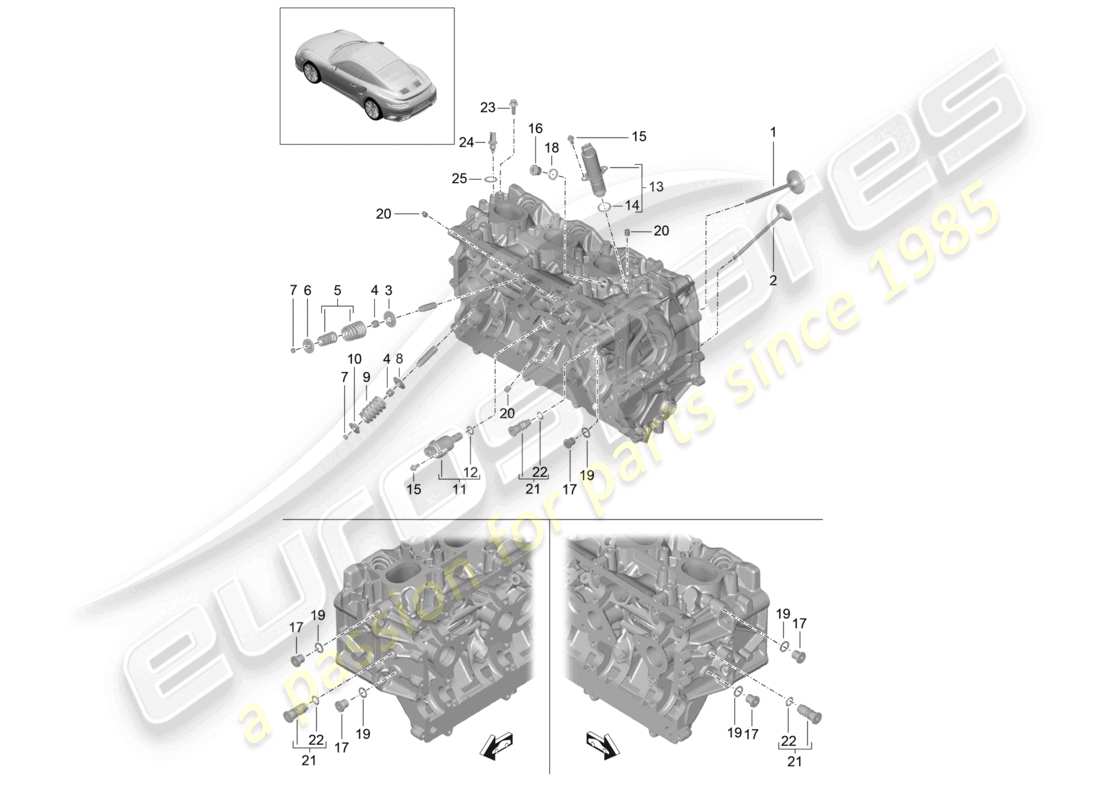

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                #
                                                Part number
                                                Description
                                                Key
                                                Price
                                                # 1
                                                MPN: 9A110531202
                                                INLET VALVE
                                                from £44.46
                                                from £44.46
                                                INTAKE VALVE Genuine Porsche Part - New (to order)
                                                # 2
                                                MPN: 9A110532600
                                                EXHAUST VALVE
                                                A171 (3.8 Litre 6 Cyliner Engine (520 Horsepower / 383 Kilowatt with Engine Code: A171 and installed 05/2013-05/2016)
                                                from £93.11
                                                from £93.11
                                                EXHAUST VALVE Genuine Porsche Part - New (to order)
                                                # 2
                                                MPN: 9A110532670
                                                EXHAUST VALVE
                                                DABA (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DABA and installed 05/2016-05/2020) | DAB (3.8 Litre 6 Cyliner Engine (539 Horsepower / 397 Kilowatt with Engine Code: DAB and installed 05/2017-05/2020) | DBCA (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBCA and installed 05/2016-05/2020) | DBC (3.8 Litre 6 Cyliner Engine (579 Horsepower / 426 Kilowatt with Engine Code: DBC and installed 05/2017-05/2020) | DBCB (3.8 Litre 6 Cyliner Engine (606 Horsepower / 446 Kilowatt with Engine Code: DBCB and installed 05/2017-05/2020) | DHNA (3.8 Litre 6 Cyliner Engine (700 Horsepower / 515 Kilowatt with Engine Code: DHNA and installed 05/2017-05/2020)
                                                from £95.00
                                                from £95.00
                                                EXHAUST VALVE Genuine Porsche Part - New (to order)
                                                # 3
                                                MPN: 94810515101
                                                SPRING DISC LOWER INLET
                                                from £7.82
                                                from £7.82
                                                SPRING SEAT Genuine Porsche Part - New (to order)
                                                # 4
                                                MPN: 99610511552
                                                VALVE STEM SEAL
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 5
                                                MPN: 94810509400
                                                1 SET OF VALVE SPRINGS INLET
                                                from £52.04
                                                from £52.04
                                                SET OF VALVE SPRINGS Genuine Porsche Part - New In stock
                                                # 6
                                                MPN: 9A110535000
                                                SPRING DISC UPPER INLET
                                                from £4.03
                                                from £4.03
                                                SPRING SEAT Genuine Porsche Part - New (to order)
                                                # 7
                                                MPN: 99610512352
                                                COTTER, SPLIT
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 8
                                                MPN: 9A110525370
                                                SPRING DISC LOWER OUTLET
                                                from £6.37
                                                from £6.37
                                                SPRING SEAT Genuine Porsche Part - New (to order)
                                                # 9
                                                MPN: 9A110511570
                                                1 SET OF VALVE SPRINGS OUTLET
                                                from £22.63
                                                from £22.63
                                                SET OF VALVE SPRINGS Genuine Porsche Part - New (to order)
                                                # 10
                                                MPN: 9A110525270
                                                SPRING DISC UPPER OUTLET
                                                from £5.89
                                                from £5.89
                                                SPRING SEAT Genuine Porsche Part - New (to order)
                                                # 11
                                                MPN: 9A110530803
                                                THROTTLE CONTROL ELEMENT VVS
                                                from £102.06
                                                from £102.06
                                                This part replaces part number 9A110530802
                                                ACTUATOR Genuine Porsche Part - New (to order)
                                                # 12
                                                MPN: 90033105740
                                                O-RING 11,2X2,65N
                                                from £2.29
                                                from £2.29
                                                O-RING Genuine Porsche Part - New (to order)
                                                # 13
                                                MPN: 9A110530404
                                                THROTTLE CONTROL ELEMENT NVS
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 14
                                                MPN: 99970744640
                                                O-RING 18,0X2,5N
                                                from £2.29
                                                from £2.29
                                                O-Ring - 18,00 X 2,5 Genuine Porsche Part - New (to order)
                                                # 15
                                                MPN: 90038511201
                                                TORX SCREW BM5X12
                                                TORX SCREW BM5X12
                                                from £2.29
                                                from £2.29
                                                TORX SCREW Genuine Porsche Part - New (to order)
                                                # 15
                                                MPN: 99907365001
                                                TORX SCREW M5X12
                                                from £0.47
                                                from £0.47
                                                TORX SCREW Genuine Porsche Part - New (to order)
                                                # 16
                                                MPN: 99906303801
                                                SEALING PLUG M14X1,5X15
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 17
                                                MPN: 99906303701
                                                SEALING PLUG M12X1,5X15
                                                from £5.37
                                                from £5.37
                                                THREADED PLUG Genuine Porsche Part - New (to order)
                                                # 18
                                                MPN: 90012310430
                                                SEAL RING A14X18
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 19
                                                MPN: 90012316120
                                                SEAL RING 12X16
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 20
                                                MPN: 99906303502
                                                SEALING PLUG M8X1,0 CYLINDERS 1-3
                                                from £1.28
                                                from £1.28
                                                THREADED PLUG Genuine Porsche Part - New (to order)
                                                # 20
                                                MPN: 99906303502
                                                SEALING PLUG M8X1,0 CYLINDERS 4-6
                                                from £1.28
                                                from £1.28
                                                THREADED PLUG Genuine Porsche Part - New (to order)
                                                # 21
                                                MPN: 9A110425001
                                                CHOKE
                                                from £7.62
                                                from £7.62
                                                RESTRICTOR Genuine Porsche Part - New (to order)
                                                # 22
                                                MPN: 99970757740
                                                O-RING 10X2,5-N-
                                                O-RING Genuine Porsche Part - New (to order)
                                                # 23
                                                MPN: 90038501901
                                                TORX SCREW BM6X20
                                                Supersession
                                                Supersession
                                                Genuine Porsche Part (no longer available to order)
                                                # 24
                                                MPN: 94860642001
                                                Temperature sensor Coolant cooling system
                                                from £23.26
                                                from £23.26
                                                TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                                # 25
                                                MPN: 90012311121
                                                SEAL RING 14X20
                                                from £0.91
                                                from £0.91
                                                SEAL RING Genuine Porsche Part - New (to order)
