PD97 (6-cylinder turbo 3.8 L 515 KW GT2-RS)
porsche 2017 (991-2 turbo) steering gear parts diagram

403-010 - STEERING GEAR

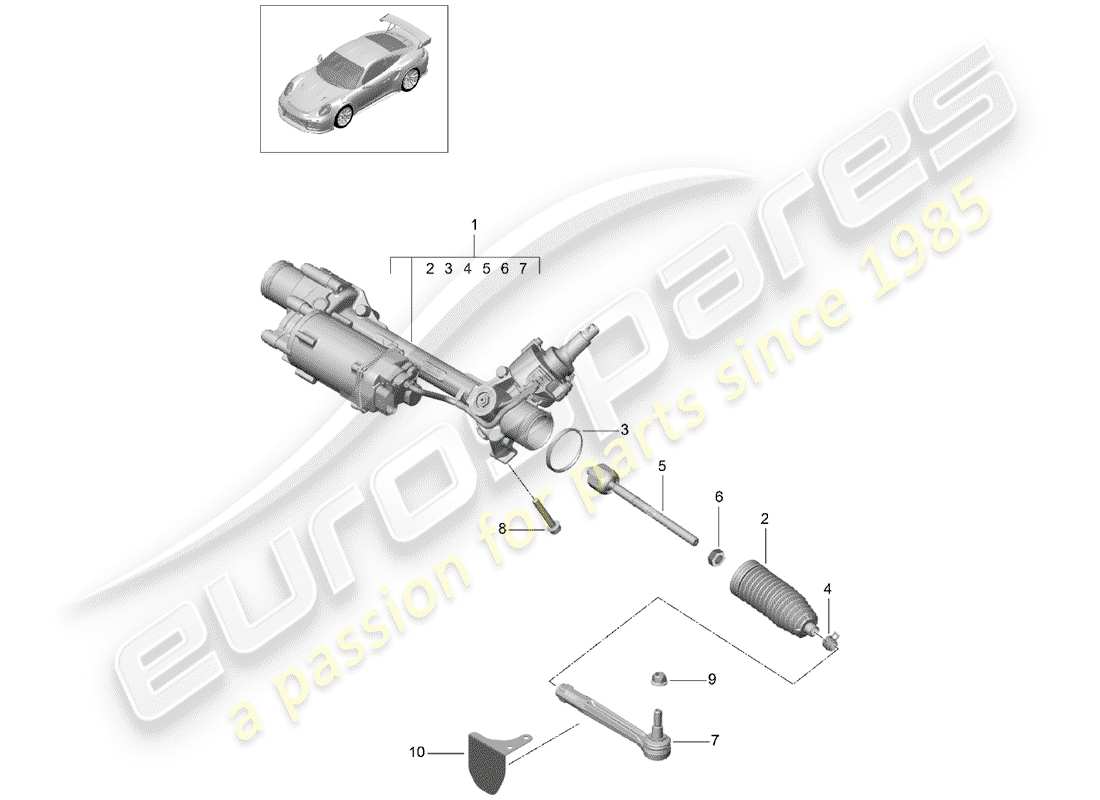

Porsche 2017 (991-2 Turbo) Steering gear Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 99134700542
                    STEERING GEAR (COMPLETE)
                    P098 (Left-hand drive version) | P657 (Power steering)
                    from £3,715.56
                    from £3,715.56
                    STEERING GEAR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99134700642
                    STEERING GEAR (COMPLETE)
                    P099 (Right-hand drive version) | P657 (Power steering)
                    from £3,715.56
                    from £3,715.56
                    STEERING GEAR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99134700543
                    STEERING GEAR (COMPLETE)
                    P098 (Left-hand drive version) | P357 (Steering with additional stroke limitation) | P657 (Power steering)
                    from £4,402.64
                    from £4,402.64
                    STEERING GEAR Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99134700643
                    STEERING GEAR (COMPLETE)
                    P099 (Right-hand drive version) | P357 (Steering with additional stroke limitation) | P657 (Power steering)
                    from £4,360.72
                    from £4,360.72
                    STEERING GEAR Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99134719101
                    BELLOWS
                    from £30.57
                    from £30.57
                    This part replaces part number 992423815
                    BELLOWS Genuine Porsche Part - New In stock
                    # 3
                    MPN: 99134729301
                    CLAMPING RING
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 4
                    MPN: 99134737501
                    CLAMPING RING
                    from £5.12
                    from £5.12
                    CLAMPING RING Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99134732280
                    TRACK ROD
                    from £209.40
                    from £209.40
                    TIE ROD Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99903403701
                    HEXAGON NUT M14X1,5
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 7
                    MPN: 99134713100
                    OUTER JOINT
                    from £95.95
                    from £95.95
                    TIE ROD Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 99907283601
                    HEXAGON BOLT AM 10X60
                    from £2.04
                    from £2.04
                    SCREW, HEX. HD Genuine Porsche Part - New In stock
                    # 9
                    MPN: 99908444909
                    LOCKNUT M12X1,5
                    from £2.29
                    from £2.29
                    lock nut - VM 12 X 1,5 Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99135180381
                    COVER PLATE LEFT TRACK ROD
                    from £40.82
                    from £40.82
                    COVER PLATE Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99135180481
                    COVER PLATE RIGHT TRACK ROD
                    from £40.82
                    from £40.82
                    COVER PLATE Genuine Porsche Part - New (to order)
