porsche 2017 (991-2 turbo) retaining frame dashboard parts diagram

809-015 - retaining frame dashboard

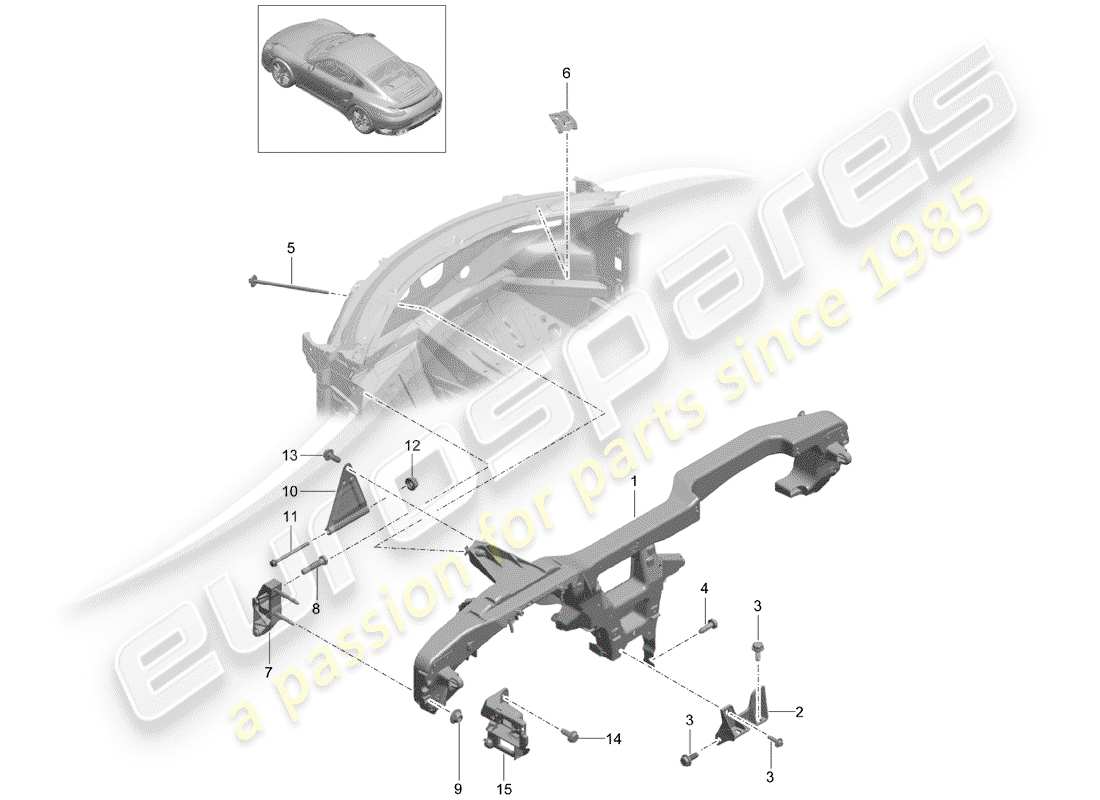

Porsche 2017 (991-2 Turbo) retaining frame dashboard Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 99150406300
                              retaining frame lhd
                              P098 (Left-hand drive version)
                              from £321.78
                              from £321.78
                              retaining frame Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 99150406301
                              RETAINING FRAME RHD
                              P099 (Right-hand drive version)
                              retaining frame Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 99150461500
                              BRACKET TUNNEL
                              from £16.43
                              from £16.43
                              BRACKET Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 99914301401
                              HEXAGON BOLT M8X27
                              from £1.43
                              from £1.43
                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 99907313801
                              flat round head bolt M8X25-PA
                              from £0.91
                              from £0.91
                              screw, round hd. - M 8 X 25 Genuine Porsche Part - New (to order)
                              # 5
                              MPN: 99907354201
                              BOLT WITH WASHER M8X195
                              BOLT WITH WASHER Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 8E0857117
                              CLIP DASHBOARD AIR GUIDE PLATE
                              from £5.60
                              from £5.60
                              CLAMP Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 99150440702
                              RETAINER FOR SUPPORT FRAME A-PILLAR
                              from £12.34
                              from £12.34
                              BRACKET FOR RETAINING FRAME Genuine Porsche Part - New (to order)
                              # 8
                              MPN: 90091900901
                              LOCATING BOLT M8X45
                              from £2.70
                              from £2.70
                              FITTED BOLT Genuine Porsche Part - New (to order)
                              # 9
                              MPN: N 90761103
                              Hexagon collar nut M8 self-locking
                              from £1.26
                              from £1.26
                              SHOULDERED HEX. NUT, Genuine Porsche Part - New (to order)
                              PREV.TORQUE TYPE Genuine Lamborghini - New (to order)
                              # 10
                              MPN: 99150465301
                              SUPPORT STEERING COLUMN
                              from £11.63
                              from £11.63
                              SUPPORT Genuine Porsche Part - New (to order)
                              # 11
                              MPN: N 10636601
                              BOLT,HEX.HD.WITH SHOUL.(COMBI) M8X110X80
                              from £2.79
                              from £2.79
                              BOLT,HEX.HD.WITH SHOUL.(COMBI) Genuine Porsche Part - New (to order)
                              HEXAGON FLANGE BM8X110X80 Genuine Lamborghini - New In stock
                              # 12
                              MPN: 99908463001
                              HEXAGON NUT M8
                              from £0.91
                              from £0.91
                              HEX. NUT - VM 8 SB Genuine Porsche Part - New In stock
                              # 13
                              MPN: 99914301401
                              HEXAGON BOLT M8X27
                              from £1.43
                              from £1.43
                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                              # 14
                              MPN: 99991927801
                              HEXAGON HEAD BOLT M6X20
                              from £0.63
                              from £0.63
                              HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                              # 15
                              -
                              RETAINER FOR SUPPORT FRAME SEE ILLUSTRATION: 809-000
