porsche 2017 (991-2 turbo) sliding/pop-up roof parts diagram

811-000 - Sliding/pop-up roof

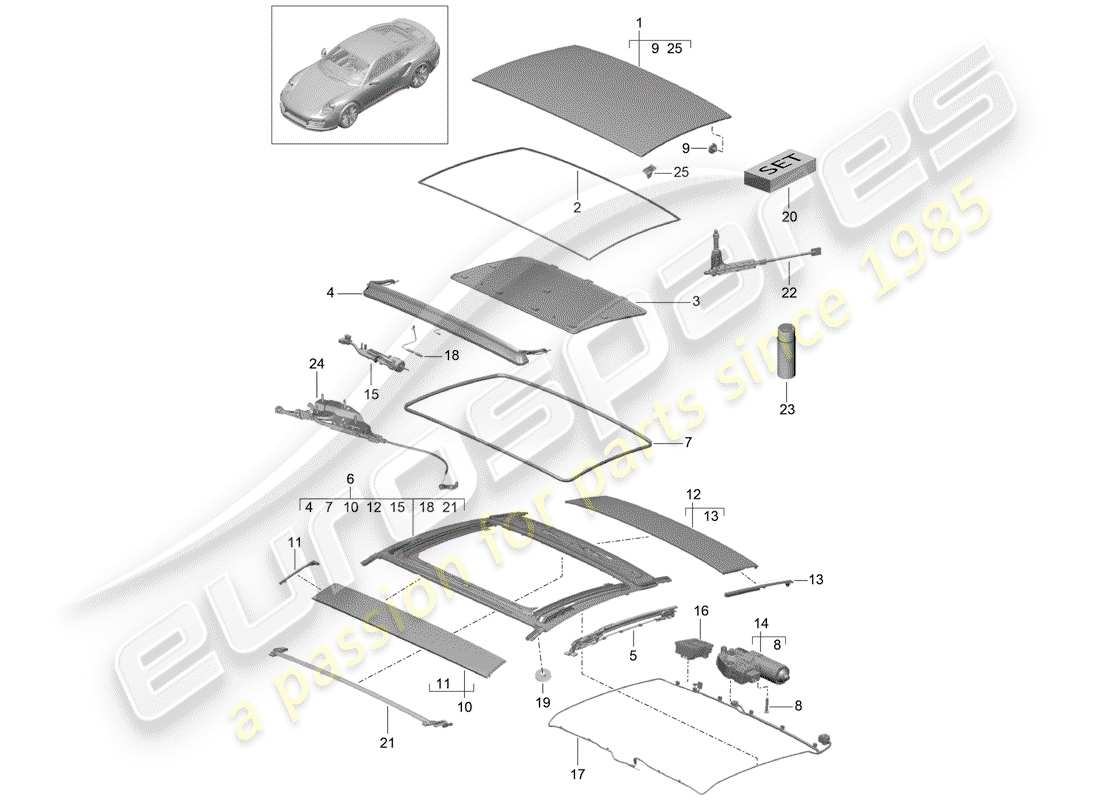

Porsche 2017 (991-2 Turbo) Sliding/pop-up roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 99156634300GRV
                    COVER INCLUDED 1 SET SECURING BOLTS D >>- MJ 2016 - PRIMED
                    P651 (Electric window opener)
                    This part replaces part number 99156634300
                    PRIMED Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 99156634301GRV
                    COVER INCLUDED 1 SET SECURING BOLTS D - MJ 2017>>- PRIMED
                    P651 (Electric window opener)
                    This part replaces part number 99156634301
                    PRIMED Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99156645500
                    SEAL COVER USE IF REQUIRED:
                    P651 (Electric window opener)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 2
                    MPN: 99991557740
                    PRIMER FOR STRIP SEAL
                    PRIMER Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 991566905002W0
                    MOULDED HEADLINER INCLUDED FASTENERS - BLACK -AZ,EZ,BR,BL, BA,BQ,NG,99
                    P651 (Electric window opener)
                    This part replaces part number 99156690500
                    Black Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 991566905008U3
                    MOULDED HEADLINER INCLUDED FASTENERS - PLATINUM GREY -CZ
                    P651 (Electric window opener)
                    from £514.39
                    from £514.39
                    This part replaces part number 99156690500
                    PLATINUM GREY Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 991566905009U1
                    MOULDED HEADLINER INCLUDED FASTENERS - LUXOR BEIGE -UZ
                    P651 (Electric window opener)
                    from £546.10
                    from £546.10
                    This part replaces part number 99156690500
                    LUXOR BEIGE Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690500OU5
                    MOULDED HEADLINER INCLUDED FASTENERS - AGATE GREY -DK,BV
                    P651 (Electric window opener)
                    from £546.10
                    from £546.10
                    This part replaces part number 99156690500
                    AGATE GREY Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 991566905009U7
                    MOULDED HEADLINER INCLUDED FASTENERS - ESPRESSO -NE,BH
                    P651 (Electric window opener)
                    from £514.39
                    from £514.39
                    This part replaces part number 99156690500
                    ESPRESSO Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99156616100
                    WIND DEFLECTOR (COMPLETE) INCLUDED FASTENERS
                    P651 (Electric window opener)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 99156635100
                    GUIDE RAIL LEFT INCLUDED GATE GUIDE (COMPLETE)
                    P651 (Electric window opener)
                    from £446.98
                    from £446.98
                    TRACK Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99156635200
                    GUIDE RAIL RIGHT INCLUDED GATE GUIDE (COMPLETE) D >>- 20.03.2016
                    P651 (Electric window opener)
                    from £629.00
                    from £629.00
                    TRACK Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99156635201
                    GUIDE RAIL RIGHT INCLUDED GATE GUIDE (COMPLETE) D - 21.03.2016>>
                    P651 (Electric window opener)
                    TRACK Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99156621500
                    FRAME FOR SLIDING SUNROOF APERTURE ALSO USE: 2X N 906 661 01
                    P651 (Electric window opener)
                    FRAME FOR SLIDING ROOF Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99156633100
                    SEAL FRAME USE IF REQUIRED:
                    P651 (Electric window opener)
                    GASKET Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99991557740
                    PRIMER FOR SEAL
                    PRIMER Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 95856205700
                    1 SET SECURING BOLTS
                    from £17.49
                    from £17.49
                    1 SET SECURING BOLTS Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99156694500
                    1 SET SECURING BOLTS GLASS SLIDING ROOF PANEL
                    from £28.65
                    from £28.65
                    1 SET SECURING BOLTS Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99156632100GRV
                    TRIM FRONT INCLUDED SEAL - PRIMED
                    P651 (Electric window opener)
                    This part replaces part number 99156632100
                    PRIMED Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99156692300
                    SEAL LEFT FRONT TRIM
                    P651 (Electric window opener)
                    from £51.29
                    from £51.29
                    GASKET Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99156692400
                    Seal right front Trim
                    P651 (Electric window opener)
                    from £51.30
                    from £51.30
                    GASKET Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 99156632500GRV
                    TRIM REAR INCLUDED SEAL - PRIMED
                    P651 (Electric window opener)
                    This part replaces part number 99156632500
                    PRIMED Genuine Porsche Part - New (to order)
                    # 13
                    MPN: 99156692700
                    SEAL LEFT REAR TRIM
                    P651 (Electric window opener)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 13
                    MPN: 99156692800
                    SEAL RIGHT REAR TRIM
                    P651 (Electric window opener)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 14
                    MPN: 99162490900
                    ELECTRIC DRIVE COVER GLASS ROOF INCLUDED FASTENERS
                    P651 (Electric window opener)
                    from £343.67
                    from £343.67
                    ELECTRIC DRIVE Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 99162491500
                    ELECTRIC DRIVE WIND DEFLECTOR
                    P651 (Electric window opener)
                    from £281.32
                    from £281.32
                    ELECTRIC DRIVE Genuine Porsche Part - New (to order)
                    # 16
                    MPN: 99161821502
                    CONTROL UNIT WIND DEFLECTOR
                    P352 (Electronic damper control for PASM and PDCC) | P475 (PASM electronic damper control) | P651 (Electric window opener) | P653 (External-sliding glass sunroof)
                    electronic control module Genuine Porsche Part - New (to order)
                    # 17
                    MPN: 99161287100
                    WIRE SET GLASS SLIDING ROOF ALSO USE: 2X N 906 661 01
                    P651 (Electric window opener)
                    from £159.22
                    from £159.22
                    harness Genuine Porsche Part - New (to order)
                    # 18
                    MPN: 99156696100
                    REPAIR SET CABLE GUIDE WIND DEFLECTOR
                    from £45.37
                    from £45.37
                    repair kit Genuine Porsche Part - New (to order)
                    # 19
                    MPN: N 90570802
                    HEX. NUT WITH WASHER M6 FRAME
                    from £1.15
                    from £1.15
                    HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                    # 21
                    MPN: 99156644300
                    TRANSVERSE STRUT INCLUDED FASTENERS
                    TRANSVERSE STRUT Genuine Porsche Part - New (to order)
                    # 22
                    -
                    CRANK EMERGENCY OPERATION SEE ILLUSTRATION: 001-000
                    # 23
                    MPN: 00004330621
                    SPECIAL LUBRICANT FOR 150ML SLIDING GLIDES 1 TUBE D >>- MJ 2016
                    from £35.24
                    from £35.24
                    SPECIAL LUBRICANT FOR Genuine Porsche Part - New (to order)
                    # 23
                    MPN: N 052567GB
                    SPECIAL LUBRICANT SPRAY CAN D - MJ 2017>>
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 24
                    MPN: 99156697200
                    REPAIR SET LOCKING MECHANISM D - MJ 2017>>
                    P651 (Electric window opener)
                    from £154.18
                    from £154.18
                    repair kit Genuine Porsche Part - New (to order)
                    # 25
                    MPN: 9P1898220
                    REPAIR SET STARTING WEDGE FOR WIND DEFLECTOR
                    from £32.02
                    from £32.02
                    repair kit Genuine Porsche Part - New (to order)
