202-000 - Exhaust System

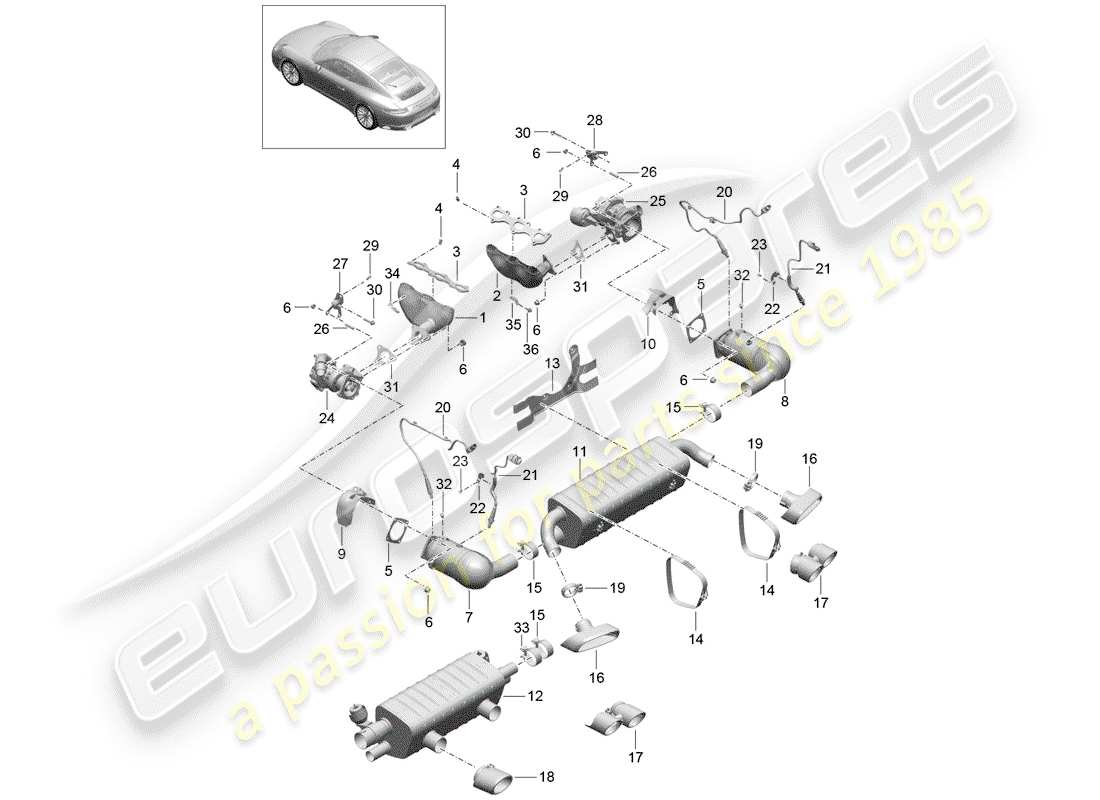

Porsche 2018 (991-2) exhaust system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 9P1251215B
Exhaust manifolds left
Supersession
Supersession
# 2
MPN: 9P1251216B
Exhaust manifolds right
from £575.79
from £575.79
# 3
MPN: 9P1251261
SEAL EXHAUST MANIFOLDS
from £20.67
from £20.67
# 4
MPN: 9A700384200
HEXAGON NUT M8
# 5
MPN: 9P1251263
SEAL
from £14.74
from £14.74
# 6
MPN: 99908464202
HEXAGON NUT M8
Supersession
Supersession
# 7
MPN: 9P1254400
CATALYTIC CONVERTER LEFT CYLINDERS 1-3
P without 176
from £1,074.35
from £1,074.35
# 7
MPN: 9P1254400 X
CATALYTIC CONVERTER LEFT CYLINDERS 1-3
P without 176
from £1,074.35
from £1,074.35
# 7
MPN: 9P1254400A
CATALYTIC CONVERTER LEFT CYLINDERS 1-3
P176 (Sports exhaust system)
from £1,041.39
from £1,041.39
# 7
MPN: 9P1254400AX
CATALYTIC CONVERTER LEFT CYLINDERS 1-3
P176 (Sports exhaust system)
from £1,096.96
from £1,096.96
# 8
MPN: 9P1254450
CATALYTIC CONVERTER RIGHT CYLINDERS 4-6
P without 176
from £1,074.35
from £1,074.35
# 8
MPN: 9P1254450 X
CATALYTIC CONVERTER RIGHT CYLINDERS 4-6
P without 176
from £1,074.35
from £1,074.35
# 8
MPN: 9P1254450A
CATALYTIC CONVERTER RIGHT CYLINDERS 4-6
P176 (Sports exhaust system)
Supersession
Supersession
# 8
MPN: 9P1254450AX
CATALYTIC CONVERTER RIGHT CYLINDERS 4-6
P176 (Sports exhaust system)
from £915.93
from £915.93
# 9
MPN: 9A212321501
GUARD PLATE LEFT EXHAUST GAS TURBOCHARGER CYLINDERS 1-3
from £61.65
from £61.65
# 10
MPN: 9A212321601
GUARD PLATE RIGHT EXHAUST GAS TURBOCHARGER CYLINDERS 4-6
from £61.65
from £61.65
# 11
MPN: 9P1251051A
SILENCER
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) with, P008 (Basic 981/991) | P without 176
from £762.90
from £762.90
# 11
MPN: 9P1251052
SILENCER
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | P without 176
from £1,445.90
from £1,445.90
# 12
MPN: 9P1251053A
SILENCER
P176 (Sports exhaust system)
from £2,024.27
from £2,024.27
# 12
-
VACUUM UNIT SEE ILLUSTRATION: 202-010
# 13
MPN: 9P1251225A
BRACKET SILENCER
from £113.87
from £113.87
# 14
MPN: 9P1251571
CLIP SILENCER
from £52.51
from £52.51
# 15
MPN: 99711123080
CLAMP SILENCER
from £37.10
from £37.10
# 16
MPN: 9P1251187
Tailpipe left oval
Tailpipe left oval
# 16
MPN: 9P1251187H
Tailpipe left oval
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) with, P008 (Basic 981/991) | P without XLP, P without XLT, P without 176
from £449.87
from £449.87
# 16
MPN: 9P1251188
Tailpipe right oval
Tailpipe right oval
# 16
MPN: 9P1251188H
Tailpipe right oval
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) with, P008 (Basic 981/991) | P without XLP, P without XLT, P without 176
from £449.87
from £449.87
# 17
MPN: 9P1251187A
Tailpipe left stainless steel Round
Tailpipe left stainless steel Round
# 17
MPN: 9P1251187J
Tailpipe left stainless steel Round
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | P without XLP, P without XLT, P without 176
from £501.54
from £501.54
# 17
MPN: 9P1251187E
TAILPIPE LEFT CHROME ROUND
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | PXLT (Sports tailpipes, 997) | P without 176
from £840.74
from £840.74
# 17
MPN: 9P1251187F
TAILPIPE LEFT BLACK ROUND
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | PXLP (Sports tailpipes, Black) | P without 176
from £824.64
from £824.64
# 17
MPN: 9P1251187C
TAILPIPE LEFT CHROME ROUND
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) | P008 (Basic 981/991) | PXLT (Sports tailpipes, 997) | P without 176
from £840.74
from £840.74
# 17
MPN: 9P1251187D
TAILPIPE LEFT BLACK ROUND
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) | P008 (Basic 981/991) | PXLP (Sports tailpipes, Black) | P without 176
from £840.74
from £840.74
# 17
MPN: 9P1251187L
TAILPIPE LEFT SILVER/CHROME ROUND
TARGA, PXLZ (Targa 4 GTS EXC Edition)
from £643.82
from £643.82
# 17
MPN: 9P1251188A
Tailpipe right stainless steel Round
Tailpipe right stainless steel Round
# 17
MPN: 9P1251188J
Tailpipe right stainless steel Round
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | P without XLP, P without XLT, P without 176
from £501.54
from £501.54
# 17
MPN: 9P1251188E
TAILPIPE RIGHT CHROME ROUND
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | PXLT (Sports tailpipes, 997) | P without 176
from £840.74
from £840.74
# 17
MPN: 9P1251188F
TAILPIPE RIGHT BLACK ROUND
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P009 (s 981/991) | PXLP (Sports tailpipes, Black) | P without 176
from £824.64
from £824.64
# 17
MPN: 9P1251188C
TAILPIPE RIGHT CHROME ROUND
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) | P008 (Basic 981/991) | PXLT (Sports tailpipes, 997) | P without 176
from £840.74
from £840.74
# 17
MPN: 9P1251188D
TAILPIPE RIGHT BLACK ROUND
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019) | P008 (Basic 981/991) | PXLP (Sports tailpipes, Black) | P without 176
from £840.74
from £840.74
# 17
MPN: 9P1251188L
TAILPIPE RIGHT SILVER/CHROME ROUND
TARGA, PXLZ (Targa 4 GTS EXC Edition)
from £643.82
from £643.82
# 18
MPN: 9P1251187B
TAILPIPE CENTER CHROME LEFT ROUND
P176 (Sports exhaust system) | P without 178
from £626.90
from £626.90
# 18
MPN: 9P1251187G
TAILPIPE CENTER BLACK LEFT ROUND
GTS, P176 (Sports exhaust system) | P178 (Twin tailpipes, Black)
from £626.90
from £626.90
# 18
MPN: 9P1251188B
Tailpipe center chrome right Round
P176 (Sports exhaust system) | P without 178
from £626.90
from £626.90
# 18
MPN: 9P1251188G
TAILPIPE CENTER BLACK RIGHT ROUND
GTS, P176 (Sports exhaust system) | P178 (Twin tailpipes, Black)
from £626.90
from £626.90
# 19
MPN: 99711124030
CLAMP TAILPIPE
P without 176
from £31.07
from £31.07
# 20
MPN: 9A260618801
LAMBDA PROBE (IN FRONT OF CATALYST)
Supersession
Supersession
# 21
MPN: 9A260619800
Lambda probe (behind catalyst)
Lambda probe (behind catalyst)
# 21
MPN: 9A260619801
Lambda probe (behind catalyst)
from £220.45
from £220.45
# 22
MPN: 9A260617400
HOLDER FOR LAMBDA PROBE
from £9.47
from £9.47
# 23
MPN: 99907318901
flat round head bolt M6X12
from £0.91
from £0.91
# 24
MPN: 9A212302702
Exhaust gas turbocharger Cylinders 1-3
Exhaust gas turbocharger Cylinders 1-3
# 24
MPN: 9A212302705
Exhaust gas turbocharger Cylinders 1-3
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019)
from £2,338.52
from £2,338.52
# 24
MPN: 9A212303102
Exhaust gas turbocharger Cylinders 1-3
Exhaust gas turbocharger Cylinders 1-3
# 24
MPN: 9A212303105
Exhaust gas turbocharger Cylinders 1-3
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P without 147, P without X51
from £2,338.52
from £2,338.52
# 24
MPN: 9A212303152
Exhaust gas turbocharger Cylinders 1-3
Exhaust gas turbocharger Cylinders 1-3
# 24
MPN: 9A212303155
Exhaust gas turbocharger Cylinders 1-3
GTS, DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCJA (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DCJA and installed 05/2016-12/2019) | DPE (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DPE and installed 05/2018-12/2019) | DPEA (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DPEA and installed 05/2015-12/2019)
from £3,020.29
from £3,020.29
# 24
MPN: 9A212303155
Exhaust gas turbocharger Cylinders 1-3
, DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCJA (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DCJA and installed 05/2016-12/2019)
from £3,020.29
from £3,020.29
# 25
MPN: 9A212302802
Exhaust gas turbocharger Cylinders 4-6
Exhaust gas turbocharger Cylinders 4-6
# 25
MPN: 9A212302803
Exhaust gas turbocharger Cylinders 4-6
Exhaust gas turbocharger Cylinders 4-6
from £2,338.52
from £2,338.52
# 25
MPN: 9A212302805
Exhaust gas turbocharger Cylinders 4-6
DCKA (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCKA and installed 05/2016-12/2019) | DCK (3.0 Litre 6 Cyliner Engine (369 Horsepower / 272 Kilowatt with Engine Code: DCK and installed 05/2017-12/2019)
from £2,338.52
from £2,338.52
# 25
MPN: 9A212303202
Exhaust gas turbocharger Cylinders 4-6
Exhaust gas turbocharger Cylinders 4-6
# 25
MPN: 9A212303205
Exhaust gas turbocharger Cylinders 4-6
DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCH (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCH and installed 05/2016-12/2019) with, P without 147, P without X51
from £2,338.52
from £2,338.52
# 25
MPN: 9A212303252
Exhaust gas turbocharger Cylinders 4-6
Exhaust gas turbocharger Cylinders 4-6
# 25
MPN: 9A212303255
Exhaust gas turbocharger Cylinders 4-6
GTS, DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCJA (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DCJA and installed 05/2016-12/2019) | DPE (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DPE and installed 05/2018-12/2019) | DPEA (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DPEA and installed 05/2015-12/2019)
from £3,020.29
from £3,020.29
# 25
MPN: 9A212303255
Exhaust gas turbocharger Cylinders 4-6
GTS, DCHA (3.0 Litre 6 Cyliner Engine (420 Horsepower / 309 Kilowatt with Engine Code: DCHA and installed 05/2016-12/2019) | DCJA (3.0 Litre 6 Cyliner Engine (450 Horsepower / 331 Kilowatt with Engine Code: DCJA and installed 05/2016-12/2019)
from £3,020.29
from £3,020.29
# 26
MPN: 90008105901
THREADED PIN M8X22
Supersession
Supersession
# 27
MPN: 9A212332700
CARRIER CYLINDERS 1-3 EXHAUST GAS TURBOCHARGER
from £106.79
from £106.79
# 28
MPN: 9A212332800
CARRIER CYLINDERS 4-6 EXHAUST GAS TURBOCHARGER
from £106.79
from £106.79
# 29
MPN: 90038500102
TORX SCREW BM8X20
# 30
MPN: 90038504201
TORX SCREW BM8X35
Supersession
Supersession
# 31
MPN: 9A211121500
SEAL EXHAUST GAS TURBOCHARGER
from £16.27
from £16.27
# 32
MPN: 9990732360A
FILLISTER HD. BOLT M6X10
Supersession
Supersession
# 33
MPN: 9P1253145
CLAMP SILENCER
P176 (Sports exhaust system)
from £36.40
from £36.40
# 34
MPN: 9P1251418
BRACKET RIGHT EXHAUST MANIFOLDS
from £29.20
from £29.20
# 35
MPN: 9P1251417
BRACKET LEFT EXHAUST MANIFOLDS
from £29.20
from £29.20
# 36
MPN: 90038504401
TORX SCREW BM8X16
from £2.29
from £2.29
-part-diagram-202-002.webp "PORSCHE 2018 (991-2) EXHAUST SYSTEM SILENCER CATALYTIC CONVERTER FOR VEHICLES WITH A PETROL PARTICULATE FILTER PARTS DIAGRAM")
-part-diagram-202-003.webp "PORSCHE 2018 (991-2) EXHAUST SYSTEM SENSORS CONTROL LINE CATALYTIC CONVERTER FOR VEHICLES WITH A PETROL PARTICULATE FILTER PARTS DIAGRAM")
-part-diagram-202-005.webp "PORSCHE 2018 (991-2) EXHAUST GAS TURBOCHARGER (EX.GAS TURBOC.>COOLANT PIPE) OIL PIPE PARTS DIAGRAM")
-part-diagram-202-007.webp "PORSCHE 2018 (991-2) EXHAUST GAS TURBOCHARGER COOLING SYSTEM COOLANT PIPE PARTS DIAGRAM")
-part-diagram-202-010.webp "PORSCHE 2018 (991-2) EXHAUST SYSTEM CONTROL LINE PARTS DIAGRAM")
-part-diagram-301-000.webp "PORSCHE 2018 (991-2) COUPLING PARTS DIAGRAM")
-part-diagram-301-005.webp "PORSCHE 2018 (991-2) CLUTCH SLAVE CYLINDER PARTS DIAGRAM")
-part-diagram-302-000.webp "PORSCHE 2018 (991-2) MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-302-005.webp "PORSCHE 2018 (991-2) MANUAL GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-302-010.webp "PORSCHE 2018 (991-2) MANUAL GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-302-015.webp "PORSCHE 2018 (991-2) MANUAL GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-305-000.webp "PORSCHE 2018 (991-2) FRONT AXLE DIFFERENTIAL Z91.00 CARDAN SHAFT PARTS DIAGRAM")
-part-diagram-305-005.webp "PORSCHE 2018 (991-2) FRONT AXLE DIFFERENTIAL INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-306-000.webp "PORSCHE 2018 (991-2) SUPPORT FRAME TRANSMISSION SECURING PARTS PARTS DIAGRAM")
-part-diagram-320-000.webp "PORSCHE 2018 (991-2) - PDK - GEARBOX (EXCHANGE PART) PARTS DIAGRAM")
-part-diagram-320-005.webp "PORSCHE 2018 (991-2) - PDK - GEARBOX INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-320-010.webp "PORSCHE 2018 (991-2) - PDK - GEARBOX CLUTCH FOR DUAL CLUTCH GEARBOX PARTS DIAGRAM")
-part-diagram-360-000.webp "PORSCHE 2018 (991-2) - PDK - GEARBOX HEAT EXCHANGER OIL PIPE WATER PIPE PARTS DIAGRAM")
-part-diagram-401-000.webp "PORSCHE 2018 (991-2) CROSS MEMBER WISHBONE PARTS DIAGRAM")
-part-diagram-401-005.webp "PORSCHE 2018 (991-2) WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-401-010.webp "PORSCHE 2018 (991-2) DRIVE SHAFT PARTS DIAGRAM")
-part-diagram-402-000.webp "PORSCHE 2018 (991-2) SUSPENSION SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-402-001.webp "PORSCHE 2018 (991-2) SUSPENSION SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-402-003.webp "PORSCHE 2018 (991-2) ADAPTIVE SUSPENSION PARTS DIAGRAM")
-part-diagram-402-005.webp "PORSCHE 2018 (991-2) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-402-010.webp "PORSCHE 2018 (991-2) ANTI-ROLL BAR PDCC PARTS DIAGRAM")
-part-diagram-402-020.webp "PORSCHE 2018 (991-2) HYDRAULIC LINE VALVE BLOCK FRONT END PDCC PARTS DIAGRAM")
-part-diagram-402-030.webp "PORSCHE 2018 (991-2) HYDRAULIC LINE FRONT END DAMPER PDCC PARTS DIAGRAM")
-part-diagram-402-040.webp "PORSCHE 2018 (991-2) HYDRAULIC LINE CENTER UNDERBODY PDCC PARTS DIAGRAM")
-part-diagram-402-050.webp "PORSCHE 2018 (991-2) HYDRAULIC LINE REAR END DAMPER PDCC PARTS DIAGRAM")
-part-diagram-402-060.webp "PORSCHE 2018 (991-2) HYDRAULIC LINE ENGINE PDCC PARTS DIAGRAM")
-part-diagram-403-000.webp "PORSCHE 2018 (991-2) STEERING GEAR PARTS DIAGRAM")
-part-diagram-403-004.webp "PORSCHE 2018 (991-2) STEERING WHEEL - PDK - PARTS DIAGRAM")
-part-diagram-403-005.webp "PORSCHE 2018 (991-2) STEERING WHEEL MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-403-006.webp "PORSCHE 2018 (991-2) STEERING COLUMN INTERMEDIATE STEERING SHAFT PARTS DIAGRAM")
-part-diagram-403-010.webp "PORSCHE 2018 (991-2) STEERING WHEEL INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-403-011.webp "PORSCHE 2018 (991-2) STEERING WHEEL INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-501-000.webp "PORSCHE 2018 (991-2) REAR AXLE WHEEL CARRIER WHEEL HUB PARTS DIAGRAM")
-part-diagram-501-001.webp "PORSCHE 2018 (991-2) REAR AXLE SIDE PART CARRIER GUIDE PARTS DIAGRAM")
-part-diagram-501-003.webp "PORSCHE 2018 (991-2) ANTI-ROLL BAR PARTS DIAGRAM")
-part-diagram-501-004.webp "PORSCHE 2018 (991-2) ANTI-ROLL BAR PDCC PARTS DIAGRAM")
-part-diagram-501-005.webp "PORSCHE 2018 (991-2) DRIVE SHAFT WHEEL HUB PARTS DIAGRAM")
-part-diagram-502-000.webp "PORSCHE 2018 (991-2) SHOCK ABSORBERS COIL SPRING PARTS DIAGRAM")
-part-diagram-601-000.webp "PORSCHE 2018 (991-2) ALUMINIUM RIM SPARE WHEEL TYRE SEALANT PARTS DIAGRAM")
-part-diagram-601-002.webp "PORSCHE 2018 (991-2) ALUMINIUM RIM SPARE WHEEL TYRE SEALANT CENTRAL LOCKING PARTS DIAGRAM")
-part-diagram-601-005.webp "PORSCHE 2018 (991-2) TYRE PRESSURE CONTROL SYSTEM PARTS DIAGRAM")
-part-diagram-602-000.webp "PORSCHE 2018 (991-2) DISC BRAKE FRONT AXLE PARTS DIAGRAM")
-part-diagram-603-000.webp "PORSCHE 2018 (991-2) DISC BRAKE REAR AXLE PARTS DIAGRAM")
-part-diagram-603-005.webp "PORSCHE 2018 (991-2) PARKING BRAKE PARTS DIAGRAM")
-part-diagram-604-000.webp "PORSCHE 2018 (991-2) BRAKE MASTER CYLINDER BRAKE SERVO PARTS DIAGRAM")
-part-diagram-604-005.webp "PORSCHE 2018 (991-2) BRAKE LINE FRONT FRONT END PARTS DIAGRAM")
-part-diagram-604-010.webp "PORSCHE 2018 (991-2) BRAKE LINE CENTER UNDERBODY REAR PARTS DIAGRAM")
-part-diagram-604-015.webp "PORSCHE 2018 (991-2) VACUUM LINE FRONT BRAKE SERVO CENTER REAR PARTS DIAGRAM")
-part-diagram-605-000.webp "PORSCHE 2018 (991-2) HYDRAULIC UNIT ANTI-LOCKING BRAKE SYST. -ABS- CONTROL AND REGULATING UNIT PARTS DIAGRAM")
-part-diagram-701-000.webp "PORSCHE 2018 (991-2) SELECTOR MECHANISM MANUAL GEARBOX PARTS DIAGRAM")
-part-diagram-701-001.webp "PORSCHE 2018 (991-2) SELECTOR LEVER - PDK - PARTS DIAGRAM")
-part-diagram-702-000.webp "PORSCHE 2018 (991-2) BRAKE AND ACCEL. LEVER MECH. BRAKE PEDAL CLUTCH PEDAL PARTS DIAGRAM")
-part-diagram-702-008.webp "PORSCHE 2018 (991-2) HYDRAULIC COUPLING ACTUATION CLUTCH MASTER CYLINDER CLUTCH SLAVE CYLINDER PIPE/HOSE LINE PARTS DIAGRAM")
-part-diagram-702-010.webp "PORSCHE 2018 (991-2) BRAKE AND ACCEL. LEVER MECH. THROTTLE CONTROL PARTS DIAGRAM")
-part-diagram-801-000.webp "PORSCHE 2018 (991-2) CAR BODY PARTS DIAGRAM")
-part-diagram-801-002.webp "PORSCHE 2018 (991-2) BUNGS PARTS DIAGRAM")
-part-diagram-801-005.webp "PORSCHE 2018 (991-2) FRONT END (COMPLETE) PARTS DIAGRAM")
-part-diagram-801-010.webp "PORSCHE 2018 (991-2) FRONT END INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-801-015.webp "PORSCHE 2018 (991-2) DOME STRUT PARTS DIAGRAM")
-part-diagram-801-020.webp "PORSCHE 2018 (991-2) FLOOR PLATES CENTER PARTS DIAGRAM")
-part-diagram-801-035.webp "PORSCHE 2018 (991-2) REAR END PARTS DIAGRAM")
-part-diagram-801-040.webp "PORSCHE 2018 (991-2) WING PARTS DIAGRAM")
-part-diagram-801-045.webp "PORSCHE 2018 (991-2) SCUTTLE ROOF PARTS DIAGRAM")
-part-diagram-801-050.webp "PORSCHE 2018 (991-2) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-055.webp "PORSCHE 2018 (991-2) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-056.webp "PORSCHE 2018 (991-2) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-060.webp "PORSCHE 2018 (991-2) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-061.webp "PORSCHE 2018 (991-2) SIDE PART INNER PARTS DIAGRAM")
-part-diagram-801-065.webp "PORSCHE 2018 (991-2) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-068.webp "PORSCHE 2018 (991-2) SIDE PART OUTER PARTS DIAGRAM")
-part-diagram-801-070.webp "PORSCHE 2018 (991-2) UNDERBODY TRIMS PARTS DIAGRAM")
-part-diagram-801-075.webp "PORSCHE 2018 (991-2) WHEEL HOUSING LINER TRIMS PARTS DIAGRAM")
-part-diagram-801-080.webp "PORSCHE 2018 (991-2) TRIM ENGINE BAY PARTS DIAGRAM")
-part-diagram-802-000.webp "PORSCHE 2018 (991-2) BUMPER FRONT SPOILER PARTS DIAGRAM")
-part-diagram-802-001.webp "PORSCHE 2018 (991-2) BUMPER FRONT SPOILER SPORT DESIGN PACKAGE PARTS DIAGRAM")
-part-diagram-802-002.webp "PORSCHE 2018 (991-2) BUMPER FRONT SPOILER GTS PARTS DIAGRAM")
-part-diagram-802-005.webp "PORSCHE 2018 (991-2) AIR GUIDE FRONT BUMPER PARTS DIAGRAM")
-part-diagram-802-006.webp "PORSCHE 2018 (991-2) AIR GUIDE FRONT BUMPER SPORT DESIGN PACKAGE PARTS DIAGRAM")
-part-diagram-802-007.webp "PORSCHE 2018 (991-2) AIR GUIDE FRONT BUMPER GTS PARTS DIAGRAM")
-part-diagram-802-010.webp "PORSCHE 2018 (991-2) BUMPER REAR PARTS DIAGRAM")
-part-diagram-802-011.webp "PORSCHE 2018 (991-2) BUMPER REAR PARTS DIAGRAM")
-part-diagram-802-015.webp "PORSCHE 2018 (991-2) BUMPER REAR PARTS DIAGRAM")
-part-diagram-802-016.webp "PORSCHE 2018 (991-2) BUMPER REAR CARRERA 4 PARTS DIAGRAM")
-part-diagram-802-017.webp "PORSCHE 2018 (991-2) BUMPER REAR CARRERA 4 GTS PARTS DIAGRAM")
-part-diagram-802-020.webp "PORSCHE 2018 (991-2) BUMPER CARRIER FRONT PARTS DIAGRAM")
-part-diagram-802-021.webp "PORSCHE 2018 (991-2) BUMPER CARRIER FRONT SPORT DESIGN PACKAGE PARTS DIAGRAM")
-part-diagram-802-022.webp "PORSCHE 2018 (991-2) BUMPER CARRIER FRONT GTS PARTS DIAGRAM")
-part-diagram-802-030.webp "PORSCHE 2018 (991-2) BUMPER CARRIER REAR PARTS DIAGRAM")
-part-diagram-802-035.webp "PORSCHE 2018 (991-2) BUMPER CARRIER REAR SPORT SILENCER PARTS DIAGRAM")
-part-diagram-803-000.webp "PORSCHE 2018 (991-2) COVER FRONT PARTS DIAGRAM")
-part-diagram-803-005.webp "PORSCHE 2018 (991-2) COVER REAR PARTS DIAGRAM")
-part-diagram-803-007.webp "PORSCHE 2018 (991-2) REAR SPOILER PARTS DIAGRAM")
-part-diagram-804-000.webp "PORSCHE 2018 (991-2) DOOR SHELL DOOR LOCK PARTS DIAGRAM")
-part-diagram-804-010.webp "PORSCHE 2018 (991-2) DOOR SEAL AND TRIM PARTS DIAGRAM")
-part-diagram-804-015.webp "PORSCHE 2018 (991-2) DOOR SEAL AND TRIM PARTS DIAGRAM")
-part-diagram-804-020.webp "PORSCHE 2018 (991-2) DOOR HANDLE, EXTERIOR PARTS DIAGRAM")
-part-diagram-804-030.webp "PORSCHE 2018 (991-2) WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-805-000.webp "PORSCHE 2018 (991-2) WINDSCREEN SIDE WINDOW REAR WINDOW PARTS DIAGRAM")
-part-diagram-805-005.webp "PORSCHE 2018 (991-2) SIDE WINDOW WINDOW REGULATOR PARTS DIAGRAM")
-part-diagram-805-010.webp "PORSCHE 2018 (991-2) REAR WINDOW PARTS DIAGRAM")
-part-diagram-807-000.webp "PORSCHE 2018 (991-2) LUGGAGE COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-807-005.webp "PORSCHE 2018 (991-2) LUGGAGE COMPARTMENT TRIM PARTS DIAGRAM")
-part-diagram-807-010.webp "PORSCHE 2018 (991-2) FLOORING TRIMS PARTS DIAGRAM")
-part-diagram-807-012.webp "PORSCHE 2018 (991-2) FLOORING TRIMS PARTS DIAGRAM")
-part-diagram-807-015.webp "PORSCHE 2018 (991-2) TRIM SILL PARTS DIAGRAM")
-part-diagram-807-020.webp "PORSCHE 2018 (991-2) SIDE PANEL TRIM BACK SEAT B-PILLAR PARTS DIAGRAM")
-part-diagram-807-025.webp "PORSCHE 2018 (991-2) TRIMS REAR C-PILLAR PARTS DIAGRAM")
-part-diagram-807-030.webp "PORSCHE 2018 (991-2) SIDE PANEL TRIM REAR PARTS DIAGRAM")
-part-diagram-807-032.webp "PORSCHE 2018 (991-2) SIDE PANEL TRIM REAR PARTS DIAGRAM")
-part-diagram-807-035.webp "PORSCHE 2018 (991-2) TRIM REAR PARTS DIAGRAM")
-part-diagram-807-040.webp "PORSCHE 2018 (991-2) TRIM REAR PARTS DIAGRAM")
-part-diagram-807-045.webp "PORSCHE 2018 (991-2) TRIMS CONVERTIBLE TOP STOWAGE BOX COVER PARTS DIAGRAM")
-part-diagram-807-050.webp "PORSCHE 2018 (991-2) ROOF TRIM A-PILLAR PARTS DIAGRAM")
-part-diagram-807-055.webp "PORSCHE 2018 (991-2) SILL TRIM STRIP SILL PARTS DIAGRAM")
-part-diagram-807-056.webp "PORSCHE 2018 (991-2) A-PILLAR WINDSHIELD FRAME PARTS DIAGRAM")
-part-diagram-807-057.webp "PORSCHE 2018 (991-2) A-PILLAR INNER B-PILLAR TRIM FOR WIND PROTECTION WINDOW FRAME PARTS DIAGRAM")
-part-diagram-807-065.webp "PORSCHE 2018 (991-2) SUN VIZORS PARTS DIAGRAM")
-part-diagram-807-070.webp "PORSCHE 2018 (991-2) SUN VIZORS PARTS DIAGRAM")
-part-diagram-807-080.webp "PORSCHE 2018 (991-2) BODY SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-807-082.webp "PORSCHE 2018 (991-2) BODY SOUND ABSORBERS PARTS DIAGRAM")
-part-diagram-807-083.webp "PORSCHE 2018 (991-2) BODY SOUND ABSORBER PARTS DIAGRAM")
-part-diagram-808-000.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHERETTE PARTS DIAGRAM")
-part-diagram-808-005.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHERETTE PARTS DIAGRAM")
-part-diagram-808-010.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHER TRIM GALVANO SILVER PARTS DIAGRAM")
-part-diagram-808-015.webp "PORSCHE 2018 (991-2) DOOR PANEL CABRIO ACCESSORIES TARGA LEATHER COUPE PARTS DIAGRAM")
-part-diagram-808-016.webp "PORSCHE 2018 (991-2) DOOR PANEL COUPE ACCESSORIES LEATHER TRIM ALUMINIUM BLACK FOR VEH. WITH CURTAIN AIRBAG D - MJ 2018>> PARTS DIAGRAM")
-part-diagram-808-020.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHER TRIM LEATHER PARTS DIAGRAM")
-part-diagram-808-025.webp "PORSCHE 2018 (991-2) DOOR PANEL 991 T ACCESSORIES LEATHER PARTS DIAGRAM")
-part-diagram-808-030.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHER TRIM MAHAGONI PARTS DIAGRAM")
-part-diagram-808-040.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHER TRIM CARBON PARTS DIAGRAM")
-part-diagram-808-050.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHER TRIM ALUMINIUM, BRUSHED PARTS DIAGRAM")
-part-diagram-808-060.webp "PORSCHE 2018 (991-2) DOOR PANEL ACCESSORIES LEATHER TRIM PAINTED PARTS DIAGRAM")
-part-diagram-808-065.webp "PORSCHE 2018 (991-2) DOOR PANEL 991 T ACCESSORIES LEATHER PARTS DIAGRAM")
-part-diagram-808-070.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHERETTE ALCANTARA PARTS DIAGRAM")
-part-diagram-808-071.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHERETTE ALCANTARA PARTS DIAGRAM")
-part-diagram-808-075.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHER ALCANTARA TRIM ALUMINIUM BLACK PARTS DIAGRAM")
-part-diagram-808-080.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHER ALCANTARA TRIM LEATHER PARTS DIAGRAM")
-part-diagram-808-085.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHER ALCANTARA TRIM CARBON PARTS DIAGRAM")
-part-diagram-808-090.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHER ALCANTARA TRIM ALUMINIUM, BRUSHED PARTS DIAGRAM")
-part-diagram-808-095.webp "PORSCHE 2018 (991-2) DOOR PANEL LEATHER ALCANTARA TRIM COLOUR CODED PAINTED PARTS DIAGRAM")
-part-diagram-809-000.webp "PORSCHE 2018 (991-2) INSTRUMENT PANEL TRIM UPPER PART WITH: FASTENERS PARTS DIAGRAM")
-part-diagram-809-005.webp "PORSCHE 2018 (991-2) ACCESSORIES INSTRUMENT PANEL TRIM UPPER PART PARTS DIAGRAM")
-part-diagram-809-010.webp "PORSCHE 2018 (991-2) GLOVE BOX AND TRIM (DRIVERS SIDE) PARTS DIAGRAM")
-part-diagram-809-015.webp "PORSCHE 2018 (991-2) RETAINING FRAME DASHBOARD PARTS DIAGRAM")
-part-diagram-809-020.webp "PORSCHE 2018 (991-2) CENTRE CONSOLE PARTS DIAGRAM")
-part-diagram-809-050.webp "PORSCHE 2018 (991-2) INTERIOR MIRROR EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-809-060.webp "PORSCHE 2018 (991-2) INTERIOR MIRROR EXTERIOR MIRROR SPORT DESIGN PACKAGE PARTS DIAGRAM")
-part-diagram-810-000.webp "PORSCHE 2018 (991-2) INSCRIPTIONS/LETTERING MOLDINGS STONE GUARD FILM PARTS DIAGRAM")
-part-diagram-810-005.webp "PORSCHE 2018 (991-2) SIDE MEMBER TRIM PARTS DIAGRAM")
-part-diagram-811-000.webp "PORSCHE 2018 (991-2) SLIDING/TILTING ROOF PARTS DIAGRAM")
-part-diagram-811-005.webp "PORSCHE 2018 (991-2) GLASS ROOF PARTS DIAGRAM")
-part-diagram-811-010.webp "PORSCHE 2018 (991-2) WIND DEFLECTOR PARTS DIAGRAM")
-part-diagram-811-015.webp "PORSCHE 2018 (991-2) TOP FRAME FRONT ROOF FRAME CATCH PARTS DIAGRAM")
-part-diagram-811-017.webp "PORSCHE 2018 (991-2) TOP FRAME FRONT ROOF FRAME CATCH PARTS DIAGRAM")
-part-diagram-811-020.webp "PORSCHE 2018 (991-2) TOP FRAME INDIVIDUAL PARTS ROOF ARCH PARTS DIAGRAM")
-part-diagram-811-022.webp "PORSCHE 2018 (991-2) TOP FRAME SIDE INDIVIDUAL PARTS ROOF ARCH LOCKING MECHANISM PARTS DIAGRAM")
-part-diagram-811-025.webp "PORSCHE 2018 (991-2) TOP FRAME SIDE INDIVIDUAL PARTS AND ELECTRICS PARTS DIAGRAM")
-part-diagram-811-027.webp "PORSCHE 2018 (991-2) TOP FRAME SIDE INDIVIDUAL PARTS AND ELECTRICAL PARTS PARTS DIAGRAM")
-part-diagram-811-030.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP SEAL PARTS DIAGRAM")
-part-diagram-811-032.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP SEAL PARTS DIAGRAM")
-part-diagram-811-035.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP COVERING SOFT TOP HEADLINER PARTS DIAGRAM")
-part-diagram-811-037.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP COVERING MOULDED HEADLINER PARTS DIAGRAM")
-part-diagram-811-040.webp "PORSCHE 2018 (991-2) SOFT TOP HEADLINER TRIMS PARTS DIAGRAM")
-part-diagram-811-042.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP ROOF TRIM PARTS DIAGRAM")
-part-diagram-811-050.webp "PORSCHE 2018 (991-2) FLAP SIDE FOLD-DOWN CONVERTIBLE ROOF PARTS DIAGRAM")
-part-diagram-811-052.webp "PORSCHE 2018 (991-2) TRIM TARGA ARM AND FLAP PARTS DIAGRAM")
-part-diagram-811-055.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP STOWAGE BOX DRIVE UNIT PARTS DIAGRAM")
-part-diagram-811-057.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP STOWAGE BOX DRIVE UNIT PARTS DIAGRAM")
-part-diagram-811-060.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP STOWAGE BOX COVER PARTS DIAGRAM")
-part-diagram-811-062.webp "PORSCHE 2018 (991-2) CONVERTIBLE TOP STOWAGE BOX COVER PARTS DIAGRAM")
-part-diagram-811-065.webp "PORSCHE 2018 (991-2) WINDBREAK ELECTRIC PARTS DIAGRAM")
-part-diagram-811-070.webp "PORSCHE 2018 (991-2) ROLL BAR PARTS DIAGRAM")
-part-diagram-811-072.webp "PORSCHE 2018 (991-2) RETAINING FRAME AND ACCESSORIES PARTS DIAGRAM")
-part-diagram-812-000.webp "PORSCHE 2018 (991-2) THREE-POINT SAFETY BELT FRONT PARTS DIAGRAM")
-part-diagram-812-005.webp "PORSCHE 2018 (991-2) THREE-POINT SAFETY BELT REAR PARTS DIAGRAM")
-part-diagram-812-050.webp "PORSCHE 2018 (991-2) AIRBAG PARTS DIAGRAM")
-part-diagram-813-000.webp "PORSCHE 2018 (991-2) AIR GUIDE PARTS DIAGRAM")
-part-diagram-813-010.webp "PORSCHE 2018 (991-2) AIR CONDITIONING AND INDIVIDUAL PARTS PARTS DIAGRAM")
-part-diagram-813-020.webp "PORSCHE 2018 (991-2) REFRIGERANT CIRCUIT FRONT PARTS DIAGRAM")
-part-diagram-813-025.webp "PORSCHE 2018 (991-2) AIR CONDITIONING REFRIGERANT LINE PARTS DIAGRAM")
-part-diagram-813-030.webp "PORSCHE 2018 (991-2) REFRIGERANT LINE UNDERBODY AND REAR END PARTS DIAGRAM")
-part-diagram-813-040.webp "PORSCHE 2018 (991-2) COMPRESSOR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-813-050.webp "PORSCHE 2018 (991-2) HEATER SUPPLY PIPE RETURN LINE PARTS DIAGRAM")
-part-diagram-817-000.webp "PORSCHE 2018 (991-2) SEAT FRONT (COMPLETE) SPORTS SEAT NO LONGER AVAILABLE TRIM COVER PANEL PARTS DIAGRAM")
-part-diagram-817-002.webp "PORSCHE 2018 (991-2) FOAM PART SEAT COVERS SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-004.webp "PORSCHE 2018 (991-2) BACKREST SHELL SPORTS SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-006.webp "PORSCHE 2018 (991-2) BACKREST FRAME SPORTS SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-008.webp "PORSCHE 2018 (991-2) SEAT FRAME SPORTS SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-009.webp "PORSCHE 2018 (991-2) SEAT PADDING FRAME SPORTS SEAT SEAT OCCUPIED RECOGNITION PARTS DIAGRAM")
-part-diagram-817-010.webp "PORSCHE 2018 (991-2) WIRING LOOMS SWITCH CONTROL UNIT ELECTRIC MOTOR SPORTS SEAT PARTS DIAGRAM")
-part-diagram-817-017.webp "PORSCHE 2018 (991-2) SEAT COVERS FOAM PART PARTS DIAGRAM")
-part-diagram-817-018.webp "PORSCHE 2018 (991-2) HEATER ELEMENT BACKREST BOLSTER HEATER ELEM. BACKREST HEATER ELEMENT SEAT AND SEAT SIDE HEATER ELEMENT PARTS DIAGRAM")
-part-diagram-817-019.webp "PORSCHE 2018 (991-2) BACKREST SHELL SPORTS SEAT PLUS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-021.webp "PORSCHE 2018 (991-2) BACKREST FRAME SPORTS SEAT PLUS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-022.webp "PORSCHE 2018 (991-2) LUMBAR SUPPORT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-023.webp "PORSCHE 2018 (991-2) SEAT FRAME SPORTS SEAT PLUS ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-024.webp "PORSCHE 2018 (991-2) SEAT PADDING FRAME SPORTS SEAT PLUS PARTS DIAGRAM")
-part-diagram-817-025.webp "PORSCHE 2018 (991-2) WIRING LOOMS SWITCH CONTROL UNITS ELECTRIC MOTOR SPORTS SEAT PLUS PARTS DIAGRAM")
-part-diagram-817-030.webp "PORSCHE 2018 (991-2) BUCKET SEAT FOLDING (COMPLETE) NO LONGER AVAILABLE PARTS DIAGRAM")
-part-diagram-817-032.webp "PORSCHE 2018 (991-2) FOAM PART SEAT COVERS SEAT AND BACKREST SURFACE BUCKET SEAT FOLDING PARTS DIAGRAM")
-part-diagram-817-034.webp "PORSCHE 2018 (991-2) BUCKET SEAT FOLDING SEAT FRAME ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-036.webp "PORSCHE 2018 (991-2) BACKREST SHELL FOLDING BUCKET SEAT ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-040.webp "PORSCHE 2018 (991-2) EMERGENCY SEAT BACKREST ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-044.webp "PORSCHE 2018 (991-2) EMERGENCY SEAT BACKREST ACCESSORIES PARTS DIAGRAM")
-part-diagram-817-050.webp "PORSCHE 2018 (991-2) BACK SEAT CUSHION FASTENERS PARTS DIAGRAM")
-part-diagram-817-054.webp "PORSCHE 2018 (991-2) BACK SEAT CUSHION FASTENERS PARTS DIAGRAM")
-part-diagram-898-000.webp "PORSCHE 2018 (991-2) REPAIR SET 1 SET OF LOCK CYLINDERS PARTS DIAGRAM")
-part-diagram-901-000.webp "PORSCHE 2018 (991-2) IGNITION SYSTEM PARTS DIAGRAM")
-part-diagram-901-003.webp "PORSCHE 2018 (991-2) CONTROL UNITS PARTS DIAGRAM")
-part-diagram-901-004.webp "PORSCHE 2018 (991-2) CONTROL UNITS FRONT END REAR END HANDHELD TRANSMITTER IGNITION/STARTER SWITCH AERIAL SENSOR FOR INTERIOR MONITORING VTS VEHICLE TRACKING PARTS DIAGRAM")
-part-diagram-901-005.webp "PORSCHE 2018 (991-2) CONTROL UNIT PRESSURE SENSOR AIRBAG PARTS DIAGRAM")
-part-diagram-902-000.webp "PORSCHE 2018 (991-2) CENTRAL ELECTRICS DASHBOARD PARTS DIAGRAM")
-part-diagram-902-001.webp "PORSCHE 2018 (991-2) CENTRAL ELECTRICS REAR END PARTS DIAGRAM")
-part-diagram-902-005.webp "PORSCHE 2018 (991-2) STARTER ALTERNATOR EARTH LINE PARTS DIAGRAM")
-part-diagram-902-006.webp "PORSCHE 2018 (991-2) BATTERY POTENTIAL DISTRIBUTOR PARTS DIAGRAM")
-part-diagram-902-010.webp "PORSCHE 2018 (991-2) WIRING LOOMS PASSENGER COMPARTMENT AND PART SECTION WIRING HARNESS PARTS DIAGRAM")
-part-diagram-902-011.webp "PORSCHE 2018 (991-2) WIRING LOOMS FRONT DASHBOARD TRIM COVER STEERING FRONT AXLE PARTS DIAGRAM")
-part-diagram-902-015.webp "PORSCHE 2018 (991-2) WIRING LOOMS DOORS CENTRE CONSOLE CONTROL UNIT DOORS CONVERTIBLE TOP CONTROL PARTS DIAGRAM")
-part-diagram-902-020.webp "PORSCHE 2018 (991-2) WIRING LOOMS REAR ASSEMBLY FRAME ADDITIONAL BRAKE LIGHT TRIM ENGINE REAR AXLE PARTS DIAGRAM")
-part-diagram-902-060.webp "PORSCHE 2018 (991-2) WIRING LOOMS AIRBAG FOR VEHICLES WITH SEAT BELTS PARTS DIAGRAM")
-part-diagram-903-000.webp "PORSCHE 2018 (991-2) FANFARE SIGNAL HORN ALARM SYSTEM PARTS DIAGRAM")
-part-diagram-903-004.webp "PORSCHE 2018 (991-2) INTERIOR LIGHTING DOOR WARNING LIGHT FOOTWELL LIGHT LUGGAGE COMPARTMENT LAMP GLOVE BOX LIGHT LIGHT EXTERIOR MIRROR PARTS DIAGRAM")
-part-diagram-903-005.webp "PORSCHE 2018 (991-2) SWITCH CONTROL PANEL AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-903-006.webp "PORSCHE 2018 (991-2) CONSOLE ROOF COUPE PARTS DIAGRAM")
-part-diagram-903-007.webp "PORSCHE 2018 (991-2) CONSOLE ROOF CABRIOLET TARGA PARTS DIAGRAM")
-part-diagram-903-010.webp "PORSCHE 2018 (991-2) STEERING COLUMN SWITCH PARTS DIAGRAM")
-part-diagram-904-000.webp "PORSCHE 2018 (991-2) WINDSCREEN WIPER SYSTEM, COMPL RAIN SENSOR PARTS DIAGRAM")
-part-diagram-904-005.webp "PORSCHE 2018 (991-2) REAR WINDOW WIPER PARTS DIAGRAM")
-part-diagram-904-010.webp "PORSCHE 2018 (991-2) WINDSCREEN WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-904-021.webp "PORSCHE 2018 (991-2) HEADLIGHT WASHER SYSTEM PARTS DIAGRAM")
-part-diagram-905-000.webp "PORSCHE 2018 (991-2) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER PARTS DIAGRAM")
905-000 Headlights Additional headlight Turn signal indicator side marker light Turn signal repeater -part-diagram-905-001.webp "PORSCHE 2018 (991-2) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER PARTS DIAGRAM")
905-001 Headlights Additional headlight Turn signal indicator side marker light Turn signal repeater -part-diagram-905-003.webp "PORSCHE 2018 (991-2) HEADLIGHTS ADDITIONAL HEADLIGHT TURN SIGNAL INDICATOR SIDE MARKER LIGHT TURN SIGNAL REPEATER PARTS DIAGRAM")
-part-diagram-905-005.webp "PORSCHE 2018 (991-2) REAR LIGHT LICENCE PLATE LIGHT ADDITIONAL BRAKE LIGHT PARTS DIAGRAM")
-part-diagram-906-000.webp "PORSCHE 2018 (991-2) COMBI-INSTRUMENT BASIC STOPWATCH PARTS DIAGRAM")
-part-diagram-906-001.webp "PORSCHE 2018 (991-2) COMBI-INSTRUMENT DIAL EXCLUSIVE FITTINGS PARTS DIAGRAM")
-part-diagram-911-000.webp "PORSCHE 2018 (991-2) DISPLAY CENTRAL COMPUTER NAVIGATION SYSTEM TV MICROPHONE MULTIMEDIA INTERFACE COUPLING ANTENNA CAMERA CONNECTING LINE PARTS DIAGRAM")
-part-diagram-911-001.webp "PORSCHE 2018 (991-2) SD MEMORY CARD FOR UPDATING THE NAVIGATION DATA SOFTWARE CENTRAL COMPUTER PARTS DIAGRAM")
-part-diagram-911-002.webp "PORSCHE 2018 (991-2) AERIAL SINGLE WIRE PARTS DIAGRAM")
-part-diagram-911-004.webp "PORSCHE 2018 (991-2) FOR MODELS WITH TELEPHONE AND EMERGENCY CALL PARTS DIAGRAM")
-part-diagram-911-005.webp "PORSCHE 2018 (991-2) LOUDSPEAKER PARTS DIAGRAM")
-part-diagram-911-010.webp "PORSCHE 2018 (991-2) AMPLIFIERS PARTS DIAGRAM")
-part-diagram-001-000.webp "PORSCHE 2018 (991-2) TOOL JACK PARTS DIAGRAM")
-part-diagram-001-005.webp "PORSCHE 2018 (991-2) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-010.webp "PORSCHE 2018 (991-2) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-003-020.webp "PORSCHE 2018 (991-2) SIGNS/NOTICES PARTS DIAGRAM")
-part-diagram-004-000.webp "PORSCHE 2018 (991-2) PAINT TOUCH-UP APPLICATOR PAINTS PARTS DIAGRAM")
-part-diagram-101-000.webp "PORSCHE 2018 (991-2) REPLACEMENT ENGINE WITHOUT: CLUTCH PLATE - PDK - GEARBOX WITHOUT: FLYWHEEL MANUAL GEARBOX WITH: COMPRESSOR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-101-001.webp "PORSCHE 2018 (991-2) REPLACEMENT ENGINE FOR VEHICLES WITH A PETROL PARTICULATE FILTER WITHOUT: CLUTCH PLATE - PDK - GEARBOX WITH: COMPRESSOR AIR CONDITIONING PARTS DIAGRAM")
-part-diagram-101-005.webp "PORSCHE 2018 (991-2) CRANKCASE HOUSING PARTS DIAGRAM")
-part-diagram-101-010.webp "PORSCHE 2018 (991-2) BELT TENSIONER DAMPER V-BELT PARTS DIAGRAM")
-part-diagram-102-000.webp "PORSCHE 2018 (991-2) CRANKSHAFT CONROD PARTS DIAGRAM")
-part-diagram-102-005.webp "PORSCHE 2018 (991-2) PISTON PARTS DIAGRAM")
-part-diagram-103-000.webp "PORSCHE 2018 (991-2) CYLINDER HEAD WITH: VALVE CYLINDER HEAD GASKET VALVE COVER PARTS DIAGRAM")
-part-diagram-103-005.webp "PORSCHE 2018 (991-2) CYLINDER HEAD ACCESSORIES INLET/OUTLET VALVE PARTS DIAGRAM")
-part-diagram-103-010.webp "PORSCHE 2018 (991-2) CAMSHAFT HYDRAULIC TAPPET CAMSHAFT ADJUSTER UNIT PARTS DIAGRAM")
-part-diagram-103-015.webp "PORSCHE 2018 (991-2) TIMING CHAIN PARTS DIAGRAM")
-part-diagram-104-000.webp "PORSCHE 2018 (991-2) OIL PUMP PARTS DIAGRAM")
-part-diagram-104-002.webp "PORSCHE 2018 (991-2) OIL SUMP PARTS DIAGRAM")
-part-diagram-104-005.webp "PORSCHE 2018 (991-2) ENGINE (OIL PRESS./LUBRICA.) PARTS DIAGRAM")
-part-diagram-104-010.webp "PORSCHE 2018 (991-2) CRANKCASE HOUSING VENTILATION TANK VENTILATION VACUUM LINE PARTS DIAGRAM")
-part-diagram-105-000.webp "PORSCHE 2018 (991-2) COOLANT PUMP THERMOSTAT HOUSING PARTS DIAGRAM")
-part-diagram-105-003.webp "PORSCHE 2018 (991-2) ASSEMBLY CARRIER WATER PIPE PARTS DIAGRAM")
-part-diagram-105-005.webp "PORSCHE 2018 (991-2) WATER PIPE COOLANT COOLING SYSTEM EXHAUST GAS TURBOCHARGER PARTS DIAGRAM")
-part-diagram-105-007.webp "PORSCHE 2018 (991-2) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-010.webp "PORSCHE 2018 (991-2) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-015.webp "PORSCHE 2018 (991-2) COOLANT COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-105-017.webp "PORSCHE 2018 (991-2) COOLER FOR COOLANT CENTER PARTS DIAGRAM")
-part-diagram-105-020.webp "PORSCHE 2018 (991-2) COOLANT COOLING SYSTEM FLUID RESERVOIR OIL FILLER SUPPORT PARTS DIAGRAM")
-part-diagram-106-000.webp "PORSCHE 2018 (991-2) AIR FILTER PARTS DIAGRAM")
-part-diagram-106-005.webp "PORSCHE 2018 (991-2) AIR FILTER VACUUM SYSTEM PARTS DIAGRAM")
-part-diagram-107-000.webp "PORSCHE 2018 (991-2) FUEL COLLECTION PIPE HIGH PRESSURE PUMP PARTS DIAGRAM")
-part-diagram-107-005.webp "PORSCHE 2018 (991-2) INTAKE AIR DISTRIBUTOR THROTTLE VALVE ADAPTER PARTS DIAGRAM")
-part-diagram-107-015.webp "PORSCHE 2018 (991-2) VACUUM SYSTEM ENGINE VACUUM PUMP PARTS DIAGRAM")
-part-diagram-107-020.webp "PORSCHE 2018 (991-2) CHARGE AIR COOLER PARTS DIAGRAM")
-part-diagram-109-000.webp "PORSCHE 2018 (991-2) ENGINE LIFTING TACKLE PARTS DIAGRAM")
-part-diagram-201-000.webp "PORSCHE 2018 (991-2) FUEL TANK PARTS DIAGRAM")
-part-diagram-201-005.webp "PORSCHE 2018 (991-2) FUEL LINE FRONT FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-201-010.webp "PORSCHE 2018 (991-2) FUEL LINE REAR FUEL SUPPLY SYSTEM PARTS DIAGRAM")
-part-diagram-201-020.webp "PORSCHE 2018 (991-2) ACTIVATED CHARCOAL CONTAINER PARTS DIAGRAM")
