P653 (External-sliding glass sunroof)
porsche 2018 (991-2 turbo) glass roof parts diagram

811-005 - glass roof

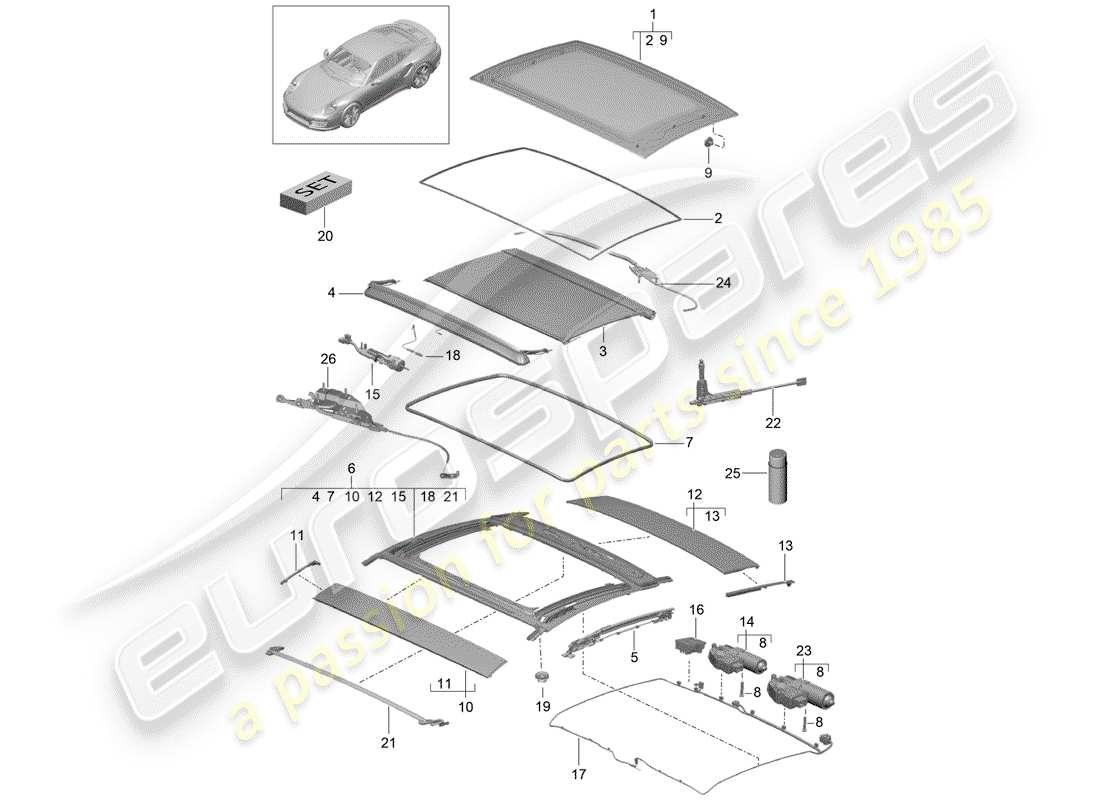

Porsche 2018 (991-2 Turbo) Glass roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 99156634500
                    GLASS ROOF D >>- MJ 2016
                    P653 (External-sliding glass sunroof)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 1
                    MPN: 99156634501
                    Glass roof D - MJ 2017>>
                    Glass roof D - MJ 2017>>
                    glass roof Genuine Porsche Part - New (to order)
                    # 1
                    MPN: 9P1898516A
                    Glass roof D - MJ 2017>>
                    from £2,193.06
                    from £2,193.06
                    This part replaces part number 9P1898516
                    glass roof Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99156646500
                    SEAL GLASS ROOF
                    P653 (External-sliding glass sunroof)
                    GASKET Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 00004330339
                    GREASE 50 GRAMM FOR SEAL GLASS ROOF
                    from £53.11
                    from £53.11
                    GREASE Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690700OH7
                    ROLLER BLIND GLASS ROOF INCLUDED FASTENERS - GRAPHITE BLUE -HZ,BG,TG
                    P653 (External-sliding glass sunroof)
                    from £431.24
                    from £431.24
                    This part replaces part number 99156690700
                    GRAPHITEGREY Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690700OA3
                    ROLLER BLIND GLASS ROOF INCLUDED FASTENERS - BLACK -AZ,EZ,BR,BL, SZ,LZ,BT,BM,TD BA,BQ,NG,99
                    P653 (External-sliding glass sunroof)
                    This part replaces part number 99156690700
                    Black Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690700OC5
                    ROLLER BLIND GLASS ROOF INCLUDED FASTENERS - PLATINUM GREY -CZ
                    P653 (External-sliding glass sunroof)
                    from £316.36
                    from £316.36
                    This part replaces part number 99156690700
                    PLATINUM GREY Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690700OB4
                    ROLLER BLIND GLASS ROOF INCLUDED FASTENERS - LUXOR BEIGE -UZ
                    P653 (External-sliding glass sunroof)
                    This part replaces part number 99156690700
                    LUXOR BEIGE Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690700OG9
                    ROLLER BLIND GLASS ROOF INCLUDED FASTENERS - AGATE GREY -DK,BV
                    P653 (External-sliding glass sunroof)
                    from £325.84
                    from £325.84
                    This part replaces part number 99156690700
                    AGATE GREY Genuine Porsche Part - New (to order)
                    # 3
                    MPN: 99156690700OE7
                    ROLLER BLIND GLASS ROOF INCLUDED FASTENERS - ESPRESSO -NE,BH,BY
                    P653 (External-sliding glass sunroof)
                    This part replaces part number 99156690700
                    ESPRESSO Genuine Porsche Part - New (to order)
                    # 4
                    MPN: 99156616100
                    WIND DEFLECTOR (COMPLETE) INCLUDED FASTENERS
                    P653 (External-sliding glass sunroof)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 5
                    MPN: 99156635100
                    GUIDE RAIL LEFT INCLUDED GATE GUIDE (COMPLETE)
                    P653 (External-sliding glass sunroof)
                    from £446.98
                    from £446.98
                    TRACK Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99156635200
                    GUIDE RAIL RIGHT INCLUDED GATE GUIDE (COMPLETE) D >>- 09.03.2016
                    P653 (External-sliding glass sunroof)
                    from £629.00
                    from £629.00
                    TRACK Genuine Porsche Part - New (to order)
                    # 5
                    MPN: 99156635201
                    GUIDE RAIL RIGHT INCLUDED GATE GUIDE (COMPLETE) D - 10.03.2016>>
                    P653 (External-sliding glass sunroof)
                    TRACK Genuine Porsche Part - New (to order)
                    # 6
                    MPN: 99156621500
                    FRAME FOR SLIDING SUNROOF APERTURE ALSO USE: 1X 991 566 960 00 SEE WORKSHOP MANUAL
                    P653 (External-sliding glass sunroof)
                    FRAME FOR SLIDING ROOF Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99156633100
                    SEAL FRAME USE IF REQUIRED:
                    P653 (External-sliding glass sunroof)
                    GASKET Genuine Porsche Part - New (to order)
                    # 7
                    MPN: 99991557740
                    PRIMER FOR SEAL
                    PRIMER Genuine Porsche Part - New (to order)
                    # 8
                    MPN: 95856205700
                    1 SET SECURING BOLTS
                    from £17.49
                    from £17.49
                    1 SET SECURING BOLTS Genuine Porsche Part - New (to order)
                    # 9
                    MPN: 99156694500
                    1 SET SECURING BOLTS COVER
                    from £28.65
                    from £28.65
                    1 SET SECURING BOLTS Genuine Porsche Part - New (to order)
                    # 10
                    MPN: 99156632100GRV
                    TRIM FRONT - PRIMED
                    P653 (External-sliding glass sunroof)
                    This part replaces part number 99156632100
                    PRIMED Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99156692300
                    SEAL LEFT FRONT TRIM
                    P653 (External-sliding glass sunroof)
                    from £51.29
                    from £51.29
                    GASKET Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99156692400
                    Seal right front Trim
                    P653 (External-sliding glass sunroof)
                    from £51.30
                    from £51.30
                    GASKET Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 99156632500GRV
                    TRIM REAR - PRIMED
                    P653 (External-sliding glass sunroof)
                    This part replaces part number 99156632500
                    PRIMED Genuine Porsche Part - New (to order)
                    # 13
                    MPN: 99156692700
                    SEAL LEFT REAR TRIM
                    P653 (External-sliding glass sunroof)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 13
                    MPN: 99156692800
                    SEAL RIGHT REAR TRIM
                    P653 (External-sliding glass sunroof)
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 14
                    MPN: 99162491100
                    ELECTRIC DRIVE GLASS ROOF INCLUDED FASTENERS
                    P653 (External-sliding glass sunroof)
                    from £405.70
                    from £405.70
                    ELECTRIC DRIVE Genuine Porsche Part - New (to order)
                    # 15
                    MPN: 99162491500
                    ELECTRIC DRIVE WIND DEFLECTOR INSTALLATION KIT
                    P653 (External-sliding glass sunroof)
                    from £281.32
                    from £281.32
                    ELECTRIC DRIVE Genuine Porsche Part - New (to order)
                    # 16
                    MPN: 99161821502
                    CONTROL UNIT WIND DEFLECTOR
                    electronic control module Genuine Porsche Part - New (to order)
                    # 17
                    MPN: 99161287100
                    WIRE SET GLASS ROOF
                    P653 (External-sliding glass sunroof)
                    from £159.22
                    from £159.22
                    harness Genuine Porsche Part - New (to order)
                    # 18
                    MPN: 99156696100
                    REPAIR SET CABLE GUIDE WIND DEFLECTOR
                    P653 (External-sliding glass sunroof)
                    from £45.37
                    from £45.37
                    repair kit Genuine Porsche Part - New (to order)
                    # 19
                    MPN: N 90570802
                    HEX. NUT WITH WASHER M6 FRAME
                    from £0.96
                    from £0.96
                    HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                    HEX. NUT WITH WASHER Genuine Bentley Part - New (to order)
                    # 20
                    MPN: 00004330319
                    ADHESIVE SET
                    Adhesive set - for - Frame for light - rear window glass Genuine Porsche Part - New (to order)
                    # 20
                    MPN: 00004330535
                    2K PANE ADHESIVE SET
                    from £142.35
                    from £142.35
                    This part replaces part number 00004330094
                    2K-glass GLUE APPLICATION SET Genuine Porsche Part - New In stock
                    # 21
                    MPN: 99156644300
                    TRANSVERSE STRUT INCLUDED FASTENERS
                    TRANSVERSE STRUT Genuine Porsche Part - New (to order)
                    # 22
                    -
                    CRANK EMERGENCY OPERATION SEE ILLUSTRATION: 001-000
                    # 23
                    MPN: 99162491300
                    DRIVE F. SUNLIGHT ROLLER BLIND REPAIR SET
                    P653 (External-sliding glass sunroof)
                    from £405.70
                    from £405.70
                    DRIVE F. SUNLIGHT ROLLER BLIND Genuine Porsche Part - New (to order)
                    # 24
                    MPN: 99156696000
                    REPAIR SET CABLE FOR ROLLER BLIND
                    repair kit Genuine Porsche Part - New (to order)
                    # 25
                    MPN: 00004330621
                    SPECIAL LUBRICANT FOR 150ML SLIDING GLIDES 1 TUBE D >>- MJ 2016
                    from £35.24
                    from £35.24
                    SPECIAL LUBRICANT FOR Genuine Porsche Part - New (to order)
                    # 25
                    MPN: N 052567GB
                    SPECIAL LUBRICANT SPRAY CAN D - MJ 2017>>
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 26
                    MPN: 99156697000
                    REPAIR SET LOCKING MECHANISM D - MJ 2017>>
                    P653 (External-sliding glass sunroof)
                    repair kit Genuine Porsche Part - New (to order)
