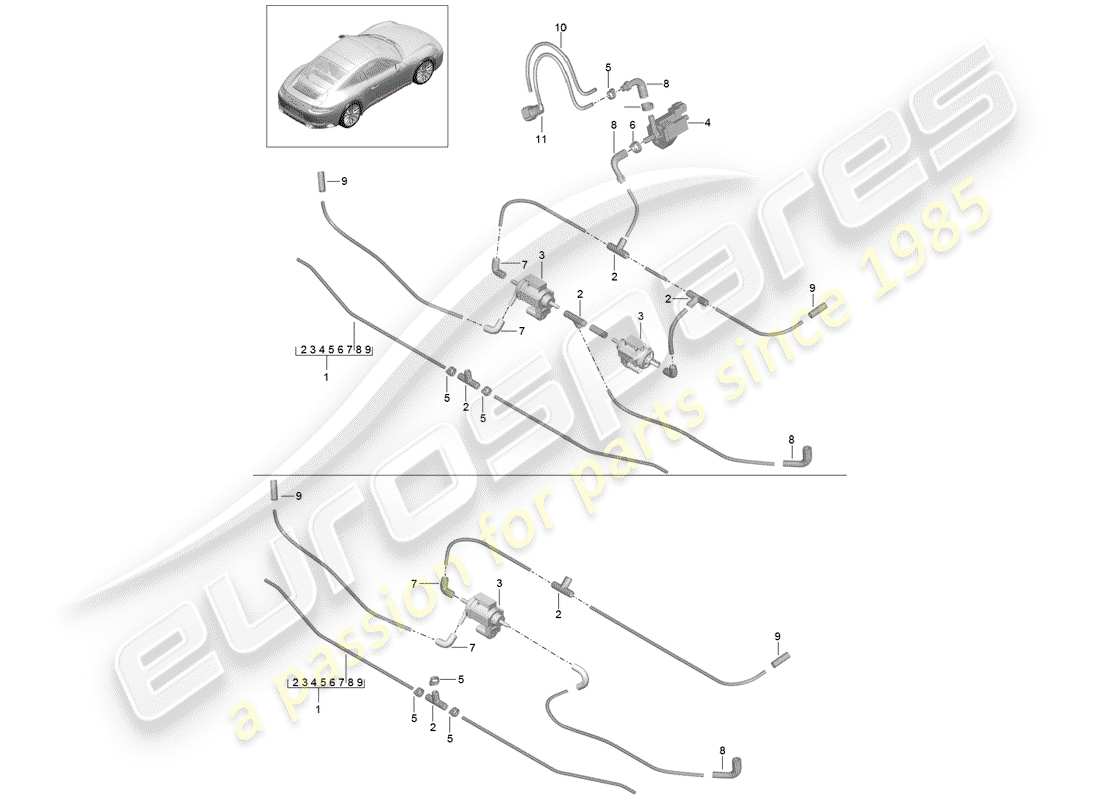

106-005 - Air filter vacuum system
Porsche 2019 (991-2) Air filter vacuum system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 1
MPN: 99111018030
Vacuum line Air filter (complete) No longer available alternatively, you can use: Individual parts
Vacuum line Air filter (complete) No longer available alternatively, you can use: Individual parts
# 1
MPN: 99111018130
Vacuum line Air filter (complete) No longer available alternatively, you can use: Individual parts
Vacuum line Air filter (complete) No longer available alternatively, you can use: Individual parts
# 2
MPN: 06E133794
T-PIECE
P008 (Basic 981/991) | P without 176
Supersession
Supersession
# 2
MPN: 06E133794
T-PIECE
P009 (s 981/991) | P176 (Sports exhaust system)
Supersession
Supersession
# 3
MPN: 7PP906283F
Change-over valve
P008 (Basic 981/991) | P without 176
Supersession
Supersession
# 3
MPN: 7PP906283F
Change-over valve
P009 (s 981/991) | P176 (Sports exhaust system)
Supersession
Supersession
# 4
MPN: 9A160512501
Change-over valve
from £81.74
from £81.74
# 5
MPN: 99951270700
EAR CRIMP HOSE CLAMP 9,6-11,3
from £2.29
from £2.29
# 6
MPN: 99951249800
HOSE CLAMP 13,1 - 15,3
from £6.78
from £6.78
# 7
MPN: 9A111066600
CONNECTING PIECE
Supersession
Supersession
# 8
MPN: 9A111066700
MOLDED HOSE
from £6.75
from £6.75
# 9
MPN: 99923904840
HOSE 4,5X2,5X28
P008 (Basic 981/991) | P without 176
from £5.20
from £5.20
# 9
MPN: 99923904840
HOSE 4,5X2,5X28
P009 (s 981/991) | P176 (Sports exhaust system)
from £5.20
from £5.20
# 10
MPN: 99918144540
PROTECTIVE HOSE 5,0X200
from £0.82
from £0.82
# 11
MPN: 9A111017270
VACUUM LINE 5,0X1,0X220 WITH: COUPLING
from £19.64
from £19.64
# 11
MPN: 90091800540
PIPE 5,0X1,0 MODIFY IN WORKSHOP
from £6.78
from £6.78
# 12
-
VACUUM LINE L=315MM
# 13
-
VACUUM LINE L=70MM
# 14
-
VACUUM LINE L=150MM
P008 (Basic 981/991) | P without 176
# 14
-
VACUUM LINE L=150MM
P009 (s 981/991) | P176 (Sports exhaust system)
# 15
-
VACUUM LINE L=185MM
P009 (s 981/991) | P176 (Sports exhaust system)
# 16
-
VACUUM LINE L=350MM
P009 (s 981/991) | P176 (Sports exhaust system)
# 17
-
VACUUM LINE L=20MM
P009 (s 981/991) | P176 (Sports exhaust system)
# 18
-
VACUUM LINE L=60MM
P009 (s 981/991) | P176 (Sports exhaust system)
# 19
-
VACUUM LINE L=220MM
P009 (s 981/991) | P176 (Sports exhaust system)
