porsche 2019 (991-2) charge air cooler parts diagram

107-020 - CHARGE AIR COOLER

Porsche 2019 (991-2) Charge air cooler Parts Diagram

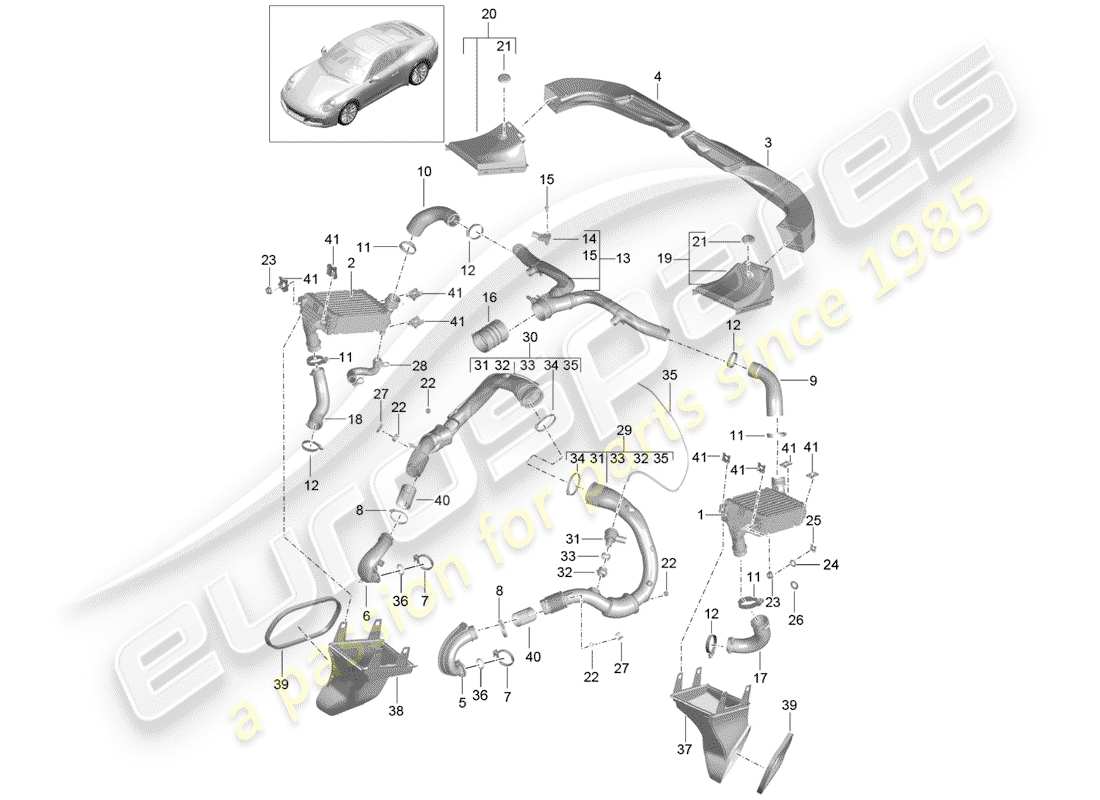

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Key
                                                                                  Price
                                                                                  # 1
                                                                                  MPN: 9P1145621A
                                                                                  CHARGE AIR COOLER LEFT
                                                                                  from £495.03
                                                                                  from £495.03
                                                                                  CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                                                  # 2
                                                                                  MPN: 9P1145622A
                                                                                  CHARGE AIR COOLER RIGHT
                                                                                  from £495.03
                                                                                  from £495.03
                                                                                  CHARGE AIR COOLER Genuine Porsche Part - New (to order)
                                                                                  # 3
                                                                                  MPN: 9P1145333A
                                                                                  AIR GUIDE LEFT
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 4
                                                                                  MPN: 9P1145334A
                                                                                  AIR GUIDE RIGHT
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 5
                                                                                  MPN: 9P1145583A
                                                                                  AIR GUIDE LEFT
                                                                                  from £56.74
                                                                                  from £56.74
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 6
                                                                                  MPN: 9P1145584A
                                                                                  AIR GUIDE RIGHT
                                                                                  from £76.46
                                                                                  from £76.46
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 7
                                                                                  MPN: 9P1129260A
                                                                                  CLAMP 76MM
                                                                                  from £22.14
                                                                                  from £22.14
                                                                                  CLAMP Genuine Porsche Part - New (to order)
                                                                                  # 8
                                                                                  MPN: 99951277901
                                                                                  HOSE CLAMP 50-70
                                                                                  from £4.91
                                                                                  from £4.91
                                                                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                  # 9
                                                                                  MPN: 9P1145745
                                                                                  Pressure hose left
                                                                                  from £50.47
                                                                                  from £50.47
                                                                                  PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                                                  # 10
                                                                                  MPN: 9P1145746
                                                                                  PRESSURE HOSE RIGHT
                                                                                  from £48.51
                                                                                  from £48.51
                                                                                  PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                                                  # 11
                                                                                  MPN: N 10518801
                                                                                  HOSE CLAMP A40-60X12X0,8
                                                                                  from £4.82
                                                                                  from £4.82
                                                                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                  HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                  # 12
                                                                                  MPN: N 10518901
                                                                                  HOSE CLAMP A50-70X12
                                                                                  from £4.82
                                                                                  from £4.82
                                                                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                  HOSE CLAMP Genuine Bentley Part - New (to order)
                                                                                  HOSE CLAMP Genuine Lamborghini - New (to order)
                                                                                  # 13
                                                                                  MPN: 9P1145683C
                                                                                  PRESSURE PIPE
                                                                                  from £60.11
                                                                                  from £60.11
                                                                                  PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                                                  # 14
                                                                                  MPN: 06E906051AA
                                                                                  PRESSURE SENSOR
                                                                                  PRESSURE SENSOR
                                                                                  from £65.50
                                                                                  from £65.50
                                                                                  PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                                                  Genuine Bentley Part (no longer available to order)
                                                                                  # 14
                                                                                  MPN: 9A790605110
                                                                                  PRESSURE SENSOR
                                                                                  Supersession
                                                                                  Supersession
                                                                                  Genuine Porsche Part (no longer available to order)
                                                                                  # 15
                                                                                  MPN: 99991913409
                                                                                  FILLISTER HD. BOLT 6,0X16
                                                                                  from £0.91
                                                                                  from £0.91
                                                                                  FILLISTER HD. SCREW - 6,0 X 16 Genuine Porsche Part - New In stock
                                                                                  # 16
                                                                                  MPN: 9P1129659
                                                                                  AIR GUIDE WITH: CLAMP
                                                                                  from £60.07
                                                                                  from £60.07
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 17
                                                                                  MPN: 9P1145719A
                                                                                  Pressure hose left
                                                                                  from £54.37
                                                                                  from £54.37
                                                                                  PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                                                  # 18
                                                                                  MPN: 9P1145720A
                                                                                  PRESSURE HOSE RIGHT
                                                                                  from £61.10
                                                                                  from £61.10
                                                                                  PRESSURE HOSE Genuine Porsche Part - New (to order)
                                                                                  # 19
                                                                                  MPN: 99157575701
                                                                                  Air guide left Charge air cooler
                                                                                  from £53.05
                                                                                  from £53.05
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 20
                                                                                  MPN: 99157575801
                                                                                  Air guide right Charge air cooler
                                                                                  from £53.05
                                                                                  from £53.05
                                                                                  AIR DUCT Genuine Porsche Part - New (to order)
                                                                                  # 21
                                                                                  MPN: N 90964901
                                                                                  SEALING CAP AIR GUIDE CHARGE AIR COOLER
                                                                                  from £1.67
                                                                                  from £1.67
                                                                                  SEALING CAP Genuine Porsche Part - New (to order)
                                                                                  # 22
                                                                                  MPN: 99970231941
                                                                                  GROMMET 10,0X16,8X9,0
                                                                                  from £4.57
                                                                                  from £4.57
                                                                                  GROMMET Genuine Porsche Part - New (to order)
                                                                                  # 23
                                                                                  MPN: 99150484901
                                                                                  GROMMET 10,0X16,8X9,0
                                                                                  from £4.81
                                                                                  from £4.81
                                                                                  GROMMET Genuine Porsche Part - New (to order)
                                                                                  # 24
                                                                                  MPN: 99902525501
                                                                                  WASHER 16X32X0,5
                                                                                  from £0.82
                                                                                  from £0.82
                                                                                  WASHER Genuine Porsche Part - New (to order)
                                                                                  # 25
                                                                                  MPN: 99916608309
                                                                                  RETAINING PLATE SLB 14
                                                                                  from £4.52
                                                                                  from £4.52
                                                                                  retainer plate - SLB 14 Genuine Porsche Part - New In stock
                                                                                  # 26
                                                                                  MPN: 90002500803
                                                                                  WASHER A10,5
                                                                                  from £0.59
                                                                                  from £0.59
                                                                                  WASHER Genuine Porsche Part - New (to order)
                                                                                  # 27
                                                                                  MPN: 99916607601
                                                                                  SECURING CLIP SLB 10
                                                                                  from £2.29
                                                                                  from £2.29
                                                                                  safety clamp - D - MJ 2004>> Genuine Porsche Part - New (to order)
                                                                                  # 28
                                                                                  MPN: 9P1129453
                                                                                  HOSE LEFT
                                                                                  from £31.37
                                                                                  from £31.37
                                                                                  HOSE Genuine Porsche Part - New (to order)
                                                                                  # 28
                                                                                  MPN: 9P1129454
                                                                                  HOSE RIGHT
                                                                                  from £31.37
                                                                                  from £31.37
                                                                                  HOSE Genuine Porsche Part - New (to order)
                                                                                  # 29
                                                                                  MPN: 9P1145941B
                                                                                  PRESSURE PIPE LEFT
                                                                                  from £121.28
                                                                                  from £121.28
                                                                                  PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                                                  # 30
                                                                                  MPN: 9P1145942B
                                                                                  PRESSURE PIPE RIGHT
                                                                                  from £121.28
                                                                                  from £121.28
                                                                                  PRESSURE PIPE Genuine Porsche Part - New (to order)
                                                                                  # 31
                                                                                  MPN: 9A111033770
                                                                                  CUT-OFF VALVE
                                                                                  from £80.49
                                                                                  from £80.49
                                                                                  CUT-OFF VALVE Genuine Porsche Part - New (to order)
                                                                                  # 32
                                                                                  MPN: 9A111066270
                                                                                  RUBBER SLEEVE
                                                                                  from £12.56
                                                                                  from £12.56
                                                                                  RUBBER SLEEVE Genuine Porsche Part - New (to order)
                                                                                  # 33
                                                                                  MPN: 99951266209
                                                                                  HOSE CLAMP B32X12
                                                                                  from £1.45
                                                                                  from £1.45
                                                                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                  # 34
                                                                                  MPN: 99951269801
                                                                                  HOSE CLAMP 70-90/9
                                                                                  from £4.52
                                                                                  from £4.52
                                                                                  HOSE CLAMP Genuine Porsche Part - New (to order)
                                                                                  # 35
                                                                                  MPN: 9P1129488B
                                                                                  VACUUM LINE PRESSURE PIPE
                                                                                  from £33.46
                                                                                  from £33.46
                                                                                  VACUUM LINE Genuine Porsche Part - New (to order)
                                                                                  # 36
                                                                                  MPN: 99970769440
                                                                                  O-RING 45,00X3,00N
                                                                                  from £6.73
                                                                                  from £6.73
                                                                                  O-RING Genuine Porsche Part - New In stock
                                                                                  # 37
                                                                                  MPN: 99157547101OK1
                                                                                  AIR GUIDE LOWER CHARGE AIR COOLER LEFT - MATT BLACK
                                                                                  from £62.63
                                                                                  from £62.63
                                                                                  This part replaces part number 99157547101
                                                                                  MATT BLACK Genuine Porsche Part - New (to order)
                                                                                  # 38
                                                                                  MPN: 99157547201OK1
                                                                                  AIR GUIDE LOWER CHARGE AIR COOLER RIGHT - MATT BLACK
                                                                                  from £62.63
                                                                                  from £62.63
                                                                                  This part replaces part number 99157547201
                                                                                  MATT BLACK Genuine Porsche Part - New (to order)
                                                                                  # 39
                                                                                  MPN: 99157588901
                                                                                  SEAL AIR GUIDE CHARGE AIR COOLER
                                                                                  from £34.26
                                                                                  from £34.26
                                                                                  GASKET Genuine Porsche Part - New (to order)
                                                                                  # 40
                                                                                  MPN: 9P1145707
                                                                                  DAMPING CHARGE AIR COOLER
                                                                                  from £20.97
                                                                                  from £20.97
                                                                                  sound absorber Genuine Porsche Part - New (to order)
                                                                                  # 41
                                                                                  MPN: N 90236203
                                                                                  Retaining washer B10X0,6
                                                                                  from £4.94
                                                                                  from £4.94
                                                                                  LOCK WASHER Genuine Porsche Part - New (to order)
