porsche 2020 (991-2 r/gt3/rs) - pdk - gearbox individual parts parts diagram

320-005 - - PDK - Gearbox Individual parts

Porsche 2020 (991-2 R/GT3/RS) - PDK - Gearbox Individual parts Parts Diagram

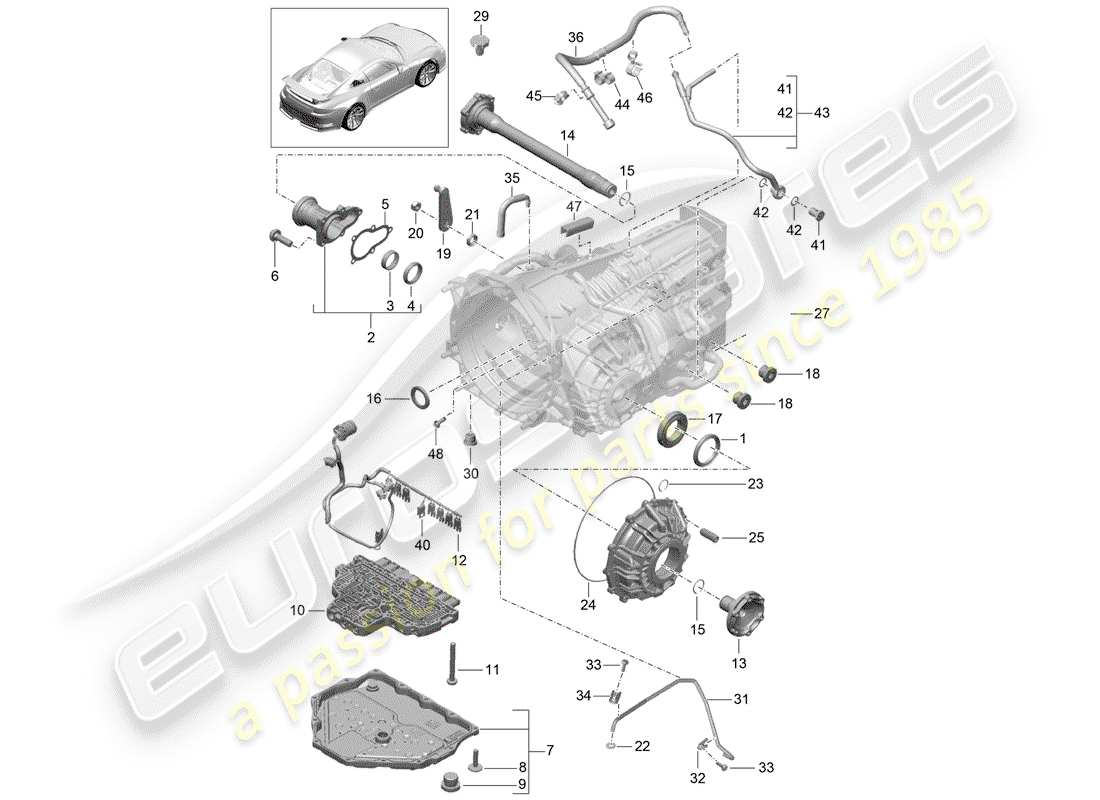

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Key
                                                                      Price
                                                                      # 1
                                                                      MPN: 9G133280600
                                                                      Shaft oil seal 40X52/55X40
                                                                      CG190 (7C Gearbox with Transmission Code: CG190 and installed 05/13-05/17) | CG195 (7C Gearbox with Transmission Code: CG195 and installed 05/14-05/17)
                                                                      SEAL Genuine Porsche Part - New (to order)
                                                                      # 1
                                                                      MPN: 9G133280601
                                                                      Shaft oil seal 40X52/55X40
                                                                      CG192 (7C Gearbox with Transmission Code: CG192 and installed 05/17-12/20)
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 2
                                                                      MPN: 9G132195900
                                                                      HOUSING NECK (COMPLETE)
                                                                      HOUSING NECK (COMPLETE)
                                                                      HOUSING NECK Genuine Porsche Part - New (to order)
                                                                      # 2
                                                                      MPN: 9G132105900
                                                                      HOUSING NECK (COMPLETE)
                                                                      from £149.46
                                                                      from £149.46
                                                                      HOUSING NECK Genuine Porsche Part - New (to order)
                                                                      # 3
                                                                      MPN: 9G133285000
                                                                      needle bearing - 42X47X13
                                                                      from £8.88
                                                                      from £8.88
                                                                      NEEDLE BEARING - Genuine Porsche Part - New (to order)
                                                                      # 4
                                                                      MPN: 9G133280400
                                                                      SHAFT OIL SEAL 42X55X7
                                                                      CG190 (7C Gearbox with Transmission Code: CG190 and installed 05/13-05/17) | CG195 (7C Gearbox with Transmission Code: CG195 and installed 05/14-05/17)
                                                                      SEAL Genuine Porsche Part - New (to order)
                                                                      # 4
                                                                      MPN: 9G133280401
                                                                      SHAFT OIL SEAL 42X55X7
                                                                      CG192 (7C Gearbox with Transmission Code: CG192 and installed 05/17-12/20)
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 5
                                                                      MPN: 9G132125900
                                                                      SEAL FLANGE
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 6
                                                                      MPN: 9G133280100
                                                                      TORX SCREW M8X25
                                                                      from £1.31
                                                                      from £1.31
                                                                      TORX SCREW Genuine Porsche Part - New (to order)
                                                                      # 7
                                                                      MPN: 9G132112500
                                                                      OIL SUMP (COMPLETE)
                                                                      OIL SUMP (COMPLETE)
                                                                      OIL PAN Genuine Porsche Part - New (to order)
                                                                      # 7
                                                                      MPN: 9G132102500
                                                                      OIL SUMP (COMPLETE)
                                                                      OIL SUMP (COMPLETE)
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 7
                                                                      MPN: 9G132102501
                                                                      oil sump
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 9G132102500
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 8
                                                                      MPN: 9G132180100
                                                                      FLAT HEAD MULTI-POINT M6X25 SOCKET BOLT
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 9
                                                                      MPN: 9G132182501
                                                                      SEALING PLUG INCLUDED SEAL RING
                                                                      THREADED PLUG Genuine Porsche Part - New (to order)
                                                                      # 10
                                                                      MPN: 9G131701535
                                                                      CONTROL UNIT HYDRAULIC - PDK -
                                                                      P221 (PTV Plus, el. controlled rear-diff. lock)
                                                                      from £1,803.38
                                                                      from £1,803.38
                                                                      electronic control module Genuine Porsche Part - New (to order)
                                                                      # 11
                                                                      MPN: 9G131780100
                                                                      ROUND HD. SCREW M6X55
                                                                      from £0.70
                                                                      from £0.70
                                                                      SCREW Genuine Porsche Part - New (to order)
                                                                      # 11
                                                                      MPN: 91831780100
                                                                      TORX SCREW M6X55
                                                                      from £2.30
                                                                      from £2.30
                                                                      TORX SCREW Genuine Porsche Part - New (to order)
                                                                      # 12
                                                                      MPN: 9G131769800
                                                                      CONNECTOR HOUSING SOLENOID VALVE
                                                                      from £3.78
                                                                      from £3.78
                                                                      CONNECTOR HOUSING Genuine Porsche Part - New (to order)
                                                                      # 13
                                                                      MPN: 9G133202855
                                                                      DRIVE FLANGE SHORT D >>- 26.09.2018
                                                                      CG190 (7C Gearbox with Transmission Code: CG190 and installed 05/13-05/17)
                                                                      from £1,218.65
                                                                      from £1,218.65
                                                                      JOINT FLANGE Genuine Porsche Part - New (to order)
                                                                      # 13
                                                                      MPN: 9G133220895
                                                                      DRIVE FLANGE SHORT ALSO USE: 1X 9G1 332 820 00 D >>- 26.09.2018
                                                                      CG192 (7C Gearbox with Transmission Code: CG192 and installed 05/17-12/20) | CG195 (7C Gearbox with Transmission Code: CG195 and installed 05/14-05/17)
                                                                      from £1,170.18
                                                                      from £1,170.18
                                                                      JOINT FLANGE Genuine Porsche Part - New (to order)
                                                                      # 13
                                                                      MPN: 9P1311112
                                                                      DRIVE FLANGE SHORT D - 27.09.2018>>
                                                                      CG195 (7C Gearbox with Transmission Code: CG195 and installed 05/14-05/17)
                                                                      from £1,170.18
                                                                      from £1,170.18
                                                                      JOINT FLANGE Genuine Porsche Part - New (to order)
                                                                      # 14
                                                                      MPN: 9G133202955
                                                                      DRIVE FLANGE LONG D >>- 26.09.2018
                                                                      CG190 (7C Gearbox with Transmission Code: CG190 and installed 05/13-05/17)
                                                                      from £1,299.90
                                                                      from £1,299.90
                                                                      JOINT FLANGE Genuine Porsche Part - New (to order)
                                                                      # 14
                                                                      MPN: 9G133220995
                                                                      Drive flange long also use: 1X 9G1 332 820 00 D >>- 26.09.2018
                                                                      CG192 (7C Gearbox with Transmission Code: CG192 and installed 05/17-12/20) | CG195 (7C Gearbox with Transmission Code: CG195 and installed 05/14-05/17)
                                                                      from £1,579.88
                                                                      from £1,579.88
                                                                      JOINT FLANGE Genuine Porsche Part - New (to order)
                                                                      # 14
                                                                      MPN: 9P1311112A
                                                                      DRIVE FLANGE LONG D - 27.09.2018>>
                                                                      from £1,330.87
                                                                      from £1,330.87
                                                                      JOINT FLANGE Genuine Porsche Part - New (to order)
                                                                      # 15
                                                                      MPN: 9G133282000
                                                                      snap ring 36X2,6 D >>- 26.09.2018
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 15
                                                                      MPN: PAF009145
                                                                      HEXAGON SOCKET HEAD BOLT M10X32 DRIVE FLANGE D - 27.09.2018>>
                                                                      from £4.66
                                                                      from £4.66
                                                                      HEXAGON SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
                                                                      # 16
                                                                      MPN: 9G111680700
                                                                      SHAFT OIL SEAL 40X57X6 FOR COUPLING
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 17
                                                                      MPN: 9G133280300
                                                                      SHAFT OIL SEAL 64X82X8
                                                                      SHAFT OIL SEAL 64X82X8
                                                                      SEAL Genuine Porsche Part - New (to order)
                                                                      # 17
                                                                      MPN: 9G133280301
                                                                      SHAFT OIL SEAL 64X82X8
                                                                      from £21.22
                                                                      from £21.22
                                                                      SEAL Genuine Porsche Part - New (to order)
                                                                      # 18
                                                                      MPN: 97032180500
                                                                      SEAL BOLT WITH SEALING M18X1,5 RING
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 19
                                                                      MPN: 9G132413505
                                                                      Gearshift Lever
                                                                      from £13.98
                                                                      from £13.98
                                                                      SHIFT LEVER Genuine Porsche Part - New (to order)
                                                                      # 20
                                                                      MPN: 9G132481500
                                                                      NUT M8X1
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 21
                                                                      MPN: 97032480500
                                                                      SHAFT OIL SEAL 10X18X5
                                                                      from £3.44
                                                                      from £3.44
                                                                      SEAL Genuine Porsche Part - New (to order)
                                                                      # 22
                                                                      MPN: 9G130789200
                                                                      O-RING OIL PIPE
                                                                      P221 (PTV Plus, el. controlled rear-diff. lock)
                                                                      from £6.98
                                                                      from £6.98
                                                                      O-RING Genuine Porsche Part - New (to order)
                                                                      # 23
                                                                      MPN: 9G132181800
                                                                      O-RING
                                                                      P221 (PTV Plus, el. controlled rear-diff. lock)
                                                                      from £1.57
                                                                      from £1.57
                                                                      O-RING Genuine Porsche Part - New (to order)
                                                                      # 24
                                                                      MPN: 9G132181500
                                                                      O-RING 221X3
                                                                      from £6.22
                                                                      from £6.22
                                                                      O-RING Genuine Porsche Part - New (to order)
                                                                      # 25
                                                                      MPN: 9G132189000
                                                                      CYLINDER PIN 10X28
                                                                      from £3.12
                                                                      from £3.12
                                                                      DOWEL PIN Genuine Porsche Part - New (to order)
                                                                      # 26
                                                                      MPN: 9G130738505
                                                                      PRESSURE SENSOR
                                                                      PRESSURE SENSOR
                                                                      Supersession
                                                                      Supersession
                                                                      Genuine Porsche Part (no longer available to order)
                                                                      # 26
                                                                      MPN: 9G130738506
                                                                      PRESSURE SENSOR
                                                                      from £144.64
                                                                      from £144.64
                                                                      This part replaces part number 9G130738505
                                                                      PRESSURE SENSOR Genuine Porsche Part - New (to order)
                                                                      # 27
                                                                      MPN: 99160639100
                                                                      Temperature sensor Gearbox
                                                                      from £75.78
                                                                      from £75.78
                                                                      TEMPERATURE SENSOR Genuine Porsche Part - New (to order)
                                                                      # 28
                                                                      MPN: 9G132122100
                                                                      VENTILATION UNION BREATHER ASSY.
                                                                      from £9.82
                                                                      from £9.82
                                                                      ADAPTER-BREATHER Genuine Porsche Part - New (to order)
                                                                      # 29
                                                                      MPN: 9G132121500
                                                                      CAP
                                                                      from £1.33
                                                                      from £1.33
                                                                      CAP Genuine Porsche Part - New (to order)
                                                                      # 30
                                                                      MPN: 97032187100
                                                                      SEALING PLUG
                                                                      THREADED PLUG Genuine Porsche Part - New (to order)
                                                                      # 31
                                                                      MPN: 9G130720200
                                                                      PIPE ASSEMBLY
                                                                      from £78.14
                                                                      from £78.14
                                                                      PIPE ASSEMBLY Genuine Porsche Part - New (to order)
                                                                      # 32
                                                                      MPN: 9G130725300
                                                                      RETAINING PLATE
                                                                      from £15.81
                                                                      from £15.81
                                                                      RETAINING PLATE Genuine Porsche Part - New (to order)
                                                                      # 33
                                                                      MPN: 9G130782200
                                                                      flat round head bolt M6X16
                                                                      from £9.82
                                                                      from £9.82
                                                                      SCREW, ROUND HD Genuine Porsche Part - New In stock
                                                                      # 34
                                                                      MPN: 9G130725900
                                                                      RETAINING PLATE
                                                                      from £12.59
                                                                      from £12.59
                                                                      RETAINING PLATE Genuine Porsche Part - New (to order)
                                                                      # 35
                                                                      MPN: 9G132101103
                                                                      BREATHER LINE COUPLING
                                                                      from £34.22
                                                                      from £34.22
                                                                      breather line Genuine Porsche Part - New (to order)
                                                                      # 35
                                                                      MPN: 9G132121191
                                                                      BREATHER LINE GEAR SET ALSO USE: 1X 9GT.301.280 VENT HOSE 3X PAF.108.605 CABLE TIES SEE TECHNICAL INFORMATION SY130/19
                                                                      from £48.30
                                                                      from £48.30
                                                                      breather line Genuine Porsche Part - New (to order)
                                                                      # 35
                                                                      MPN: 9GT301280
                                                                      VENT HOSE
                                                                      from £28.16
                                                                      from £28.16
                                                                      VENT HOSE Genuine Porsche Part - New (to order)
                                                                      # 35
                                                                      MPN: PAF108605
                                                                      CABLE TIE WITH HOSE RETAINER
                                                                      from £4.37
                                                                      from £4.37
                                                                      CABLE TIE WITH HOSE RETAINER Genuine Porsche Part - New (to order)
                                                                      # 36
                                                                      MPN: 9G132101104
                                                                      breather line
                                                                      breather line
                                                                      breather line Genuine Porsche Part - New (to order)
                                                                      # 36
                                                                      MPN: 9G132121191
                                                                      BREATHER LINE GEAR SET
                                                                      from £48.30
                                                                      from £48.30
                                                                      breather line Genuine Porsche Part - New (to order)
                                                                      # 40
                                                                      MPN: 9G131769700
                                                                      CONNECTOR HOUSING PRESSURE REGULATOR
                                                                      from £1.95
                                                                      from £1.95
                                                                      CONNECTOR HOUSING Genuine Porsche Part - New (to order)
                                                                      # 41
                                                                      MPN: 9G132123590
                                                                      BANJO BOLT
                                                                      from £26.58
                                                                      from £26.58
                                                                      BANJO BOLT Genuine Porsche Part - New (to order)
                                                                      # 42
                                                                      MPN: 90012310630
                                                                      SEAL RING A18X24
                                                                      from £1.43
                                                                      from £1.43
                                                                      This part replaces part number 90012300930
                                                                      OIL DRAIN PLUG SEAL RING, A 18 X 24 Genuine Porsche Part - New In stock
                                                                      # 43
                                                                      MPN: 9G132101195
                                                                      breather line
                                                                      from £126.34
                                                                      from £126.34
                                                                      breather line Genuine Porsche Part - New (to order)
                                                                      # 44
                                                                      MPN: N 10262701
                                                                      DOUBLE CLIP 11X14
                                                                      from £1.43
                                                                      from £1.43
                                                                      DOUBLE CLIP Genuine Porsche Part - New (to order)
                                                                      # 45
                                                                      MPN: 99950790940
                                                                      CABLE HOLDER 11,5-13,5
                                                                      from £1.08
                                                                      from £1.08
                                                                      CABLE HOLDER Genuine Porsche Part - New (to order)
                                                                      # 46
                                                                      MPN: N 10525701
                                                                      Double hose holder A1-18XC17-10
                                                                      from £3.59
                                                                      from £3.59
                                                                      HOLDER - HOSE Genuine Porsche Part - New (to order)
                                                                      # 47
                                                                      MPN: 99991176401
                                                                      EDGE PROTECTION A12X60
                                                                      from £5.78
                                                                      from £5.78
                                                                      PROTECTIVE EDGING Genuine Porsche Part - New (to order)
                                                                      # 48
                                                                      MPN: 9G130781600
                                                                      TORX SCREW M6X16
                                                                      from £1.39
                                                                      from £1.39
                                                                      TORX SCREW Genuine Porsche Part - New (to order)
                                                                      # 49
                                                                      MPN: 9G131761406
                                                                      WIRE SET PRESSURE SENSOR CONTROL UNIT FOR DIFFERENTIAL LOCKS
                                                                      from £267.81
                                                                      from £267.81
                                                                      WIRE SET Genuine Porsche Part - New (to order)
