803-010 - Rear spoiler rear D >>- MJ 2017

Porsche 2020 (991-2 R/GT3/RS) Rear spoiler rear D >>- MJ 2017 Parts Diagram

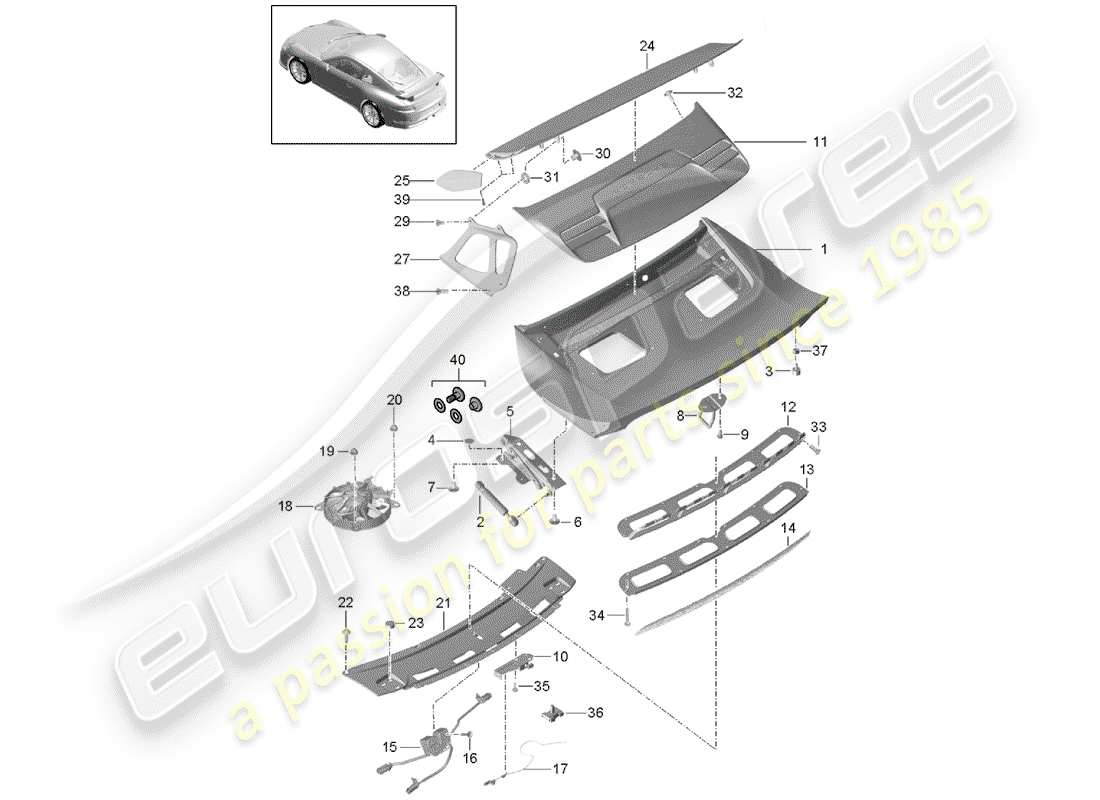

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                #
                                                                                Part number
                                                                                Description
                                                                                Key
                                                                                Price
                                                                                # 1
                                                                                MPN: 99151222792
                                                                                COVER PRIMED
                                                                                from £11,107.89
                                                                                from £11,107.89
                                                                                COVER Genuine Porsche Part - New (to order)
                                                                                COVER Genuine Porsche Part - Used In stock
                                                                                # 2
                                                                                MPN: 99151255190
                                                                                GAS FILLED STRUT
                                                                                from £98.14
                                                                                from £98.14
                                                                                GAS-FILLED STRUT Genuine Porsche Part - New (to order)
                                                                                # 3
                                                                                MPN: 99151297180
                                                                                STOP BUFFER ADJUSTABLE
                                                                                from £8.17
                                                                                from £8.17
                                                                                JOUNCE BUMPER Genuine Porsche Part - New (to order)
                                                                                # 4
                                                                                MPN: 99151281900
                                                                                PROTECTIVE FILM
                                                                                from £9.34
                                                                                from £9.34
                                                                                PROTECTIVE FOIL Genuine Porsche Part - New (to order)
                                                                                # 5
                                                                                MPN: 99151215180
                                                                                HINGE LEFT
                                                                                from £117.34
                                                                                from £117.34
                                                                                HINGE Genuine Porsche Part - New (to order)
                                                                                # 5
                                                                                MPN: 99151215280
                                                                                HINGE RIGHT
                                                                                from £117.34
                                                                                from £117.34
                                                                                HINGE Genuine Porsche Part - New (to order)
                                                                                # 6
                                                                                MPN: N 91188301
                                                                                Hexagon socket head M6X20 bolt
                                                                                from £0.79
                                                                                from £0.79
                                                                                HEXAGONAL SOCKET HEAD Genuine Porsche Part - New In stock
                                                                                HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                # 7
                                                                                MPN: N 91096601
                                                                                Hexagon socket flat M6X12 head bolt
                                                                                from £0.47
                                                                                from £0.47
                                                                                HEXAGON SOCKET FLAT Genuine Porsche Part - New (to order)
                                                                                HEXAGON SOCKET FLAT HEAD BOLT Genuine Bentley Part - New (to order)
                                                                                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                # 8
                                                                                MPN: 98151205100
                                                                                STRIKER
                                                                                from £32.93
                                                                                from £32.93
                                                                                LOCKING CATCH Genuine Porsche Part - New (to order)
                                                                                # 9
                                                                                MPN: 99907337802
                                                                                flat round head bolt M6X20-PA
                                                                                SCREW, ROUND HD Genuine Porsche Part - New (to order)
                                                                                # 10
                                                                                MPN: 99150411780
                                                                                THROTTLE CONTROL ELEMENT
                                                                                from £82.77
                                                                                from £82.77
                                                                                ACTUATOR Genuine Porsche Part - New (to order)
                                                                                # 11
                                                                                MPN: 99151233190
                                                                                VENTILATION GRILLE BLACK
                                                                                from £2,564.17
                                                                                from £2,564.17
                                                                                Ventilation grille Genuine Porsche Part - New (to order)
                                                                                Ventilation grille Genuine Porsche Part - Used In stock
                                                                                # 12
                                                                                MPN: 99151244190
                                                                                RETAINING FRAME AIR GUIDE
                                                                                from £588.28
                                                                                from £588.28
                                                                                retaining frame Genuine Porsche Part - New (to order)
                                                                                # 13
                                                                                MPN: 99151244590
                                                                                TRIM AIR GUIDE
                                                                                from £293.67
                                                                                from £293.67
                                                                                TRIM Genuine Porsche Part - New (to order)
                                                                                # 14
                                                                                MPN: 99151244390
                                                                                GRILLE AIR GUIDE
                                                                                from £531.65
                                                                                from £531.65
                                                                                GRILLE Genuine Porsche Part - New (to order)
                                                                                # 15
                                                                                MPN: 99150405390
                                                                                LID LOCK
                                                                                LID LOCK Genuine Porsche Part - New (to order)
                                                                                # 16
                                                                                MPN: 90007550401
                                                                                BOLT WITH WASHER M6X45-TC
                                                                                from £2.29
                                                                                from £2.29
                                                                                BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                                                # 17
                                                                                MPN: 99150455380
                                                                                BOWDEN CABLE
                                                                                from £29.24
                                                                                from £29.24
                                                                                BOWDEN CABLE Genuine Porsche Part - New (to order)
                                                                                # 18
                                                                                MPN: 99162405006
                                                                                FAN
                                                                                from £137.66
                                                                                from £137.66
                                                                                This part replaces part number 99162405003
                                                                                FAN Genuine Porsche Part - New (to order)
                                                                                # 19
                                                                                MPN: 95811067300
                                                                                GROMMET
                                                                                from £1.37
                                                                                from £1.37
                                                                                This part replaces part number 1T0805673A
                                                                                GROMMET Genuine Porsche Part - New In stock
                                                                                # 20
                                                                                MPN: 99162435300
                                                                                GROMMET
                                                                                GROMMET Genuine Porsche Part - New (to order)
                                                                                # 21
                                                                                MPN: 99150422190
                                                                                MOUNTING BRACKET CENTER
                                                                                from £2,438.83
                                                                                from £2,438.83
                                                                                MOUNTING BRACKET Genuine Porsche Part - New (to order)
                                                                                MOUNTING BRACKET Genuine Porsche Part - Used In stock
                                                                                # 22
                                                                                MPN: 99907355501
                                                                                SOCKET HEAD BOLT M8X35
                                                                                from £4.22
                                                                                from £4.22
                                                                                SCREW, CHEESE HD Genuine Porsche Part - New (to order)
                                                                                # 23
                                                                                MPN: 99150467580
                                                                                COVER CAP SOCKET HEAD BOLT ASSEMBLY FRAME
                                                                                from £17.25
                                                                                from £17.25
                                                                                CAP Genuine Porsche Part - New (to order)
                                                                                # 24
                                                                                MPN: 99151226595
                                                                                Spoiler primed
                                                                                from £6,118.34
                                                                                from £6,118.34
                                                                                SPOILER Genuine Porsche Part - New (to order)
                                                                                SPOILER Genuine Porsche Part - Used In stock
                                                                                # 25
                                                                                MPN: 99151246391
                                                                                WING PLATE FOR REAR SPOILER LEFT matt black
                                                                                from £392.20
                                                                                from £392.20
                                                                                WING PLATE FOR REAR SPOILER Genuine Porsche Part - New (to order)
                                                                                # 25
                                                                                MPN: 99151246491
                                                                                WING PLATE FOR REAR SPOILER RIGHT matt black
                                                                                from £392.20
                                                                                from £392.20
                                                                                WING PLATE FOR REAR SPOILER Genuine Porsche Part - New (to order)
                                                                                # 27
                                                                                MPN: 99151268190
                                                                                WING STRUT FOR REAR SPOILER LEFT BLACK ANODISED
                                                                                from £979.56
                                                                                from £979.56
                                                                                WING STRUT FOR REAR SPOILER Genuine Porsche Part - New (to order)
                                                                                # 27
                                                                                MPN: 99151268290
                                                                                WING STRUT FOR REAR SPOILER RIGHT BLACK ANODISED
                                                                                from £964.06
                                                                                from £964.06
                                                                                WING STRUT FOR REAR SPOILER Genuine Porsche Part - New (to order)
                                                                                # 27
                                                                                MPN: 99151268191
                                                                                WING STRUT FOR REAR SPOILER LEFT ALUMINIUM WHITE ANODISED
                                                                                from £964.06
                                                                                from £964.06
                                                                                WING STRUT FOR REAR SPOILER Genuine Porsche Part - New (to order)
                                                                                # 27
                                                                                MPN: 99151268291
                                                                                WING STRUT FOR REAR SPOILER RIGHT ALUMINIUM WHITE ANODISED
                                                                                from £964.06
                                                                                from £964.06
                                                                                WING STRUT FOR REAR SPOILER Genuine Porsche Part - New (to order)
                                                                                # 28
                                                                                MPN: N 91188301
                                                                                Hexagon socket head M6X20 bolt
                                                                                from £0.79
                                                                                from £0.79
                                                                                HEXAGONAL SOCKET HEAD Genuine Porsche Part - New In stock
                                                                                HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                                                                HEXALOBULAR SOCKET Genuine Lamborghini - New In stock
                                                                                # 29
                                                                                MPN: 99907350901
                                                                                COUNTERSUNK BOLT M6X12-MK MICRO-SELF-LOCKING SILVER
                                                                                SCREW, COUNTERSUNK HD Genuine Porsche Part - New (to order)
                                                                                # 29
                                                                                MPN: 99907350902
                                                                                countersunk bolt M6X12-MK Micro-self-locking Black
                                                                                from £9.09
                                                                                from £9.09
                                                                                SCREW, COUNTERSUNK HD Genuine Porsche Part - New In stock
                                                                                # 30
                                                                                MPN: 99908505102
                                                                                HEXAGON NUT M6 SILVER
                                                                                from £17.30
                                                                                from £17.30
                                                                                HEX. NUT Genuine Porsche Part - New (to order)
                                                                                # 30
                                                                                MPN: 99908505103
                                                                                Hexagon nut M6 Black
                                                                                from £20.45
                                                                                from £20.45
                                                                                HEX. NUT Genuine Porsche Part - New (to order)
                                                                                # 31
                                                                                MPN: 99751278391
                                                                                SHIM
                                                                                from £8.72
                                                                                from £8.72
                                                                                SPACER WASHER Genuine Porsche Part - New (to order)
                                                                                # 32
                                                                                MPN: 999073446A1
                                                                                FILLISTER HD. BOLT M5X16
                                                                                from £4.11
                                                                                from £4.11
                                                                                FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                                                # 33
                                                                                MPN: 999073386A1
                                                                                countersunk bolt M5X16
                                                                                from £4.67
                                                                                from £4.67
                                                                                SCREW, COUNTERSUNK HD Genuine Porsche Part - New (to order)
                                                                                # 34
                                                                                MPN: 99907326801
                                                                                FILLISTER HD. BOLT M5X12
                                                                                from £2.14
                                                                                from £2.14
                                                                                FILLISTER HD. SCREW Genuine Porsche Part - New (to order)
                                                                                # 35
                                                                                MPN: 90007548701
                                                                                BOLT WITH WASHER M6X16-PA
                                                                                from £0.95
                                                                                from £0.95
                                                                                BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                                                # 36
                                                                                MPN: 99950541940
                                                                                RETAINING CLIP 6,0
                                                                                from £1.58
                                                                                from £1.58
                                                                                Retaining Clip Genuine Porsche Part - New (to order)
                                                                                # 37
                                                                                MPN: 90037701501
                                                                                HEXAGON NUT M8
                                                                                from £10.30
                                                                                from £10.30
                                                                                HEX. NUT Genuine Porsche Part - New (to order)
                                                                                # 38
                                                                                MPN: 99907351001
                                                                                COUNTERSUNK BOLT M6X25-MK SILVER
                                                                                SCREW, COUNTERSUNK HD Genuine Porsche Part - New (to order)
                                                                                # 38
                                                                                MPN: 99907351002
                                                                                COUNTERSUNK BOLT M6X25-MK BLACK
                                                                                from £18.53
                                                                                from £18.53
                                                                                SCREW, COUNTERSUNK HD Genuine Porsche Part - New (to order)
                                                                                # 39
                                                                                MPN: 99907370901
                                                                                BOLT WITH WASHER M5X16
                                                                                from £6.67
                                                                                from £6.67
                                                                                BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                                                                # 40
                                                                                MPN: 99151295282
                                                                                REPAIR SET RIGHT BONNET HINGE
                                                                                from £38.72
                                                                                from £38.72
                                                                                repair kit Genuine Porsche Part - New (to order)
