P388 (Sports bucket seat, left) | P389 (Sports bucket seat, right)
porsche 2020 (991-2 r/gt3/rs) bucket seat folding seat frame accessories parts diagram

817-004 - bucket seat Folding Seat frame Accessories

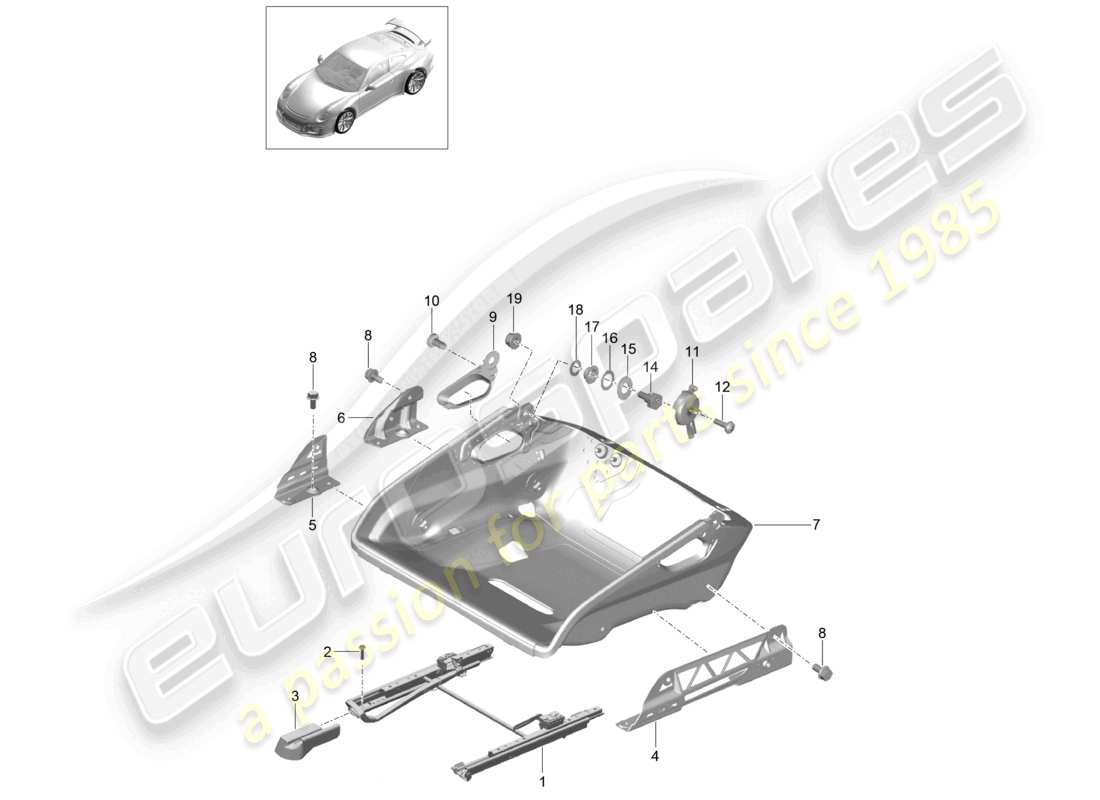

Porsche 2020 (991-2 R/GT3/RS) bucket seat Folding Seat frame Accessories Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 1
                              MPN: 99752142901
                              1 SET OF SEAT RAILS LEFT
                              from £389.91
                              from £389.91
                              1 set of seat rails Genuine Porsche Part - New (to order)
                              # 1
                              MPN: 99752143002
                              1 set of seat rails right Seat rail
                              from £389.91
                              from £389.91
                              1 set of seat rails Genuine Porsche Part - New (to order)
                              # 2
                              MPN: 9A700748300
                              HEXAGON HEAD BOLT
                              from £2.29
                              from £2.29
                              HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 991521359001E0
                              Cover for guide left rail Seat rail - Black
                              from £16.87
                              from £16.87
                              This part replaces part number 99152135900
                              Black Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 991521362001E0
                              Cover for guide right rail Seat rail - Black
                              from £11.92
                              from £11.92
                              This part replaces part number 99152136200
                              Black Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 991521361001E0
                              Cover for guide left rail Seat rail - Black
                              from £11.92
                              from £11.92
                              This part replaces part number 99152136100
                              Black Genuine Porsche Part - New (to order)
                              # 3
                              MPN: 991521360001E0
                              Cover for guide right rail Seat rail - Black
                              from £11.92
                              from £11.92
                              This part replaces part number 99152136000
                              Black Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 99752143300
                              Adapter left outer bucket seat
                              Adapter left outer bucket seat
                              ADAPTER Genuine Porsche Part - New (to order)
                              # 4
                              MPN: 99752143400
                              Adapter right outer bucket seat
                              Adapter right outer bucket seat
                              ADAPTER Genuine Porsche Part - New (to order)
                              # 5
                              MPN: 99752143500
                              Adapter left bucket seat front, inner
                              Adapter left bucket seat front, inner
                              ADAPTER Genuine Porsche Part - New (to order)
                              # 5
                              MPN: 99752143600
                              Adapter right bucket seat front, inner
                              Adapter right bucket seat front, inner
                              ADAPTER Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 99752143700
                              Adapter left bucket seat rear, inner
                              Adapter left bucket seat rear, inner
                              ADAPTER Genuine Porsche Part - New (to order)
                              # 6
                              MPN: 99752143800
                              Adapter right bucket seat rear, inner
                              Adapter right bucket seat rear, inner
                              ADAPTER Genuine Porsche Part - New (to order)
                              # 7
                              MPN: 99752128100
                              SEAT SHELL SEAT FRAME WITHOUT: SEAT OCCUPIED RECOGNITION
                              P388 (Sports bucket seat, left) | P389 (Sports bucket seat, right)
                              SEAT SHELL Genuine Porsche Part - New (to order)
                              # 8
                              MPN: 99921716801
                              HEXAGON BOLT ADAPTER SEAT RAIL
                              from £2.96
                              from £2.96
                              SCREW, HEX. HD Genuine Porsche Part - New (to order)
                              # 9
                              MPN: 9975215610001C
                              TRIM LEFT LOWER THREE-POINT SAFETY BELT - SATIN BLACK
                              from £11.96
                              from £11.96
                              This part replaces part number 99752156100
                              TRIM left - Seat belt lower (PR:388,389) satin black Genuine Porsche Part - New (to order)
                              # 9
                              MPN: 9975215620001C
                              Trim right lower Three-point safety belt - Satin black
                              from £11.96
                              from £11.96
                              This part replaces part number 99752156200
                              TRIM right - Seat belt lower (PR:388,389) satin black Genuine Porsche Part - New (to order)
                              # 10
                              MPN: 99914104901
                              OVAL-HEAD SCREW M5X10 FOR TRIM
                              from £2.62
                              from £2.62
                              OVAL-HEAD SCREW Genuine Porsche Part - New (to order)
                              # 11
                              MPN: 9975215630001C
                              TRIM LEFT INNER HINGE - SATIN BLACK
                              from £11.96
                              from £11.96
                              This part replaces part number 99752156300
                              SATIN BLACK Genuine Porsche Part - New (to order)
                              # 11
                              MPN: 9975215640001C
                              TRIM RIGHT INNER HINGE - SATIN BLACK
                              from £11.96
                              from £11.96
                              This part replaces part number 99752156400
                              SATIN BLACK Genuine Porsche Part - New (to order)
                              # 12
                              MPN: 99907345601
                              flat round head bolt M4X12
                              from £3.05
                              from £3.05
                              SCREW, ROUND HD Genuine Porsche Part - New (to order)
                              # 14
                              MPN: 99752169000
                              BEARING PIN LOWER BACKREST SHELL
                              from £10.26
                              from £10.26
                              BEARING PIN Genuine Porsche Part - New (to order)
                              # 15
                              MPN: 99952301901
                              BELLEVILLE SPRING A25
                              from £3.05
                              from £3.05
                              CONCAVE WASHER Genuine Porsche Part - New (to order)
                              # 16
                              MPN: 99923403400
                              FITTED WASHER 12X18X0,2
                              from £1.39
                              from £1.39
                              FITT WASHER Genuine Porsche Part - New (to order)
                              # 17
                              MPN: 99992413640
                              PLAIN BEARING F12X5X14
                              from £6.26
                              from £6.26
                              FRICTION PIECE Genuine Porsche Part - New (to order)
                              # 18
                              MPN: 99902512240
                              THRUST WASHER 20X12X0,5
                              from £1.71
                              from £1.71
                              THRUST WASHER Genuine Porsche Part - New (to order)
                              # 19
                              MPN: 90038002401
                              NUT M8
                              from £1.00
                              from £1.00
                              NUT Genuine Porsche Part - New (to order)
