porsche 2016 (991-1) crankshaft parts diagram

102-000 - crankshaft

Porsche 2016 (991-1) Crankshaft Parts Diagram

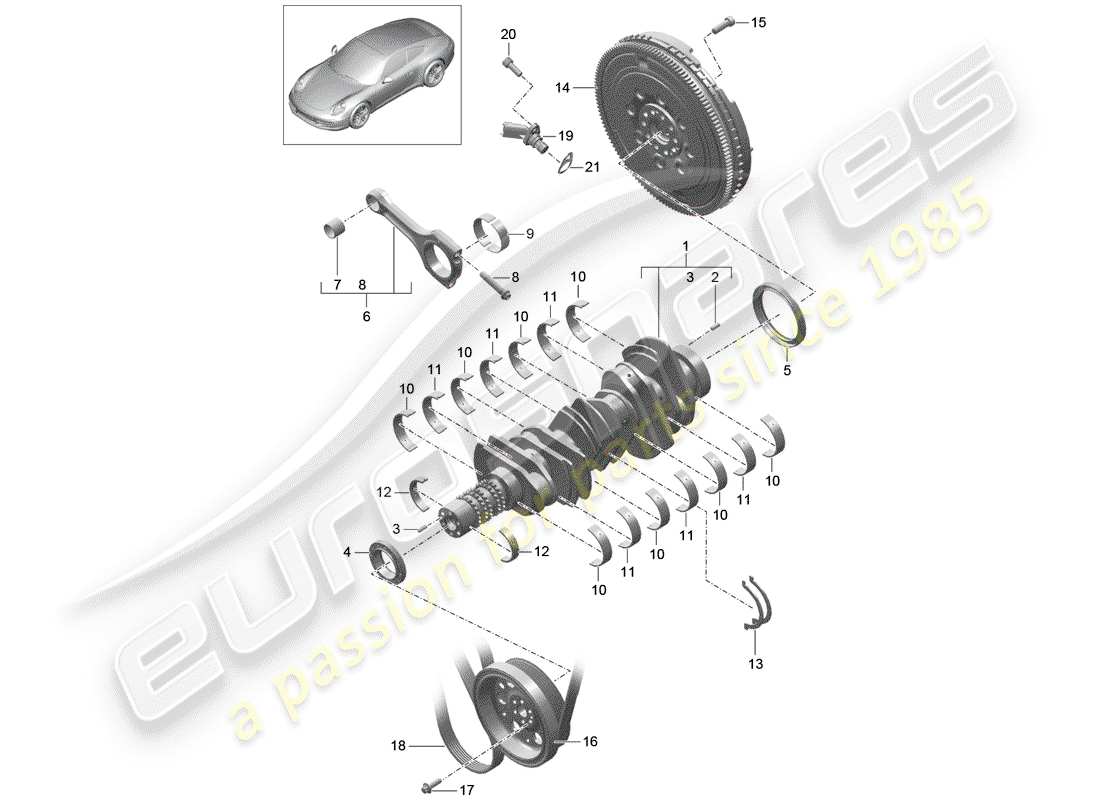

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Key
                                        Price
                                        # 1
                                        MPN: 9A110207720
                                        crankshaft
                                        from £3,591.66
                                        from £3,591.66
                                        crankshaft Genuine Porsche Part - New (to order)
                                        # 2
                                        MPN: 90009503100
                                        SPRING PIN 6,0 X 16,0
                                        from £0.56
                                        from £0.56
                                        SPRING PIN - 6 X 16 Genuine Porsche Part - New (to order)
                                        # 3
                                        MPN: 90030201600
                                        Cylinder pin 6,0 X 16,0
                                        from £1.20
                                        from £1.20
                                        DOWEL PIN Genuine Porsche Part - New (to order)
                                        # 4
                                        MPN: 9A110122202
                                        SHAFT OIL SEAL 52X72X9
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 5
                                        MPN: 99710121201
                                        SHAFT OIL SEAL 85X105X11
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 6
                                        MPN: 9A110391402
                                        CONROD COMPRISING: CONROD 6 PCS
                                        from £1,344.29
                                        from £1,344.29
                                        CONNECTING ROD Genuine Porsche Part - New (to order)
                                        # 7
                                        -
                                        BUSH - CONNECTING ROD D = 22 * SINGLE PARTS NO AVAILABLE * ALTERNATIVELY, YOU CAN USE: 9A1 103 914 02
                                        # 8
                                        MPN: 9A110311502
                                        BOLT - CONNECTING ROD M 10 X 1,25 X 51
                                        BOLT - CONNECTING ROD Genuine Porsche Part - New (to order)
                                        # 9
                                        MPN: 9A110305300
                                        CONNECTING ROD BEARING SHELL COLOUR DESIGNATION: RED
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 9
                                        MPN: 9A110305301
                                        connecting rod bearing shell Colour designation: yellow
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 9
                                        MPN: 9A110305302
                                        connecting rod bearing shell Colour designation: blue
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 10
                                        MPN: 9A110106400
                                        CRANKSHAFT BEARING COLOUR DESIGNATION: RED
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 10
                                        MPN: 9A110106401
                                        crankshaft bearing Colour designation: yellow
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 10
                                        MPN: 9A110106402
                                        CRANKSHAFT BEARING COLOUR DESIGNATION: BLUE
                                        from £13.21
                                        from £13.21
                                        CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                        # 11
                                        MPN: 9A110106300
                                        CRANKSHAFT BEARING WITH: PARTIAL-GROOVE COLOUR DESIGNATION: RED
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 11
                                        MPN: 9A110106301
                                        CRANKSHAFT BEARING WITH: PARTIAL-GROOVE COLOUR DESIGNATION: YELLOW
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 11
                                        MPN: 9A110106302
                                        CRANKSHAFT BEARING WITH: PARTIAL-GROOVE COLOUR DESIGNATION: BLUE
                                        CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                        # 12
                                        MPN: 9A110105200
                                        CRANKSHAFT BEARING COLOUR DESIGNATION: RED
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 12
                                        MPN: 9A110105201
                                        crankshaft bearing Colour designation: yellow
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 12
                                        MPN: 9A110105202
                                        CRANKSHAFT BEARING COLOUR DESIGNATION: BLUE
                                        CRANKSHAFT BEARING Genuine Porsche Part - New (to order)
                                        # 13
                                        MPN: 99610113200
                                        THRUST WASHER D = 63
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 14
                                        MPN: 99111401200
                                        DUAL-MASS FLYWHEEL
                                        P487 (7-speed manual transmission)
                                        DUAL-MASS FLYWHEEL Genuine Porsche Part - New (to order)
                                        # 14
                                        MPN: 99111402000
                                        DUAL-MASS FLYWHEEL
                                        P250 (PDK transmission (dual clutch))
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 15
                                        MPN: N 90665101
                                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M 10 X 1 X 29
                                        from £2.21
                                        from £2.21
                                        Genuine Porsche Part (no longer available to order)
                                        SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD Genuine Bentley Part - New (to order)
                                        TRIPLE SQUARE BOLT Genuine Lamborghini - New (to order)
                                        # 16
                                        MPN: 9A110214602
                                        PULLEY WITH: VIBRATION DAMPER
                                        Supersession
                                        Supersession
                                        Genuine Porsche Part (no longer available to order)
                                        # 17
                                        MPN: 90038512701
                                        HEXAGON HEAD BOLT M 8 X 25
                                        HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
                                        # 18
                                        -
                                        V-BELT SEE ILLUSTRATION: 101-010
                                        # 19
                                        MPN: 99160611200
                                        speed sensor also use: 1X 991 606 912 00
                                        from £91.15
                                        from £91.15
                                        SPEED SENSOR Genuine Porsche Part - New (to order)
                                        # 19
                                        MPN: 99160611202
                                        speed sensor also use: 1X 991 606 912 00
                                        from £130.00
                                        from £130.00
                                        SPEED SENSOR Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: 90038726401
                                        SOCKET HEAD BOLT M 6 X 16
                                        SOCKET HEAD BOLT M 6 X 16
                                        SCREW, CHEESE HD. - M 6 X 18 - DISCONTINUED PART Genuine Porsche Part - New (to order)
                                        # 20
                                        MPN: N 10546403
                                        HEXAGON SOCKET HEAD BOLT M 6 X 16
                                        from £1.04
                                        from £1.04
                                        hexagonal socket head - screw - M 6 X 18 Genuine Porsche Part - New In stock
                                        HEXAGON SOCKET HEAD BOLT Genuine Bentley Part - New (to order)
                                        HEXALOBULAR SOCKETM6X16 Genuine Lamborghini - New (to order)
                                        # 21
                                        MPN: 99160691200
                                        SHIM SPEED SENSOR
                                        from £1.87
                                        from £1.87
                                        SPACER WASHER Genuine Porsche Part - New (to order)
