porsche 2016 (991-1) air filter vacuum system parts diagram

106-005 - Air filter vacuum system

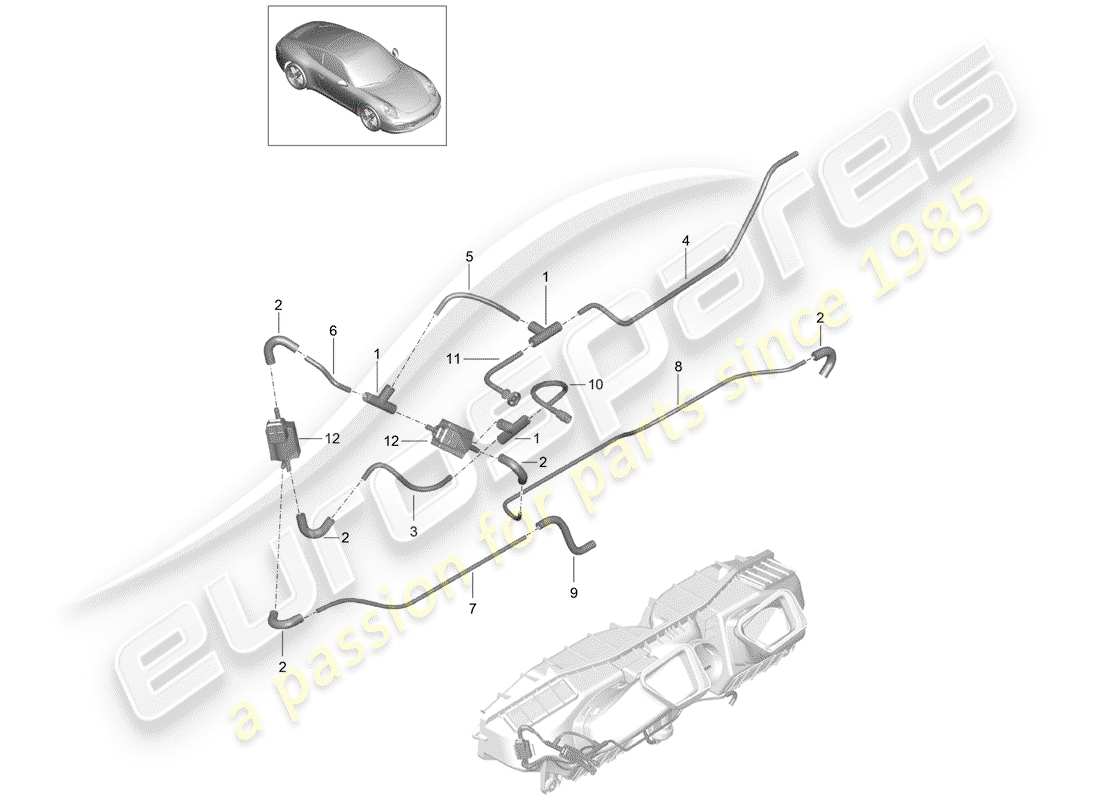

Porsche 2016 (991-1) Air filter vacuum system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Key
                    Price
                    # 1
                    MPN: 06E133794
                    T-PIECE
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 2
                    MPN: 92857471705
                    MOLDED HOSE
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 2
                    MPN: 92857471707
                    MOLDED HOSE
                    MOLDED HOSE
                    MOLDED HOSE Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 9P1129487
                    MOLDED HOSE
                    from £6.08
                    from £6.08
                    This part replaces part number 92857471703 - and 1 more. Click to view details
                    MOLDED HOSE Genuine Porsche Part - New In stock
                    # 2
                    MPN: 90091800540
                    PIPE VACUUM LINE 5,0 X 1,0
                    from £6.78
                    from £6.78
                    tube - 5,0 X 1,0 Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 90091811040
                    PIPE VACUUM LINE 5,0 X 1,0
                    from £6.67
                    from £6.67
                    TUBE Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 90091804840
                    PIPE VACUUM LINE 4,0 X 1,0
                    TUBE Genuine Porsche Part - New (to order)
                    # 2
                    MPN: 99923903142
                    HOSE 3,5 X 2,0
                    from £7.96
                    from £7.96
                    HOSE Genuine Porsche Part - New (to order)
                    # 3
                    -
                    VACUUM LINE L = 110MM ONLY TO BE USED FOR: VALVE 7PP906283C
                    # 3
                    -
                    VACUUM LINE L = 125MM ONLY TO BE USED FOR: VALVE 7PP906283F
                    # 4
                    -
                    VACUUM LINE L = 335MM
                    # 5
                    -
                    VACUUM LINE L = 100MM
                    # 6
                    -
                    VACUUM LINE L = 60MM
                    # 7
                    -
                    VACUUM LINE L = 300MM ONLY TO BE USED FOR: VALVE 7PP906283C
                    # 7
                    -
                    VACUUM LINE L = 340MM ONLY TO BE USED FOR: VALVE 7PP906283F
                    # 8
                    -
                    VACUUM LINE L = 480MM
                    # 9
                    -
                    HOSE L = 100MM
                    # 10
                    MPN: 99918148240
                    PIPE VACUUM LINE WITH: COUPLING 5,0 X 1,0 X 160 NATURAL COLOURS
                    from £12.16
                    from £12.16
                    TUBE Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99918148040
                    Pipe Vacuum line with: Coupling 5,0 X 1,0 X 75 blue
                    Pipe Vacuum line with: Coupling 5,0 X 1,0 X 75 blue
                    TUBE Genuine Porsche Part - New (to order)
                    # 11
                    MPN: 99111018100
                    PIPE VACUUM LINE WITH: COUPLING (COMPLETE) BLUE
                    from £63.88
                    from £63.88
                    TUBE Genuine Porsche Part - New (to order)
                    # 12
                    MPN: 7PP906283B
                    Change-over valve
                    Change-over valve
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    # 12
                    MPN: 7PP906283C
                    Change-over valve
                    Change-over valve
                    Supersession
                    Supersession
                    This part replaces part number 7PP906283B
                    Genuine Porsche Part (no longer available to order)
                    # 12
                    MPN: 7PP906283F
                    CHANGE-OVER VALVE F 99-FS111 979>>
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    Genuine Bentley Part (no longer available to order)
                    Genuine Lamborghini (no longer available to order)
                    # 12
                    MPN: 7PP906283F
                    CHANGE-OVER VALVE ALSO USE: 991 612 944 00 F >>99-FS111 978
                    Supersession
                    Supersession
                    Genuine Porsche Part (no longer available to order)
                    Genuine Bentley Part (no longer available to order)
                    Genuine Lamborghini (no longer available to order)
                    # 12
                    MPN: 99161294400
                    WIRE SET FOR CHANGE-OVER VALVE F >>99-FS111 978
                    from £43.20
                    from £43.20
                    harness Genuine Porsche Part - New (to order)
