porsche 2019 (992-1) lock locking mechanism parts diagram

803-050 - lock Locking mechanism

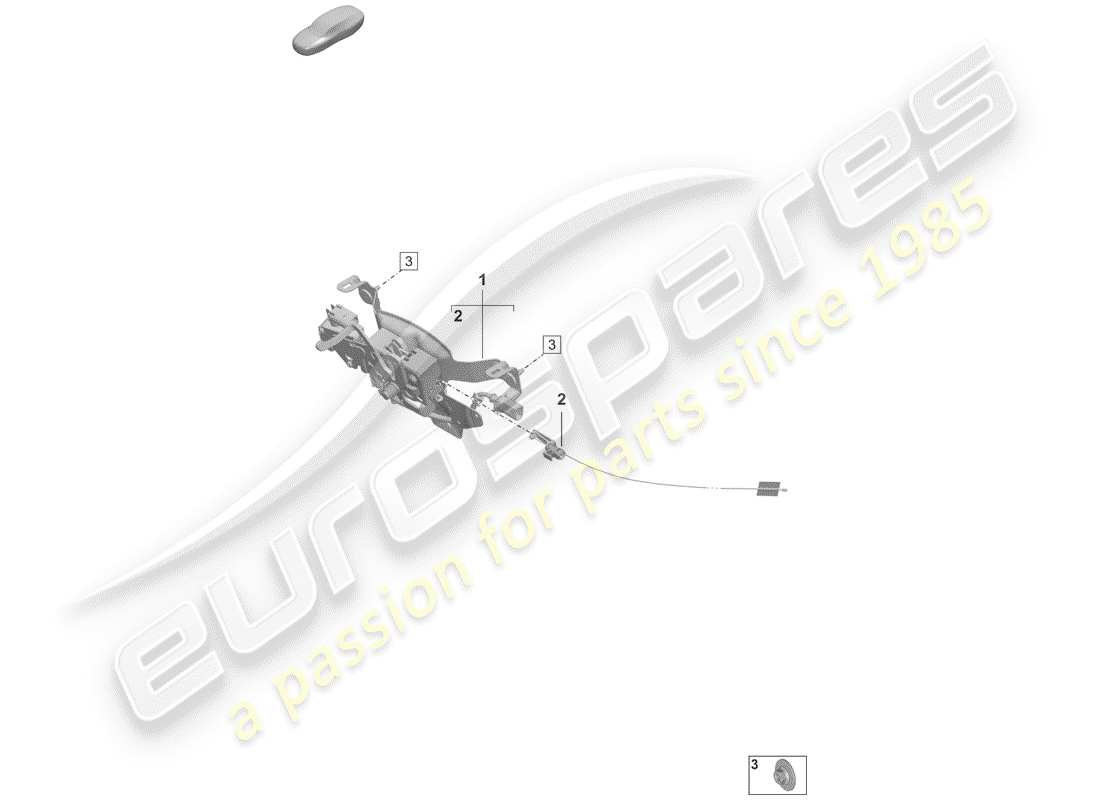

Porsche 2019 (992-1) lock Locking mechanism Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Key
              Price
              # 1
              MPN: 992 823 509 K
              LID LOCK
              LID LOCK
              LID LOCK Genuine Porsche Part - New (to order)
              # 1
              MPN: 992823509M
              LID LOCK
              from £206.11
              from £206.11
              LID LOCK Genuine Porsche Part - New (to order)
              # 1
              MPN: 992 823 509 L
              LID LOCK
              LID LOCK
              LID LOCK Genuine Porsche Part - New (to order)
              # 1
              MPN: 992823509N
              LID LOCK
              from £229.00
              from £229.00
              This part replaces part number 992823509G
              LID LOCK Genuine Porsche Part - New (to order)
              # 2
              MPN: 9P1823615
              CABLE FRONT NOT FOR THIS MODEL
              from £19.21
              from £19.21
              BOWDEN CABLE Genuine Porsche Part - New (to order)
              # 3
              MPN: PAA962627
              THROTTLE CONTROL ELEMENT FRONT
              from £73.27
              from £73.27
              THROTTLE CONTROL ELEMENT Genuine Porsche Part - New (to order)
              # 4
              MPN: PAF108333
              HEXAGON NUT M6
              from £2.14
              from £2.14
              HEX. NUT Genuine Porsche Part - New In stock
              # 5
              MPN: PAF008927
              Hexagon socket flat 5X30 head bolt
              from £4.46
              from £4.46
              HEXAGON SOCKET FLAT HEAD BOLT Genuine Porsche Part - New (to order)
              # 6
              MPN: N 0385012
              Spreader rivet 6X12
              from £0.61
              from £0.61
              RIVET Genuine Porsche Part - New (to order)
              EXPANSION RIVET A-6X12 Genuine Lamborghini - New In stock
              # 7
              MPN: PAF108387
              HEX. HD. SELF-TAP BOLT (COMBI) M6X22
              from £1.48
              from £1.48
              HEX. HD. SELF-TAP BOLT (COMBI) Genuine Porsche Part - New (to order)
