porsche 2019 (992-1) seat frame accessories sundry parts diagram

817-100 - Seat frame Accessories Sundry

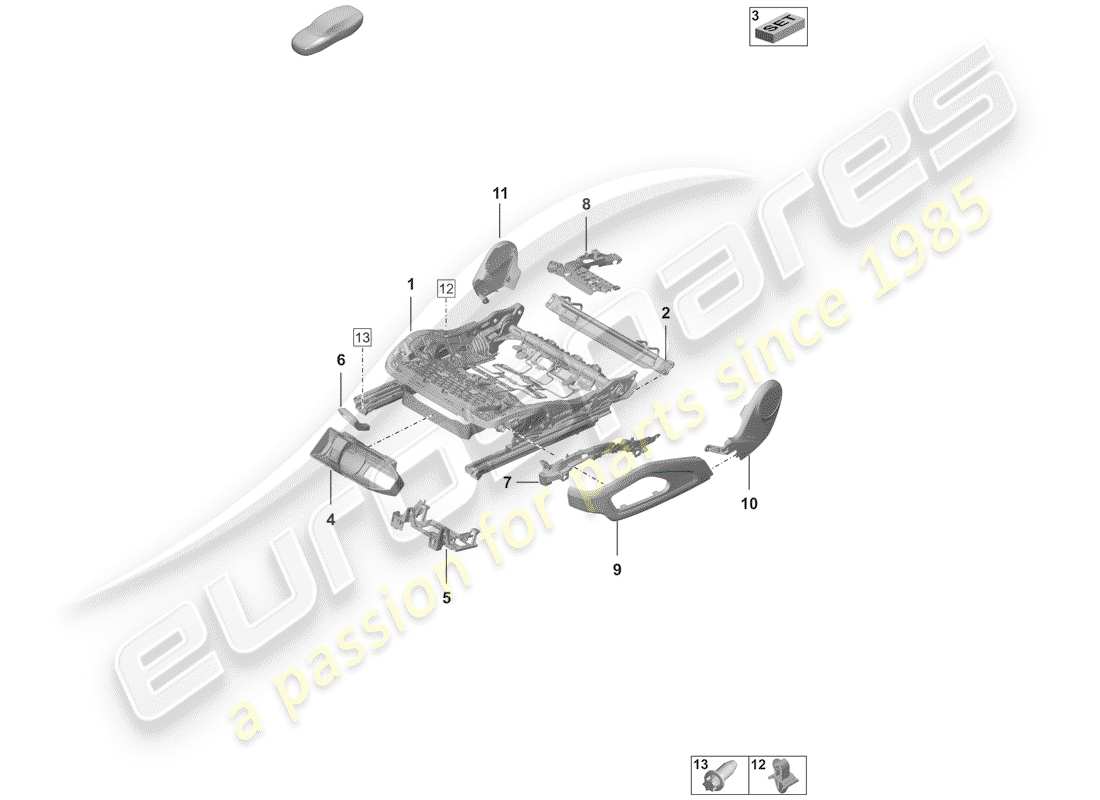

Porsche 2019 (992-1) Seat frame Accessories Sundry Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 1
          MPN: 992882025 Y
          SEAT FRAME LEFT
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting) | P4D0 (Without seat ventilation/massage seat) | P4D3 (Seat ventilation in front)
          from £710.08
          from £710.08
          seat frame Genuine Porsche Part - New (to order)
          # 1
          MPN: 992882026 Y
          SEAT FRAME RIGHT
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting) | P4D0 (Without seat ventilation/massage seat) | P4D3 (Seat ventilation in front)
          from £710.08
          from £710.08
          seat frame Genuine Porsche Part - New (to order)
          # 2
          MPN: 971881545B
          RETAINER PLATE CHILD SEAT
          P3B3 (Child seat anchors)
          from £33.79
          from £33.79
          RETAINER PLATE Genuine Porsche Part - New (to order)
          # 3
          MPN: 971881146
          1 SET ATTACHMENT PARTS FOR FIRE EXTINGUISHERS
          1 SET ATTACHMENT PARTS FOR FIRE EXTINGUISHERS
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 3
          MPN: 971881146A
          1 SET ATTACHMENT PARTS FOR FIRE EXTINGUISHERS
          P6A7 (With fire extinguisher)
          from £34.78
          from £34.78
          This part replaces part number 971881146
          1 SET ATTACHMENT PARTS Genuine Porsche Part - New In stock
          # 4
          MPN: PAB860985
          HOLDER FOR FIRE EXTINGUISHER
          P6A7 (With fire extinguisher)
          from £117.34
          from £117.34
          BRACKET - FIRE EXTINGUISHER Genuine Porsche Part - New (to order)
          # 5
          MPN: 992881547
          RETAINER FOR CONTROL UNIT
          P3L0 (Without special seat adjustment)
          from £22.37
          from £22.37
          BRACKET FOR ELEC.CONTR. MODULE Genuine Porsche Part - New (to order)
          # 7
          MPN: 971881507
          BRACKET LEFT TRIM FOR SWITCH
          BRACKET LEFT TRIM FOR SWITCH
          from £15.48
          from £15.48
          BRACKET Genuine Porsche Part - New (to order)
          # 7
          MPN: 971881507A
          BRACKET LEFT TRIM FOR SWITCH
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £22.03
          from £22.03
          BRACKET Genuine Porsche Part - New (to order)
          # 7
          MPN: 971881508
          BRACKET RIGHT TRIM FOR SWITCH
          BRACKET RIGHT TRIM FOR SWITCH
          Supersession
          Supersession
          Genuine Porsche Part (no longer available to order)
          # 7
          MPN: 971881508A
          BRACKET RIGHT TRIM FOR SWITCH
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £22.03
          from £22.03
          This part replaces part number 971881508
          BRACKET Genuine Porsche Part - New (to order)
          # 8
          MPN: 971881744
          CABLE GUIDE
          CABLE GUIDE
          from £11.02
          from £11.02
          WIRING CONDUIT Genuine Porsche Part - New (to order)
          # 8
          MPN: 971881744A
          CABLE GUIDE
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £14.93
          from £14.93
          CABLE GUIDE Genuine Porsche Part - New (to order)
          # 9
          MPN: 992882523 OS8
          SEAT FRAME TRIM LEFT - DARK SILVER
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £78.98
          from £78.98
          This part replaces part number 992882523
          TRIM PANEL FOR SEAT FRAME Dark silver Genuine Porsche Part - New (to order)
          # 9
          MPN: 992882524 OS8
          SEAT FRAME TRIM RIGHT - DARK SILVER
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £78.98
          from £78.98
          This part replaces part number 992882524
          TRIM PANEL FOR SEAT FRAME Dark silver Genuine Porsche Part - New (to order)
          # 10
          MPN: 992881607 OS8
          COVER CAP FOR FOLDING SEATBACK OUTER FITTING SEAT FRAME LEFT - DARK SILVER
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £59.75
          from £59.75
          This part replaces part number 992881607
          DARK SILVER Genuine Porsche Part - New (to order)
          # 10
          MPN: 992881608 OS8
          COVER CAP FOR FOLDING SEATBACK OUTER FITTING SEAT FRAME RIGHT - DARK SILVER
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £59.75
          from £59.75
          This part replaces part number 992881608
          DARK SILVER Genuine Porsche Part - New (to order)
          # 11
          MPN: 992881457 OS8
          COVER CAP FOR FOLDING SEATBACK INNER FITTING SEAT FRAME LEFT - DARK SILVER
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £56.54
          from £56.54
          This part replaces part number 992881457
          DARK SILVER Genuine Porsche Part - New (to order)
          # 11
          MPN: 992881458 OS8
          COVER CAP FOR FOLDING SEATBACK INNER FITTING SEAT FRAME RIGHT - DARK SILVER
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £56.54
          from £56.54
          This part replaces part number 992881458
          DARK SILVER Genuine Porsche Part - New (to order)
          # 12
          MPN: 971881280
          CLIP
          from £0.82
          from £0.82
          CLIP Genuine Porsche Part - New (to order)
          # 13
          MPN: 9A700748300
          HEXAGON HEAD BOLT M10X28 D >>- 23.11.2022
          from £2.29
          from £2.29
          HEXAGON HEAD BOLT Genuine Porsche Part - New (to order)
          # 13
          MPN: PAF011175
          Screw with int. serrations D - 24.11.2022>>
          from £2.68
          from £2.68
          SCREW WITH INT. SERRATIONS Genuine Porsche Part - New (to order)
          # 14
          MPN: 992881479 1E0
          COVER CAP LEFT FOR SEAT RAIL - BLACK
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £25.10
          from £25.10
          This part replaces part number 992881479
          Black Genuine Porsche Part - New (to order)
          # 14
          MPN: 992881480 1E0
          Cover cap right for Seat rail - Black
          PQ4Q (Sports front seats) | PQ5A (Standard seats in front with modified seat mounting)
          from £10.59
          from £10.59
          This part replaces part number 992881480
          Black Genuine Porsche Part - New (to order)
          # 15
          MPN: 992898054A
          SUNDRY PARTS SET SEAT
          from £90.14
          from £90.14
          SUNDRY PARTS SET Genuine Porsche Part - New (to order)
          # 16
          MPN: 971998205A
          SEAT POSITION SENSOR REPAIR SET
          from £255.06
          from £255.06
          SEAT POSITION SENSOR Genuine Porsche Part - New (to order)
