P3FD (Tilting and sliding sunroof, powered)
porsche 2022 (992-1) sliding/tilting roof parts diagram

811-000 - sliding/tilting roof

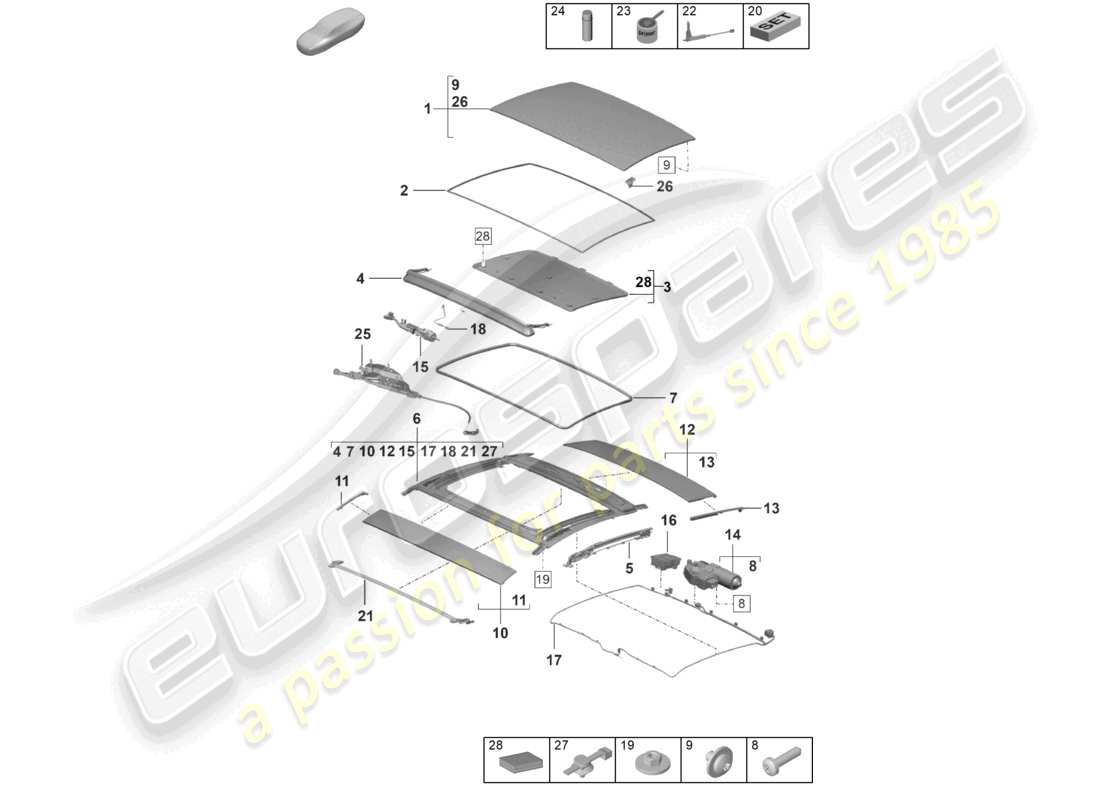

Porsche 2022 (992-1) Sliding/tilting roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Key
                                                    Price
                                                    # 1
                                                    MPN: 9P1898515 GRV
                                                    COVER SLIDING/TILTING ROOF WITH: 1 SET SECURING BOLTS - PRIMED
                                                    from £405.70
                                                    from £405.70
                                                    This part replaces part number 9P1898515
                                                    PRIMED Genuine Porsche Part - New (to order)
                                                    # 2
                                                    MPN: 9P1898522
                                                    SEAL FOR COVER
                                                    from £75.62
                                                    from £75.62
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519 OX6
                                                    MOULDED HEADLINER FOR SLIDING ALCANTARA ROOF COVER AND FASTENERS D >>- 10.01.2021 - AGAVE GREEN -HP,HL
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £579.23
                                                    from £579.23
                                                    This part replaces part number 9P1898519
                                                    AGAVE GREEN Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519 OS1
                                                    MOULDED HEADLINER FOR SLIDING ALCANTARA ROOF COVER AND FASTENERS D >>- 10.01.2021 - TRUFFLE BROWN -HF,HB
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £587.40
                                                    from £587.40
                                                    This part replaces part number 9P1898519
                                                    TRUFFLE BROWN Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519 OH7
                                                    MOULDED HEADLINER FOR SLIDING ALCANTARA ROOF COVER AND FASTENERS D >>- 10.01.2021 - GRAPHITE BLUE -FU,KF,
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £579.23
                                                    from £579.23
                                                    This part replaces part number 9P1898519
                                                    GRAPHITE BLUE Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519 OU6
                                                    MOULDED HEADLINER FOR SLIDING ALCANTARA ROOF COVER AND FASTENERS D >>- 10.01.2021 - SLATE GREY -DE,DH,DP,PD, DU,KD,BD,
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £579.23
                                                    from £579.23
                                                    This part replaces part number 9P1898519
                                                    SLATE GREY Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519 2W0
                                                    MOULDED HEADLINER FOR SLIDING ALCANTARA ROOF COVER AND FASTENERS D >>- 10.01.2021 - BLACK -AE,JE,AH,JH, AP,JP,PA,AU, KA,LU,KL,TA, TK,BN,BJ,BO,
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £601.23
                                                    from £601.23
                                                    This part replaces part number 9P1898519
                                                    Black Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519B OH7
                                                    MOULDED HEADLINER FOR SLIDING MICROFIBRE ROOF COVER ALSO USE: 1X 9P1.898.550 D - 11.01.2021>>- GRAPHITE BLUE -FU,KF,XF,
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £562.15
                                                    from £562.15
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519B OS1
                                                    MOULDED HEADLINER FOR SLIDING MICROFIBRE ROOF COVER ALSO USE: 1X 9P1.898.550 D - 11.01.2021>>- TRUFFLE BROWN -HF,HB
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £562.15
                                                    from £562.15
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519B OU6
                                                    MOULDED HEADLINER FOR SLIDING MICROFIBRE ROOF COVER ALSO USE: 1X 9P1.898.550 D - 11.01.2021>>- SLATE GREY -DE,DH,DP,PD, DU,KD,BD,
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £562.15
                                                    from £562.15
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519B OX6
                                                    MOULDED HEADLINER FOR SLIDING MICROFIBRE ROOF COVER ALSO USE: 1X 9P1.898.550 D - 11.01.2021>>- AGAVE GREEN -HP,HL
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £562.15
                                                    from £562.15
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519B OX7
                                                    MOULDED HEADLINER FOR SLIDING MICROFIBRE ROOF COVER ALSO USE: 1X 9P1.898.550 D - 11.01.2021>>- BLACK -WA,WD,WR,YA, YD,YR,AE,JE, AH,JH,AP,JP, PA,AU,KA,LU, KL,TA,TK,BN, BJ,BO,ZS,ZU, EC,EK,50,GH, GI,GL,GM,GS, GU,
                                                    P6NA (Unsplit molded headliner) | P6NN (Molded headliner Carbon fibre skin )
                                                    from £579.23
                                                    from £579.23
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519A OH7
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Graphite Blue -FU,KF,
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Graphite Blue -FU,KF,
                                                    from £523.06
                                                    from £523.06
                                                    This part replaces part number 9P1898519A
                                                    GRAPHITE BLUE Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519A OS1
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Truffle Brown -HF,HB
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Truffle Brown -HF,HB
                                                    from £523.06
                                                    from £523.06
                                                    This part replaces part number 9P1898519A
                                                    TRUFFLE BROWN Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519A OU6
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Slate grey -DE,DH,DP,PD, DU,KD,BD,
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Slate grey -DE,DH,DP,PD, DU,KD,BD,
                                                    from £523.06
                                                    from £523.06
                                                    This part replaces part number 9P1898519A
                                                    SLATE GREY Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519A OX6
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Agave green -HP,HL
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Agave green -HP,HL
                                                    from £523.06
                                                    from £523.06
                                                    This part replaces part number 9P1898519A
                                                    AGAVE GREEN Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519A OL4
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Black -AE,JE,AH,JH, AP,JP,PA,AU, KA,LU,KL,TA, TK,BN,BJ,BO,
                                                    Moulded headliner for sliding cloth roof cover and Fasteners - Black -AE,JE,AH,JH, AP,JP,PA,AU, KA,LU,KL,TA, TK,BN,BJ,BO,
                                                    from £516.01
                                                    from £516.01
                                                    This part replaces part number 9P1898519A
                                                    Black Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519C OH7
                                                    MOULDED HEADLINER FOR SLIDING CLOTH ROOF COVER ALSO USE: 1X 9P1.898.550 - GRAPHITE BLUE -FU,KF,
                                                    P6NJ (Standard molded headliner) | P6NQ (Standard molded headliner)
                                                    from £579.23
                                                    from £579.23
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519C OS1
                                                    MOULDED HEADLINER FOR SLIDING CLOTH ROOF COVER ALSO USE: 1X 9P1.898.550 - TRUFFLE BROWN -HF,HB
                                                    P6NJ (Standard molded headliner) | P6NQ (Standard molded headliner)
                                                    from £579.23
                                                    from £579.23
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519C OU6
                                                    MOULDED HEADLINER FOR SLIDING CLOTH ROOF COVER ALSO USE: 1X 9P1.898.550 - SLATE GREY -DE,DH,DP,PD, DU,KD,BD,
                                                    P6NJ (Standard molded headliner) | P6NQ (Standard molded headliner)
                                                    from £579.23
                                                    from £579.23
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519C OX6
                                                    MOULDED HEADLINER FOR SLIDING CLOTH ROOF COVER ALSO USE: 1X 9P1.898.550 - AGAVE GREEN -HP,HL
                                                    P6NJ (Standard molded headliner) | P6NQ (Standard molded headliner)
                                                    from £579.23
                                                    from £579.23
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 3
                                                    MPN: 9P1898519C OL4
                                                    MOULDED HEADLINER FOR SLIDING CLOTH ROOF COVER ALSO USE: 1X 9P1.898.550 - BLACK -AE,JE,AH,JH, AP,JP,PA,AU, KA,LU,KL,TA, TK,BN,BJ,BO, WA,WD,WR,YA, YD,YR,ZS,ZU, EC,EK,GH,GI, GL,GM,GS,GU, 23,
                                                    P6NJ (Standard molded headliner) | P6NQ (Standard molded headliner)
                                                    from £579.23
                                                    from £579.23
                                                    MOULDED HEADLINER FOR SLIDING ROOF COVER Genuine Porsche Part - New (to order)
                                                    # 4
                                                    MPN: 9P1898511
                                                    WIND DEFLECTOR (COMPLETE) WITH: FASTENERS
                                                    from £243.33
                                                    from £243.33
                                                    This part replaces part number 99156616100
                                                    WIND DEFLECTOR Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 9P1898517
                                                    GUIDE RAIL LEFT WITH: GATE GUIDE (COMPLETE)
                                                    from £541.88
                                                    from £541.88
                                                    TRACK Genuine Porsche Part - New (to order)
                                                    # 5
                                                    MPN: 9P1898518
                                                    GUIDE RAIL RIGHT WITH: GATE GUIDE (COMPLETE)
                                                    from £541.88
                                                    from £541.88
                                                    TRACK Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 992898512
                                                    FRAME FOR SLIDING SUNROOF APERTURE ALSO USE: 2x 95560683800 CABLE TIES
                                                    FRAME FOR SLIDING SUNROOF APERTURE ALSO USE: 2x 95560683800 CABLE TIES
                                                    from £2,373.53
                                                    from £2,373.53
                                                    FRAME FOR SLIDING SUNROOF APERTURE Genuine Porsche Part - New (to order)
                                                    # 6
                                                    MPN: 992898512 Y
                                                    FRAME FOR SLIDING SUNROOF APERTURE ALSO USE: 2x 95560683800 CABLE TIES
                                                    from £2,816.28
                                                    from £2,816.28
                                                    FRAME FOR SLIDING SUNROOF APERTURE Genuine Porsche Part - New (to order)
                                                    # 7
                                                    MPN: 9P1877441
                                                    SEAL FRAME USE IF REQUIRED: 1X 00004330572 BASE PAINT
                                                    from £87.23
                                                    from £87.23
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 8
                                                    MPN: 8K9898057B
                                                    1 SET OF ATTACHMENT PARTS FOR FRONT AND REAR SLIDING ROOF MOTOR
                                                    from £16.01
                                                    from £16.01
                                                    1 SET OF ATTACHMENT PARTS FOR Genuine Porsche Part - New (to order)
                                                    # 9
                                                    MPN: 9P1898549
                                                    1 SET SECURING BOLTS COVER
                                                    from £40.34
                                                    from £40.34
                                                    1 SET SECURING BOLTS Genuine Porsche Part - New (to order)
                                                    # 10
                                                    MPN: 9P1898513 GRV
                                                    TRIM FRONT WITH: SEAL - PRIMED
                                                    from £365.04
                                                    from £365.04
                                                    This part replaces part number 9P1898513
                                                    PRIMED Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: 9P1877439
                                                    SEAL LEFT FRONT TRIM
                                                    from £64.81
                                                    from £64.81
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 11
                                                    MPN: 9P1877440
                                                    Seal right front Trim
                                                    from £64.81
                                                    from £64.81
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 12
                                                    MPN: 9P1898514 GRV
                                                    Trim rear with: Seal - primed
                                                    from £405.70
                                                    from £405.70
                                                    This part replaces part number 9P1898514
                                                    PRIMED Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: 9P1877459
                                                    SEAL LEFT REAR TRIM
                                                    from £89.39
                                                    from £89.39
                                                    This part replaces part number 99156692700
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 13
                                                    MPN: 9P1877460
                                                    SEAL RIGHT REAR TRIM
                                                    from £89.39
                                                    from £89.39
                                                    This part replaces part number 99156692800
                                                    GASKET Genuine Porsche Part - New (to order)
                                                    # 14
                                                    MPN: 992898501
                                                    SLIDING ROOF MOTOR COVER WITH: FASTENERS
                                                    from £445.88
                                                    from £445.88
                                                    SLIDING ROOF MOTOR Genuine Porsche Part - New (to order)
                                                    # 15
                                                    MPN: 992898501B
                                                    REPAIR KIT FOR DRIVE UNIT WIND DEFLECTOR
                                                    from £324.98
                                                    from £324.98
                                                    REPAIR KIT FOR DRIVE Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 9P1959700
                                                    CONTROL UNIT WIND DEFLECTOR
                                                    P1BH (Suspension/shock absorption, standard 2) | P2D0 (Without cd enhancing underbody panel) | P2D1 (Complete cd enhancing underbody panel) | P2D4 (Cd-enhancing paneling) | P2D5 (Cd-enhancing paneling)
                                                    from £346.78
                                                    from £346.78
                                                    electronic control module Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 9P1959700A
                                                    CONTROL UNIT WIND DEFLECTOR
                                                    P1BH (Suspension/shock absorption, standard 2) | PVM2 (Cd-enhancing paneling) | PVM3 (Cd-enhancing paneling)
                                                    from £346.78
                                                    from £346.78
                                                    electronic control module Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: 9P1959700A
                                                    CONTROL UNIT WIND DEFLECTOR
                                                    P1BV (Sports suspension/shock absorption)
                                                    from £346.78
                                                    from £346.78
                                                    electronic control module Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: PAA907594
                                                    CONTROL UNIT FOR ELECTRIC SLIDING SUNROOF CONTROLS D >>- 16.11.2023
                                                    from £138.82
                                                    from £138.82
                                                    CTRL UNIT Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: PAA907594
                                                    CONTROL UNIT FOR ELECTRIC SLIDING SUNROOF CONTROLS D - 17.11.2023>>D >>- 30.01.2024
                                                    PIY1 (Model year period 1)
                                                    from £138.82
                                                    from £138.82
                                                    CTRL UNIT Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: PAB907594B
                                                    CONTROL UNIT FOR ELECTRIC SLIDING SUNROOF CONTROLS D - 17.11.2023>>D >>- 30.01.2024
                                                    PIY2 (Model year period 2)
                                                    from £240.54
                                                    from £240.54
                                                    CTRL UNIT Genuine Porsche Part - New (to order)
                                                    # 16
                                                    MPN: PAB907594B
                                                    CONTROL UNIT FOR ELECTRIC SLIDING SUNROOF CONTROLS D - 31.01.2024>>
                                                    from £240.54
                                                    from £240.54
                                                    CTRL UNIT Genuine Porsche Part - New (to order)
                                                    # 17
                                                    MPN: 992971648A
                                                    WIRE SET ALSO USE: 2X 955 606 838 00 CABLE TIES
                                                    from £165.41
                                                    from £165.41
                                                    harness Genuine Porsche Part - New (to order)
                                                    # 18
                                                    MPN: 9P1898501
                                                    REPAIR SET PULL CABLE GUIDE WIND DEFLECTOR
                                                    from £60.67
                                                    from £60.67
                                                    repair kit Genuine Porsche Part - New (to order)
                                                    # 19
                                                    MPN: N 90570802
                                                    HEX. NUT WITH WASHER M6 FRAME
                                                    from £0.96
                                                    from £0.96
                                                    HEX. NUT WITH WASHER Genuine Porsche Part - New (to order)
                                                    HEX. NUT WITH WASHER Genuine Bentley Part - New (to order)
                                                    # 20
                                                    MPN: 00004330535
                                                    2K PANE ADHESIVE SET
                                                    from £142.35
                                                    from £142.35
                                                    This part replaces part number 00004330094
                                                    2K-glass GLUE APPLICATION SET Genuine Porsche Part - New In stock
                                                    # 20
                                                    MPN: 00004330535
                                                    2K PANE ADHESIVE SET SEE ILLUSTRATION: 805-003
                                                    from £142.35
                                                    from £142.35
                                                    This part replaces part number 00004330094
                                                    2K-glass GLUE APPLICATION SET Genuine Porsche Part - New In stock
                                                    # 21
                                                    MPN: 9P1898521
                                                    TRANSVERSE STRUT AND FASTENERS
                                                    from £80.97
                                                    from £80.97
                                                    TRANSVERSE STRUT Genuine Porsche Part - New (to order)
                                                    # 22
                                                    -
                                                    CRANK EMERGENCY OPERATION SEE ILLUSTRATION: 001-000
                                                    # 23
                                                    MPN: 00004330572
                                                    PRIMER FOR SEAL
                                                    from £58.20
                                                    from £58.20
                                                    PRIMER Genuine Porsche Part - New (to order)
                                                    # 24
                                                    MPN: N 052567GB
                                                    SPECIAL LUBRICANT 100ML SPRAY CAN
                                                    Supersession
                                                    Supersession
                                                    Genuine Porsche Part (no longer available to order)
                                                    # 25
                                                    MPN: 9P1898540
                                                    REPAIR SET LOCKING MECHANISM
                                                    from £217.80
                                                    from £217.80
                                                    repair kit Genuine Porsche Part - New (to order)
                                                    # 26
                                                    MPN: 9P1898220
                                                    REPAIR SET STARTING WEDGE FOR WIND DEFLECTOR
                                                    from £32.02
                                                    from £32.02
                                                    repair kit Genuine Porsche Part - New (to order)
                                                    # 27
                                                    MPN: 95560683800
                                                    CABLE TIES WITH: PLUG-IN PART
                                                    from £0.88
                                                    from £0.88
                                                    This part replaces part number N 90666101
                                                    TIE WRAP Genuine Porsche Part - New (to order)
                                                    # 28
                                                    MPN: 9P1898550
                                                    FASTENERS FOR MOULDED HEADLINER
                                                    from £20.33
                                                    from £20.33
                                                    fasteners Genuine Porsche Part - New (to order)
