porsche 2022 (992-1 gt3/rs/st) chain tensioner timing chain parts diagram

103-110 - chain tensioner timing chain

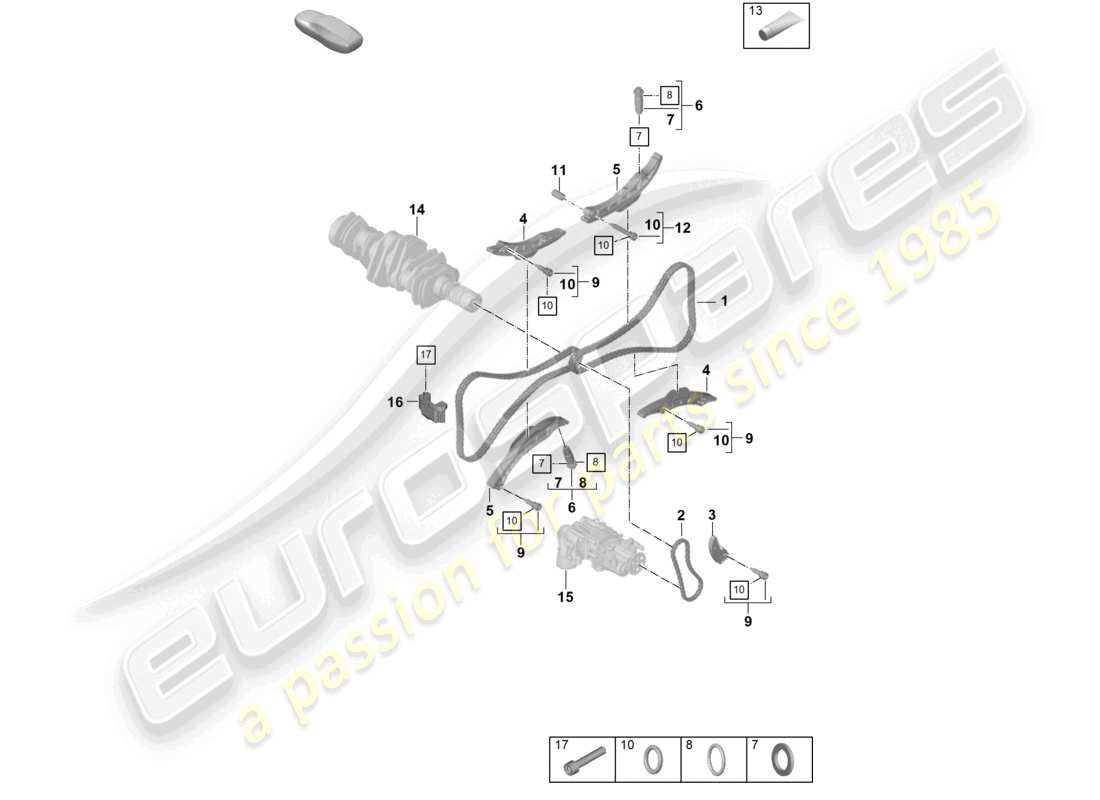

Porsche 2022 (992-1 GT3/RS/ST) chain tensioner timing chain Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 1
                                  MPN: 0PB109252C
                                  TIMING CHAIN CAMSHAFT CRANKSHAFT
                                  from £169.34
                                  from £169.34
                                  TIMING CHAIN Genuine Porsche Part - New (to order)
                                  # 2
                                  MPN: 0PB109229B
                                  TIMING CHAIN OIL PUMP CRANKSHAFT
                                  from £52.35
                                  from £52.35
                                  TIMING CHAIN Genuine Porsche Part - New (to order)
                                  # 3
                                  MPN: 0PB109508A
                                  TENSIONER BLADE
                                  from £19.43
                                  from £19.43
                                  TENSIONER BLADE Genuine Porsche Part - New (to order)
                                  # 4
                                  MPN: 0PB109513A
                                  SLIDE RAIL
                                  from £24.35
                                  from £24.35
                                  SLIDE RAIL Genuine Porsche Part - New (to order)
                                  # 5
                                  MPN: 0PB109509A
                                  TENSIONER BLADE
                                  from £22.79
                                  from £22.79
                                  TENSIONER BLADE Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 0PB109507A
                                  CHAIN TENSIONER
                                  CHAIN TENSIONER
                                  from £63.07
                                  from £63.07
                                  CHAIN TENSIONER Genuine Porsche Part - New (to order)
                                  # 6
                                  MPN: 0PB109507C
                                  CHAIN TENSIONER
                                  from £69.01
                                  from £69.01
                                  This part replaces part number 9A110515702 - and 1 more. Click to view details
                                  CHAIN TENSIONER Genuine Porsche Part - New (to order)
                                  # 7
                                  MPN: N 0138277

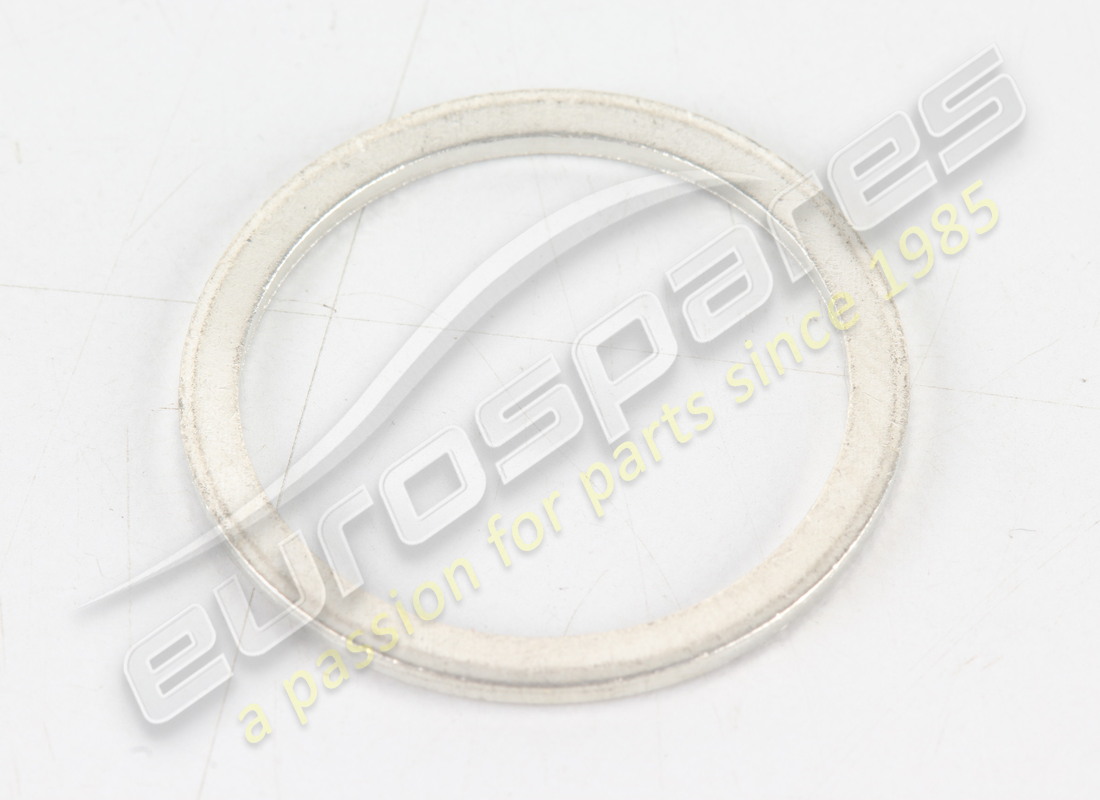

                                  SEAL RING 22X27
                                  from £1.67
                                  from £1.67
                                  SEAL RING Genuine Porsche Part - New In stock
                                  # 8
                                  MPN: PAF008646
                                  O-RING 20,00X1,30 CHAIN TENSIONER
                                  from £7.43
                                  from £7.43
                                  O-RING Genuine Porsche Part - New (to order)
                                  # 9
                                  MPN: 9A700836500
                                  SOCKET HEAD BOLT TENSIONER BLADE
                                  from £9.07
                                  from £9.07
                                  SCREW, CHEESE HD Genuine Porsche Part - New In stock
                                  # 10
                                  MPN: PAF008261

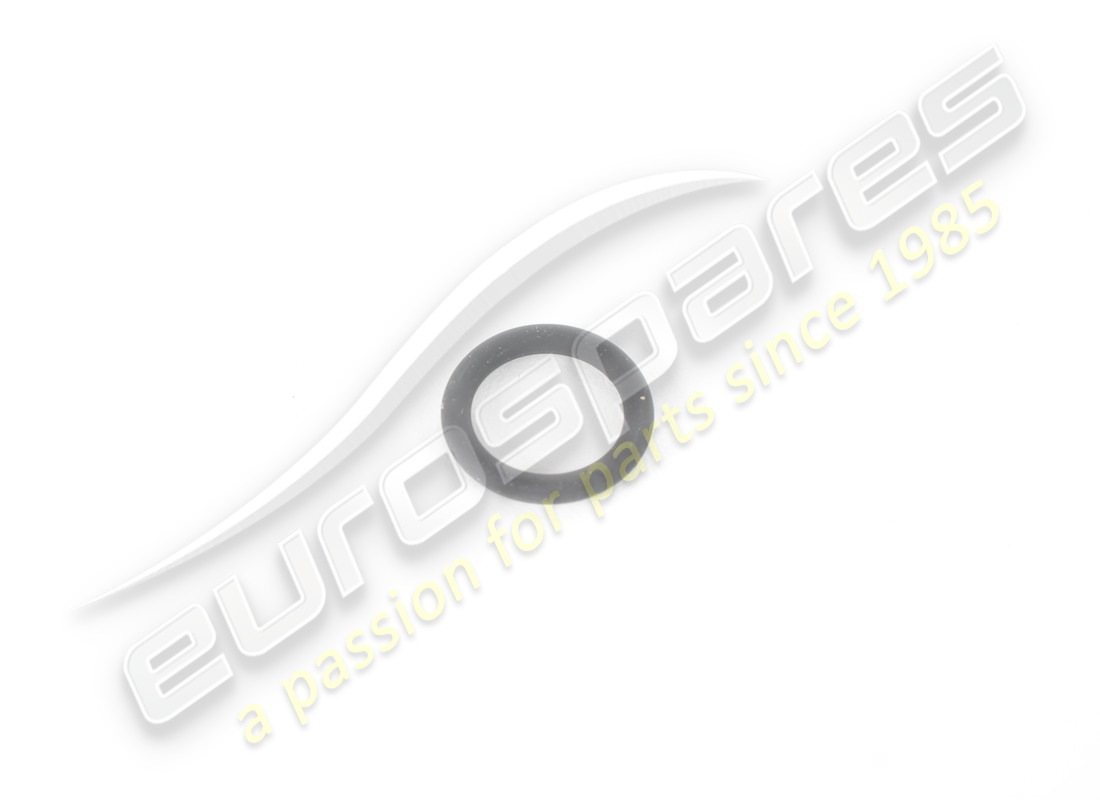

                                  O-RING 15,00X3,00
                                  from £2.29
                                  from £2.29
                                  This part replaces part number 99970734640
                                  O-RING Genuine Porsche Part - New In stock
                                  # 11
                                  MPN: 9A700829800
                                  SPACER SLEEVE
                                  from £11.36
                                  from £11.36
                                  SPACER SLEEVE Genuine Porsche Part - New (to order)
                                  # 12
                                  MPN: 9A700836600
                                  BOLT WITH WASHER M6X10.8X71,5
                                  from £9.78
                                  from £9.78
                                  BOLT WITH WASHER Genuine Porsche Part - New (to order)
                                  # 13
                                  -
                                  ** VERSION BEING PREPARED **
                                  # 14
                                  -
                                  CRANKSHAFT SEE ILLUSTRATION: 102-000
                                  # 15
                                  -
                                  OIL PUMP SEE ILLUSTRATION: 104-000
                                  # 16
                                  MPN: 9GT 103 769
                                  INSERT PART CYLINDERS 1-3 D - 28.09.2022>>
                                  INSERT PART CYLINDERS 1-3 D - 28.09.2022>> Genuine Porsche Part - New (to order)
                                  # 17
                                  MPN: PAF008885
                                  TORX M6X30 SOCKET HEAD BOLT D - 28.09.2022>>
                                  from £0.65
                                  from £0.65
                                  TORX SOCKET HEAD BOLT Genuine Porsche Part - New (to order)
